1.54" e-Paper Display (G) - Red/Yellow/Black/White (200x200)

WaveshareSKU: WAV-30475
Price:
Sale price £10.60
incl. VAT
excl. VAT
Stock:
Only 7 units left
Quantity:

Compatible with:

Awesome Extras

Raspberry Pi Zero 2 W by Raspberry Pi - The Pi HutRaspberry Pi Zero 2 W by Raspberry Pi - The Pi Hut
Raspberry PiRaspberry Pi Zero 2 W
Sale priceFrom £14.40 incl. VAT excl. VAT
Raspberry Pi 5 by Raspberry Pi - The Pi HutRaspberry Pi 5 by Raspberry Pi - The Pi Hut
Raspberry PiRaspberry Pi 5
Sale priceFrom £48 incl. VAT excl. VAT
Arduino Nano Every (With Headers) by Arduino - The Pi HutArduino Nano Every (With Headers) by Arduino - The Pi Hut
ArduinoArduino Nano Every (With Headers)
Sale price £13.10 incl. VAT excl. VAT
Arduino UNO R4 Minima by Arduino - The Pi HutArduino UNO R4 Minima by Arduino - The Pi Hut
ArduinoArduino UNO R4 Minima
Sale price £18 incl. VAT excl. VAT
Waveshare ESP32-S3 Development Board (with Headers) by Waveshare - The Pi HutWaveshare ESP32-S3 Development Board (with Headers) by Waveshare - The Pi Hut
WaveshareWaveshare ESP32-S3 Development Board (with Headers)
Sale price £11.80 incl. VAT excl. VAT

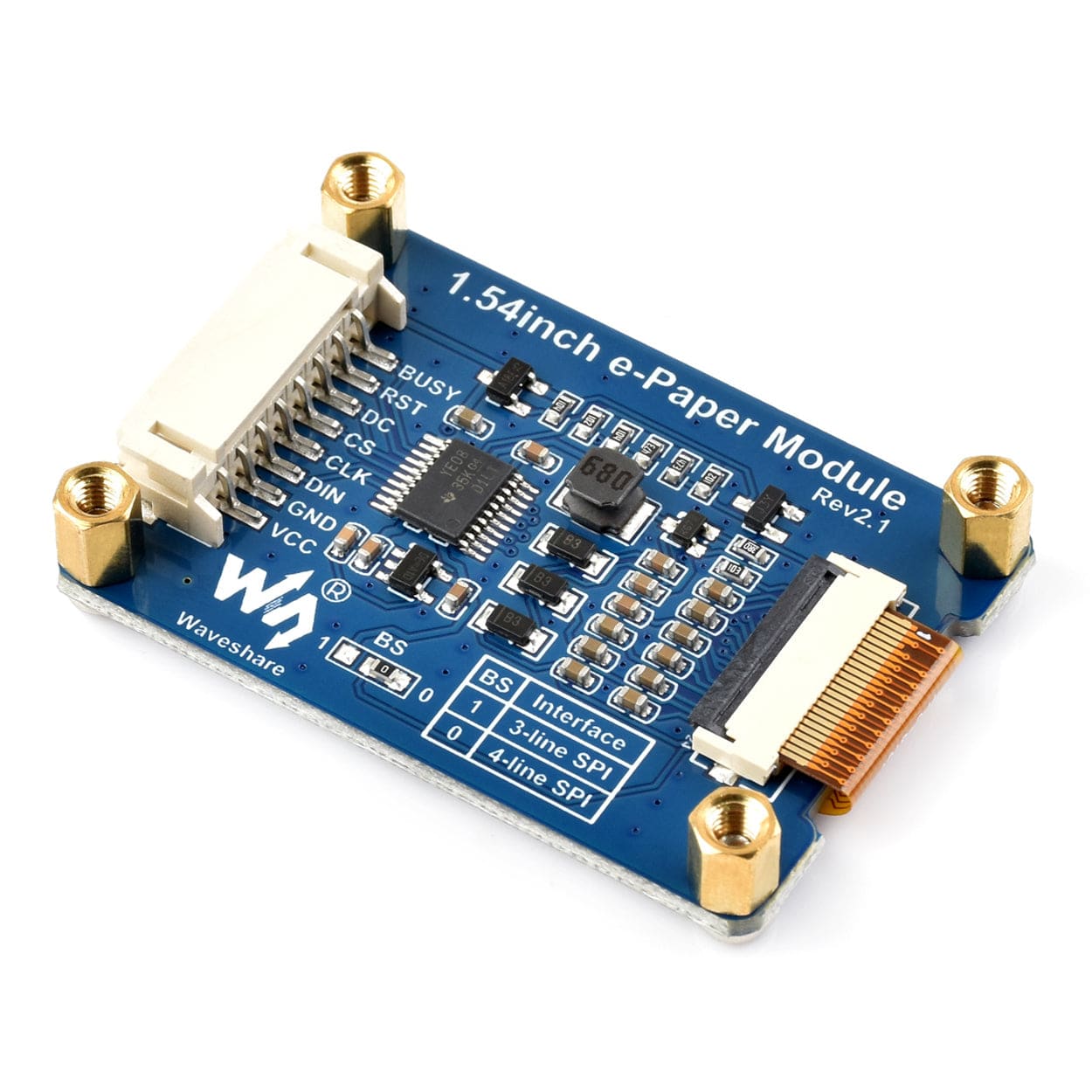

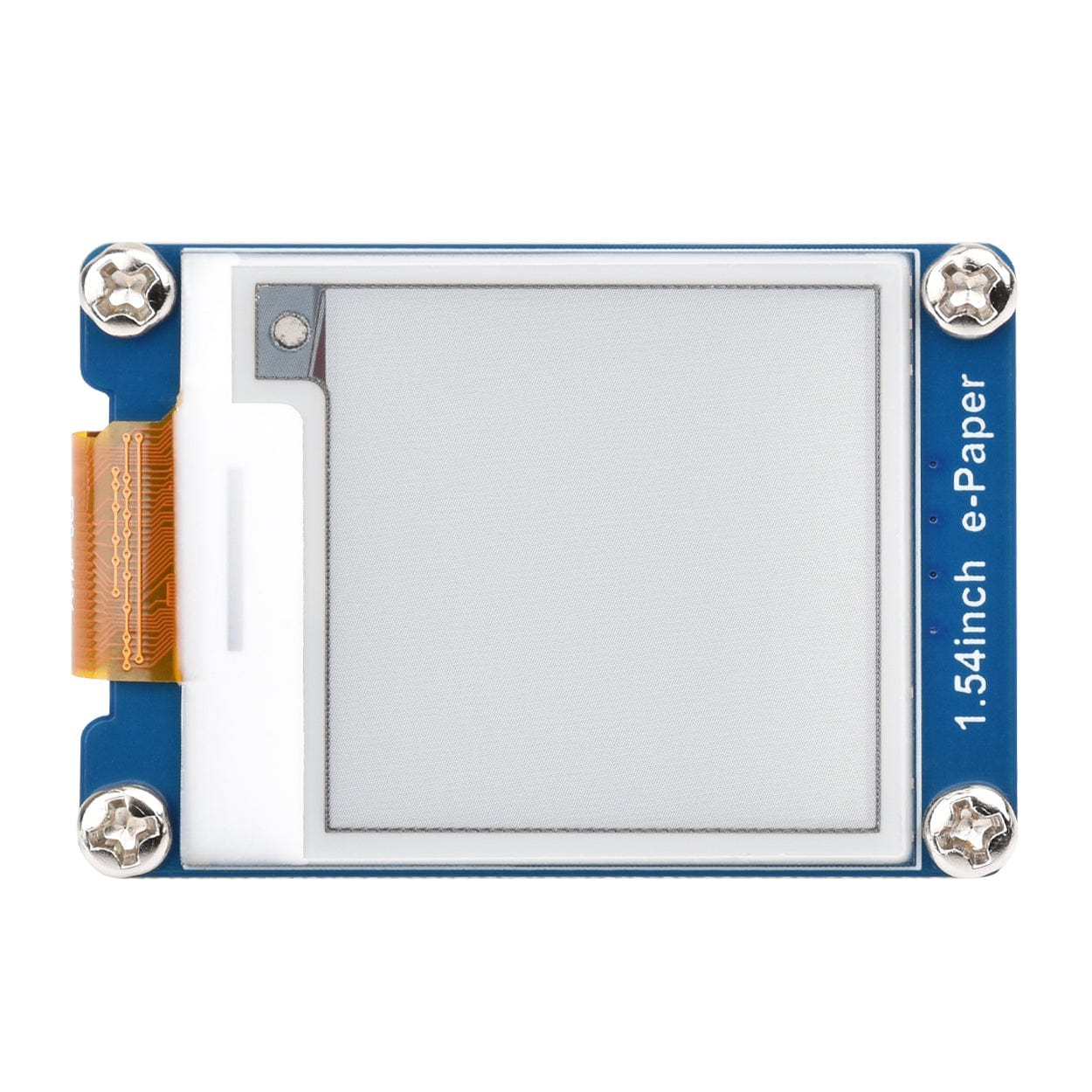

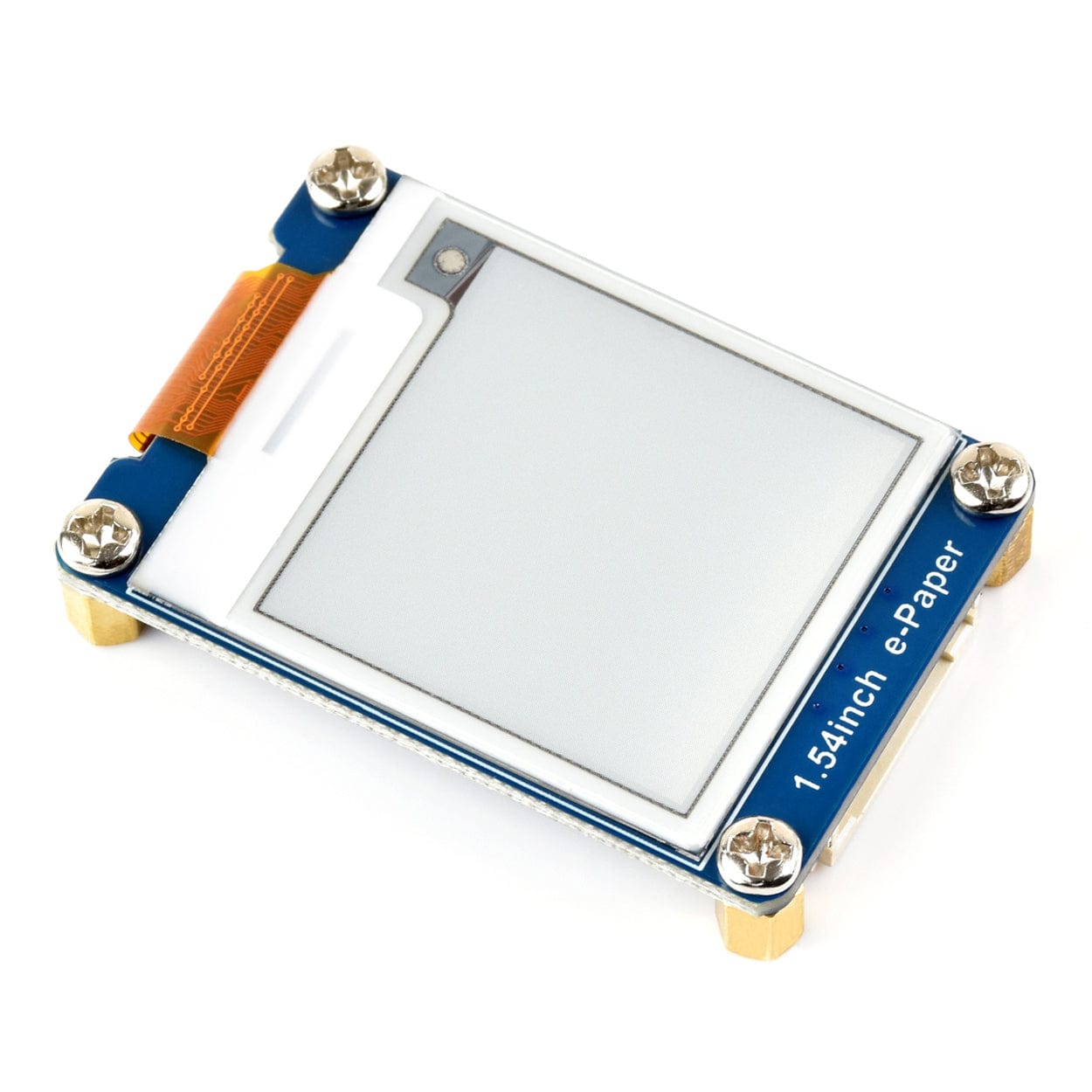

This mini 1.54" e-Paper display module has a 200x200 resolution, offers red/yellow/black/white colours, and is driven via SPI communication, with demo code available for Raspberry Pi, Arduino, ESP32 and more.

The overall module measures just 48mm x 33mm, making this great for compact projects, whilst the onboard voltage translator means it's compatible with both 3.3V and 5V development boards.

Like most e-Paper modules, this is ultra-low-power, essentially only requiring power when refreshing display contents. On standby, it consumes <0.01uA (almost nothing), and when refreshing, it uses <30mW. Fast refresh time is 15 seconds, whilst standard refresh takes 20 seconds.

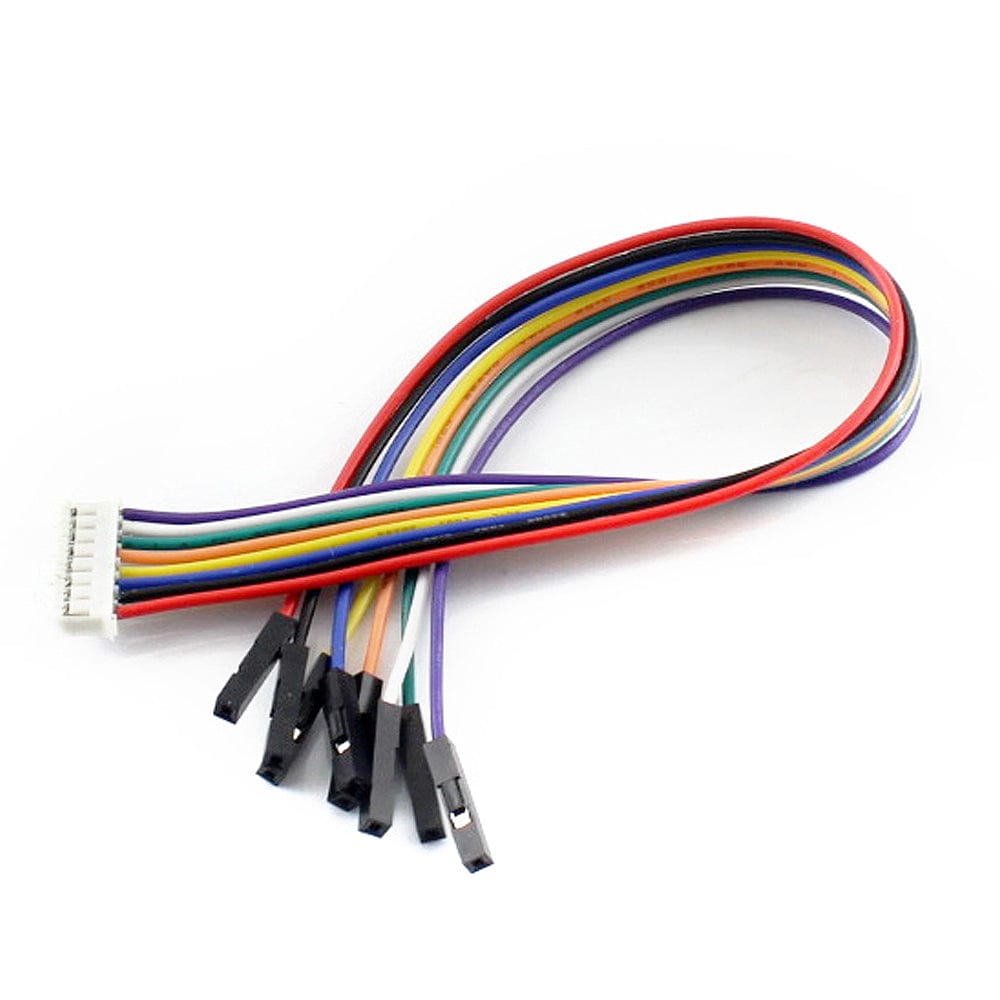

The display comes with a PH2.0 8-pin cable to connect directly to your microcontroller's (male) pins.

Important Notes

  • Waveshare recommends at least 180 seconds between refreshes, and at least refreshed every 24 hours minimum.
  • Partial refresh is supported, however, please check the notes on the product wiki, as a full refresh is required periodically.
  • The screen cannot be left powered on for a long time. When the screen is not refreshed, the screen must be set to sleep mode or power off, or you may damage the module.
  • There may be a slight colour difference between batches.

Features

  • 1.54" e-Paper display module

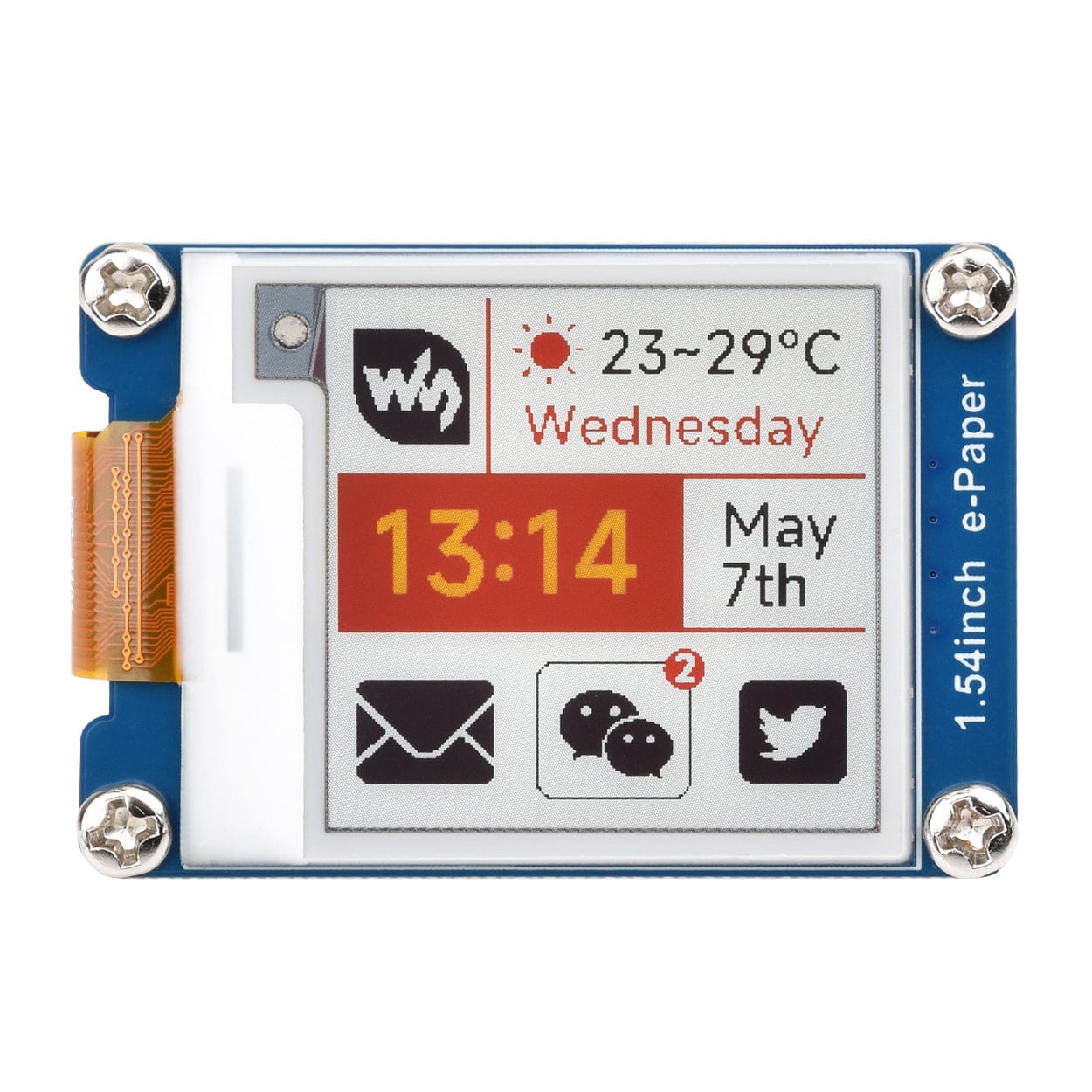

  • Displays in red, yellow, black, and white
  • 200x200 resolution
  • SPI interface with demo code available for Raspberry Pi, Arduino, ESP32 and more
  • Compact module size: 48mm x 33mm

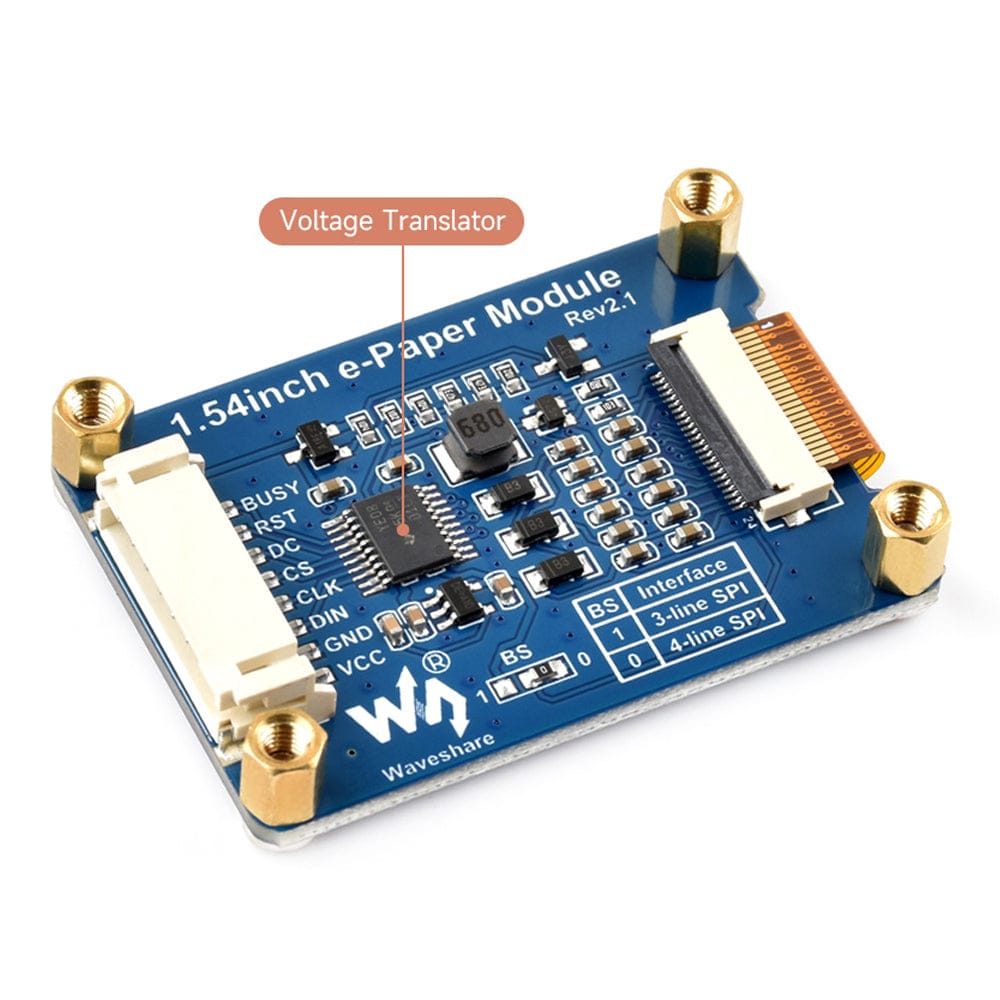

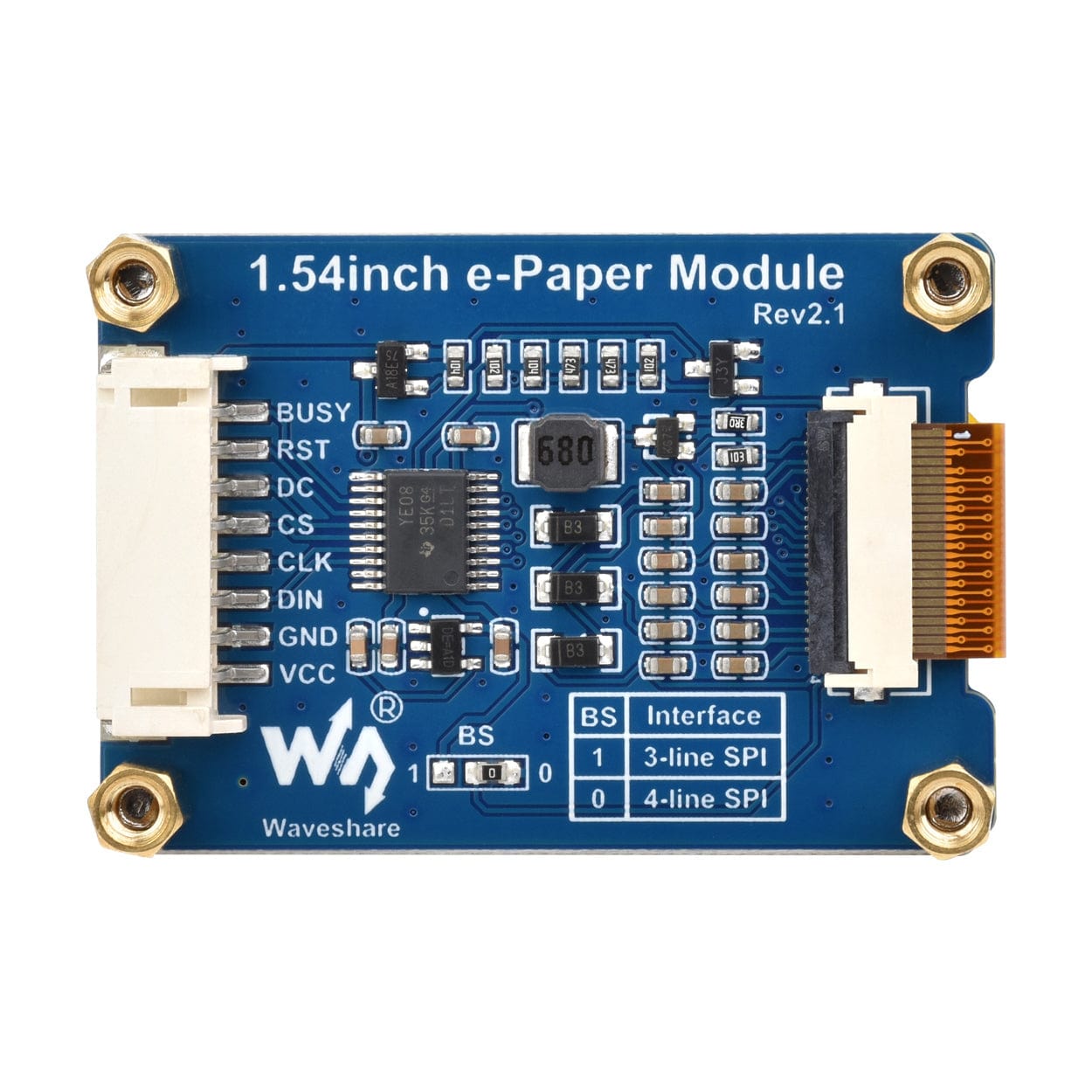

  • Onboard voltage translator supports both 3.3V and 5V logic
  • Ultra-low-power: <0.01uA standby, <30mW during refresh
  • Refresh time: 15 seconds (fast), 20 seconds (standard)

Specifications

Size 1.54"

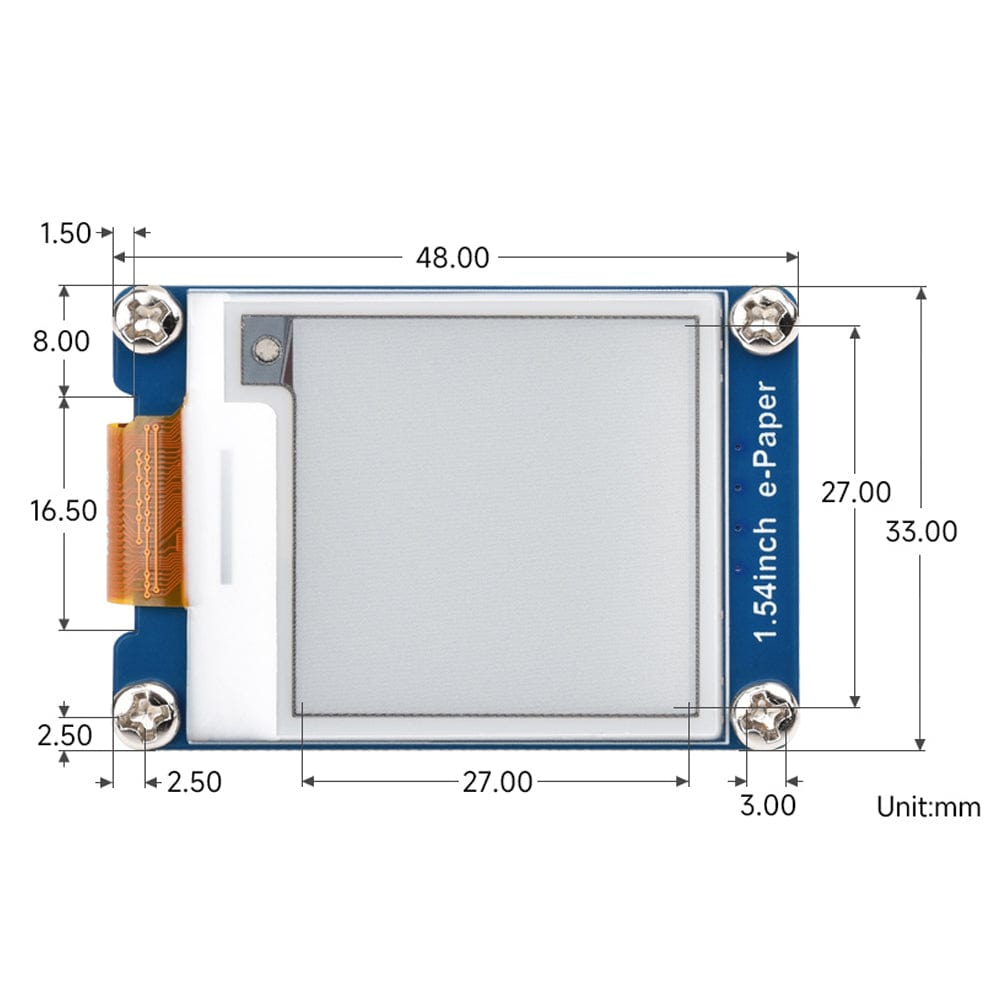

Driver Board Size 48.00mm × 33.00mm
Display Size 27.00mm × 27.00mm
Outline Dimensions (raw display) 37.32mm × 31.80mm × 1.00mm
Operating Voltage 3.3V / 5V (IO voltage should be the same as the supply voltage)
Communication Interface SPI
Dot Pitch 0.135mm × 0.135mm
Resolution 200 × 200
Display Color Black, White, Red, Yellow
Grayscale 2
Refresh Time 20s / 15s (fast refresh)
Refresh Power <30 mW (typ.)
Sleep Current < 0.01uA (close to 0)
Operating Temperature 0 ~ 40 °C
Storage Temperature -25 ~ 70 °C

Resources

Package Contents

  • 1x 1.54" e-Paper Module (G)
  • 1x PH2.0 8-pin cable
