Semi-flexible Polycrystalline Silicon Solar Panel (18V 10W)
Price:
Sale price
£12.40
Stock:
Quantity:
Awesome Extras
This Solar Panel consists of several crystals of silicon in a single PV cell that gives a high degree of energy transfer efficiency, with bypass diodes to minimize the effects of shadows. On top of that, it also has a high power density, high-temperature coefficient, and eco-friendly production due to less waste being produced, and the manufacturing process requires very few fossil fuels.
With its thin and portable design, different outputs and a host of accessories, this really is a great addition to your next outdoor project!
These are compatible for use with our 3 solar power managers, A, B and C
Features
- Adopts semi-flexible polycrystalline silicon solar panel, thin and portable, convenient for outdoor use
- Integrated with 5V voltage regulator circuit, 2x USB power outputs for external 5V devices, onboard working status indicator
- Reserved DC5521 power output port for connecting to power manager module or other controllers which support 18V solar panel
- Comes with multiple accessories and adapter cables
What's on Board
Specifications
| SOLAR CELL TYPE | Polycrystalline silicon |
| MATERIAL | Semi-flexible laminate (not capable of excessive bending) |
| SOLAR PANEL POWER | 10W |
| DC5521 FEMALE PORT | Directly power output from the solar panel without conversion |
| Operating voltage: 18V ± 5% | |
| Operating current: 600mA ± 5% (Max) | |
| Open circuit voltage: 21.6V ± 5% | |
| 2× USB 5V PORT | Power output after 5V regulator circuit |
| Operating voltage: 5V (Requires good sunlight for stable 5V output, it is not recommended for use in sunless or weak light conditions) |
|
| Output current: 1.5A (total output of the two USB ports) | |

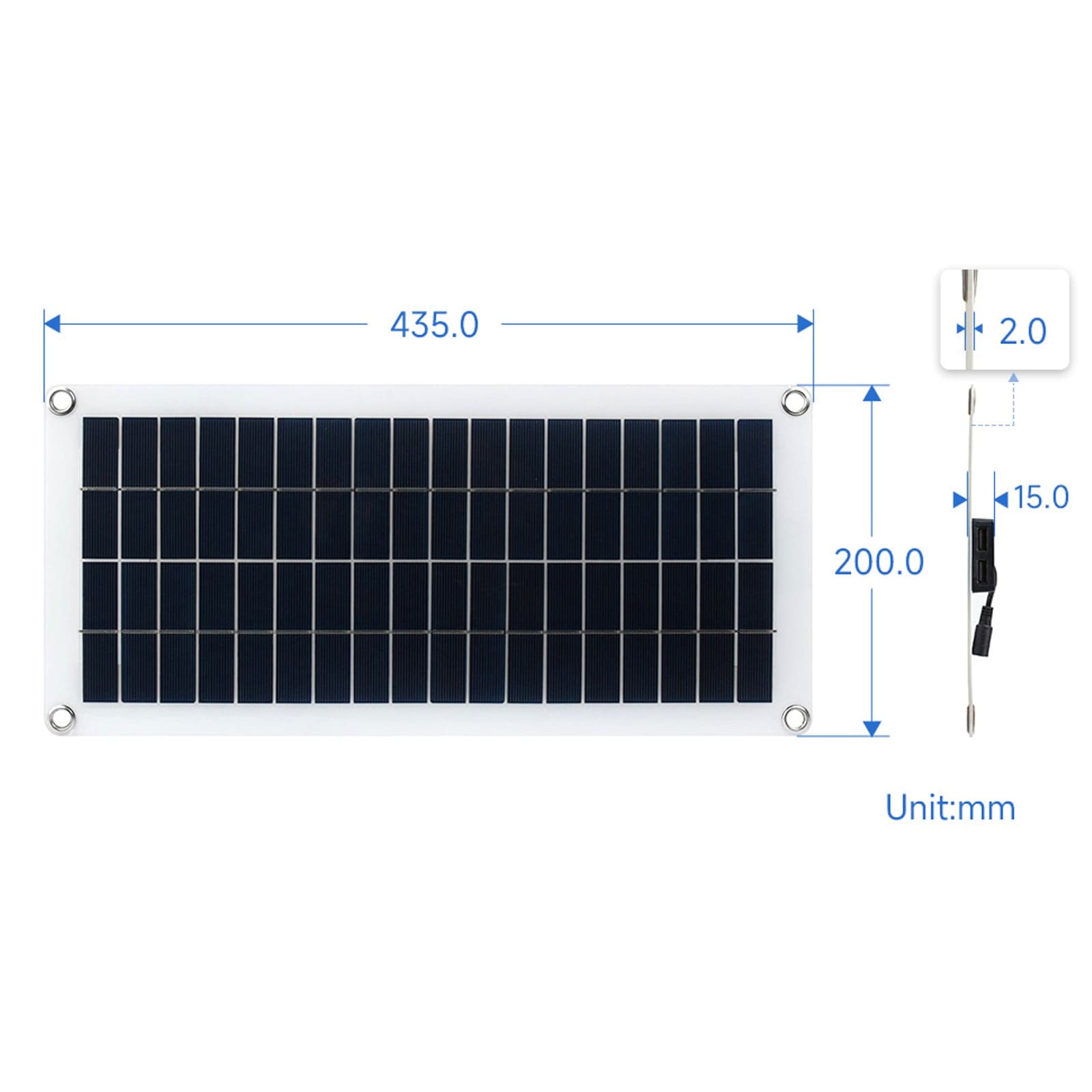

| DIMENSIONS | 435 × 200mm |
Package Contents
- 1x Semi-flexible Polycrystalline silicon Solar Panel
- 1x Alligator Clip
- 4x Suction Cup
- 2x Spring Snap Hooks
- 1x USB Cable
