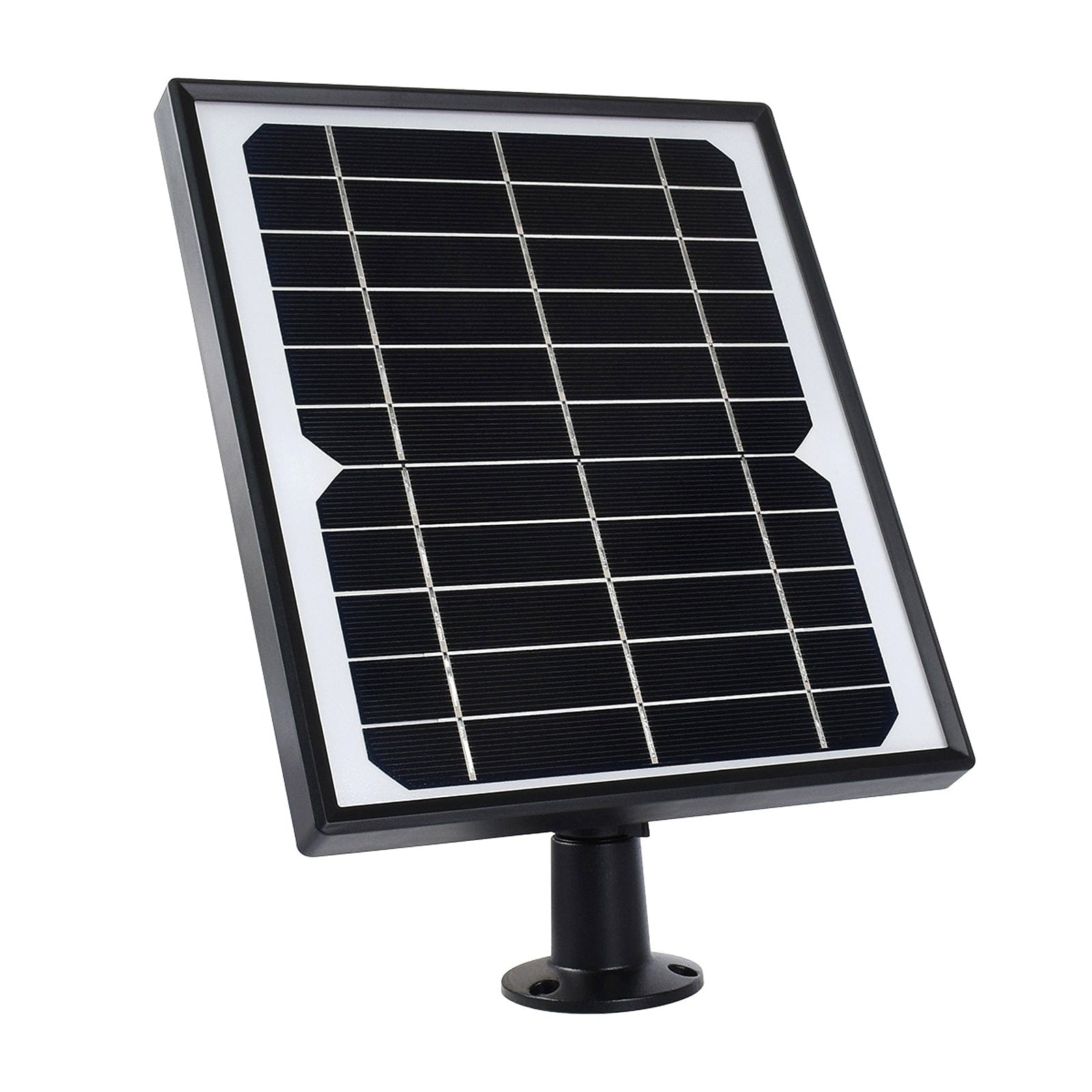

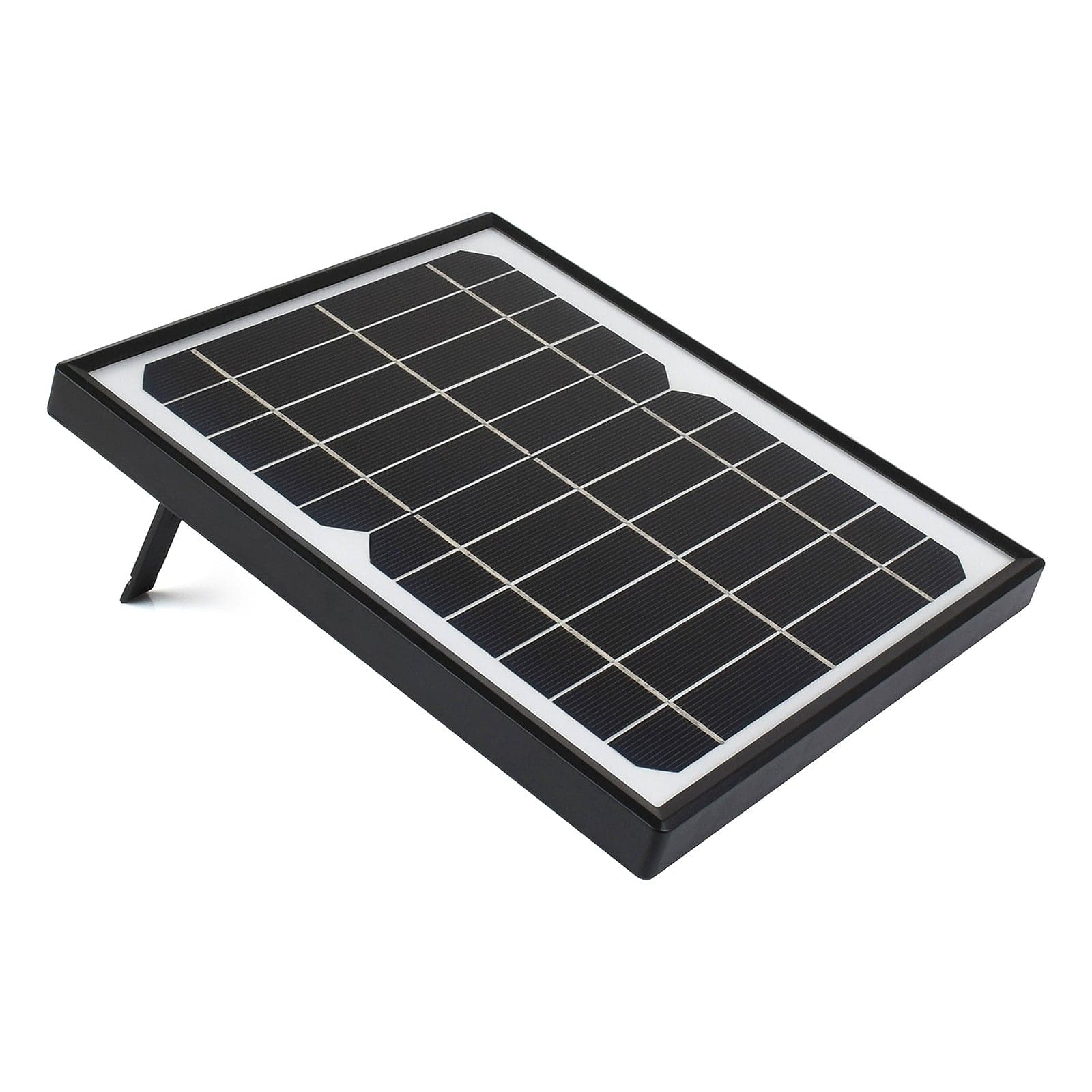

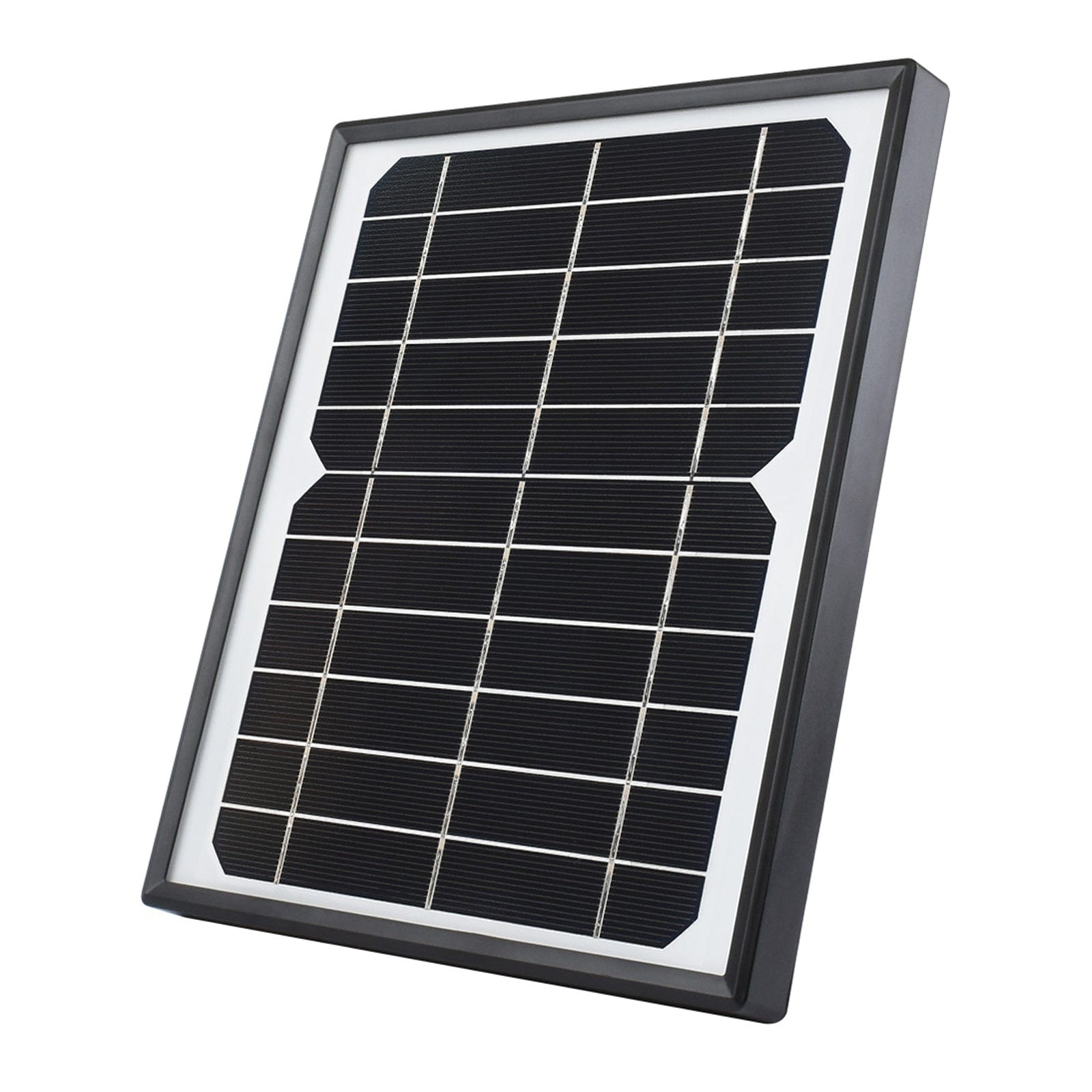

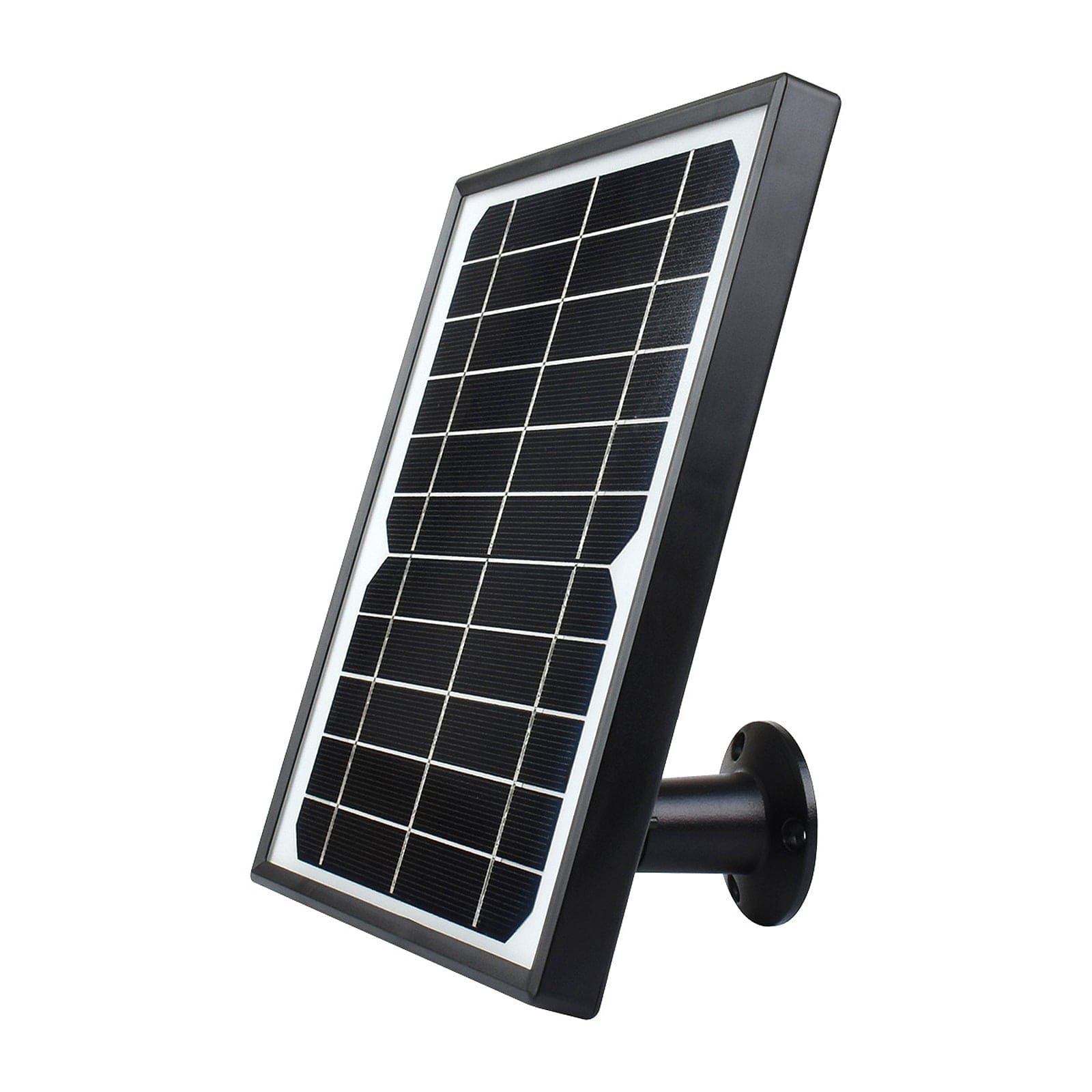

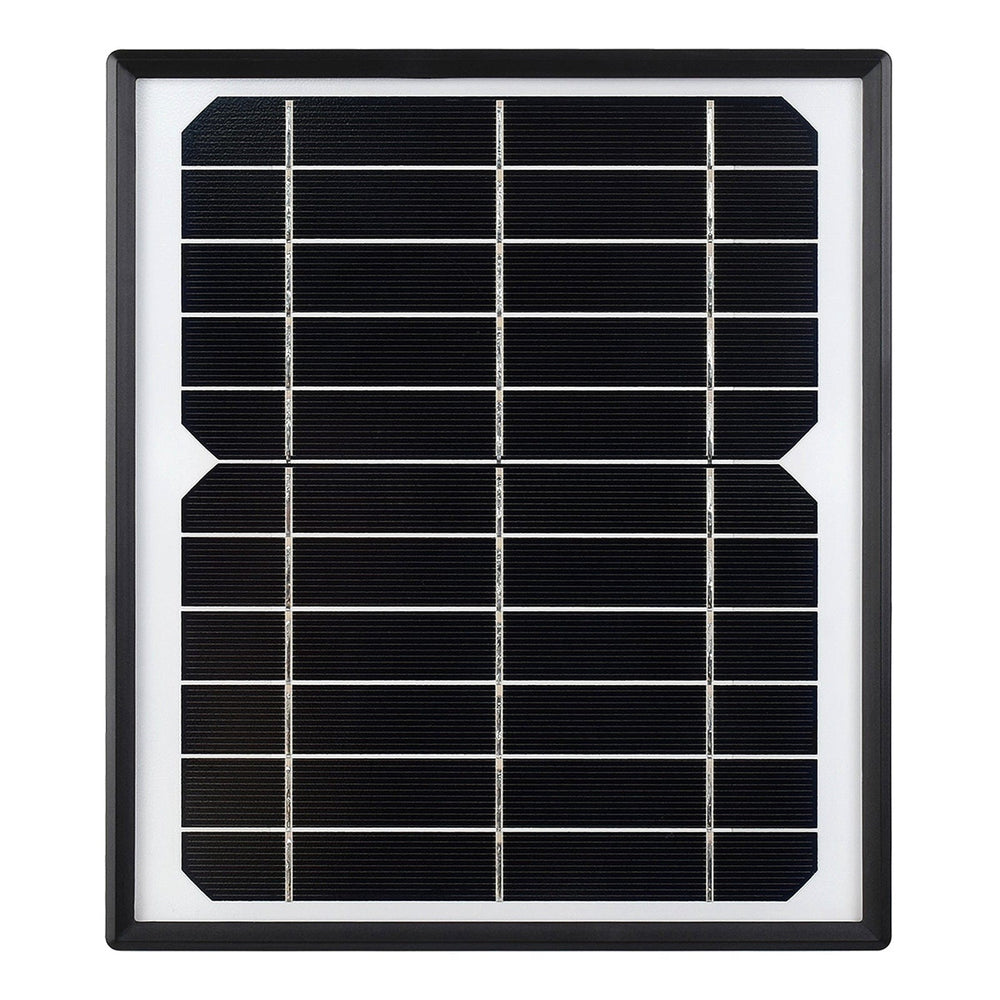

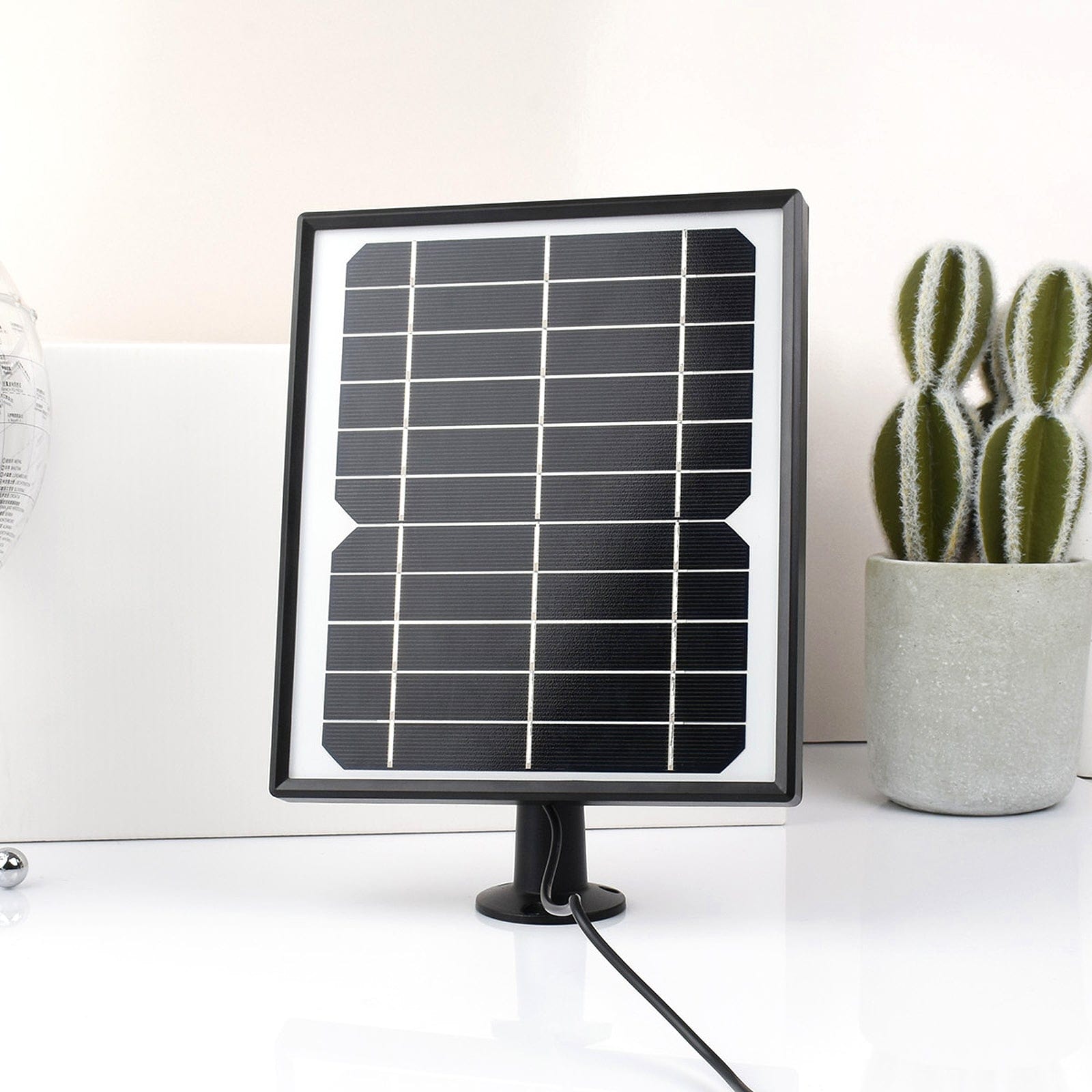

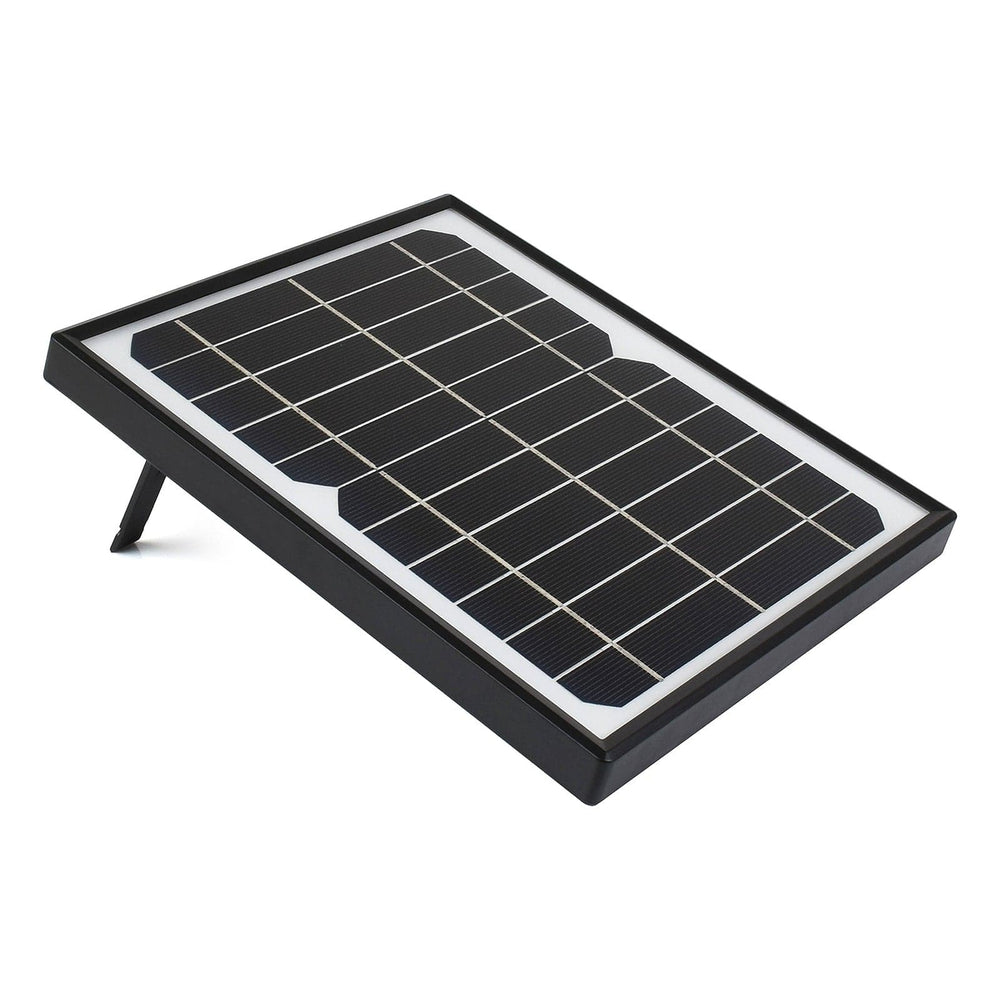

Monocrystalline Silicon Solar Panel

WaveshareSKU: WAV-24166
Sale price £9.90
incl. VAT
excl. VAT
In stock

Awesome Extras

WaveshareSolar Power Manager (C)
Sale price £23.70 incl. VAT excl. VAT
Save 30%
WaveshareR3 Plus - Arduino-Compatible ATmega328P Development Board
Sale price £17.36 Regular price £24.80 incl. VAT excl. VAT
The Pi HutUSB-A to Micro-USB Cable
Sale priceFrom £1.50 incl. VAT excl. VAT

This particular panel has the highest efficiency rate due to it being made from Monocrystalline. This high-efficiency rate means it produces more power per square foot and is therefore very space-efficient. They perform better in low levels of sunlight, making them great for cloudy areas. With their power level, it means you can install fewer of them and still achieve an output equal to a larger array of other panels, making it ideal for people with limited space.

You can connect this to a power management module, or other control boards that support 5.5V solar panels. A great choice for power would be our solar power manager, which you can find here.

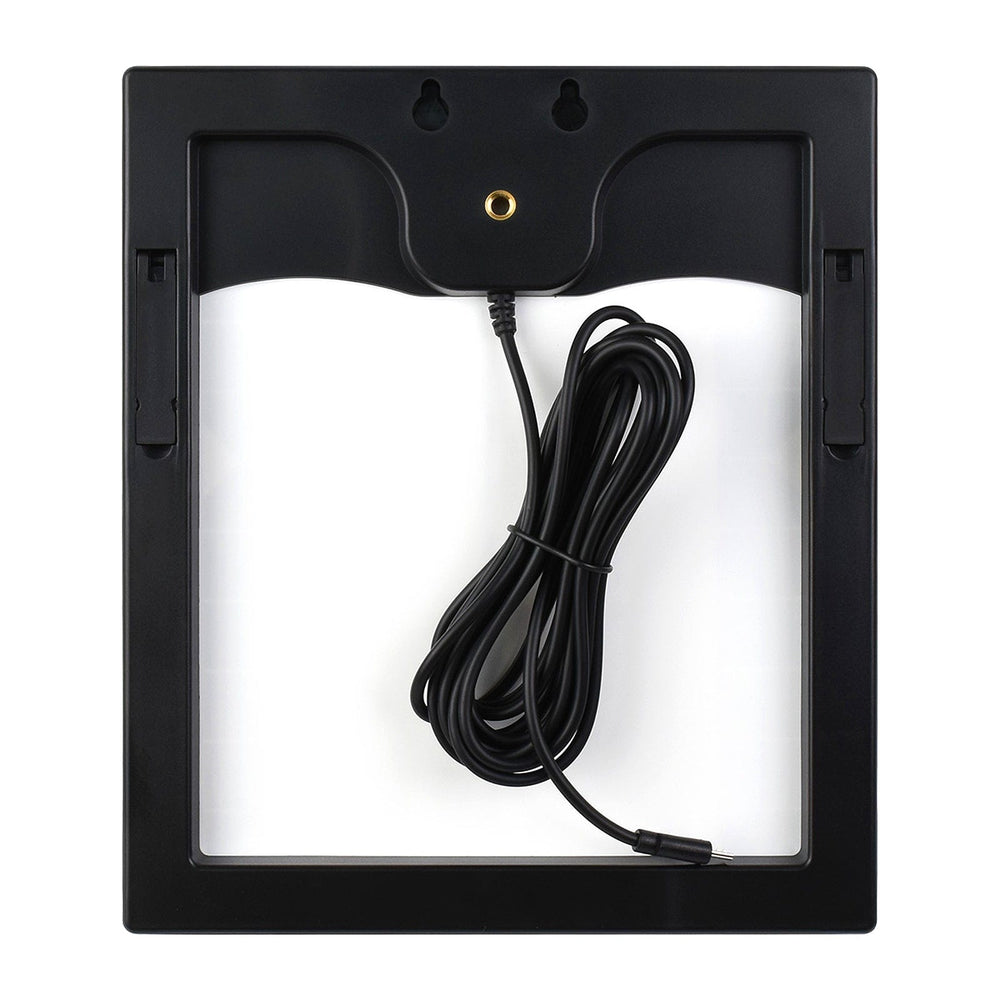

The panel's cable is Micro-USB and comes with a USB-C adapter - however, for many power management boards, you may need to snip this off and wire manually.

With a tough glass panel for durability, a waterproof feature for resistance to weather conditions, and an easy installation, this is the ideal panel for your next project!


Solar Cell Type Monocrystalline Silicon
Solar Panel Power 6W
Operating Voltage 5.5V ± 5%
Operating Current 1000mA ± 5% (Max)
Open Circuit Voltage 7.2V ± 5%
Short Circuit Current 1090mA ± 5% (Max)
Output Interfaces micro USB, USB Type-C (with adapter)
Cable Length 3m
Outline Dimensions 225.0 × 195.0 × 17.6mm

Connection Example - Power Management

Package Contents

  • 1x Monocrystalline Silicon Solar Panel
  • 1x Bracket
  • 3x Screws
  • 1x Micro-USB to USB-C adapter
  • 3x Wall plugs
