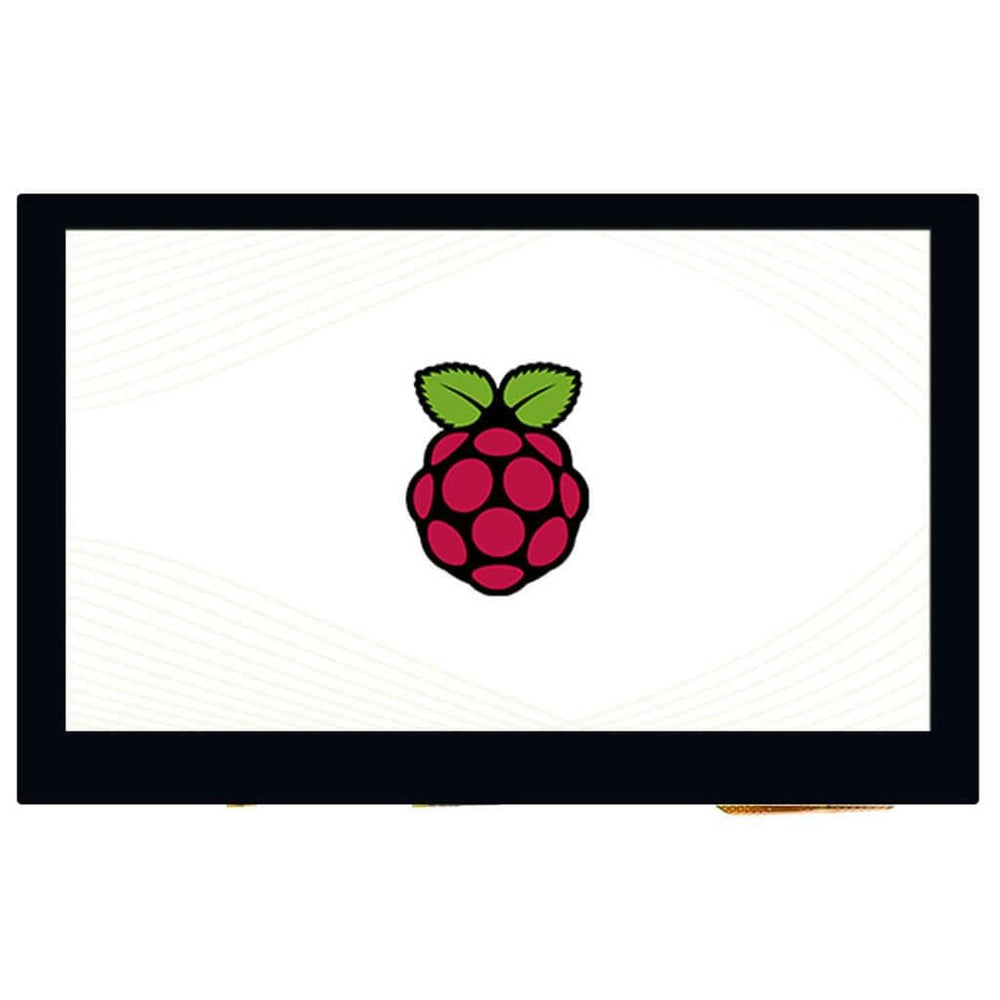

4.3" DSI Capacitive Touchscreen Display for Raspberry Pi (800x480)

WaveshareSKU: WAV-16239
(4 Reviews)
Price:
Sale price £38.90
incl. VAT
excl. VAT
Stock:
Only 14 units left
Quantity:

Compatible with:

Awesome Extras

(2460 Reviews)
The Pi HutRaspberry Pi 4 Model B Starter Kit
Sale priceFrom £69 incl. VAT excl. VAT
(852 Reviews)
The Pi HutUSB-C Cable with On/Off Switch
Sale price £3 incl. VAT excl. VAT
(271 Reviews)
The Pi HutXL Raspberry Pi 4 Heatsink
Sale price £2 incl. VAT excl. VAT

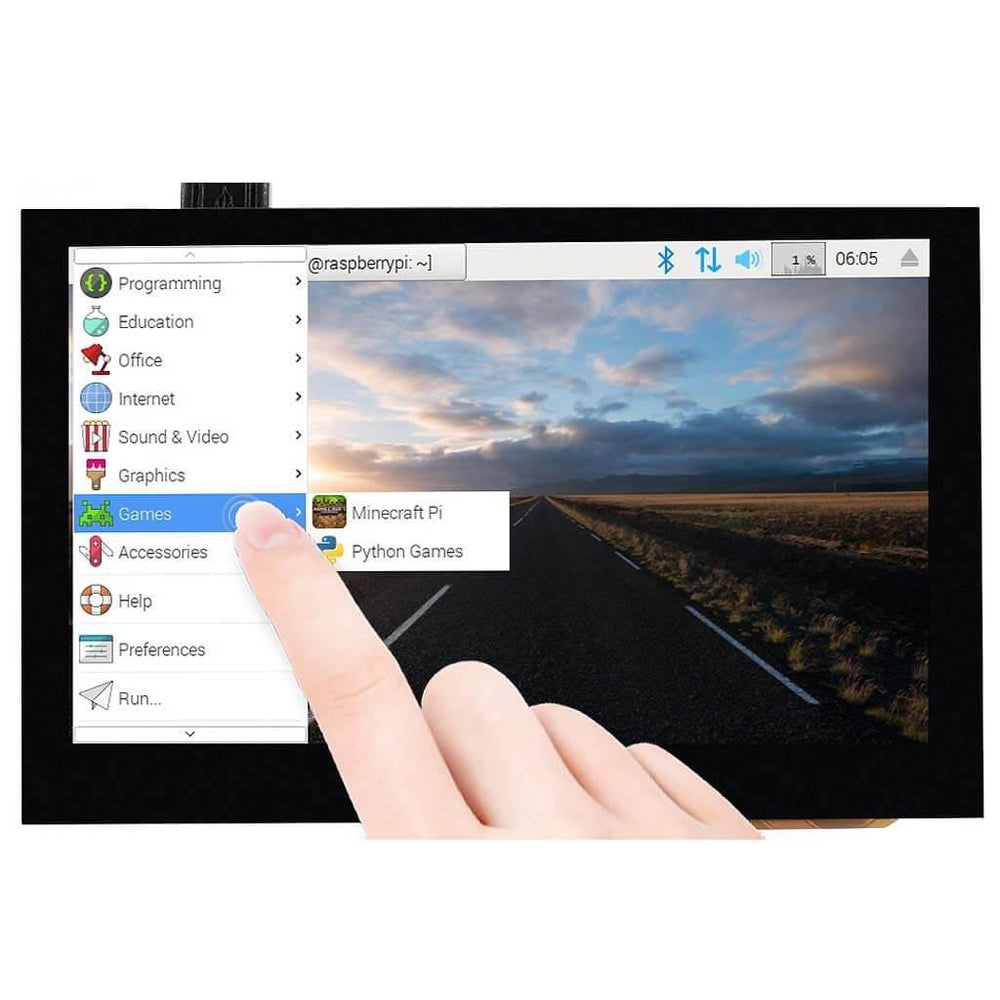

This compact capacitive touchscreen display for the Raspberry Pi offers an impressive 800x480 resolution squashed into a 4.3" IPS panel and is driven via the DSI port on your Raspberry Pi.

With a decent resolution for the size of the panel, combined with IPS technology, 160° viewing angles and toughened glass, this display is a great choice for those looking for a small display without the usual quality drawbacks of mini screens.

The 5-point capacitive touch opens it up to projects that require interaction without the need for traditional USB peripherals, whilst the DSI interface leaves your full GPIO header completely free for HATs, components and more.

The online Wiki will help you get set up and configure your Raspberry Pi for the display.,

Features

  • 4.3" IPS display
  • 800x480 hardware resolution
  • Capacitive touch - supports 5-point touch
  • Supports all Raspberry Pi models with a DSI connector - Pi 4, 3B+, 3A+, 3
  • DSI interface - refresh rate up to 60Hz.
  • Supports Raspberry Pi OS

Connection Example

4.3" DSI display connection example

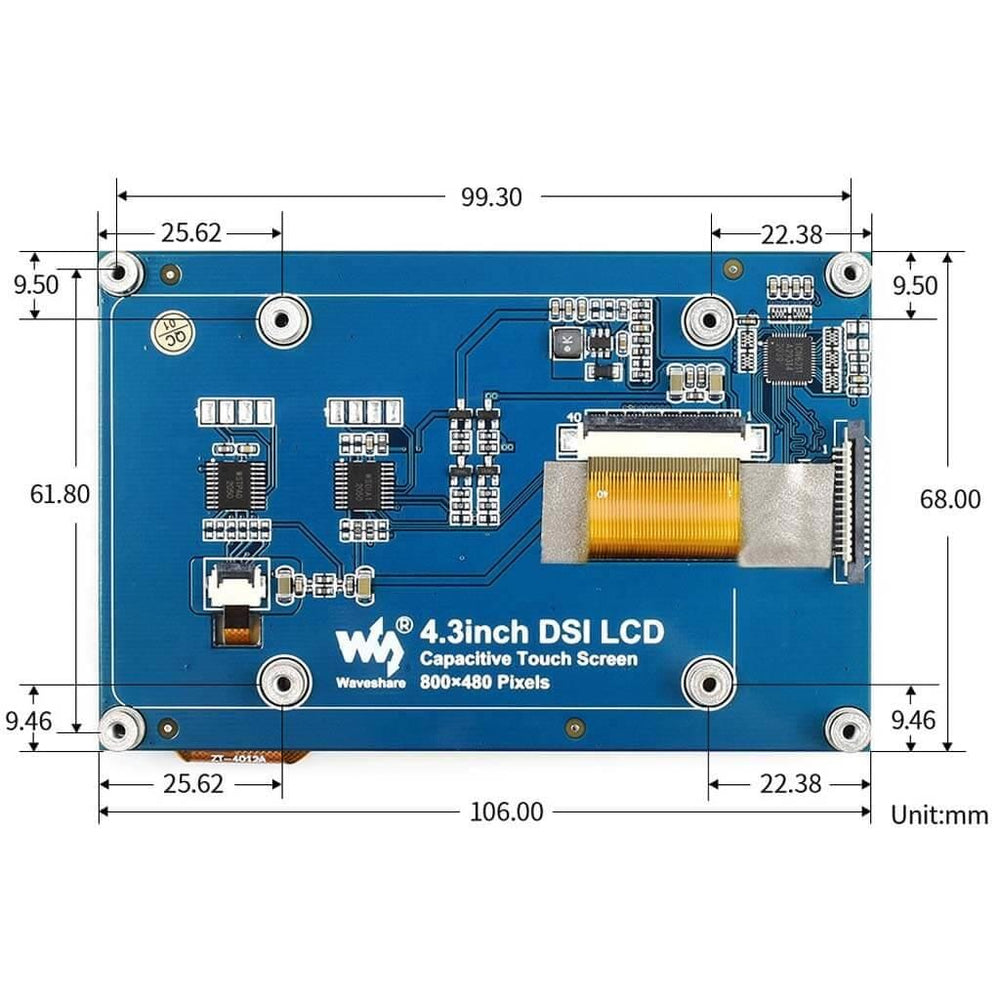

Specifications

  • Screen size: 4.3"
  • Resolution: 800x480
  • Display Type: DSI
  • Display Panel: IPS
  • Viewing angles: 160°
  • Touch type: Capacitive
  • Touch points: 5
  • Touch port: I2C
  • Touch panel: Toughened Glass

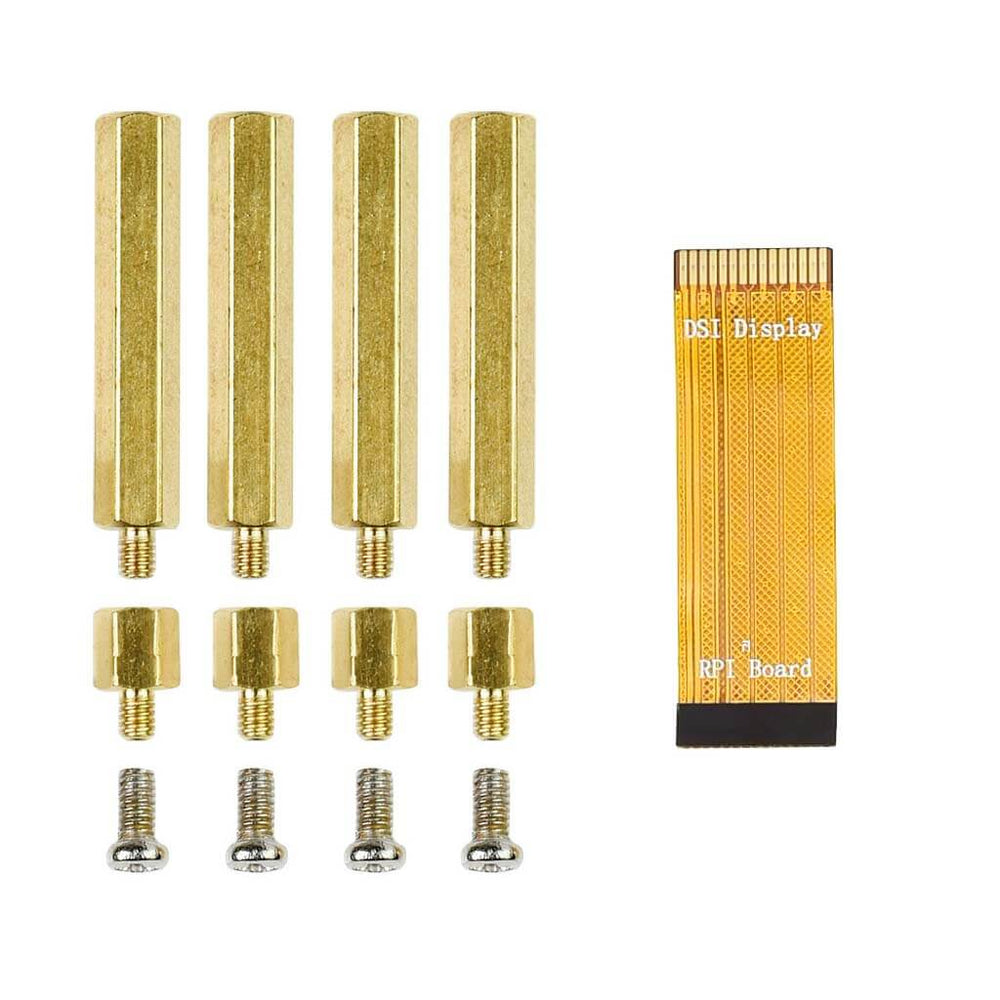

Package Contents

  • 1x 4.3" DSI LCD
  • 1x 15-pin FPC cable - 1.0 pitch 50mm (opposite sides)
  • 1x Screws pack

Raspberry Pi not included
