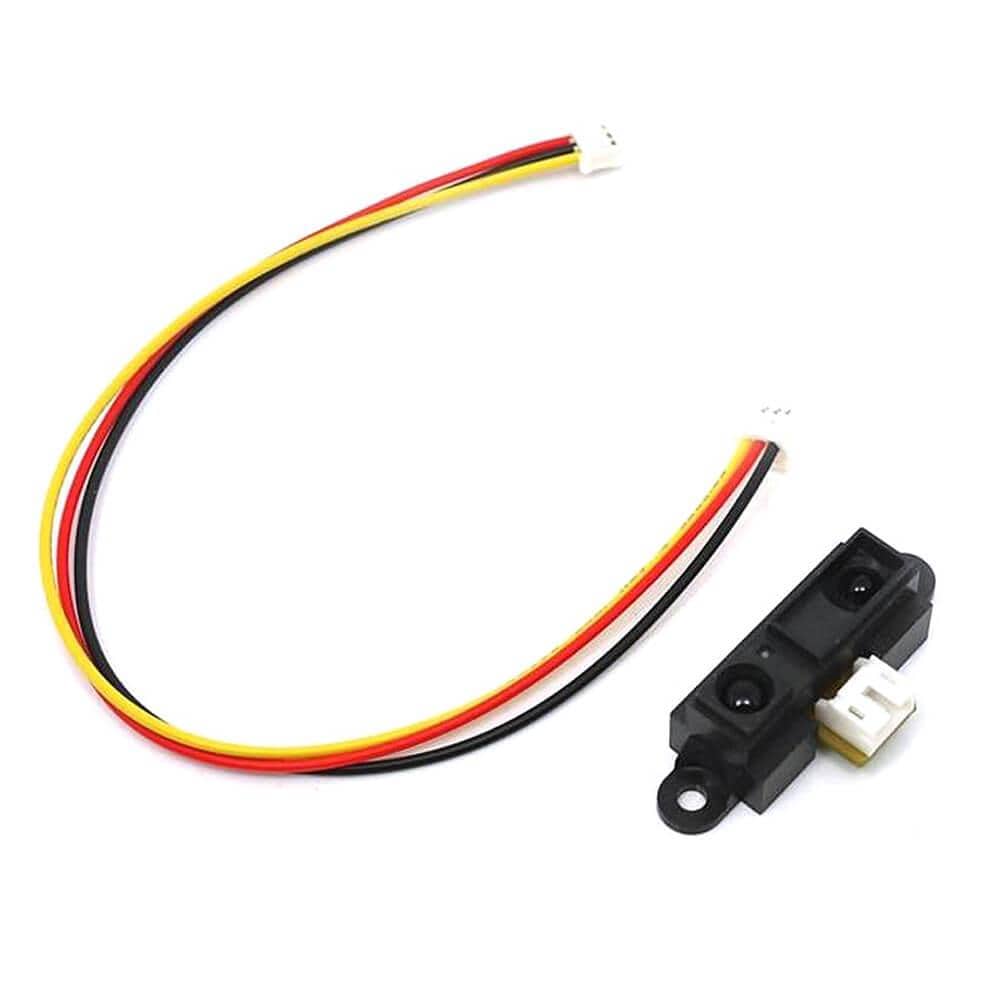

Grove - 80cm Infrared Proximity Sensor

SeeedSKU: 103360
Price:
Sale price £15.80
incl. VAT
excl. VAT
Stock:
Only 10 units left
Quantity:

Awesome Extras

SeeedGrove - Base HAT for Raspberry Pi
Sale price £9.70 incl. VAT excl. VAT
SeeedGrove - Base HAT for Raspberry Pi Zero
Sale price £8.50 incl. VAT excl. VAT
SeeedGrove - Base Shield V2.0 for Arduino
Sale price £4.50 incl. VAT excl. VAT

The Grove 80cm Infrared Proximity Sensor is a general-purpose distance measuring sensor based on the Sharp GP2Y0A21YK, which is a wide-angle distance measuring sensor.

This proximity sensor takes a continuous distance reading and returns a corresponding analog voltage with a range of 10cm (4") to 80cm (30"). You can apply it to TVs, personal computers, cars and more!

This sensor is quite small and uses a 3-pin JST connector. These connectors have three wires: Ground, VCC, and Output. Because the sensor fires continuously and doesn't need any clock to initiate a reading, it is easy to interface with any microcontroller.

Features

  • Corresponding analog voltage range from 3V when an object is 10cm (4") away and 0.4V when the object is 80cm (30") away.
  • Grove interface compatible
  • Wide supply voltage range: 2.5V-7V
  • Weight: 9g
  • Product number: Seeed 101020042

    Resources

    Package Contents

    • 1x Grove proximity Sensor 90cm
    • 1x Grove cable
