Grove - Line Finder v1.1

SeeedSKU: 103341
Price:
Sale price £3.90
incl. VAT
excl. VAT
Stock:
Only 1 unit left
Quantity:

Awesome Extras

SeeedGrove - Base HAT for Raspberry Pi
Sale price £9.70 incl. VAT excl. VAT
SeeedGrove - Base HAT for Raspberry Pi Zero
Sale price £8.50 incl. VAT excl. VAT
SeeedGrove - Base Shield V2.0 for Arduino
Sale price £4.50 incl. VAT excl. VAT

Most automated robotic projects start from a line-following robot. The Grove Line finder v1.1 is designed to achieve this task easily and quickly.

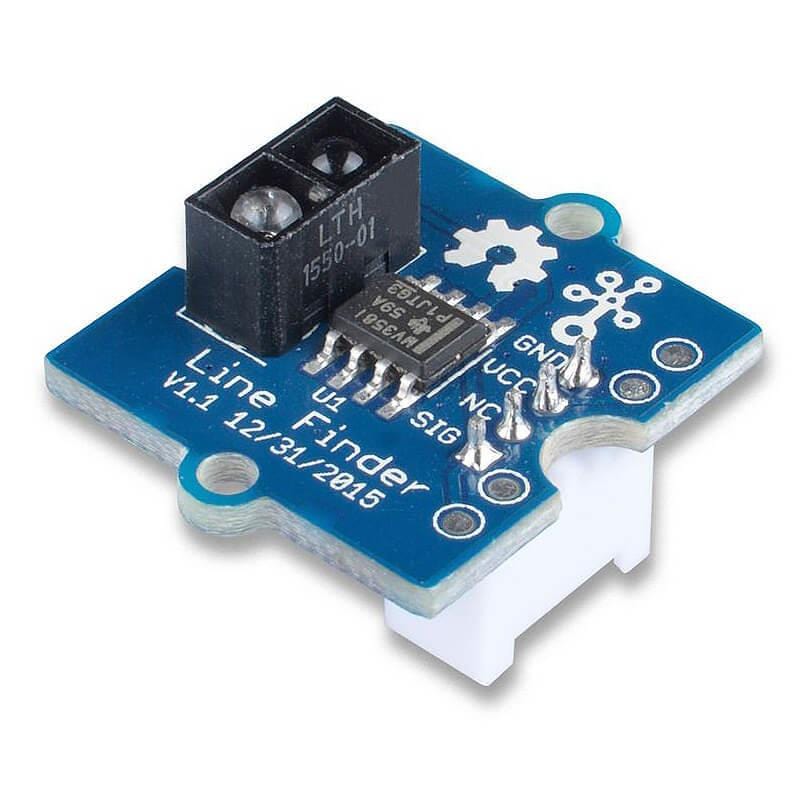

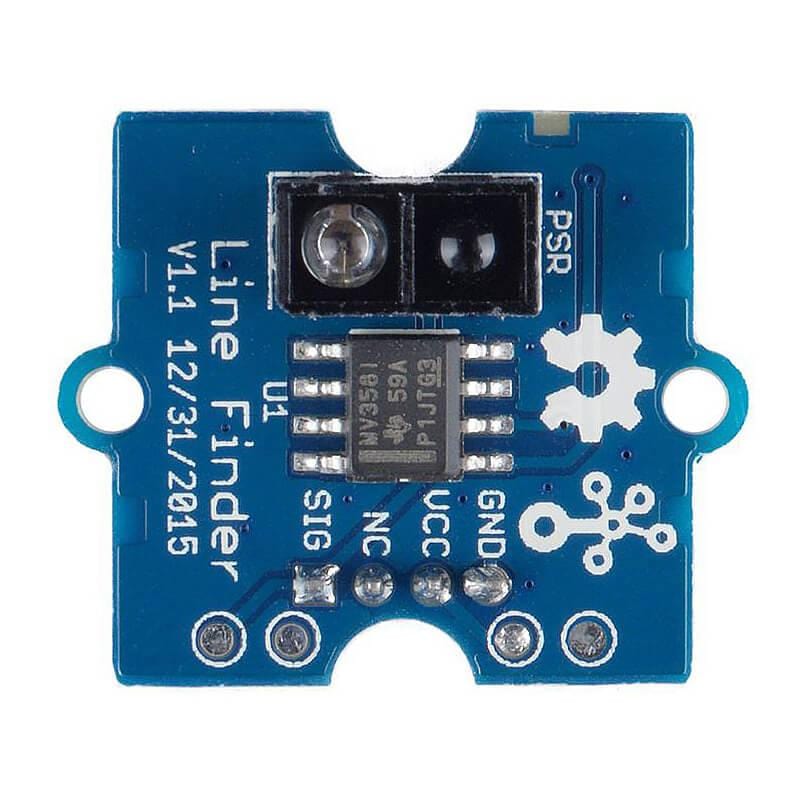

Those eye-like sensors on the board are actually IR emitting LED and sensitive phototransistors. When the phototransistor detects the reflected infrared light from the IR emitting LED, it will output a digital signal, which changes from HIGH to LOW.

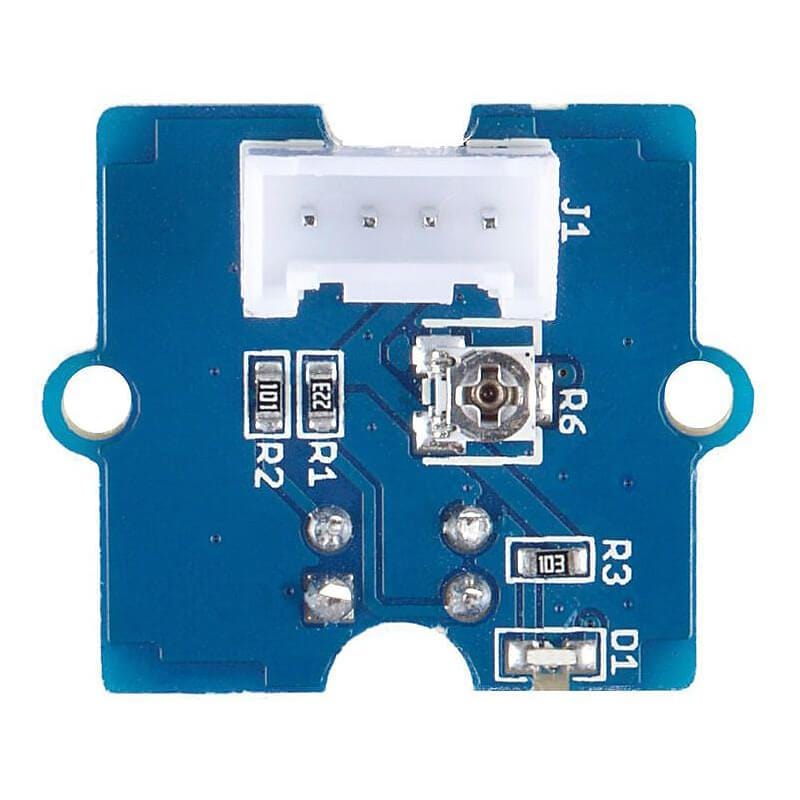

This module also features an adjustable detection range and indication LEDS.

Features

  • Integrated indicator LED
  • Digital output
  • Adjustable detecting range
  • Product number: Seeed 101020172

Specifications

  • Power supply: 5V DC
  • Digital output mode: TTL (High when black is detected, Low when white is detected)
  • Connector: 4 pin Buckled Grove interface

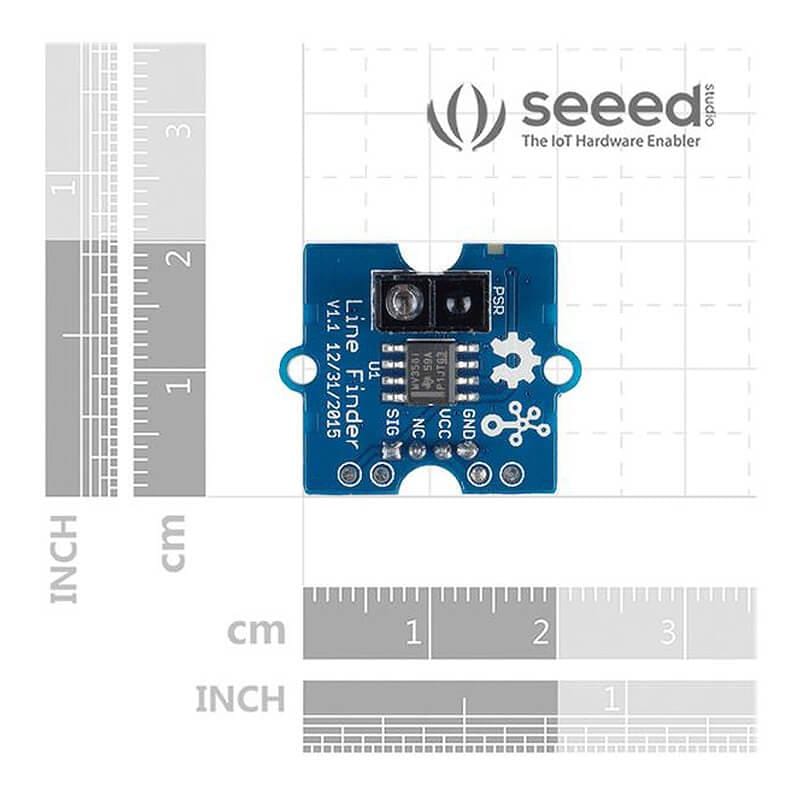

  • Dimension: 20mm x 20mm
  • Comparator: LMV358
  • Photo reflective diode: RS-06WD

Package Contents

  • 1x Grove Line Finder V1.1
