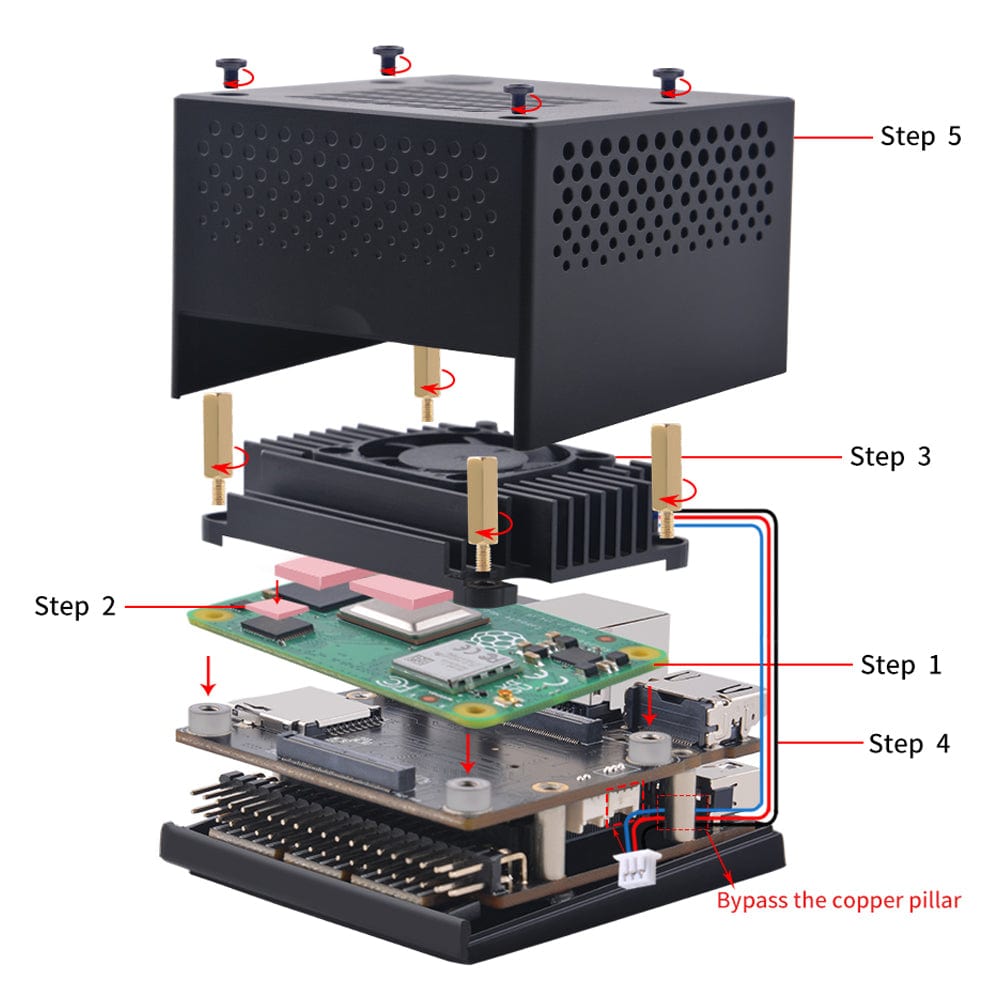

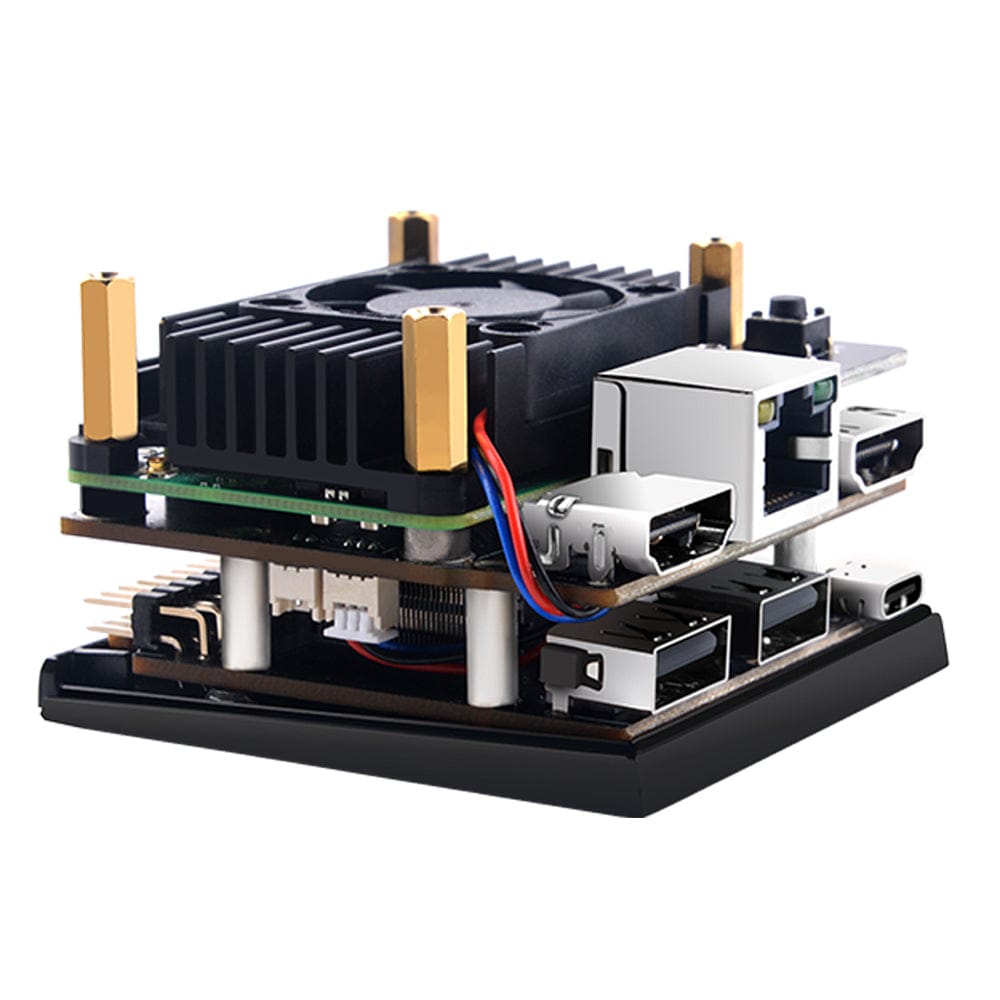

The case integrates a mini aluminium alloy heatsink with a PWM-controlled fan for effective cooling. The internal adapter boards offer dual full-size HDMI ports, dual USB 2.0 OTG ports (requiring dwc2 overlay configuration), a Gigabit Ethernet port, and a M.2 PCIeslot supporting 2242 M.2 NVMe SSDs.
Additional features include a 40-pin GPIO breakout, a DIP switch for boot mode configuration, and an onboard PCF85063 I2C RTC module. Power is supplied via a 5V USB-C port (power supply not included).

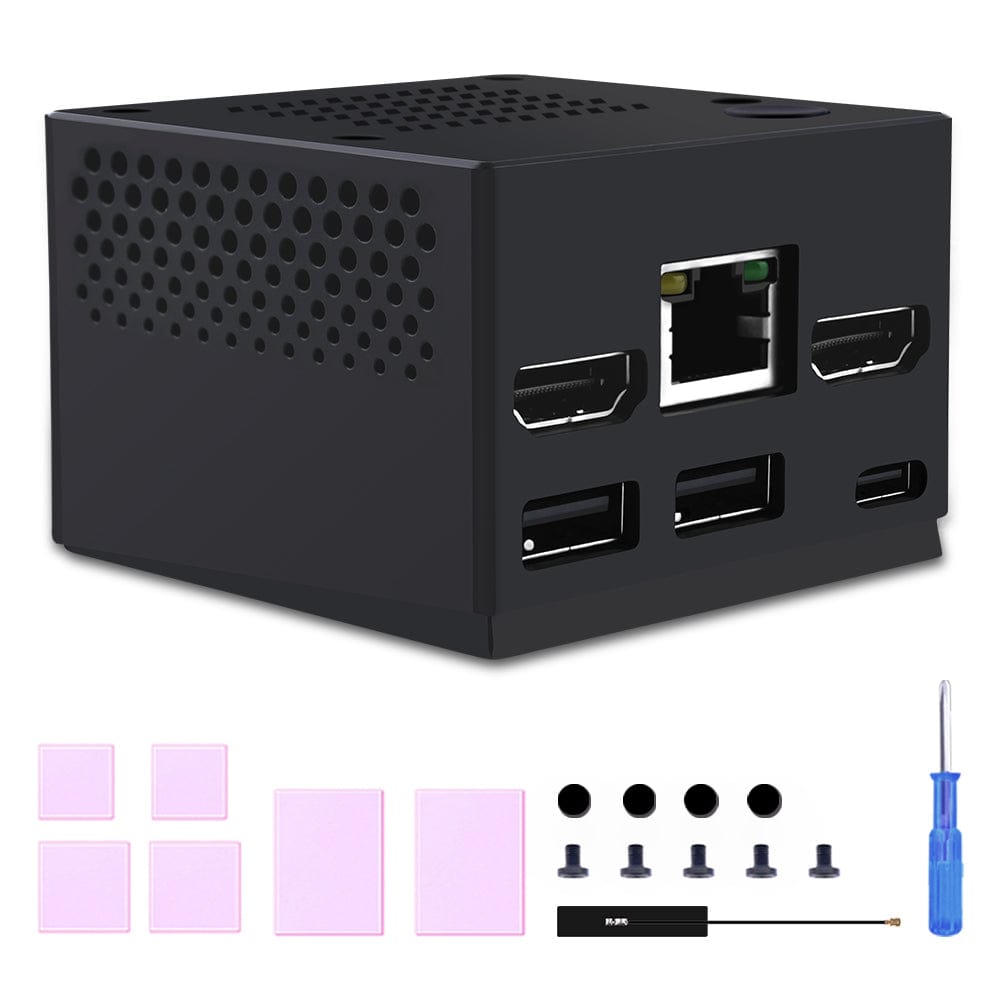

Raspberry Pi CM4/CM5, SSD, and USB-C power supply not included.
Features

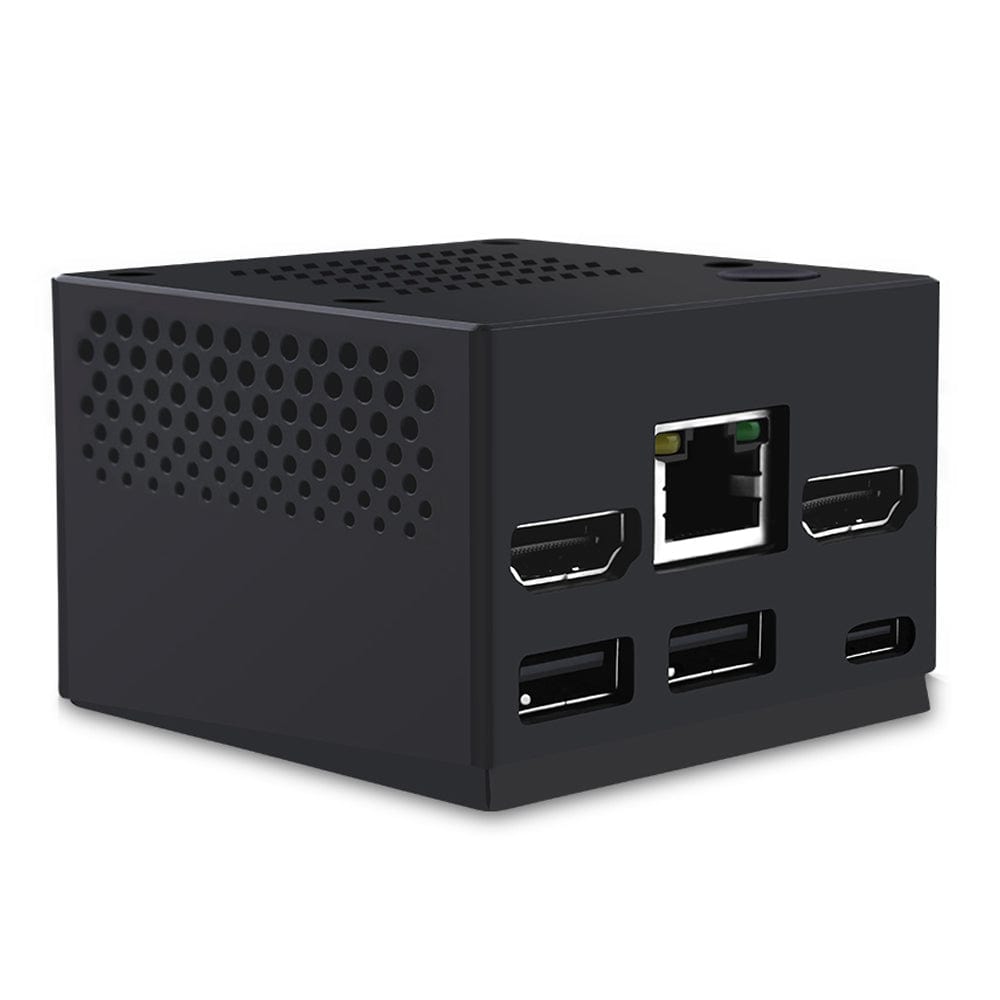

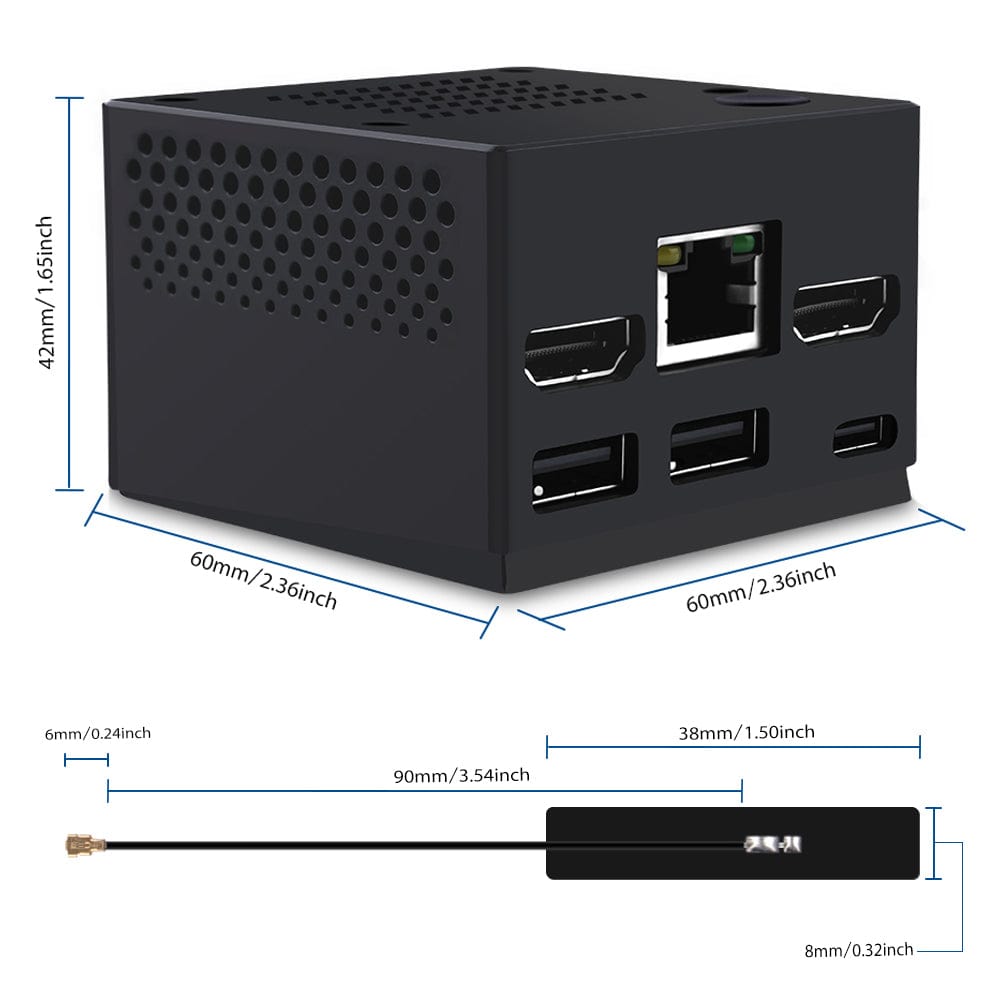

Compact design
Integrated aluminium alloy heatsink and PWM fan
Dual full-size HDMI ports
Two USB 2.0 OTG ports (dwc2 overlay configuration required)
Gigabit Ethernet port
PCIe slot supporting M.2 NVMe SSDs (M-Key 2242)
Please note that the Raspberry Pi SSD is the shorter 2230 format - it will still fit in the slot/case, but will not be supported mechanically.
MicroSD slot
40-pin GPIO breakout

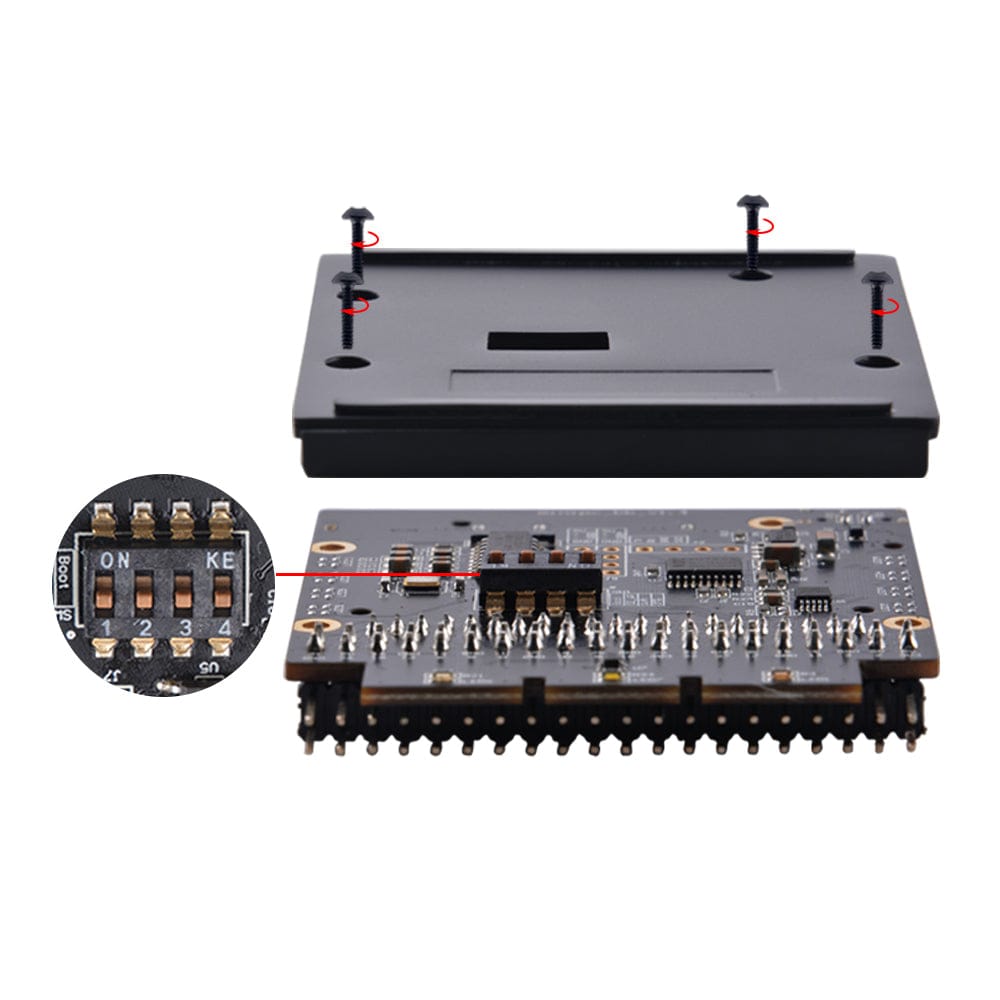

DIP switch for boot mode configuration
Onboard PCF85063 I2C RTC module
5V USB-C power input
Specifications
Compatibility:
Raspberry Pi Compute Module 4 (CM4)
Raspberry Pi Compute Module 5 (CM5)
Cooling: Aluminium alloy heatsink with silent PWM-controlled fan

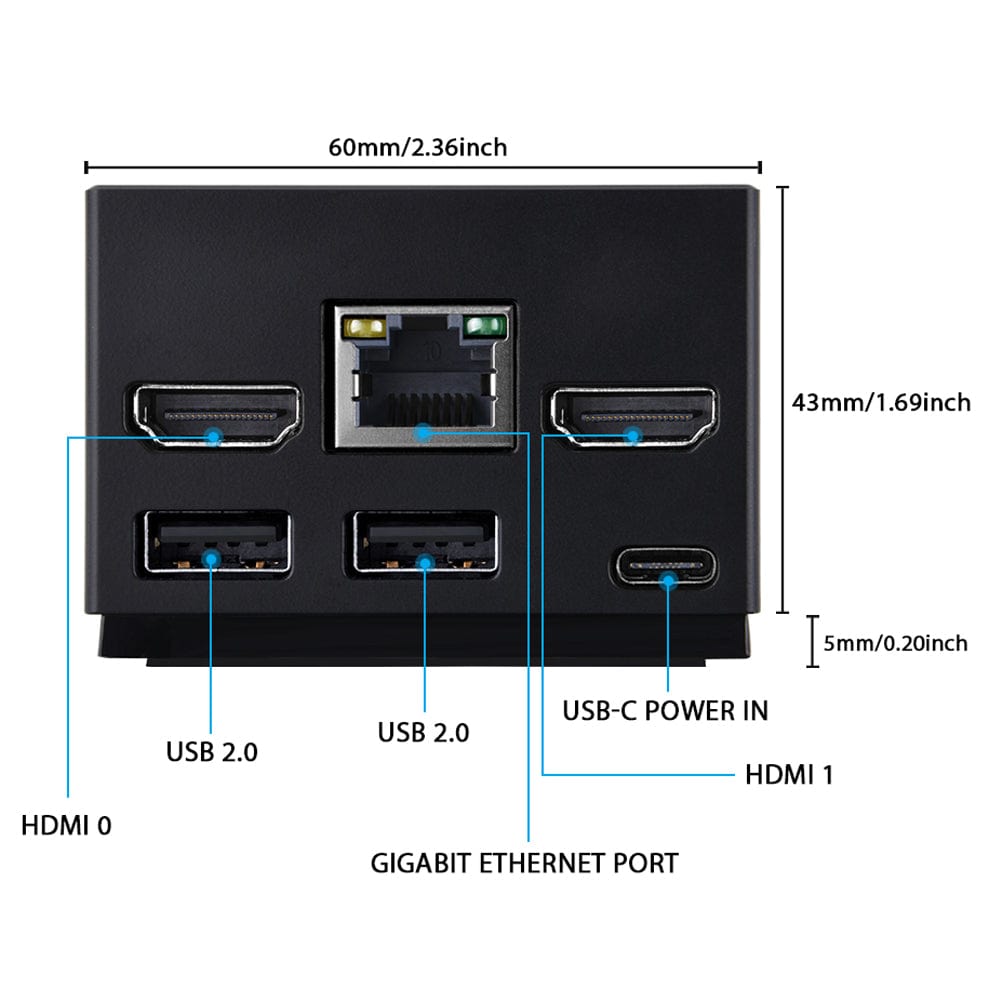

Ports:
2x Full-size HDMI
2x USB 2.0 OTG (dwc2 overlay configuration required)
