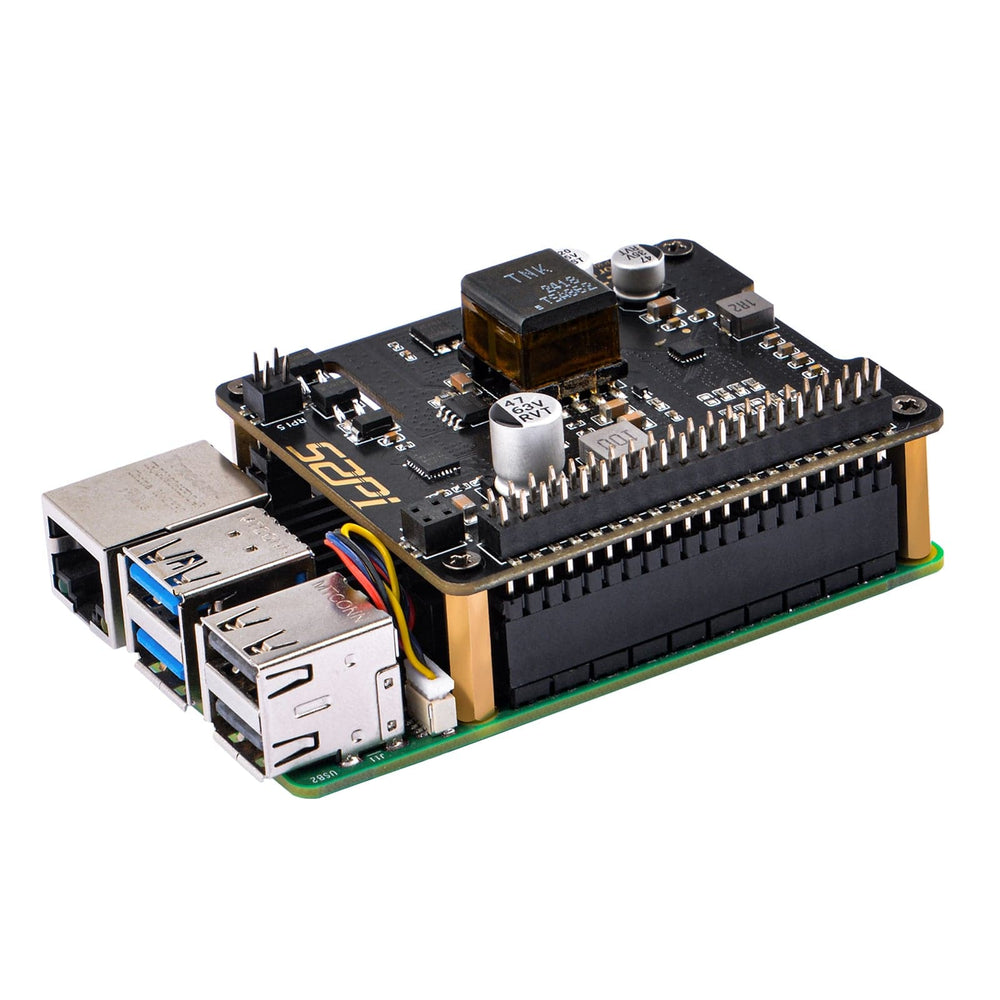

This PoE+ HAT from 52Pi has multiple PoE pin headers, making it compatible with Raspberry Pi 5, 4B and 3B+, providing power over Ethernet through the 802.3at standard.
The HAT allows you to power your Raspberry Pi directly via an Ethernet cable using a compatible PoE+ switch or injector, removing the need for a separate power supply and reducing cable clutter in your setup.
With an output of5.1V at 4.5A, the HAT supplies ample power for the Raspberry Pi and connected peripherals. It includes GPIO and PoE+ interface extensions via 2x20-pin and 2x2-pin female headers, making it suitable for additional expansions and accessories.
Thermal performance is a key improvement. Under equivalent load, this HAT operates at temperatures up to 30°C cooler than comparable PoE+ modules. This helps maintain stability under continuous use.
Important: Do not connect a power supply to the USB-C port when using this PoE+ HAT, as it may damage the Raspberry Pi.
Raspberry Pi not included.
Features
Compatible with Raspberry Pi 3B+, 4B, and 5 (PoE+ compatible models)
Provides 5.1V at 4.5A output
Requires 802.3at PoE+ switch with at least 30W
Runs cooler than typical PoE+ modules - up to 30°C lower under load

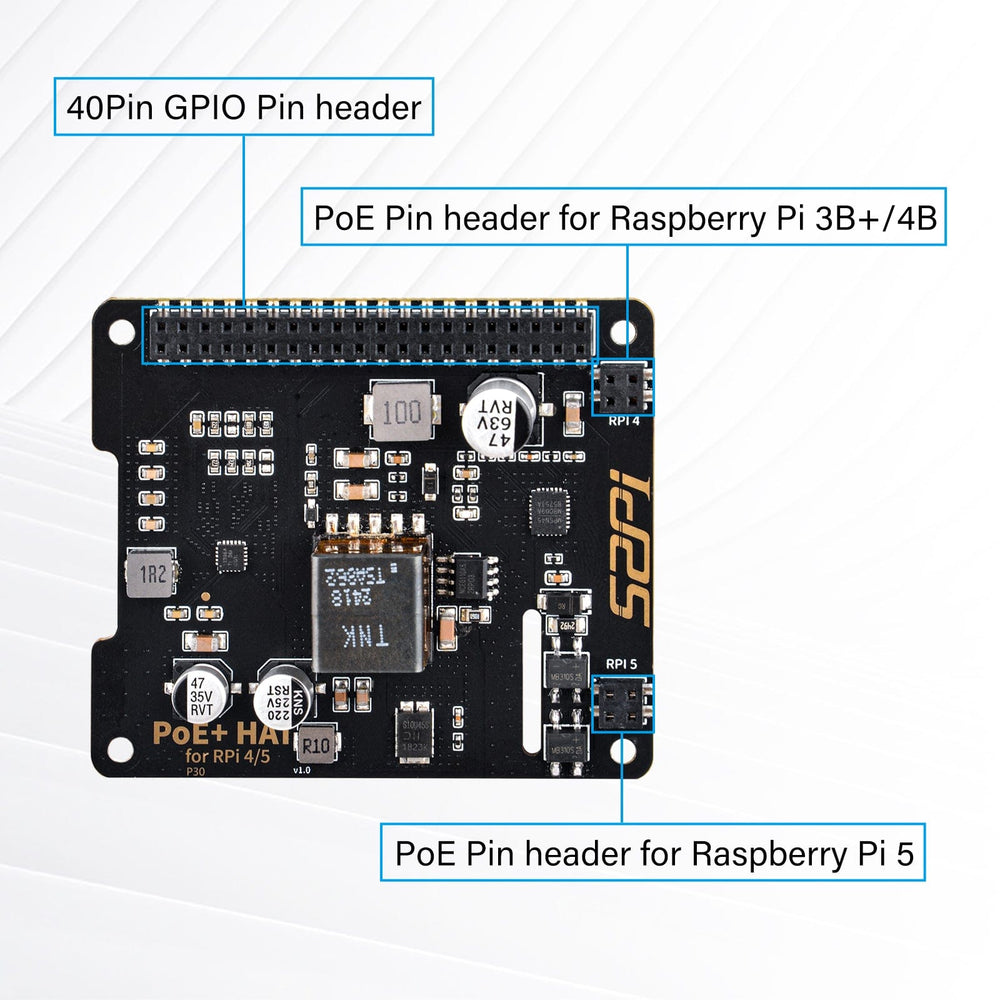

Includes 2×20-pin female header for GPIO access
Includes 2×2-pin female header for powering the PoE+ interface
Adjustable layout to fit different Raspberry Pi models
Specifications
Output Voltage
5.1V
Output Current
4.5A
Required Switch Power
At least 30W for full power operation
PoE+ Standard
802.3at (for full power operation)
Supported Models
Raspberry Pi 3B+, 4B, and Raspberry Pi 5
PoE+ Interface Power
2x2Pin female headers for PoE+ interface power supply
