This Clipper enables your Raspberry Pi computer to receive and transmit data over 4G LTE cellular networks - perfect for remote or mobile projects.
WiFi is great, but sometimes you want your connected project to Just Work, wherever in the world it is. Perhaps you're going to a festival and don't know if there will be wireless connectivity to control your weird LED art installation. Maybe you're trying to get the tech in your shed to talk to your home automation software, but the range of your wireless router won't quite reach. Possibly you're attaching sensors to a distant beehive, canal boat, bicycle or other object with a remote or transient location.
Hooking your Raspberry Pi up to cellular/mobile data could be your solution! Typically, transmitting sensor readings and suchlike don't consume much data compared to the needs of modern smartphones, so a small amount of pay-as-you-go data used like this goes a long way.

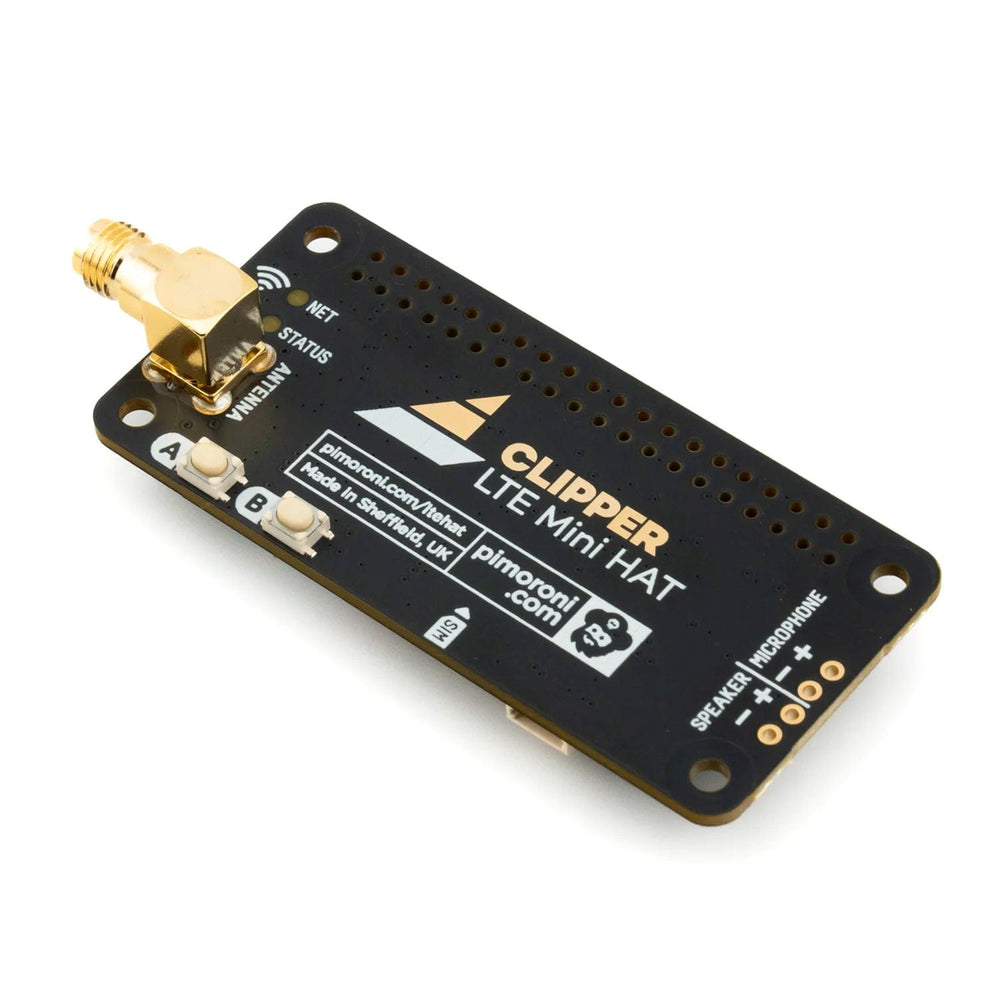

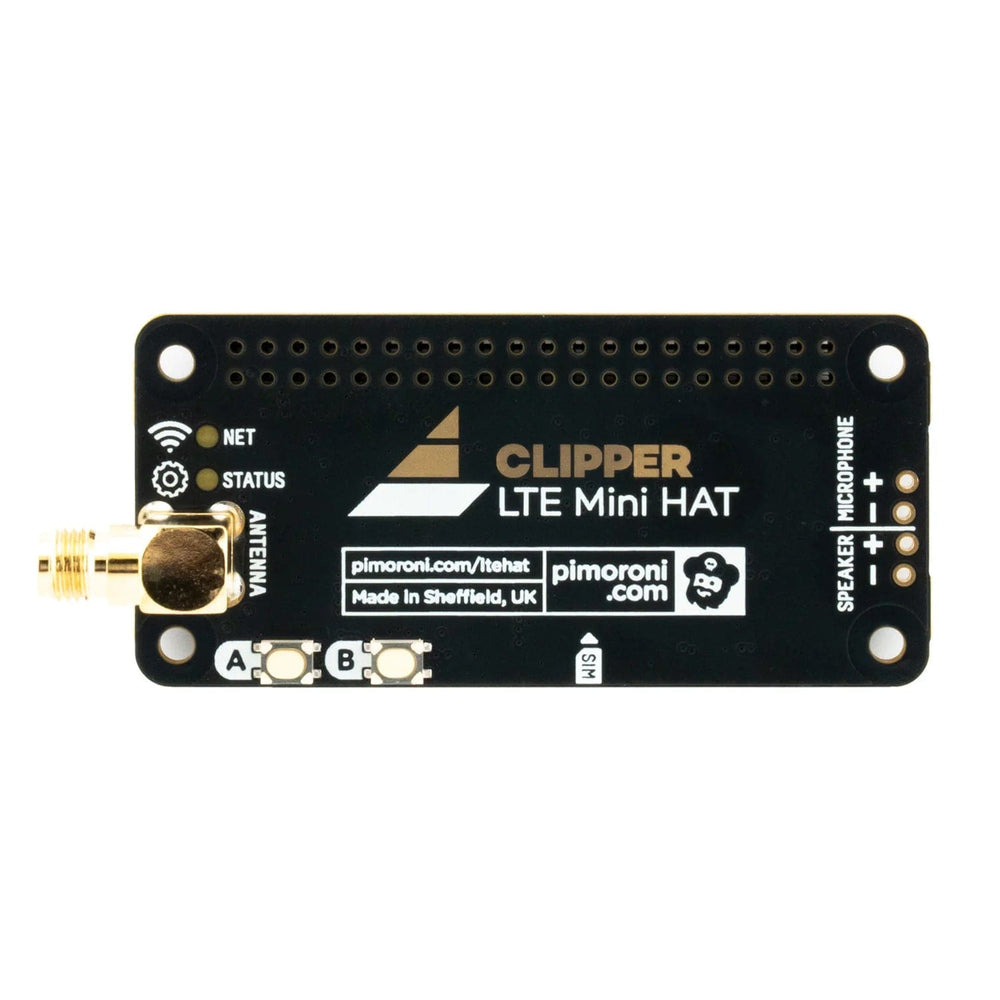

The mini HAT version of Clipper includes a couple of nice additions for your Raspberry Pi - LED indicators to show you what the LTE module is doing, two user buttons and a Qw/ST connector, which makes it easy to connect up breakouts with a Qwiic or STEMMA QT connector using one of these cables.
Clipper HAT Mini has an SMA connector for attaching an antenna. Antennae are sold separately, so be sure to pick one up!
Note: Raspberry Pi and accessories are sold separately
Control Via AT Commands (SIMCom AT-Command Manual)

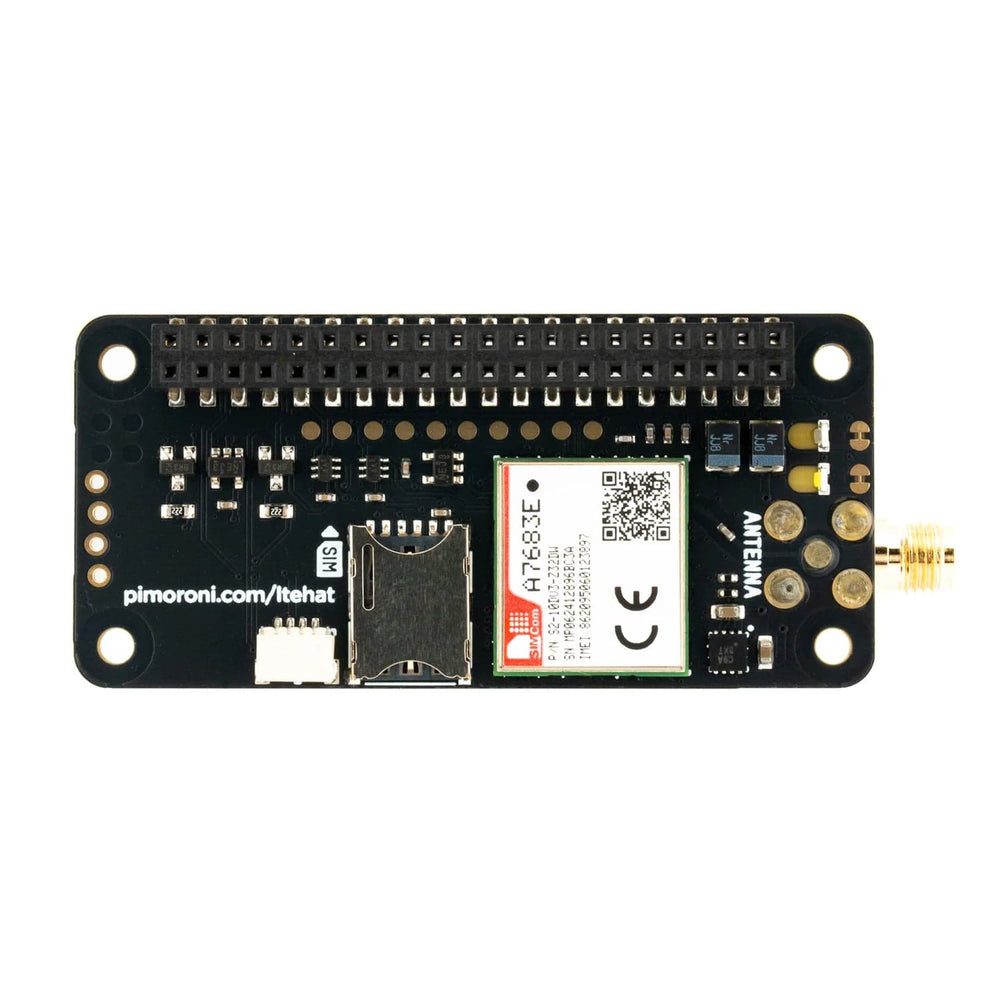

SIM card slot
Two user buttons (labelled A and B)
STATUS and NET indicator LEDs
SMA connector for attaching an antenna
Qw/ST (Qwiic / STEMMA QT) connector for attaching I2C breakouts
Unpopulated headers for adding a speaker and microphone
Pre-soldered socket header for attaching to Raspberry Pi
No soldering required (as long as your Raspberry Pi has a 40-pin header attached).
Compatible with Raspberry Pi computers
Specifications

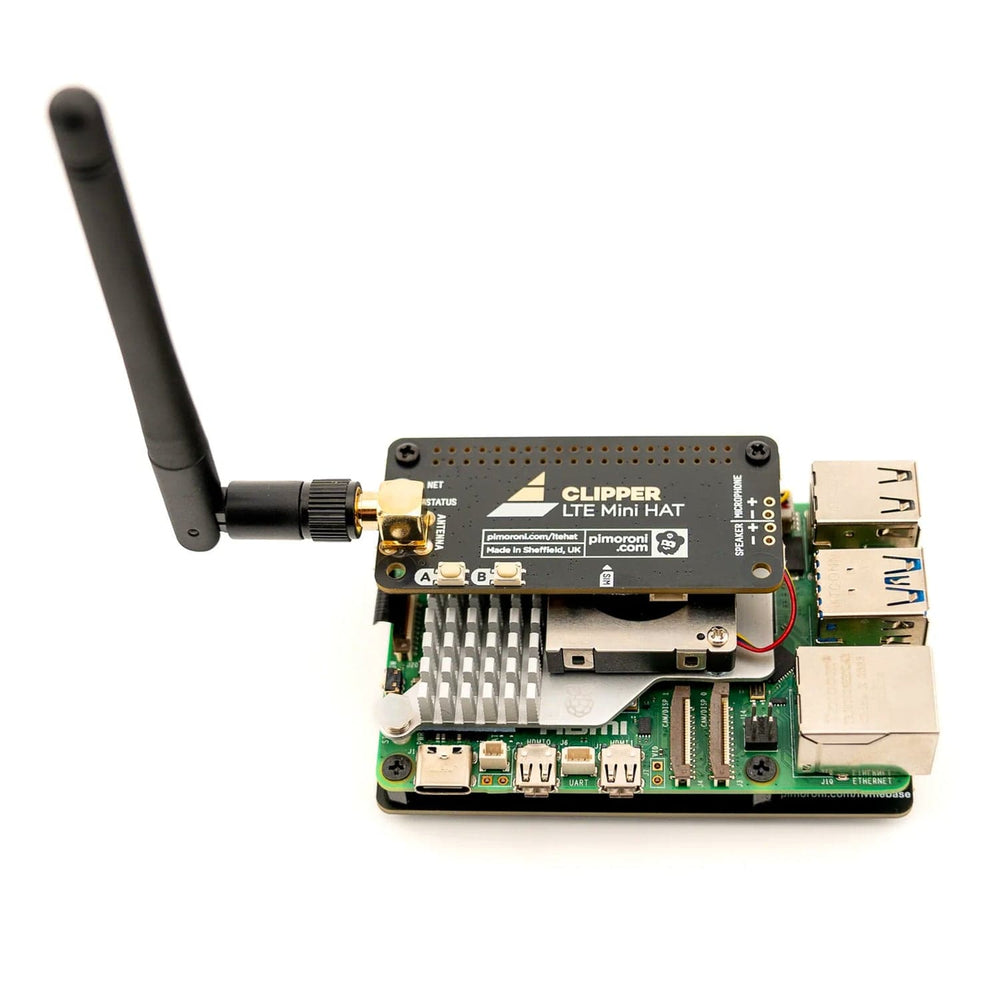

Dimensions: 65 x 30 x 17mm (L x W x D, including connectors). With a Pi Zero 2 W attached with10mm standoffs, the total depth (including the antenna connector) is around 23mm.
VDD current consumption info from our testing:
Idle: 17mA
Sleep modes: 0.12mA - 1.63mA
Peak current consumption when transmitting: 700mA (the peak current is only reached for a brief moment, and the 440uF of capacitors on the breakout help to smooth the peaks)
The average currents we saw when actively using the module were in the 50mA - 100mA range.
The 4G LTE module on Clipper supports the following frequency bands:
B1/B3/B5/B7/B8/B20/B28
If you're planning on using it outside of Europe we'd suggest first checking your local carriers offer 4G LTE on these specific bands. Networks in North America in particular only use a couple of these frequency bands, and so coverage may be limited.
Package Contents
1x Clipper HAT Mini (LTE 4G for Raspberry Pi)
