51mm Whip LTE Antenna

Name: 51mm Whip LTE Antenna
Brand: iLabs
SKU: 106096
Price: 8.1 GBP
Availability: OutOfStock

iLabsSKU: 106096

Option:Angled

£9.50

incl. VAT

excl. VAT

Only 8 units left

Awesome Extras

Challenger RP2040 LTE MkII by iLabs - The Pi Hut

iLabs Challenger RP2040 LTE MkII

£57 incl. VAT excl. VAT

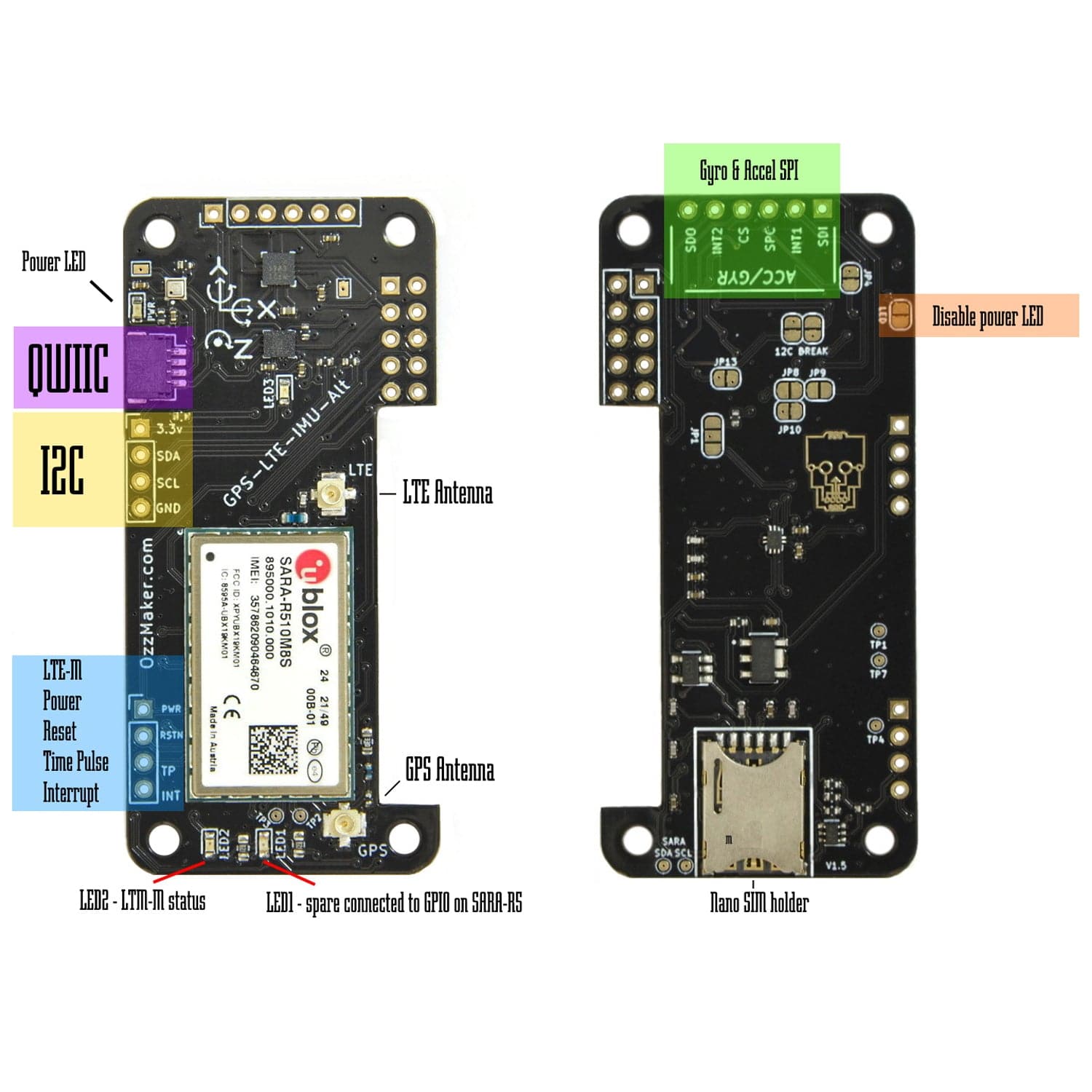

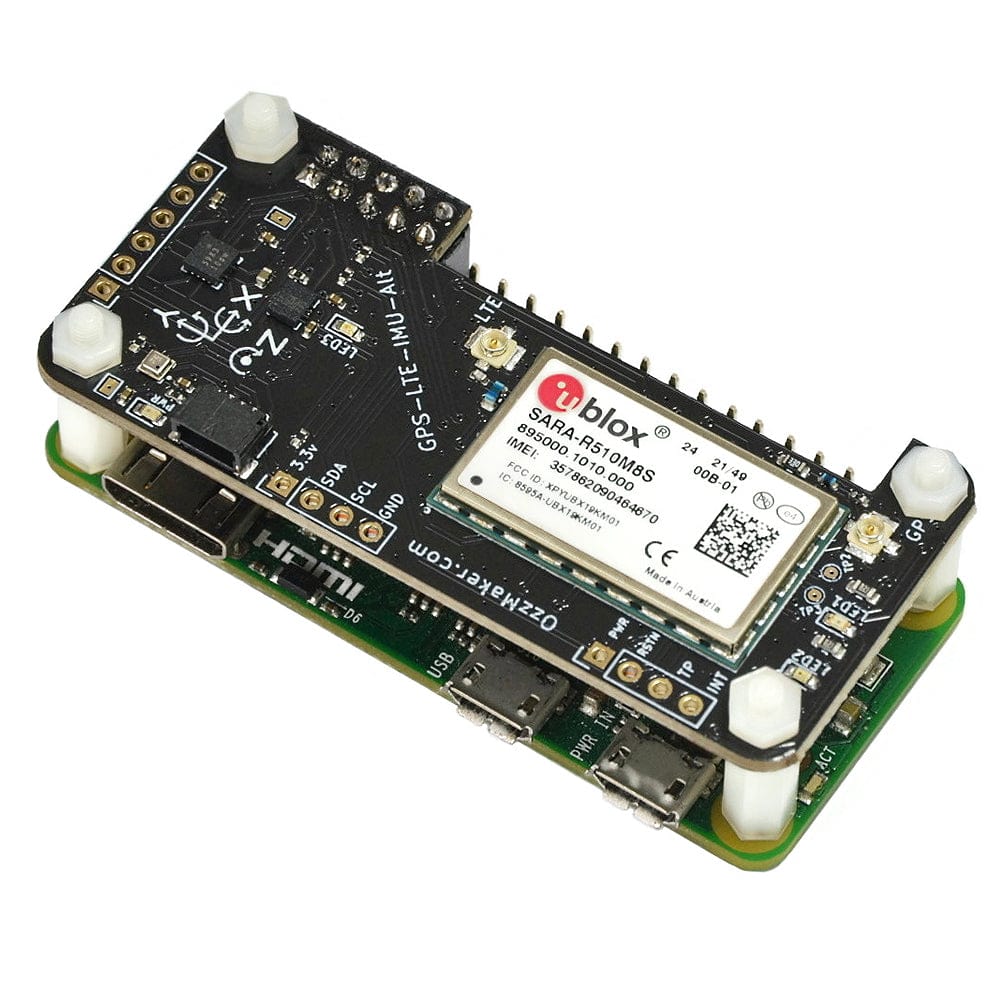

OzzMaker SARA-R5 LTE-M GPS + 10DOF by Ozzmaker - The Pi Hut

Ozzmaker OzzMaker SARA-R5 LTE-M GPS + 10DOF

£56 incl. VAT excl. VAT

5-Band LTE Antenna by iLabs - The Pi Hut

iLabs 5-Band LTE Antenna

£6.40 incl. VAT excl. VAT

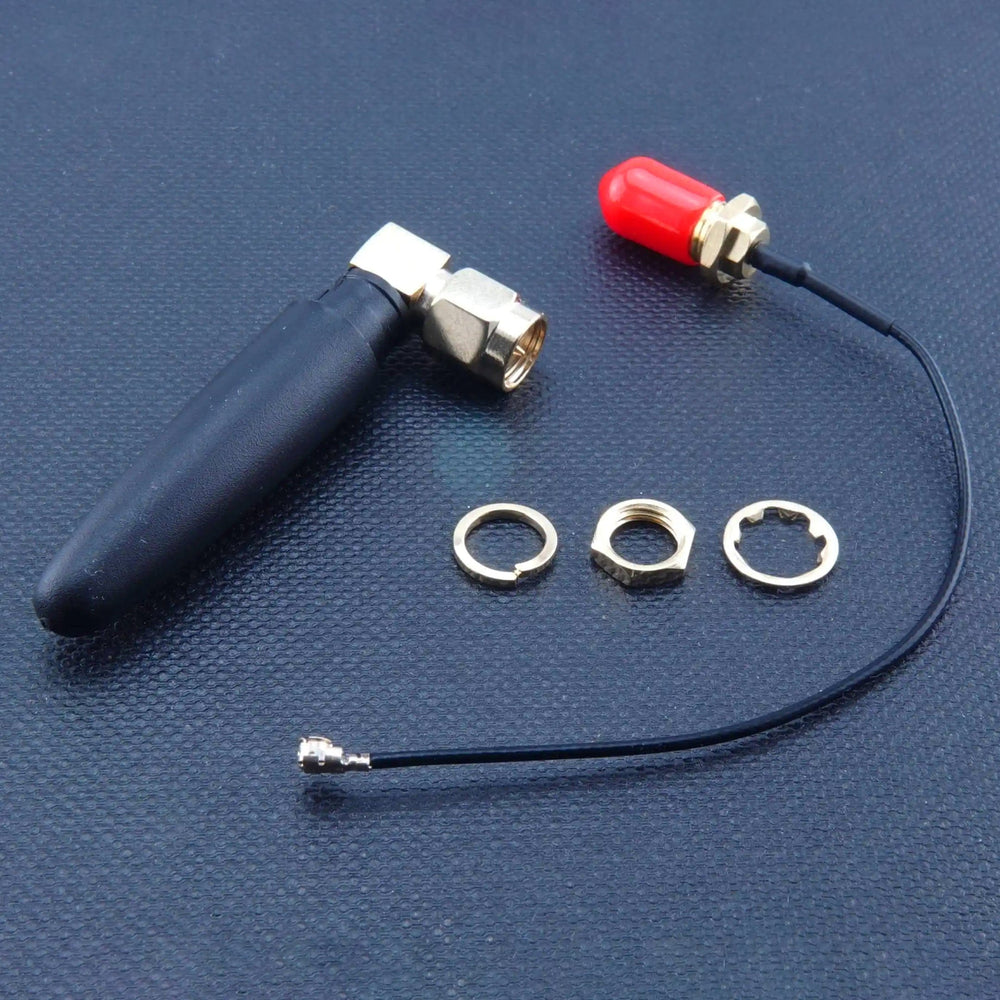

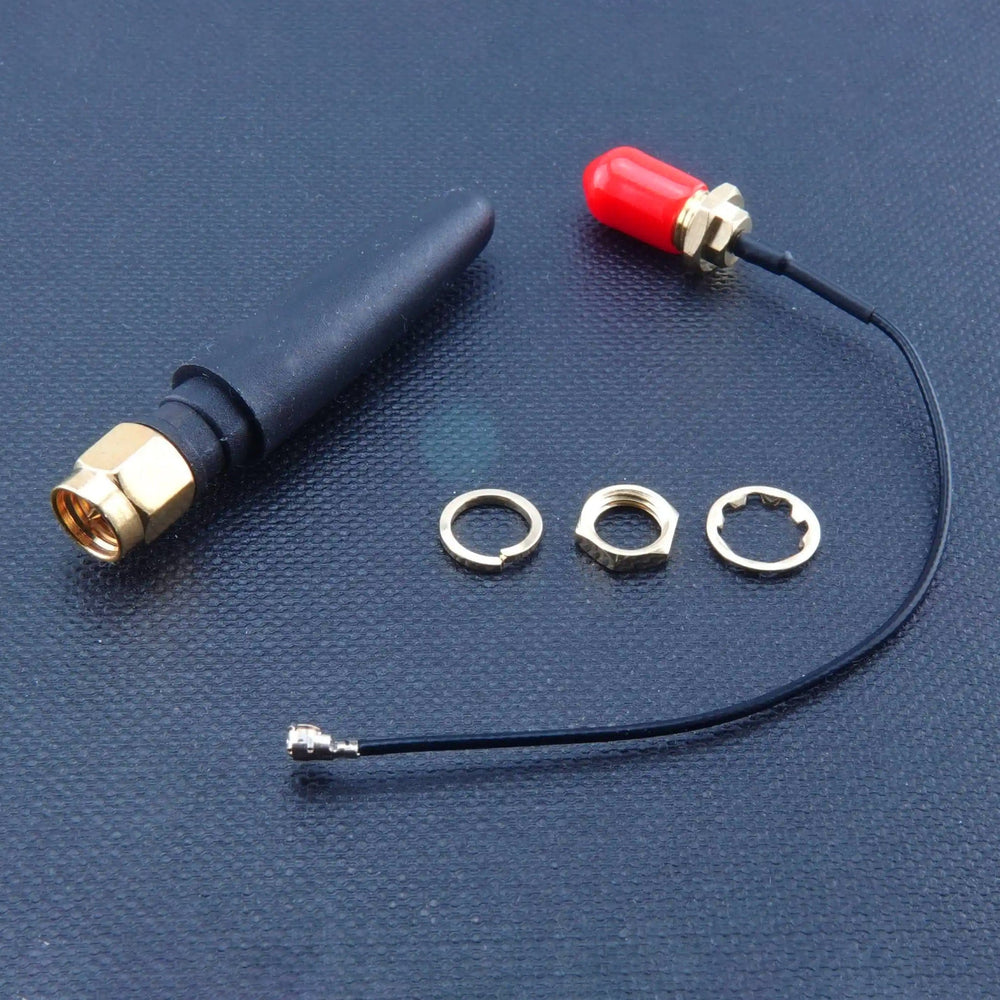

This RF Antenna is designed specifically for use with LTE modem boards. Its whip multiband antenna gives a strong performance in a minimal footprint, which is ideal for setups where space is limited. Unlike many antennas, it doesn’t require mounting on a metallic surface, making it especially useful for compact IoT installations and small devices.

This antenna kit includes an RF cable assembly featuring an SMA (Female) connector and a JK-IPEX/MHF/U.FL connector for easy PCB connection. The coaxial cable is 1.13mm in diameter, with a 50-Ohm rating, and measures 100mm in length, providing a solid link for reliable LTE connectivity.

This comes in two variants. Straight and Angled. Please choose which version you want before adding it to your cart!

Specifications

Characteristic impedance	50 ohms
Radiation Pattern	Omni Directional
Polarisation	Linear
Temperature Range	-40C – +85C
Dimensions	51mm x 10.4mm
Connector	SMA Male (Straight)
Connector	SMA Male (90 Degree Angled)
Connector Plating	Gold/Nickel
