5-Band LTE Antenna

iLabsSKU: 105341
£6.40
incl. VAT
excl. VAT
Only 15 units left

Awesome Extras

Challenger RP2040 LTE MkII - The Pi HutChallenger RP2040 LTE MkII - The Pi Hut
iLabsChallenger RP2040 LTE MkII
£57 incl. VAT excl. VAT
OzzMaker SARA-R5 LTE-M GPS + 10DOF - The Pi HutOzzMaker SARA-R5 LTE-M GPS + 10DOF - The Pi Hut
OzzmakerOzzMaker SARA-R5 LTE-M GPS + 10DOF
£56 incl. VAT excl. VAT

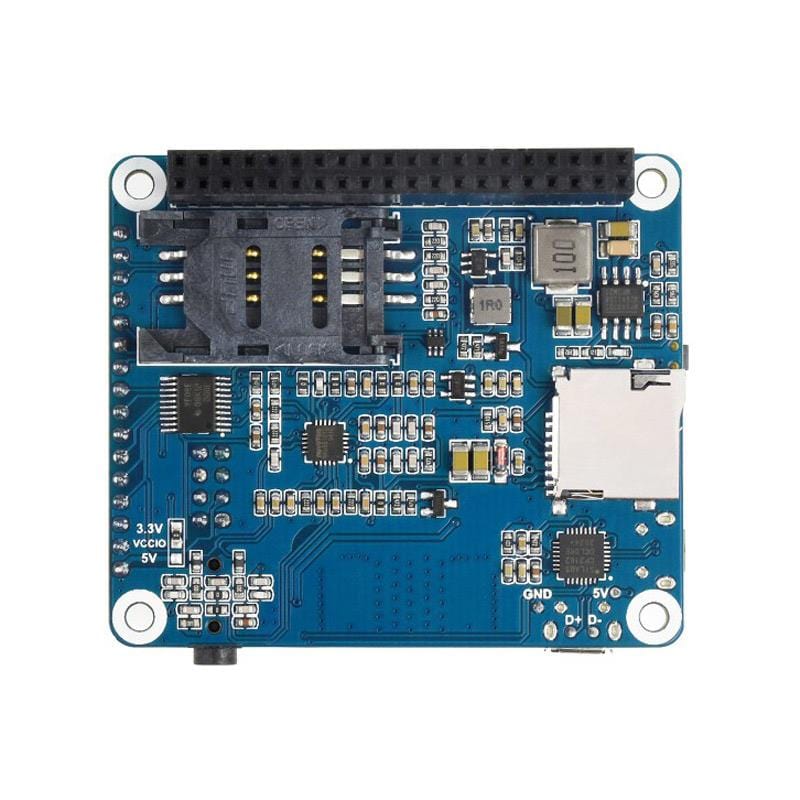

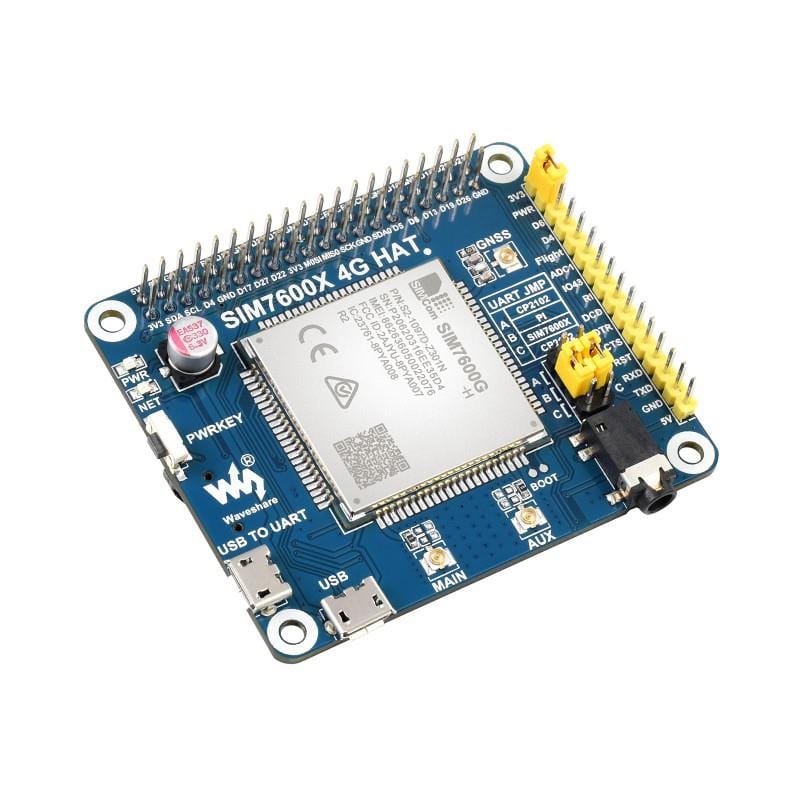

4G HAT for Raspberry Pi - LTE Cat-4/3G/2G with GNSS Positioning - The Pi Hut4G HAT for Raspberry Pi - LTE Cat-4/3G/2G with GNSS Positioning - The Pi Hut
Waveshare4G HAT for Raspberry Pi - LTE Cat-4/3G/2G with GNSS Positioning
£82.10 incl. VAT excl. VAT

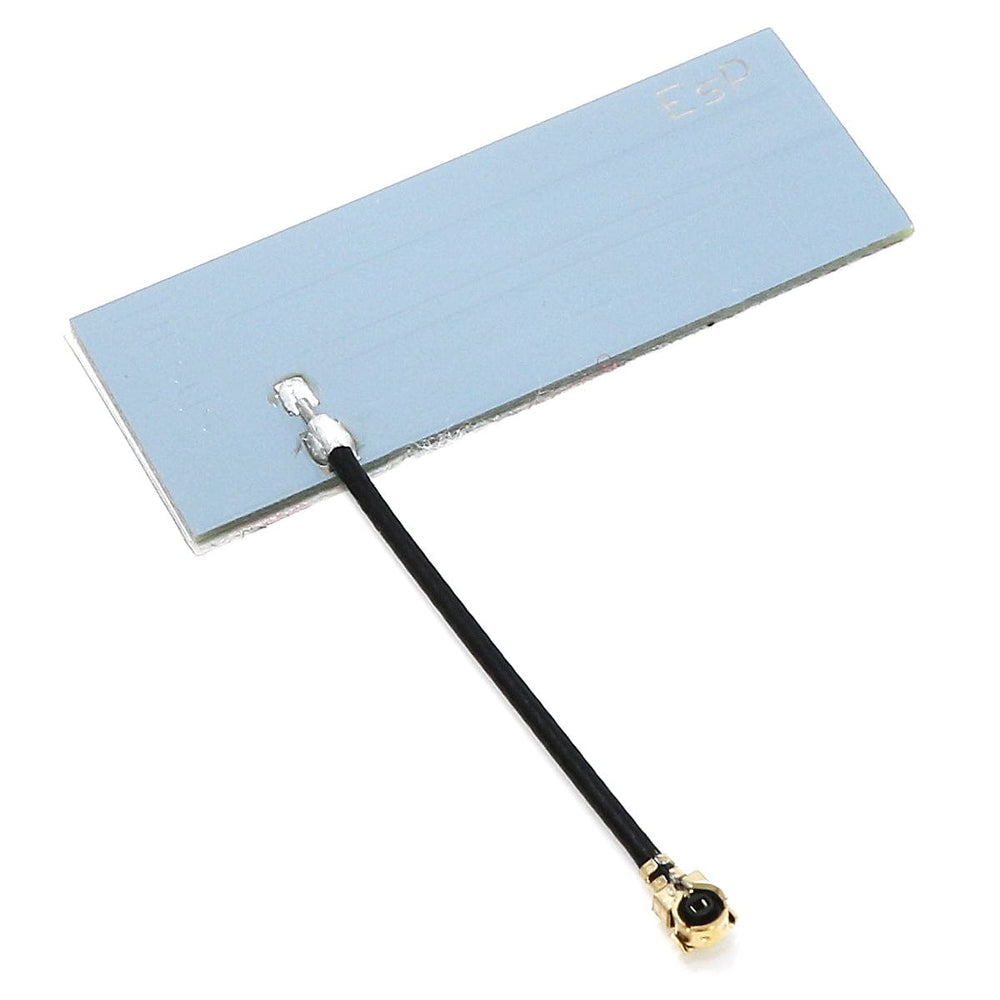

This is a penta band antenna made to be used together with LTE/2G-based boards, such as the Challenger RP2040 LTE MkII.

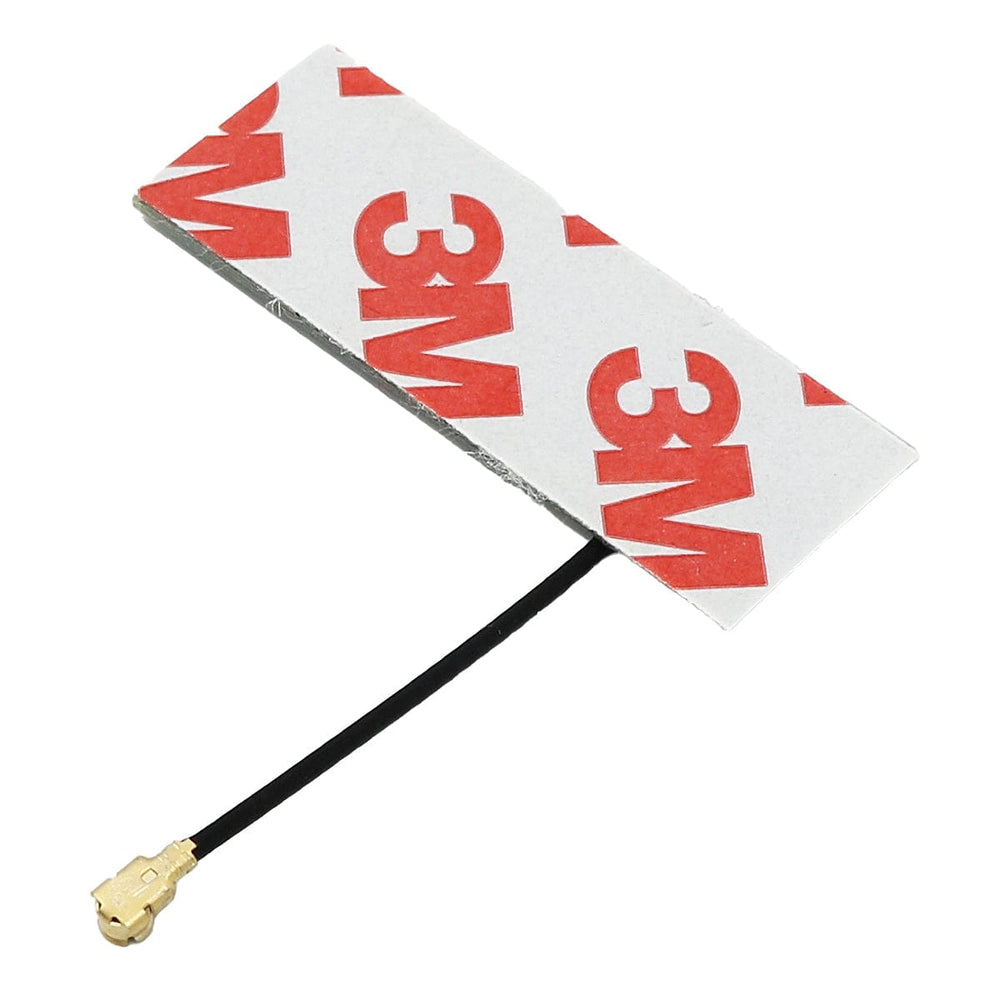

The antenna has a small (30mm) coax wire attached to a U.FL connector. It is lined with strong double-sided tape on the back side that allows you to place the antenna inside your enclosure.

The antenna works with five different LTE bands: 850/900/1800/1900/2100 MHz

Features

  • Size 40mm x 15mm x 2.3mm (Height includes tape and coax cable)
  • Penta band EU/US GSM/WCDMA/LTE
  • U.FL connector
  • Self-adhesive
  • Frequencies: 850 / 900 / 1800 / 1900 / 2100 MHz
  • Dimensions: 50 x 20 x 5mm

Specifications

Typical free space performance measured flat on the floor in test unit mechanics:

Freq. range Max Gain
(dBi) 		Efficiency
(%) 		Return Loss min
(dB)
824-960 -1.2 27 -4
1710-1990 1 33 -7
1920-2170 1.1 40 -4

Package Contents

  • 1x 5-band LTE antenna
