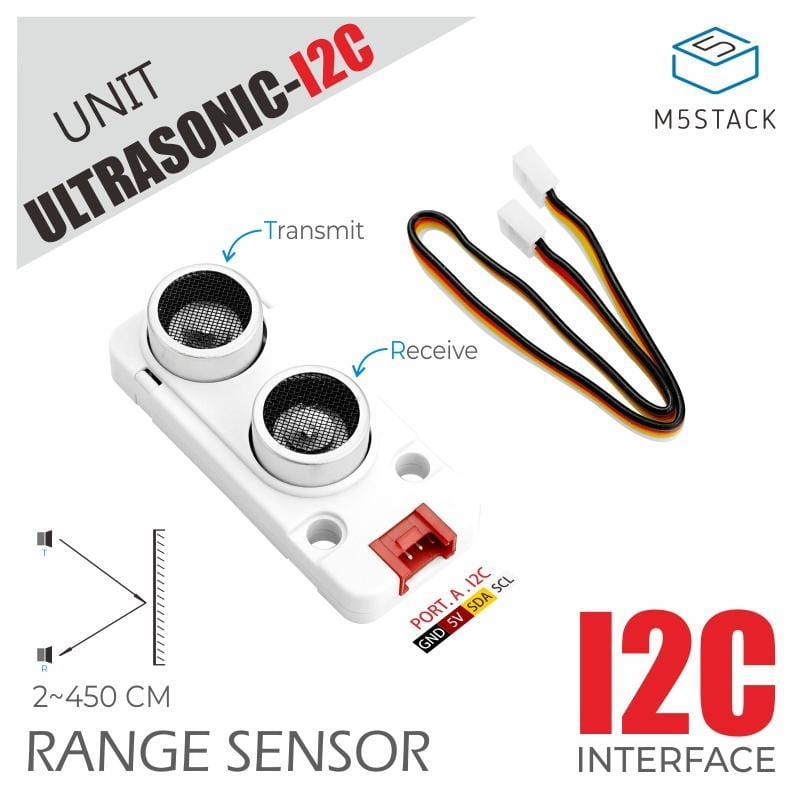

The M5Stack Unit I2C is an I2C interface ultrasonic distance sensor. This allows for easy I2C integration and multi-sensor operation using a single BUS, to save I/O resources.

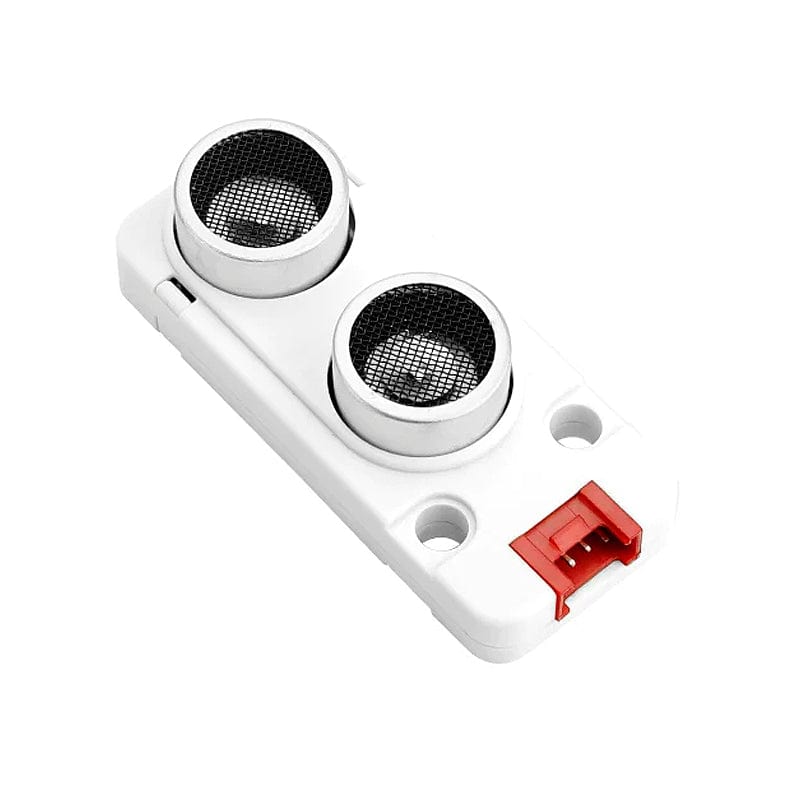

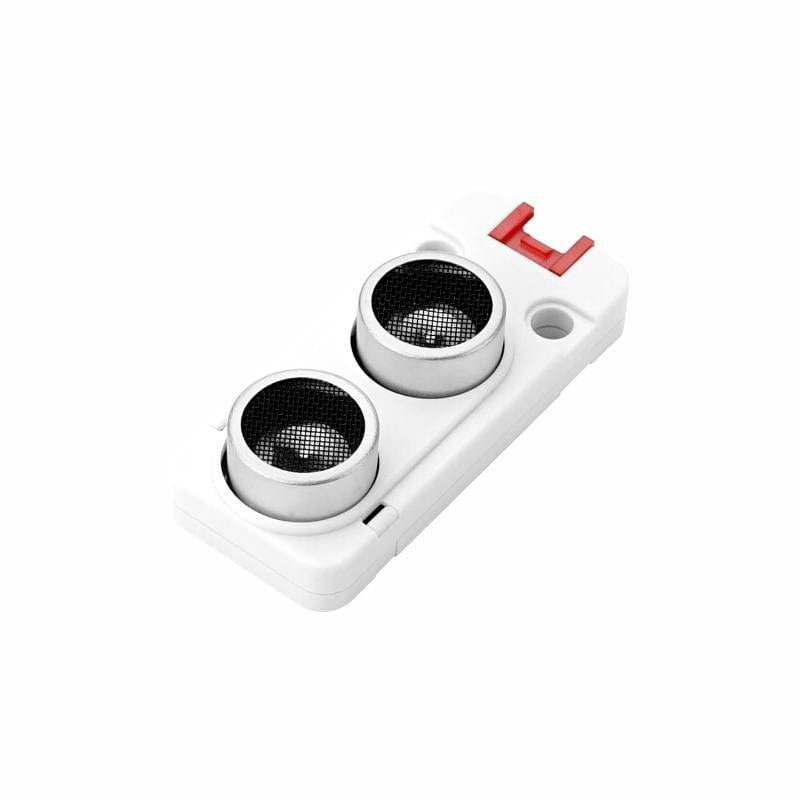

The module features an RCWL-9620 ultrasonic distance measurement chip with a 16mm probe, which the ranging accuracy can reach 2cm-450cm (accuracy up to ±2%).

It is ideal to apply in robotics obstacle avoidance, fluid level detection, and other applications that require you to perform measurements.

Features

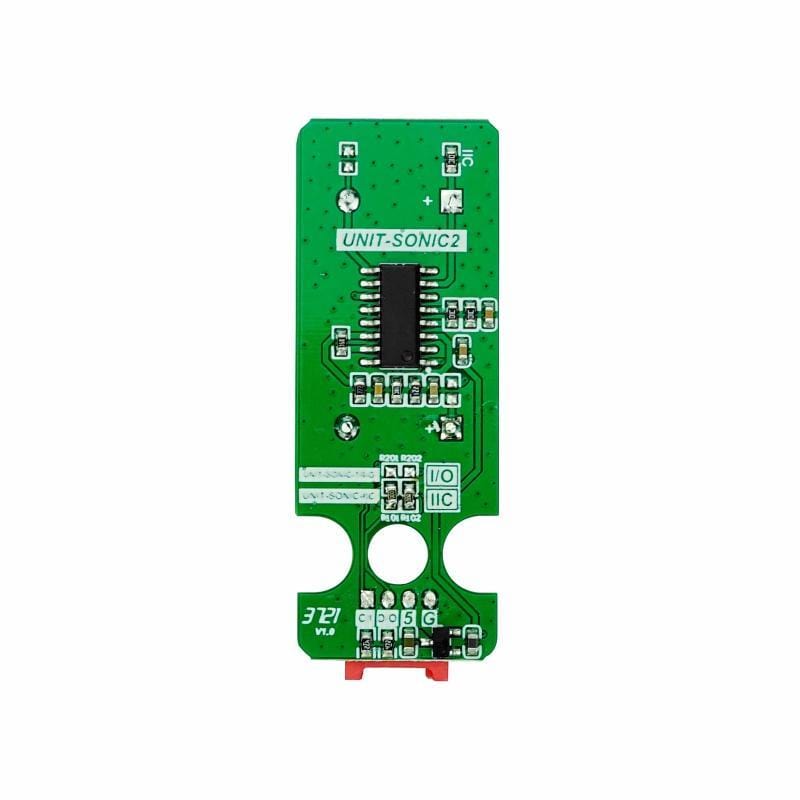

RCWL-9620 Chip

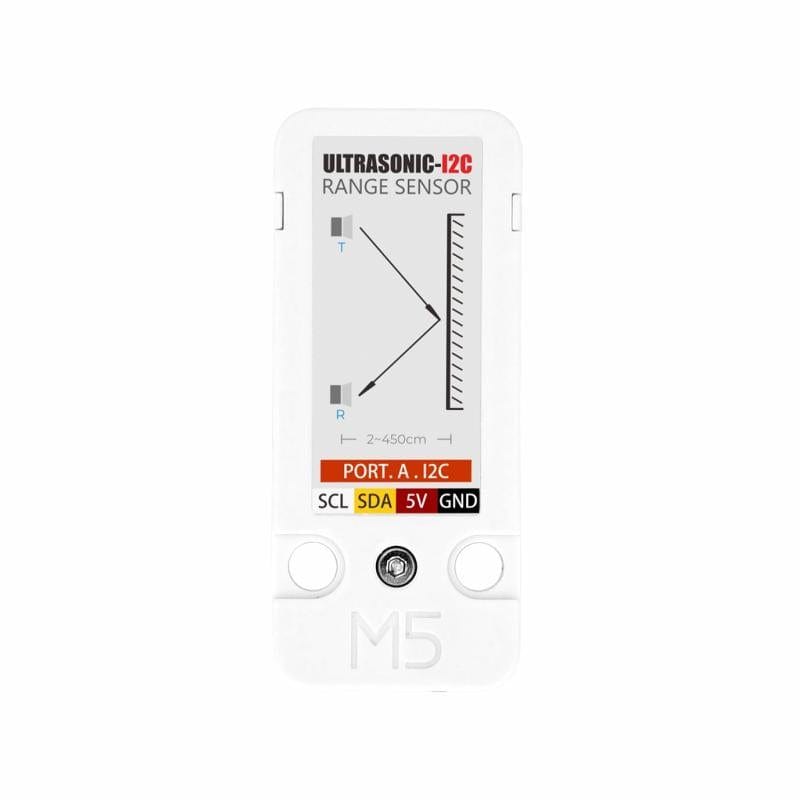

I2C communication interface (addr: 0x57)
Measuring range: 2cm-450cm
Protective housing
Built-in temperature compensation, reduce the temperature drift
Support UIFlow platform

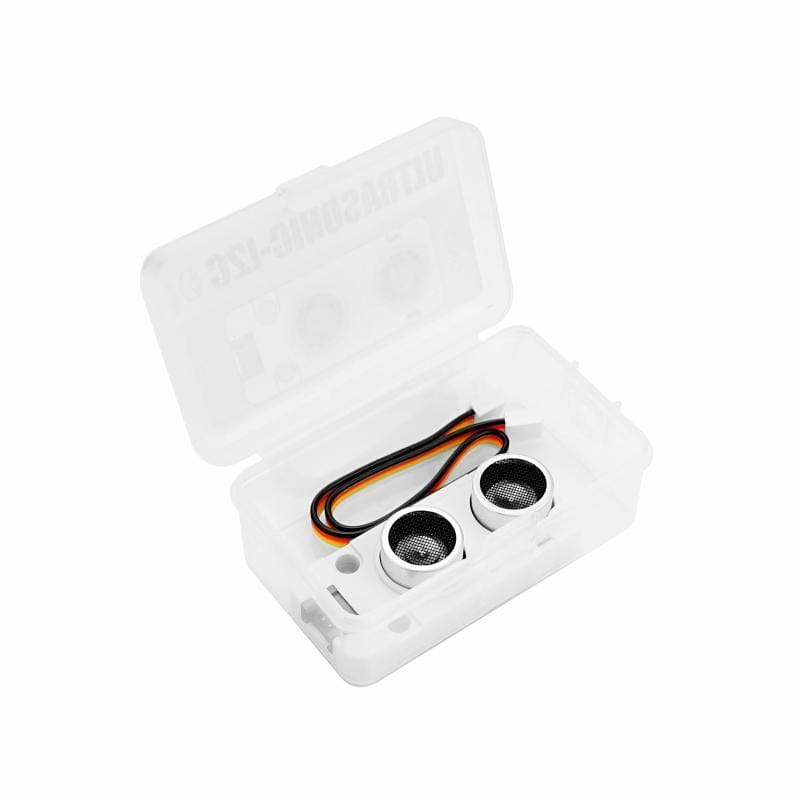

Package Contents

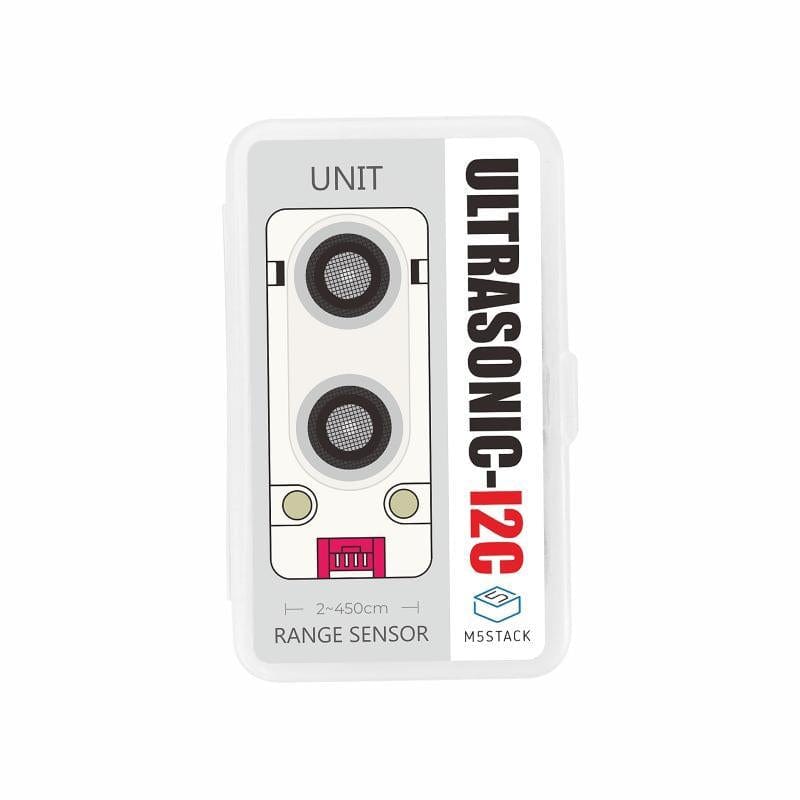

1x Unit UNIT SONIC I2C
1x HY2.0-4P cable (20cm)

Specifications

Specifications	Parameters
Ultrasonic Ranging Single Chip	RCWL-9620
Range	2cm-450cm
Probe Specifications	16mm
Receiving/Transmitting Frequency	40KHz
Receiving sensitivity	-65dB
Pointing angle	60°
Measurement accuracy	±2%
Working current	2mA
Net weight	10g
Gross weight	25g

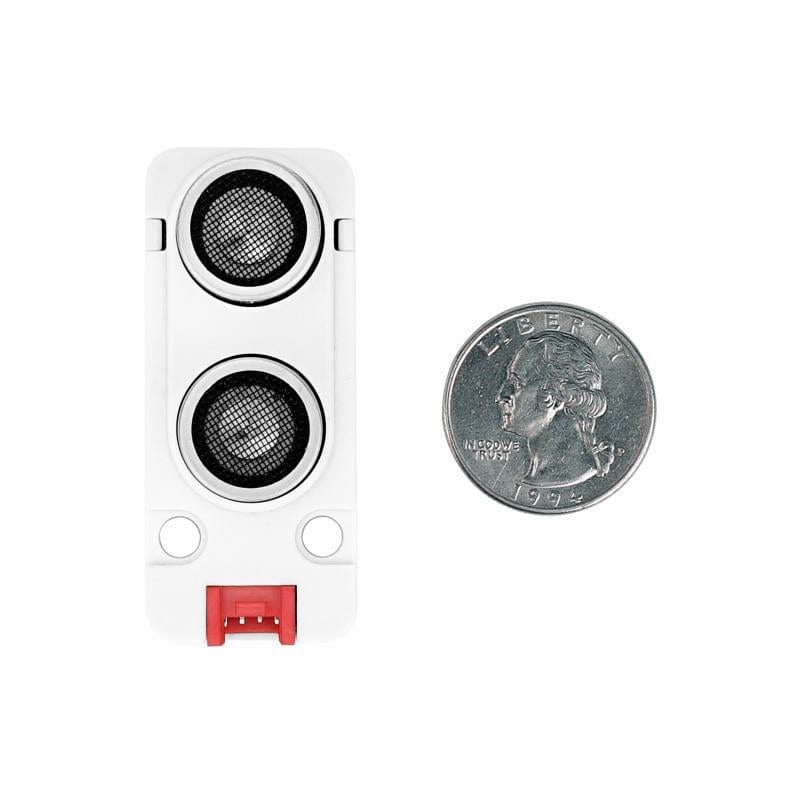

Product size	56 * 24 * 15mm
Packing size	76 * 47 * 29mm
