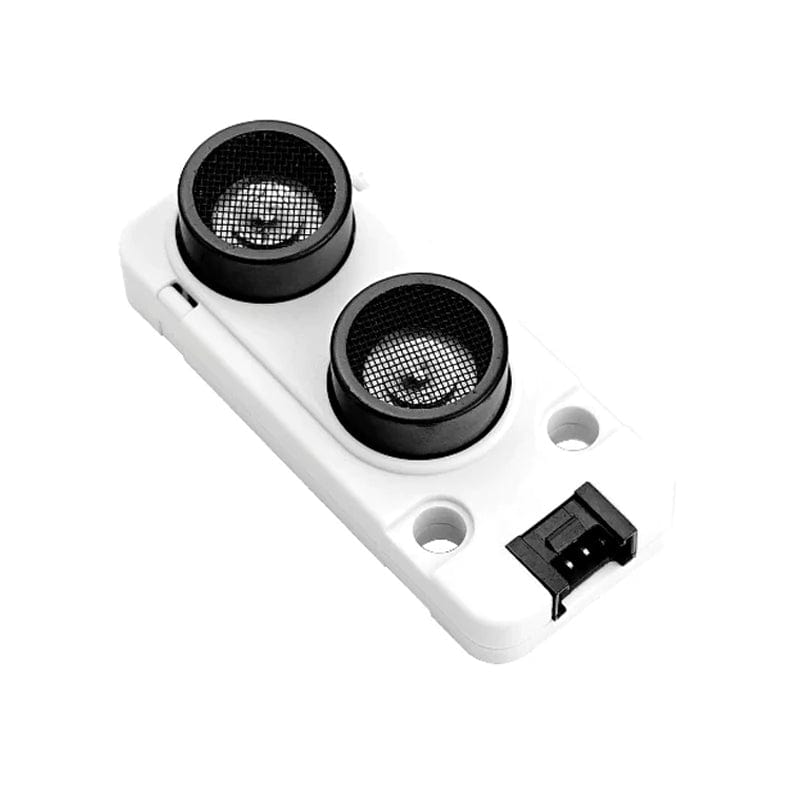

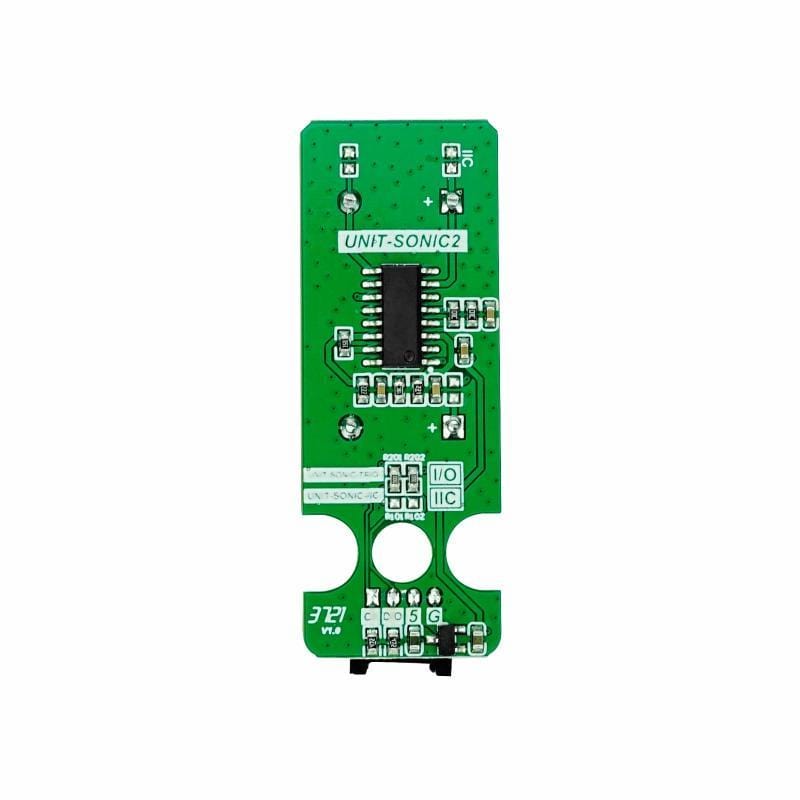

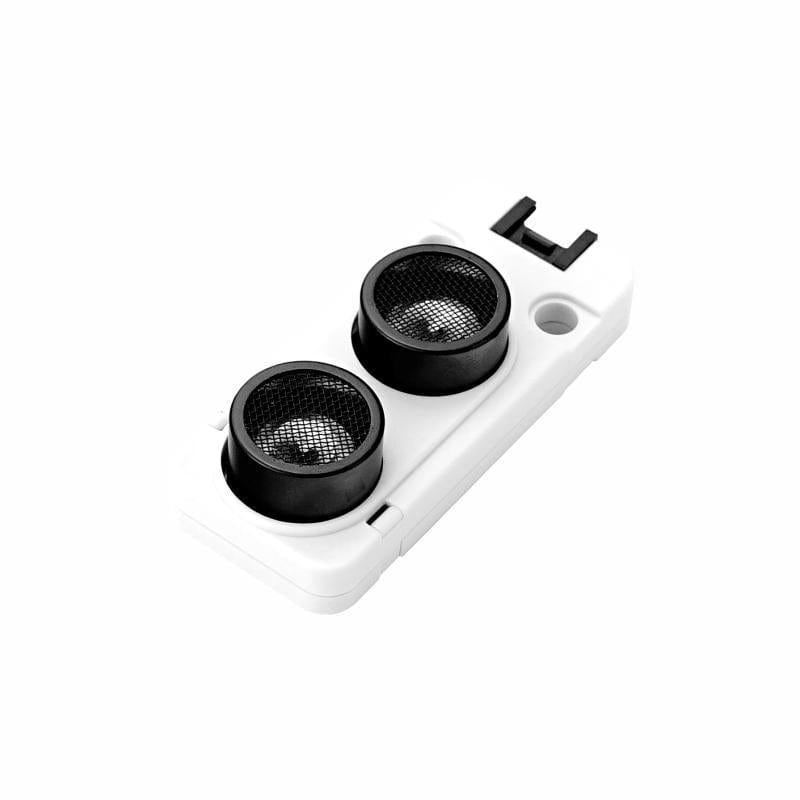

The M5Stack Unit I/O is a GPIO interface ultrasonic range sensor. This module features an RCWL-9620 ultrasonic distance measurement chip with a 16mm probe, which the ranging accuracy can reach 2cm-450cm (accuracy up to ±2%).

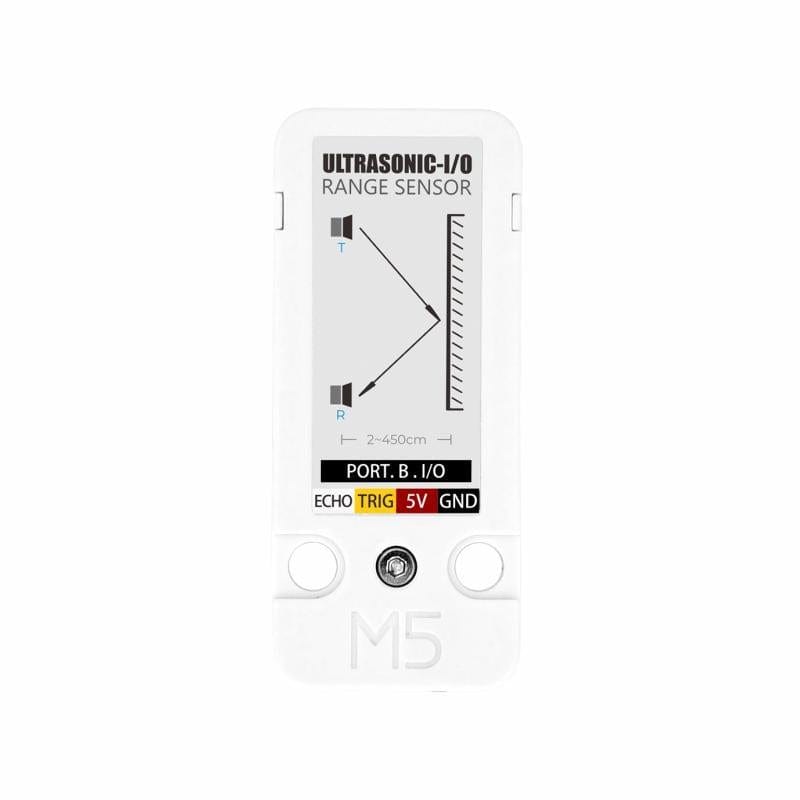

This sensor determines the distance to a target by measuring time lapses between the transmitting and receiving of the pulse signal, users can directly obtain the distance value through IO control mode.

It's ideal to apply in robotics obstacle avoidance, fluid level detection, and other applications that require you to perform measurements.

Features

RCWL-9620
GPIO communication interface
Measuring range: 2cm-450cm
Protective housing
Built-in temperature compensation, reduce the temperature drift
Support UIFlow platform

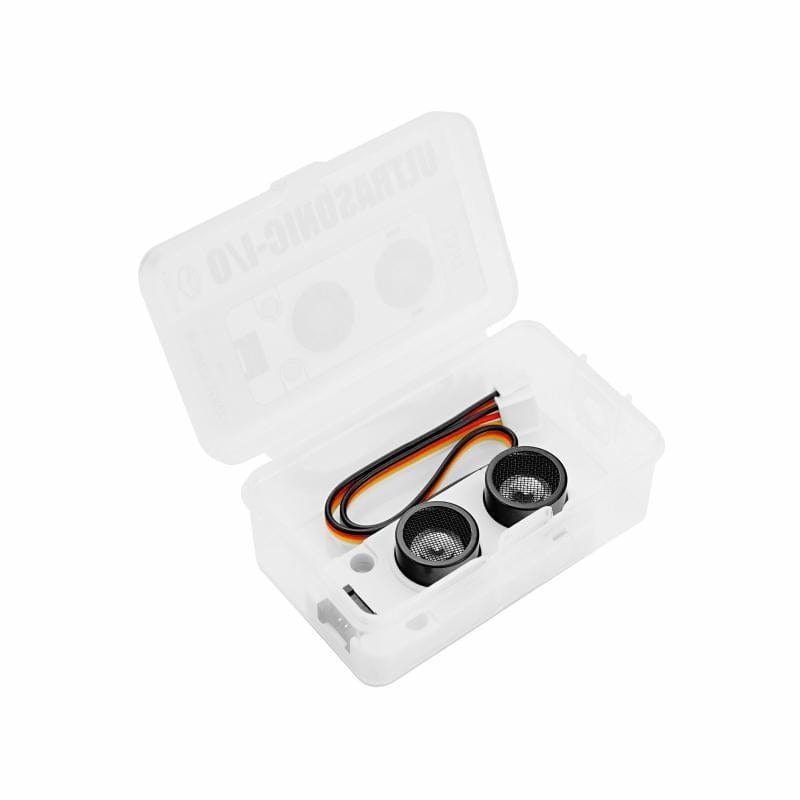

Package Contents

1x Unit UNIT SONIC IO
1x HY2.0-4P cable (20cm)

Specifications

Specifications	Parameters
Ultrasonic Ranging Single Chip	RCWL-9620
Range	2cm-450cm
Probe Specifications	16mm
Receiving/Transmitting Frequency	40KHz
Receiving sensitivity	-65dB
Pointing angle	60°
Measurement accuracy	±2%
Working current	3mA
Net weight	11.5g
Gross weight	26g

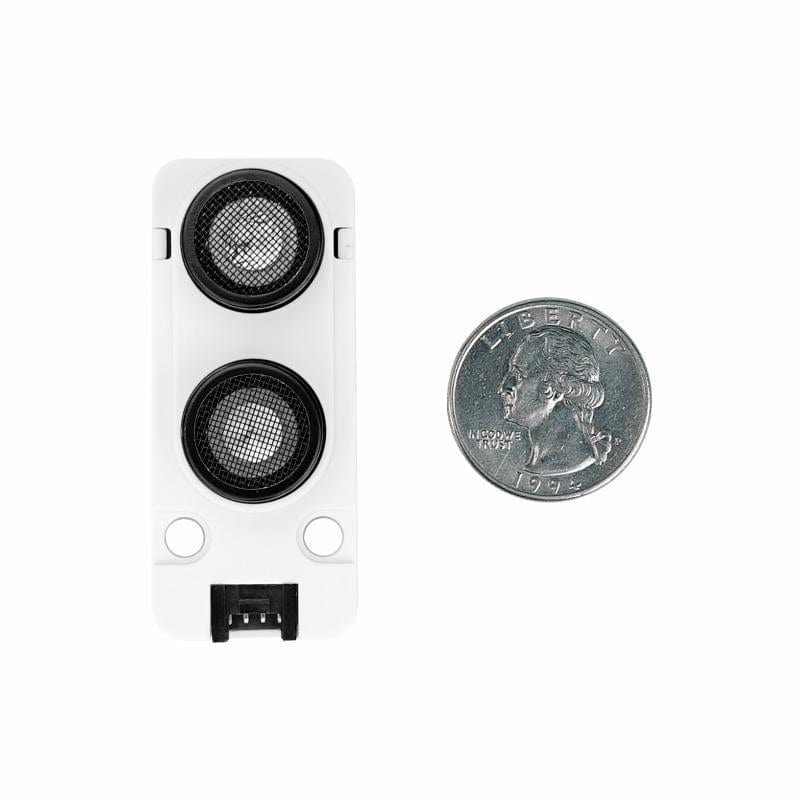

Product size	56 * 24 * 15mm
Packing size	76 * 47 * 29mm
