RS485 CAN HAT for Raspberry Pi

WaveshareSKU: WAV-14882

£13.50

incl. VAT

excl. VAT

In stock

Awesome Extras

£21.20 incl. VAT excl. VAT

Save 10%

From £30.42 £33.80 incl. VAT excl. VAT

£14.40 incl. VAT excl. VAT

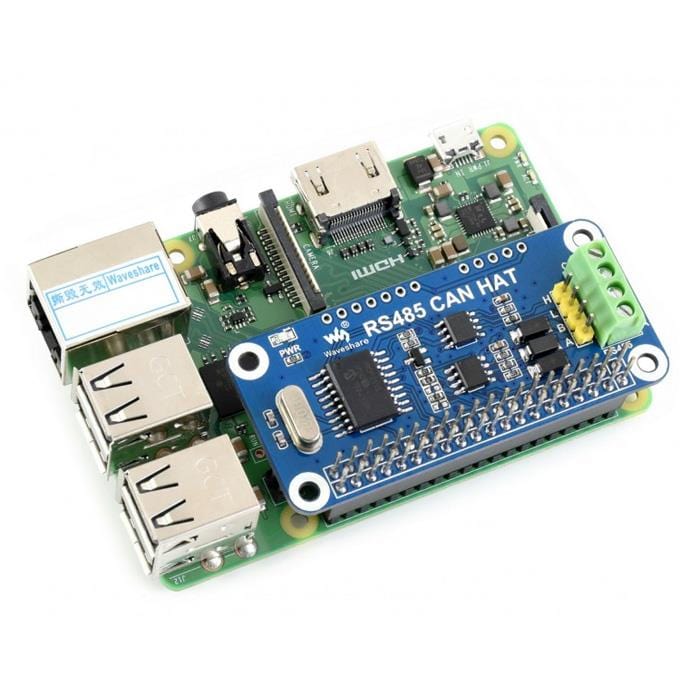

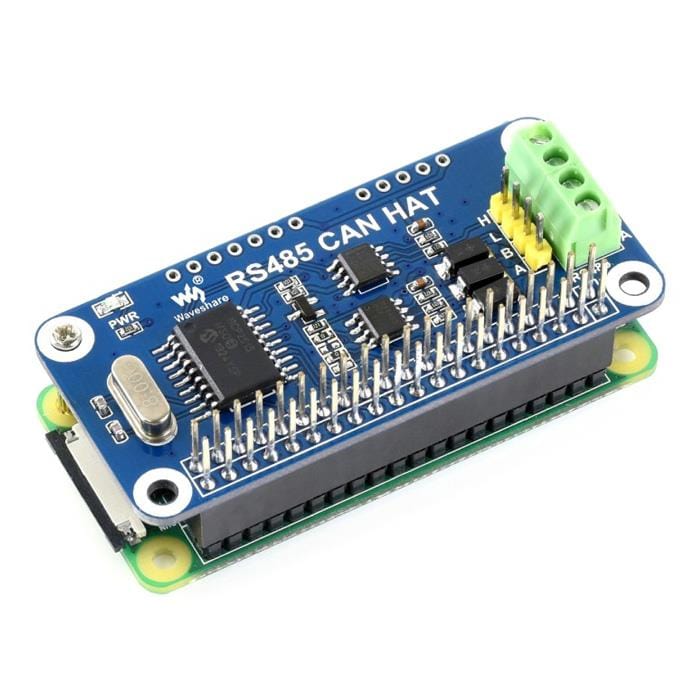

The RS485 CAN HAT will enable your Raspberry Pi to communicate with other devices stably in long-distance via RS485/CAN functions.

Features

Standard Raspberry Pi 40-pin GPIO header
CAN function, onboard CAN controller MCP2515 via SPI interface, onboard transceiver SN65HVD230
RS485 function, controlled via UART, half-duplex communication, supports automatic TX/RX control without programming, onboard transceiver SP3485
Onboard TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit for RS485 transceiving, lightning-proof & anti-electrostatic
Reserved control pins, allows working with other control boards
Comes with development resources and manual (examples in wiringPi/python)

Resources

Specifications

Pinouts

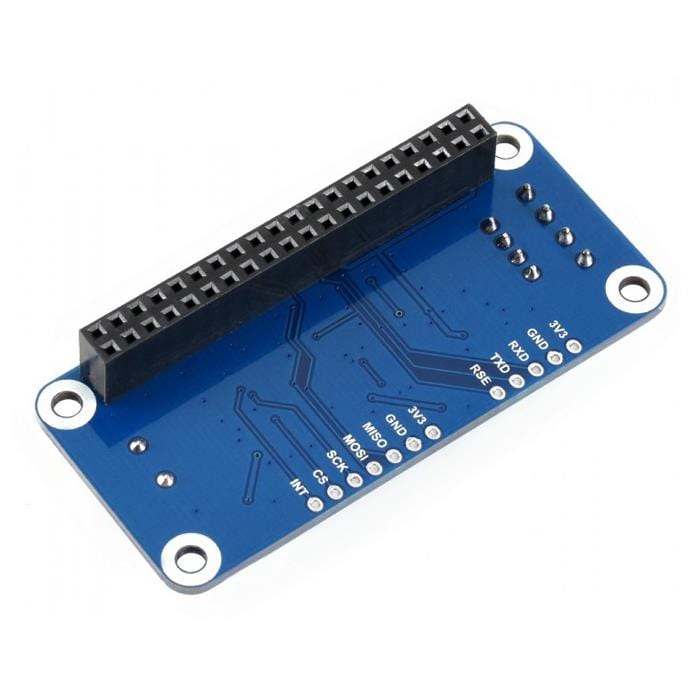

PIN	RPI (BCM)	DESCRIPTION
3V3	3V3	3.3V Power
GND	GND	Ground
SCK	P11 / SCLK	SPI clock input
MOSI	P10 / MOSI	SPI data input
MISO	P9 / MISO	SPI data output
CS	P8 / CE0	SPI chip selection
INT	P25	Interrupt
RXD	P15 / RXD	RS485 UART receive
TXD	P14 / TXD	RS485 UART transmit
RSE	P4	RS485 TX/RX control (auto-control by default**), high for TX, low for RX

**some soldering is required to enable manual control
