RS422 / RS485 Serial HAT

RS422 / RS485 Serial HAT
Sold Out
£ 29.99

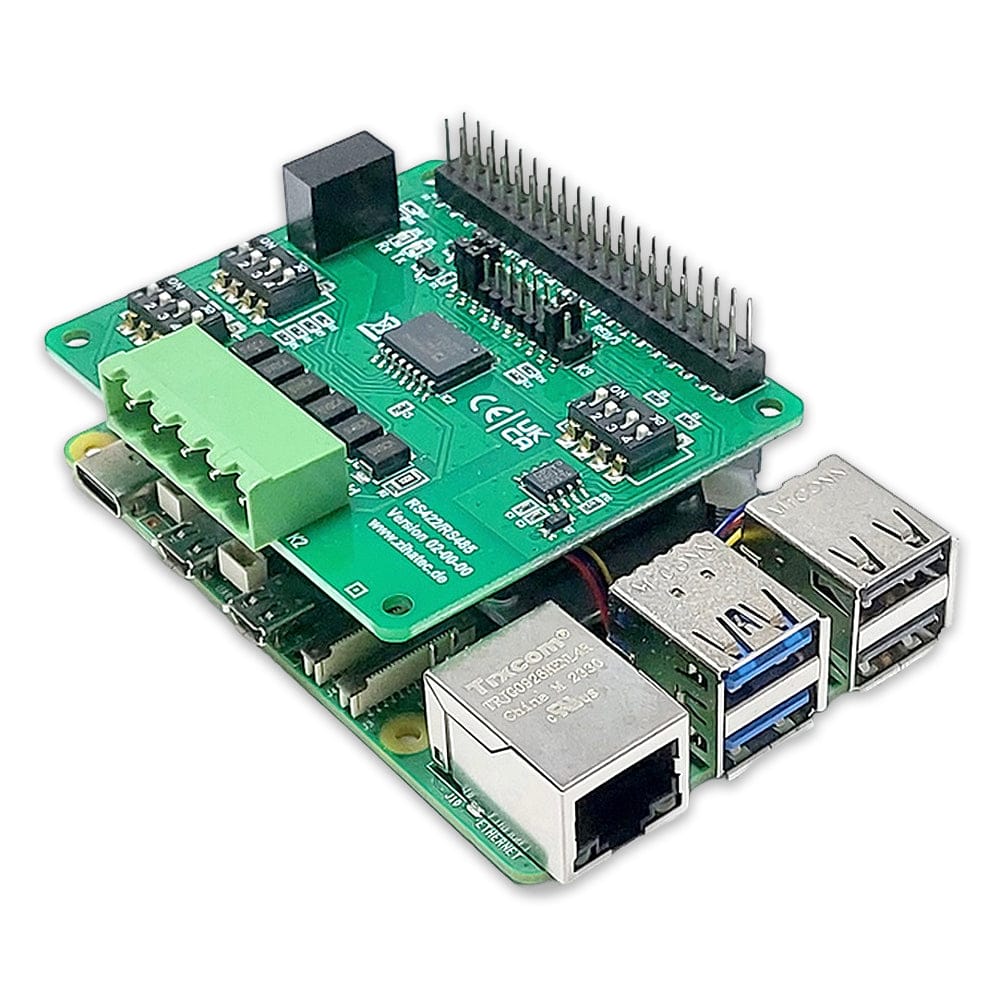

The RS422 / RS485 Serial HAT from HWHardSoft is a fully galvanic isolated Serial communication HAT designed for use with the Raspberry Pi. RS485 can be used across large distances, so isolation of the RS485 bus ensures that your Raspberry Pi is fully protected!

RS485 is in use in many applications like industrial and home automation (for example MODBUS), lighting control (DMX), video surveillance (for example Pelco D) and many more!

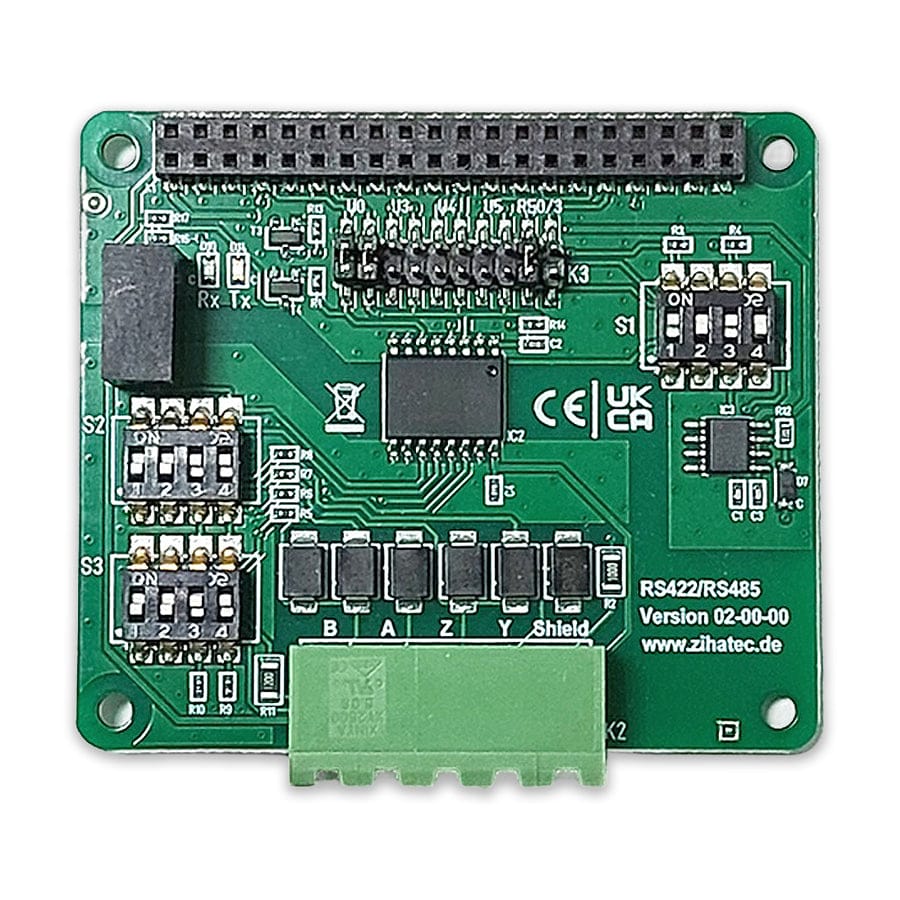

RS422 / RS485 Serial HAT Features:

  • RS485 mode (half duplex)
  • RS422 mode (full duplex)
  • Galvanic isolation between Raspberry Pi and connected RS485 bus
  • Enhanced ESD protection
  • Adjustable automatic transceiver switching for RS485 mode
  • Adjustable control of transceiver/receiver via GPIO pin
  • Adjustable Pull-Up, Pull-Down und terminating resistors
  • Indicator LEDs for RX and TX

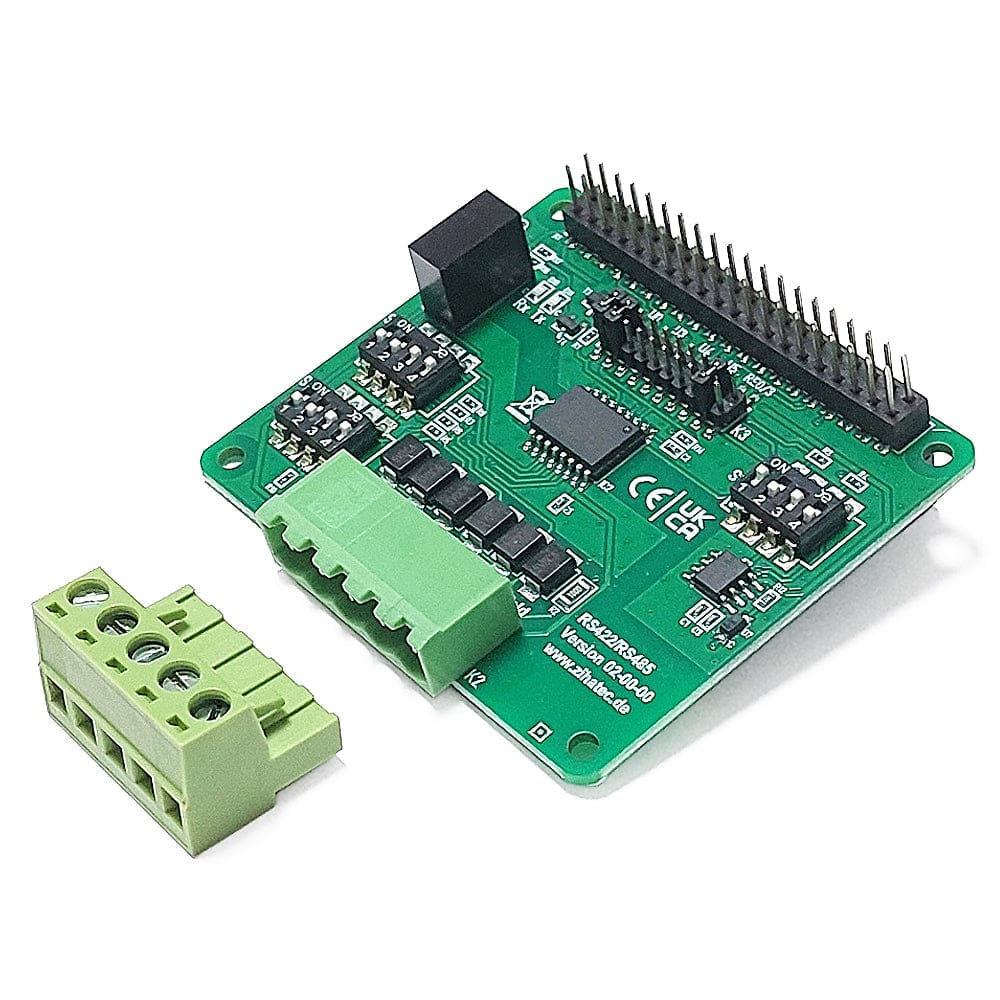

  • Removable block terminal for bus connection
  • Many options adjustable via DIP switches

Downloads

Datasheet and DIP Switch Settings

Schematic
