20mm Coin Cell Breakout Board (CR2032)

AdafruitSKU: ADA1870

£2.40

incl. VAT

excl. VAT

Only 4 units left

Awesome Extras

Half-Size Breadboard - White by The Pi Hut - The Pi Hut

The Pi Hut Half-Size Breadboard - White

£3 incl. VAT excl. VAT

CR2032 3V Lithium Coin Cell Battery by ANSMANN - The Pi Hut

ANSMANN CR2032 3V Lithium Coin Cell Battery

£1.90 incl. VAT excl. VAT

20mm Coin Cell Breakout w/On-Off Switch (CR2032) by Adafruit - The Pi Hut

Adafruit 20mm Coin Cell Breakout w/On-Off Switch (CR2032)

£3.40 incl. VAT excl. VAT

Notify me

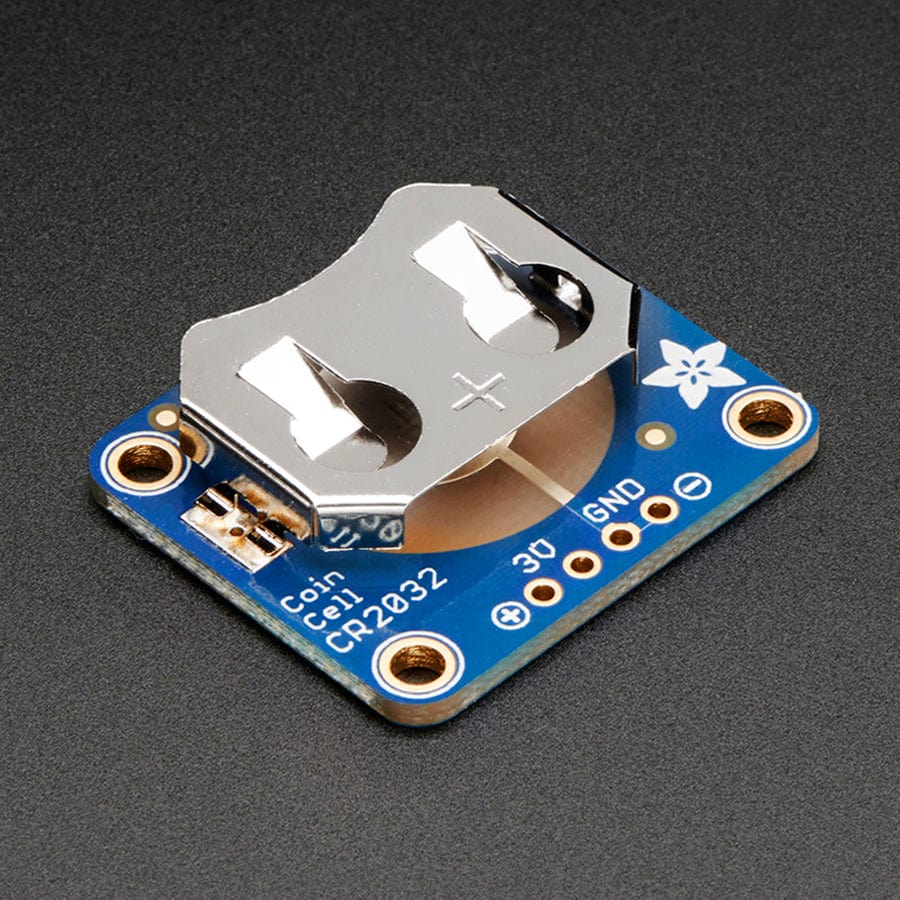

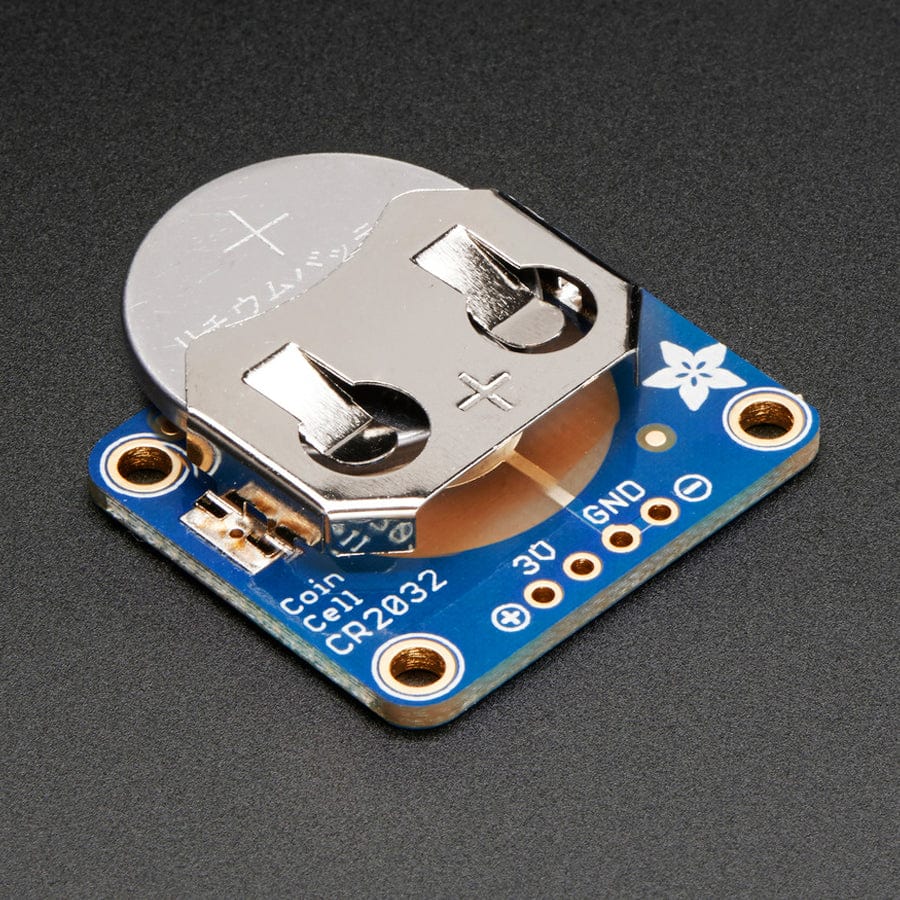

Simple but effective - this sewable breakout board has a CR2032 coin cell battery holder soldered on and 0.1" pitch breakout pins for easy connecting. Great for powering very low-current projects, or adding a battery backup circuit to a real-time clock or similar.

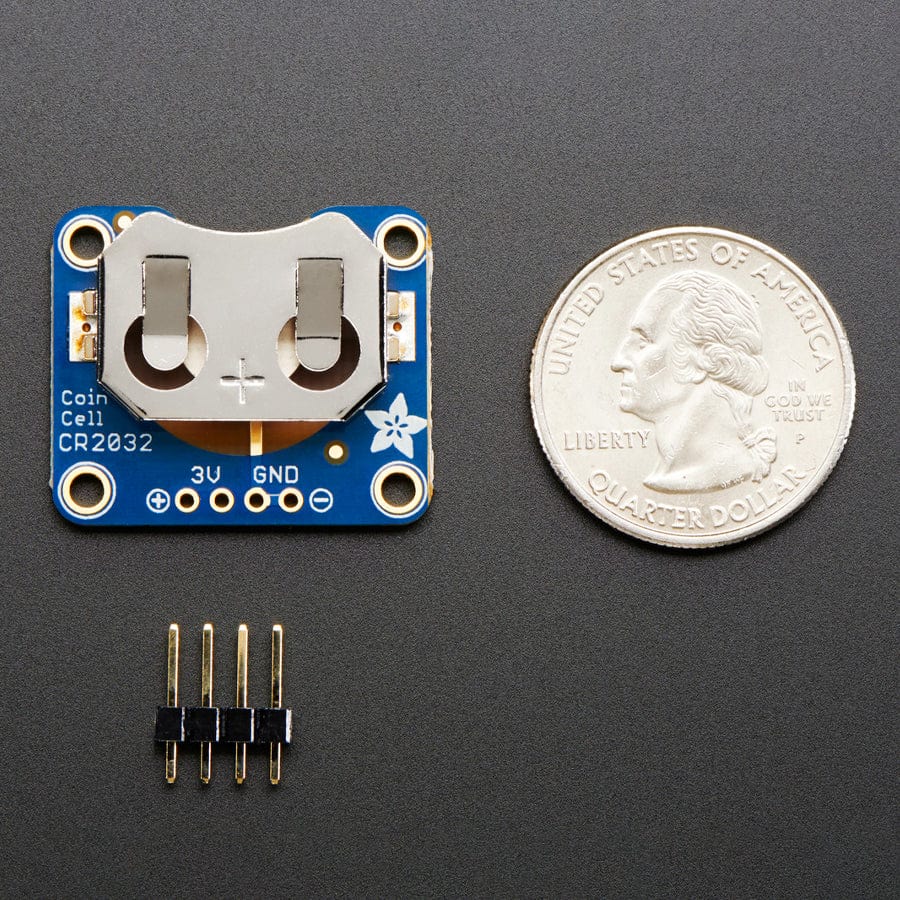

Comes with one fully assembled and tested coin cell battery holder and a small stick of 0.1" header so you can solder it on and plug it into a breadboard. Coin cell battery is not included.

We also have a version with an on/off switch

Specifications

Dimensions:

23.5mm x 28mm x 5mm
Mounting hole distance: 18mm x 22mm
Weight: 3g
