20mm Coin Cell Breakout w/On-Off Switch (CR2032)

Name: 20mm Coin Cell Breakout w/On-Off Switch (CR2032)
Brand: Adafruit
SKU: ADA1871
Price: 3.00 GBP
Availability: InStock

AdafruitSKU: ADA1871

Share this product

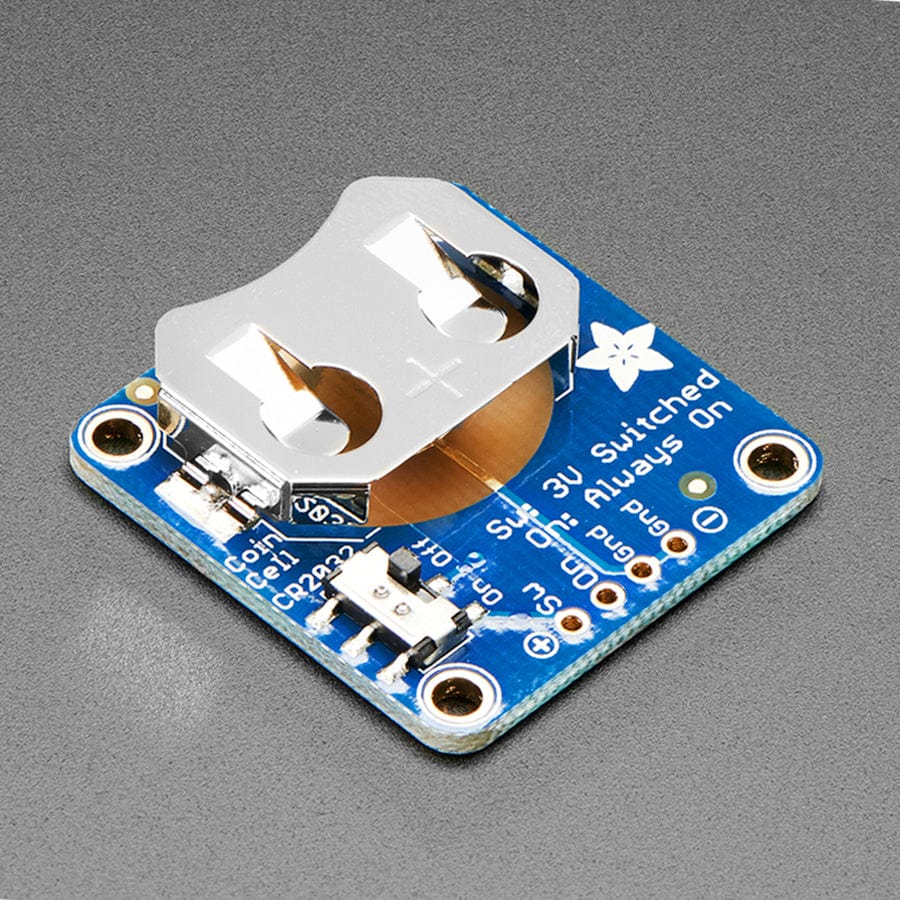

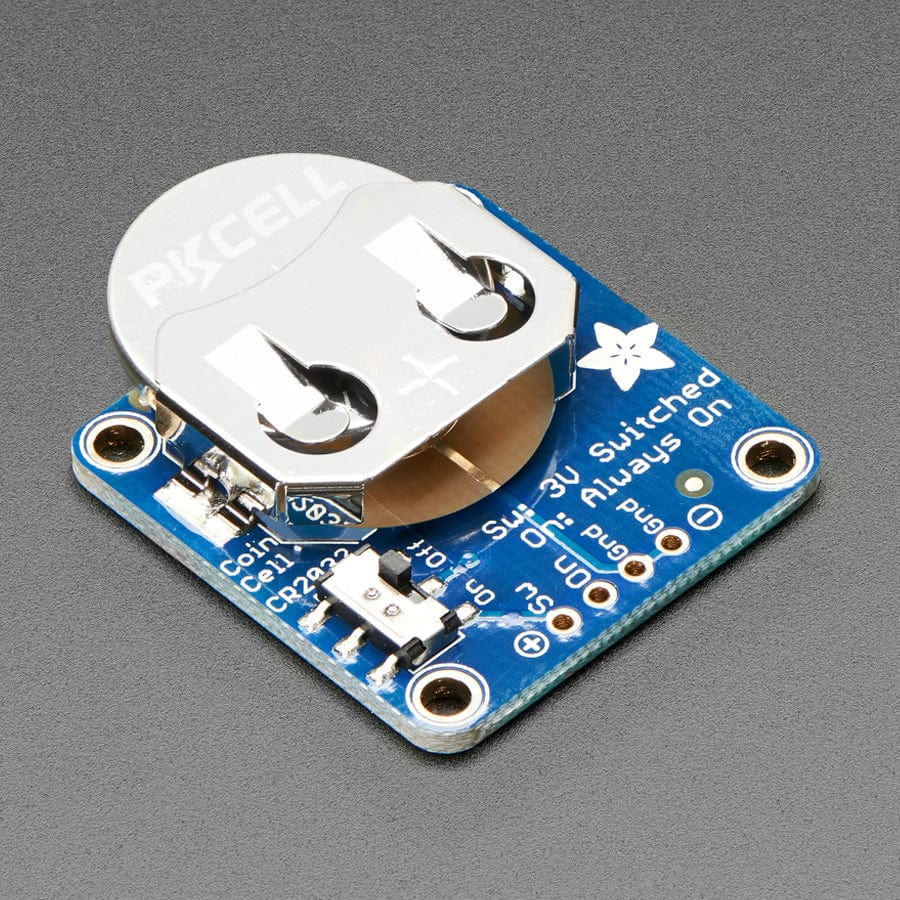

Simple but effective - this sewable breakout board has a CR2032 coin cell battery holder soldered on, an on/off switch and 0.1" pitch breakout pins for easy connecting. Great for powering very low-current projects, or adding a battery backup circuit to a real-time-clock or similar. There's two ground pins, one 'switched' power pin, and one pin that is always on.

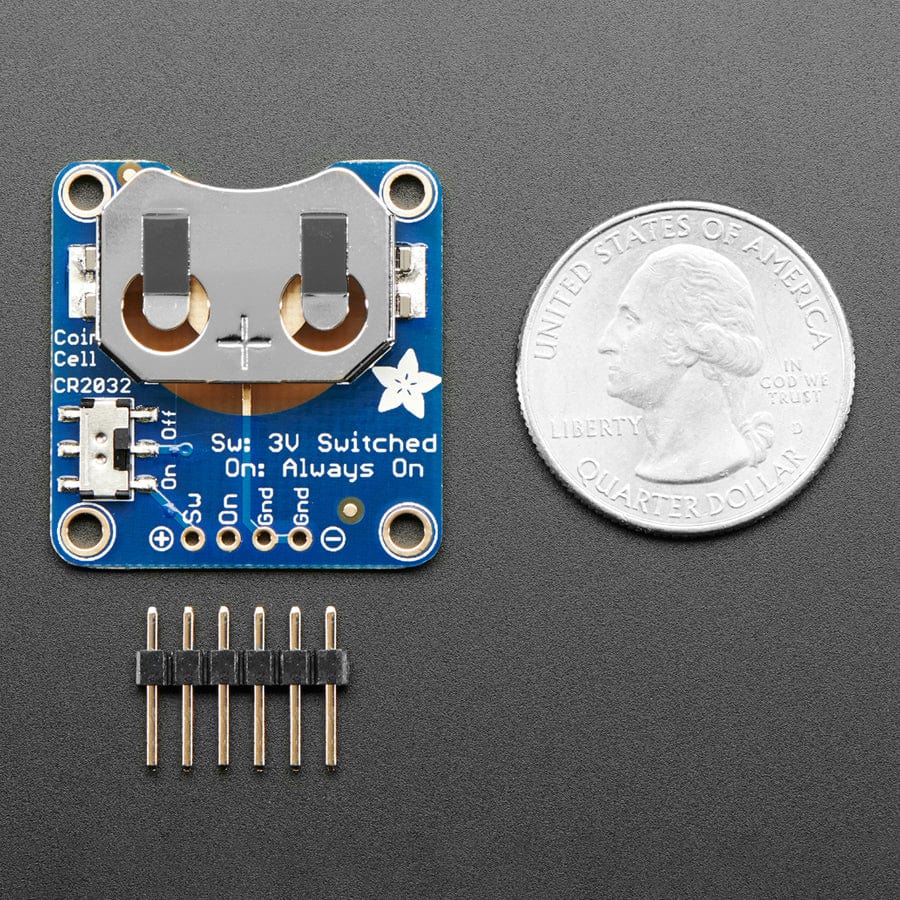

Comes with one fully assembled and tested breakout plus a small stick of 0.1" header so you can solder it on and plug into a breadboard. Coin cell battery is not included.

We also have a version without a switch

Technical Details

EagleCAD PCB files on GitHub
Fritzing object in the Adafruit Fritzing library

Dimensions:

29mm x 28mm x 1.6mm / 1.1" x 1.1" x 0.06"
Mounting hole distance: 22mm x 22mm / 0.9" x 0.9"
Weight: 3.5g
