Perf HAT for Raspberry Pi Zero

Price:
Sale price £2.80
incl. VAT
excl. VAT
Stock:
Only 1 unit left
Quantity:

Compatible with:

Awesome Extras

Raspberry PiRaspberry Pi Zero 2 W
Sale priceFrom £14.40 incl. VAT excl. VAT
The Pi HutEssential Raspberry Pi Zero Kit
Sale price £6 incl. VAT excl. VAT

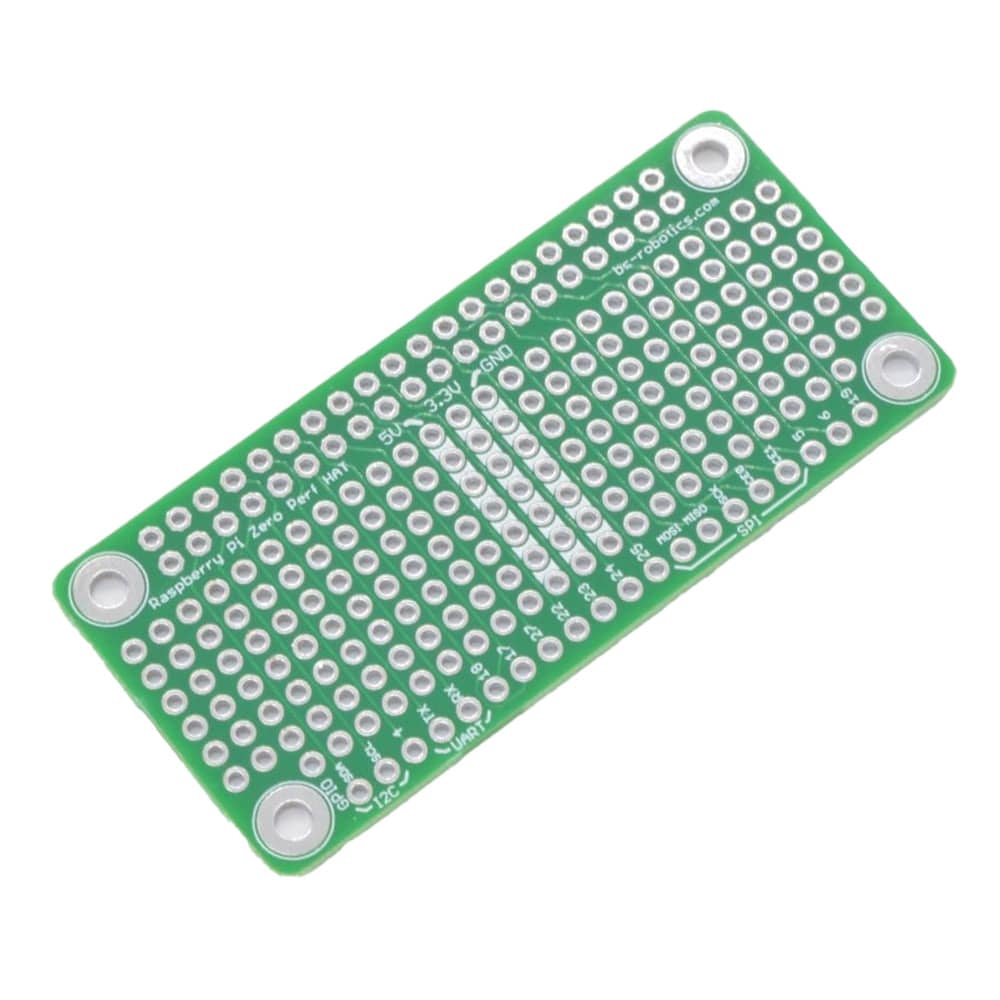

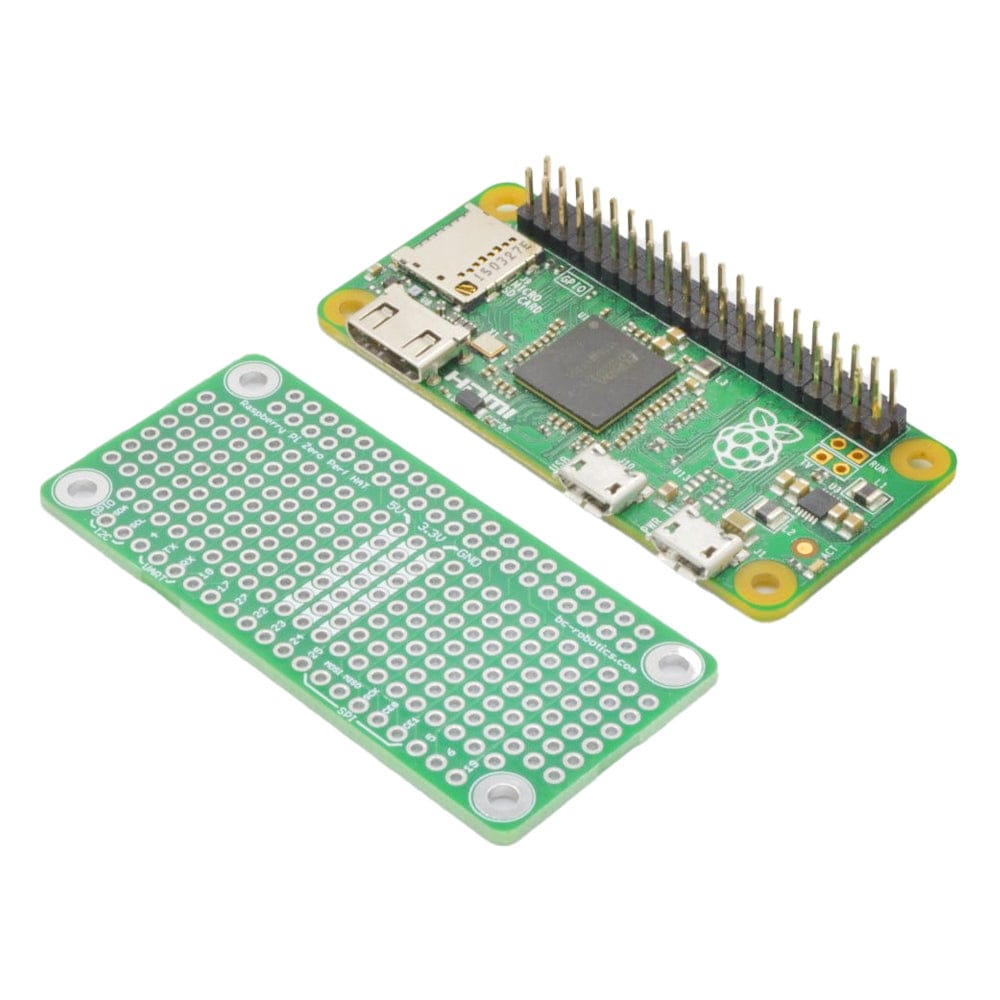

This tiny Perf HAT is ideal for building small, custom, circuits on the Raspberry Pi Zero. We have designed this board to break out all of the important pins, there isn’t enough room to break out every single one, but enough to be useful for small projects. There is easy access to 5V, 3.3V, and GND as well as the UART, I2C, SPI, and a bunch of digital pins – definitely enough to get by in most cases! Two 8 x 11 blocks of plated through holes are available (less a couple of where the mounting holes are located). The holes are not interconnected in any way, allowing for a maximum density of components.

Features

  • Same form factor as the Pi Zero
  • Compatible with all versions of the Pi Zero
  • Breaks out all the important pins
  • Perfect for making small permanent one-off projects
  • UL 94V-0 flammability-rated PCB
  • 1 oz. Copper layer
  • 1.6mm FR4 PCB material

Resources

Package Contents

  • 1x Raspberry Pi Zero Perf HAT
