ESP32-S3 3.5" Capacitive Touch Display Dev Board (320x480)

This is a 3.5" ESP32-S3 all-in-one capacitive touch display dev board from Waveshare, packed with handy features, sensors and interfaces, making it a pretty versatile option for any ESP-based display project you're planning.

It's built around the dual-core ESP32-S3R8 processor, offering 2.4GHz Wi-Fi and Bluetooth 5 LE. It features a 3.5" capacitive touch IPS display (320×480), integrated 6-axis motion sensor, RTC, audio codec with plug-in 6Ω 1W speaker, and robust power management via the AXP2101 chip.

With onboard 8MB PSRAM, 16MB Flash, MicroSD card slot, camera interface, and rich peripheral support including I2C, UART, USB, and multiple GPIOs, it's ideal for embedded, media-rich applications.

The board also includes programmable buttons, a 1.25mm PicoBlade-compatible LiPo interface, and hardware support for camera modules such as OV2640 and OV5640.

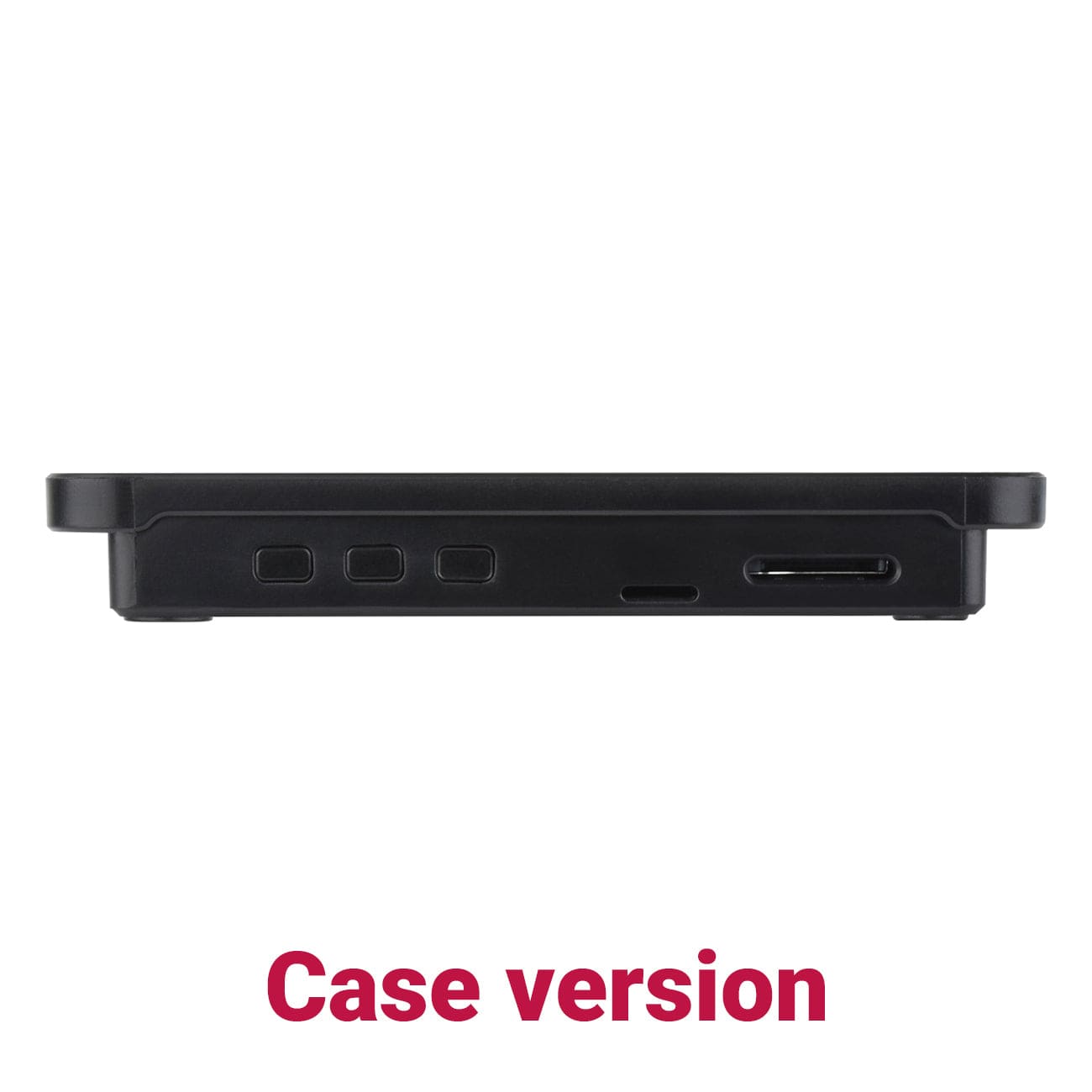

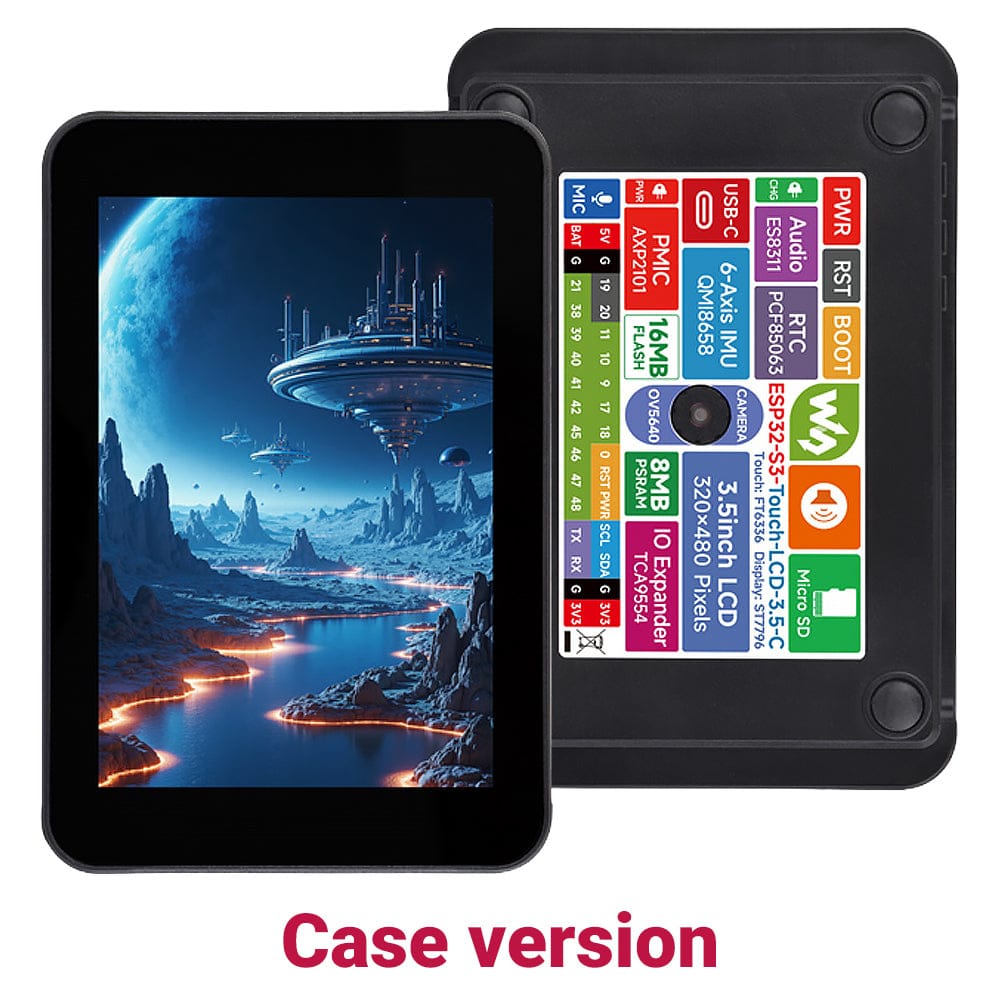

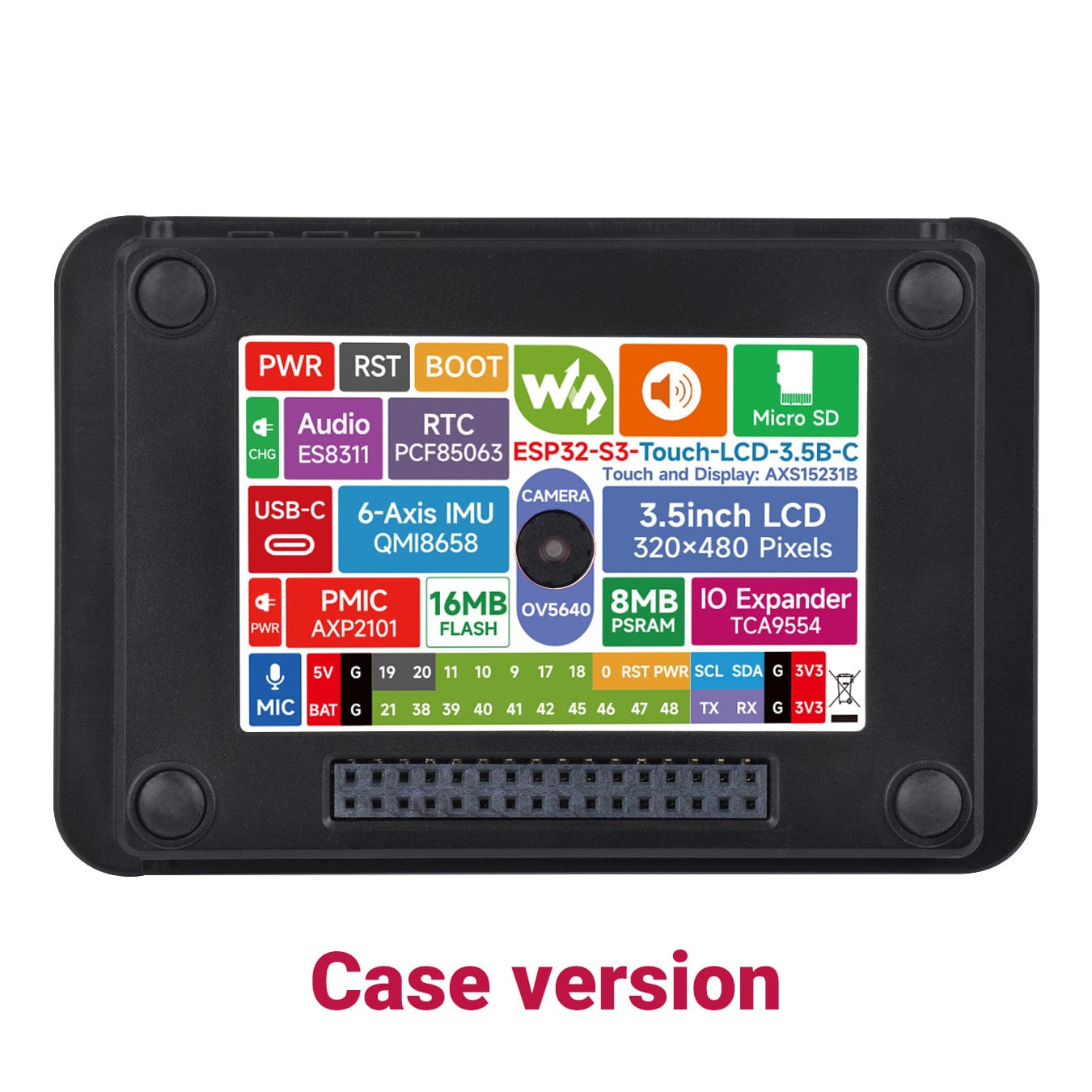

We offer two versions of this product - the board only, or the board bundled with an OV5640 camera and a case. Select an option before adding to your cart.

Important! LiPo Connector Size

This board uses a tiny MX1.25/PicoBlade-compatible connector for LiPo power, however most LiPo batteries use a larger JST-PH fitting.

We now stock PicoBlade-compatible LiPo batteries in 150mAh, 500mAh and 1200mAh capacities - or you can customise your existing LiPo with one of our 1.25mm pitch cables (assuming you have the ability, knowledge and tools to do this safely!).

Features

• 3.5" Capacitive IPS touch display (320×480)
• ESP32-S3R8 dual-core processor, up to 240MHz
• Wi-Fi 802.11 b/g/n and Bluetooth 5 LE
• 8MB PSRAM and 16MB Flash
• ST7796 display driver and FT6336 touch controller
• QMI8658 6-axis accelerometer and gyroscope
• PCF85063 RTC with backup battery support
• Low-power audio codec onboard
• USB-C connector
• 6Ω 1W speaker
• MicroSD slot for storage and data logging
• Camera interface for OV2640/OV5640
• Multiple GPIOs, I2C, UART, and USB for peripherals
• AXP2101 power management IC
• Programmable PWR and BOOT buttons
• MX125/PicoBlade-compatible 3.7V lithium battery charging header

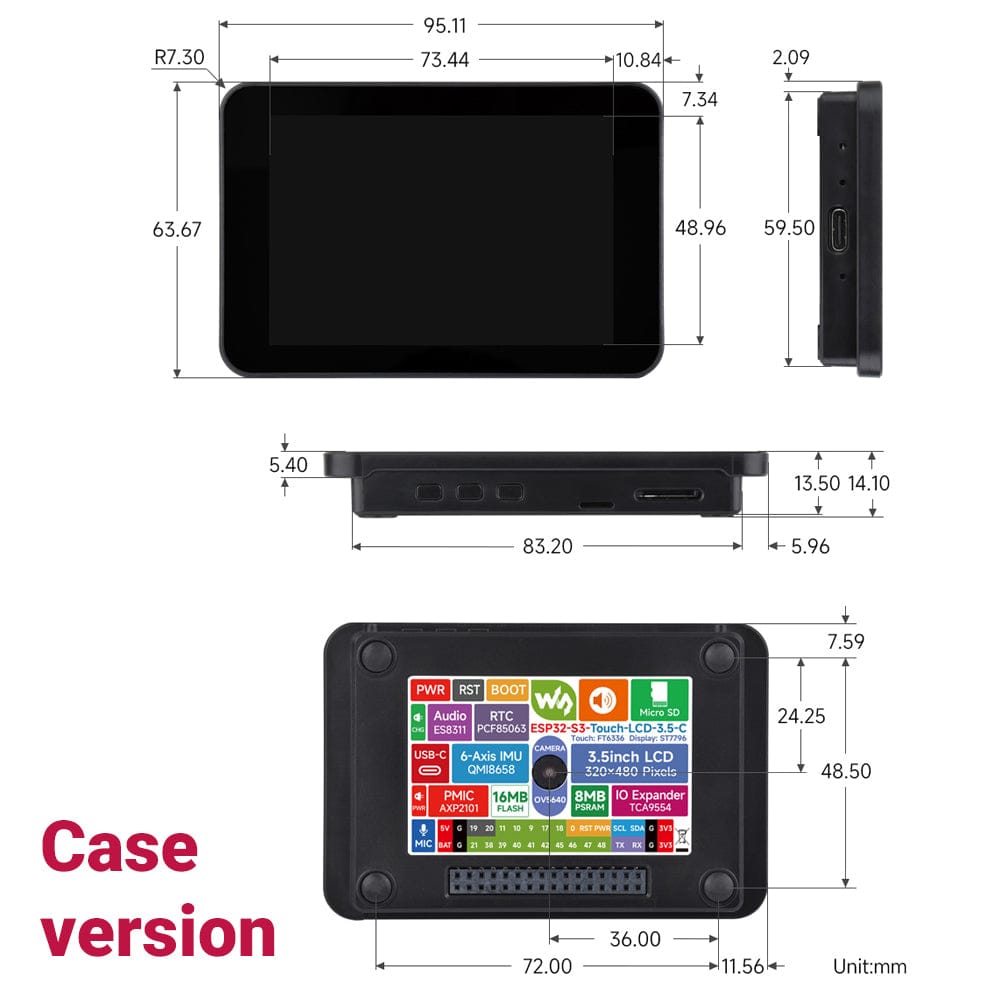

• Optional: Plastic case
• Optional: OV5640 camera module

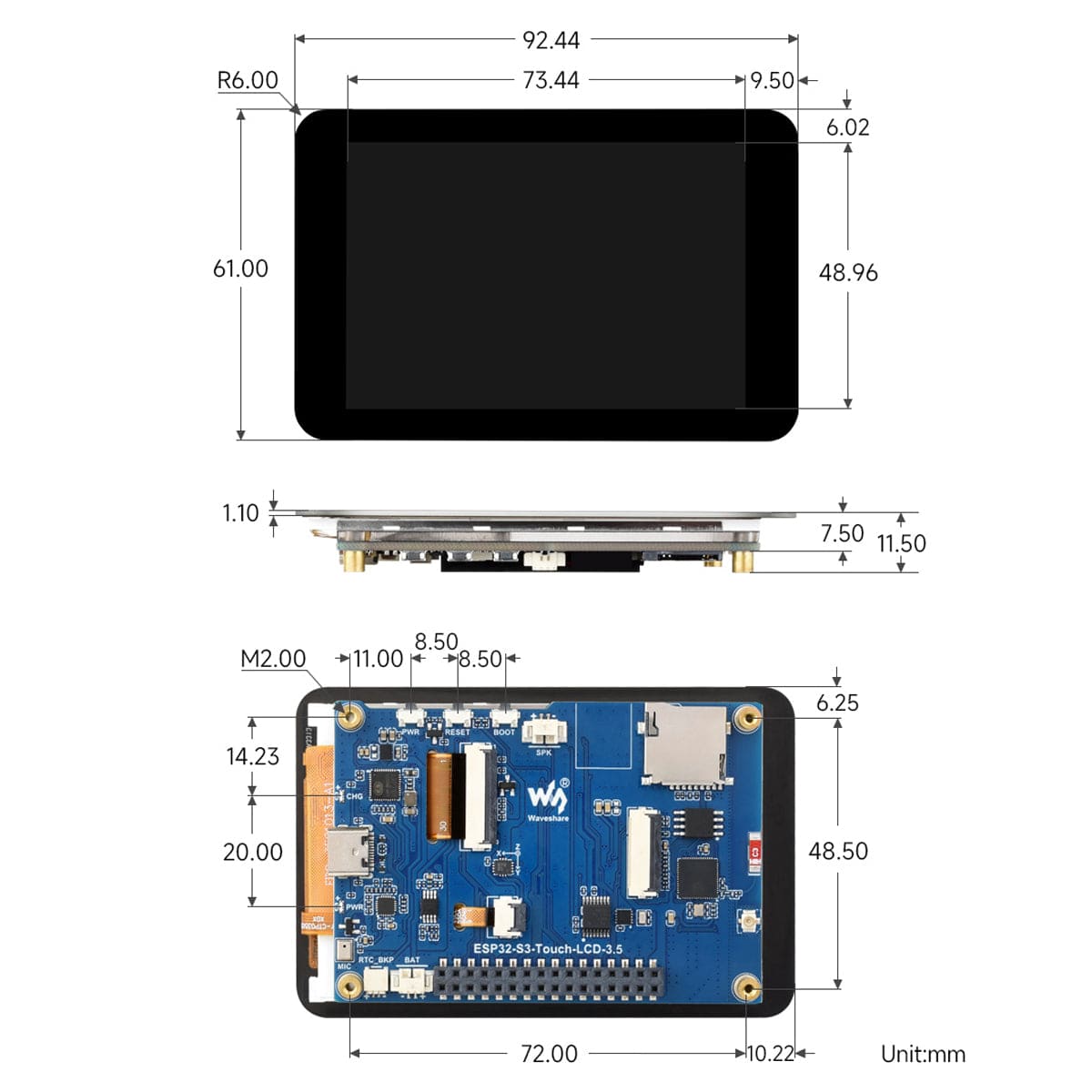

What's Onboard?

1. ESP32-S3R8
   • The SoC with WiFi and Bluetooth, up to 240MHz operating frequency, with onboard 8MB PSRAM
2. Onboard antenna
3. W25Q128JVSIQ
   • 16MB NOR-Flash

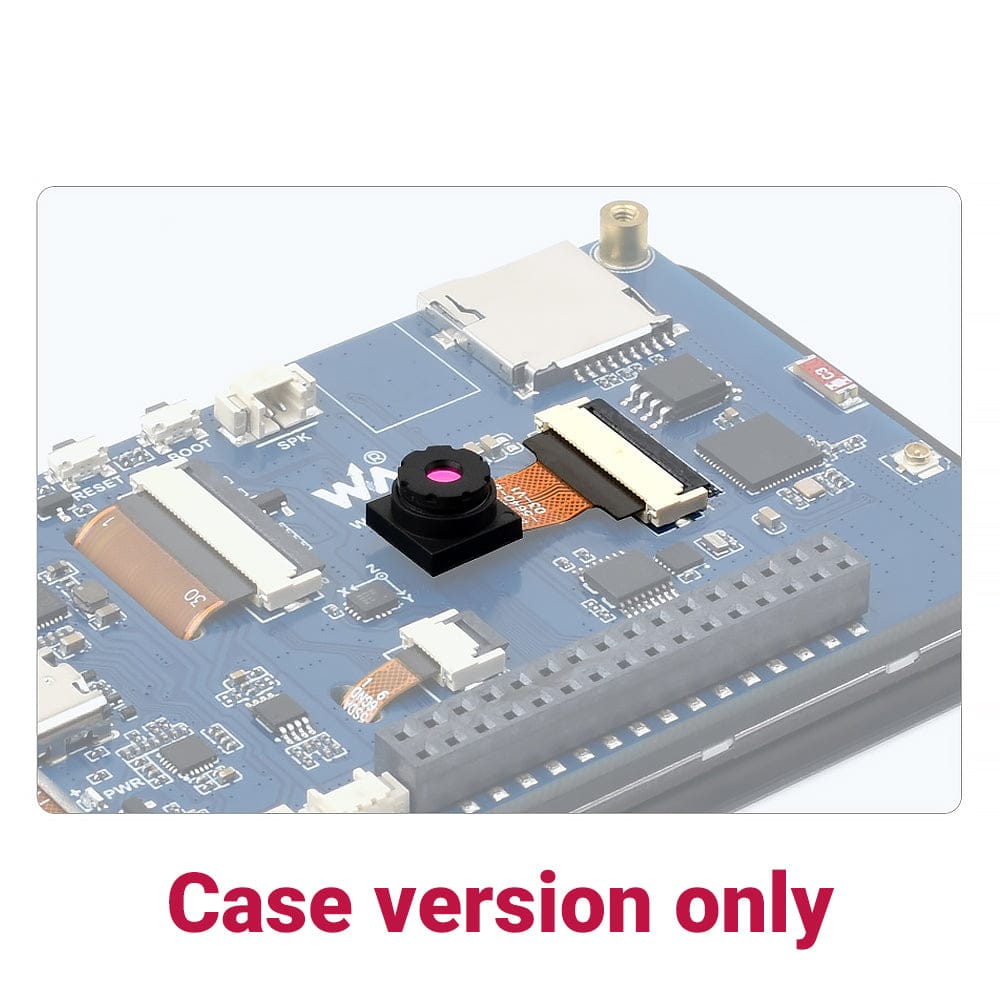

4. Camera interface
   • Supports OV5640 / OV2640
5. TF card slot
6. IPEX 1 antenna connector
   • Reserved connector, enabled via resoldering an onboard resistor
7. MX1.25 speaker header
8. BOOT button
9. RESET button
10. PWR button
11. AXP2101
    • Power management IC
12. Charge indicator
13. USB Type-C port
14. ES8311
    • Low power audio codec chip
15. Power supply indicator
16. Microphone
17. SH1.0 RTC battery header
    • for connecting rechargeable RTC battery
18. MX1.25 Lithium battery header
    • MX1.25 2-pin (PicoBlade-compatible) connector, for 3.7V Lithium battery

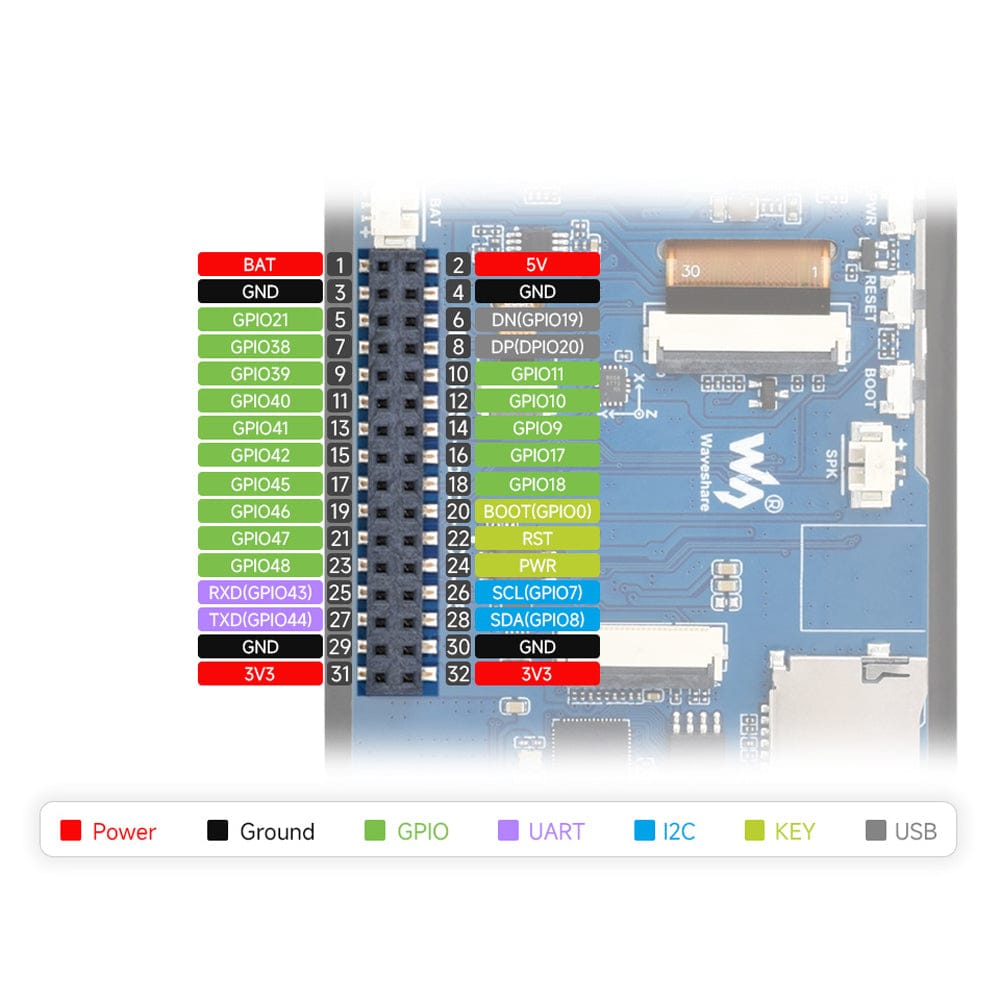

19. 2.54mm pitch GPIO header
    • Adapting available IO function pins for easy expansion
20. PCF85063
    • RTC chip
21. QMI8658
    • 6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer

Resources

• Product wiki

Package Contents

• 1x ESP32-S3 3.5" Capacitive Touch Display Dev Board (320x480)
• 1x 6Ω 1W speaker
• Optional (see variant):
  • 1x OV5640 camera module
  • 1x Case
