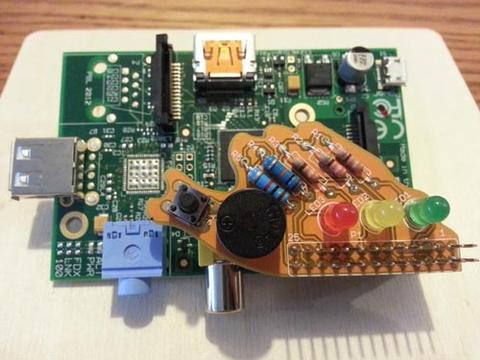

How to assemble Fish Dish for the Raspberry Pi

Fish Dish Assembly Instructions

A massive thank-you to the Average Man (http://AverageManVsRaspberryPi.com) (@AverageManVsPi) for putting together these brilliant step-by-step instructions on how to assemble the Fish Dish Raspberry Pi accessory.

Raspberry-Pi-Fish-Dish


What you need

Main Parts:

Optional:



In the Pack

In your Fish Dish, you will find:

  • The Fish Dish PCB
  • GPIO Header
  • Buzzer
  • Switch
  • Rubber foot
  • 3 x LEDs (Green, Yellow and Red)
  • 3 x 330 Ohm resistors (the 3 small beige ones)
  • 1 x 10k resistor (the one with the orange stripe)
  • 1 x 1k resistor (the one with the red stripe)
  • A few stickers!


How to Assemble

Step 1 - Solder the GPIO header

  • Push the GPIO header pins through the PCB so that the metal pins are on the same side as the instruction text (LED1, LED2 etc - see the picture below). Use something to hold it in place - I have rested the header on the bottom of my Helping Hands here:
Fish-Dish-Assembly-01
  • Solder one corner first, then solder the opposite corner at the other end of the connector. This will then hold the header in place while you solder the remaining 26 pins:
Fish-Dish-Assembly-02
  • Once you've soldered all 26 pins, we're ready for the next step


Step 2 - Solder the 330 Ohm Resistors

In this step, take care to make sure you solder the resistors in the right spots. It's pretty easy though thanks to the size, colour and stripes - so you should be fine.

  • First we will solder the 3 x 330 Ohm resistors first (the 3 smaller beige ones). Although it doesn't matter which way round we fit them, let's keep all the gold stripes to the top to make it look smarter.
  • Poke the legs of the first resistor through the 'R1' holes as shown, and push through so the resistor is tight against the board.
  • Use something to hold the resistor in place - I'm using a crocodile clamps from my Helping Hands unit:

Fish-Dish-Assembly-02

  • Once everything is secure, solder the legs into place:
  • Once both legs are soldered, snip the remaining legs off with your wire cutters:

Fish-Dish-Assembly-09

  • Repeat this step for the next 2 resistor slots (R2 and R3), using the remaining 2x beige 330 Ohm resistors.


Step 3 - Solder the 10K Resistor

The 10k resistor is one of the larger blue resistors. Specifically, it's the resistor with the ORANGE stripe (NOT red, that comes next).

  • This resistor fits into the R4 slot (labelled "10K")
  • The process for fitting this resistor is the same as step 2, which should leave you with this:

Fish-Dish-Assembly-05

Step 4 - Solder the 1K Resistor

The 1k resistor is also one of the larger blue resistors. You should only have one left now, which should be the resistor with the RED stripe (NOT orange, we just used that).

  • This resistor fits into the R5 slot (labelled "1K")
  • The process for fitting this resistor is the same as step 2, which should leave you with this:
Fish-Dish-Assembly-01

That's the resistors all done!

Step 5 - Solder the LEDs

Let's confirm a few things before we start on the LEDs...

LED Order

Here's what the LEDs need to look like when it's done:

Fish-Dish-Assembly-20

...Which means the LEDs need to go in the following slots:

Green = slot 'LED1'

Yellow = slot 'LED2'

Red = slot 'LED3'

Polarity

You must make sure the LED legs are the right way round (correct polarity). The longer leg on the LED is the positive leg. Another way to check polarity is to look for a flat section on the LED plastic, that leg will be the negative leg.

The Fish Dish PCB shows you where the positive and negative legs need to go (positive in the top hole):

Fish-Dish-Assembly-12

Solder the LEDs

  • Start with the green LED in slot 'LED1'
  • Push the legs through the holes in the PCB (remember: longer leg into positive)
  • Hold the LED in place (I used a crocodile clamp):

Fish-Dish-Assembly-18

  • Solder the legs into place, and snip off the excess like we did with the resistors:

Fish-Dish-Assembly-10

  • Repeat the same process for the remaining LEDs in slots 'LED2' (Yellow LED) and 'LED3' (Red LED), which should leave you with this:

Fish-Dish-Assembly-20

LEDs done!

Step 6 - Solder the Buzzer

Just like the LEDs, the buzzer also needs to be fitted the right way round. Luckily the buzzer has a long positive leg like the LEDs, but is also well marked on the component itself:

Fish-Dish-Assembly-21

  • The buzzer goes into the slot called 'BUZZ'
  • The negative and positive holes are clearly marked (positive to the left)

Fish-Dish-Assembly-20

  • Push the buzzer legs through the holes so that the main black body is the same side as the LEDs (remember to check the right legs are going through the right holes)
  • Solder the two legs and snip any excess as before:

Fish-Dish-Assembly-08

Step 7 - Solder the Switch

The switch has no polarity, but you need to make sure the legs are in the right place or it won't be connected to the circuit properly. The switch is very slightly rectangular which helps you work out how to place it.

  • First, take a look at the picture below for reference on the switch position:

Fish-Dish-Assembly-17

  • Just as before, it's simply now a case of soldering the 4 legs in place, again, remember to solder diagonal opposite legs first to set the switch in place:

Fish-Dish-Assembly-14

Step 8 - Attach the Rubber Foot

The last step is the easiest. A small rubber foot is included to rest against the composite connector, so that when you press the Fish Dish button, you don't bend or snap the board/connections.

  • Find the circle marked "Rubber Foot":
  • Grab the rubber foot and peel back the white layer to reveal the sticky pad, then push the foot on to the board, and hold firm for 15 seconds:

Fish-Dish-Assembly-19

  • You're now done adding parts, so just go back and remove that film on the top of the buzzer:

Fish-Dish-Assembly-15

Step 9 - Stand back and admire your work

Fish-Dish-Assembly-06
