Final PCB Design

Final PCB Design

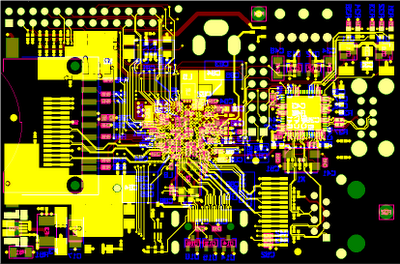

This beautiful picture shows a visualisation of the printed circuit board (PCB) design. This is how the Raspberry Pi manages to be so small, and that collection of connections at the heart of the board demonstrates the location of the Broadcom BCM2835.

Dimensions of the board are exactly that of a credit card at 85.6mm x 53.98mm. It is stated that this design will likely not change.
