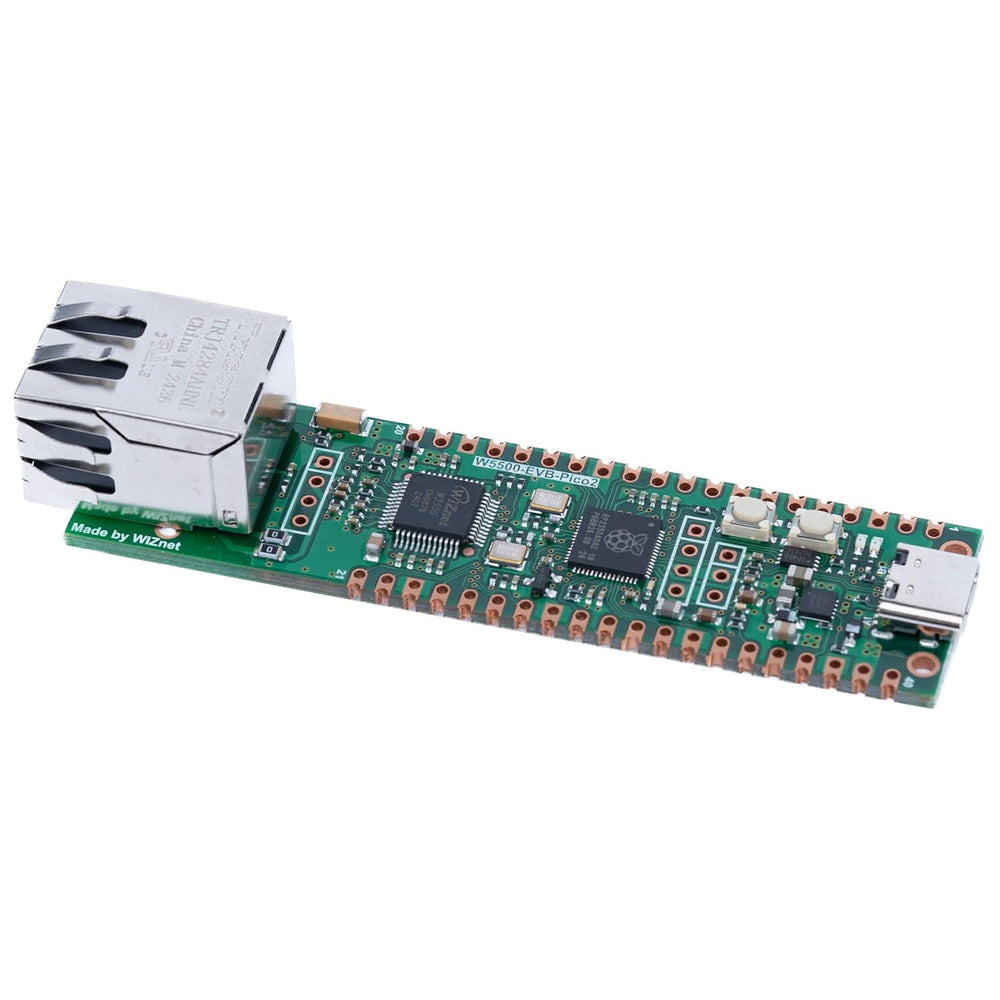

WIZnet W5500-EVB-Pico2

The WIZnet W5500-EVB-Pico2 is a microcontroller board based on the Raspberry Pi RP2350 and fully hardwired TCP/IP controller W5500 – it essentially works the same as Raspberry Pi Pico 2 but with additional Ethernet via W5500 and USB-C!

The board can also support PoE via the optional WIZPoE-P1 PoE add-on module.

The W5500-EVB-Pico2 pinout is directly connected to the GPIO of RP2350 as shown in the pinout image. It has the same pinout as the Raspberry Pi Pico2 board. However, GPIO16, GPIO17, GPIO18, GPIO19, GPIO20, GPIO21 are connected to W5500 inside the board. These pins enable SPI communication with W5500 to use the Ethernet function. If you use the Ethernet function, these pins cannot be used for any other purpose.

The RP2350 GPIO used inside W5500-EVB-Pico is as follows.

Apart from GPIO and ground pins, there are 7 other pins on the main 40-pin interface:

WIZnet Controller Comparison

You may be wondering what the difference is between the different models of WIZnet boards we offer. This mostly comes down to the TCP/IP controller chip used.

Take a look at WIZnet's comparison table to identify the right board for your needs.

Features

• RP2350 Microcontroller with Integrated 16Mbit Flash
  • Symmetric dual Arm Cortex-M33 cores at up to 150MHz
  • 520kByte multi-bank high-performance SRAM
  • External Quad-SPI Flash with eXecute In Place (XIP) capabilities
  • Enhanced performance full-crossbar bus fabric
  • Up to 48 multi-function General Purpose IO (8 can be used for ADC on RP2350-B)
    • 1.8-5.0V IO Voltage
• Security Features
  • One-Time Programmable (OTP) Memory: Used for boot configuration and secure key storage.
  • Secure Boot: Ensures that only authenticated software can run on the device, utilizing OTP for key verification.
  • Arm TrustZone Technology: Provides hardware isolation between secure and non-secure software, enhancing security for critical applications.
• Analog and Digital Peripherals
  • 12-bit 500ksps Analogue to Digital Converter (ADC)
  • 2 × UART, 2 × I2C, 2 × SPI, 16 × PWM channels
  • 1 × Timer with 4 alarms, 1 × Real Time Counter
  • 3 × Programmable IO (PIO) blocks, 12 state machines total
  • Flexible, user-programmable high-speed IO
  • Can emulate interfaces such as SD Card and VGA
• W5500 Ethernet Controller
  • Supports Hardwired Internet Protocols: TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
  • Supports 8 Independent Hardware SOCKETs simultaneously
  • Internal 32 Kbytes Memory for TX/ RX Buffers
  • Supports High-Speed Serial Peripheral Interface (SPI MODE 0, 3)
• Connectivity
  • USB-C port for power and data (and for reprogramming the Flash)
  • 40 pin 21x51 'DIP' style 1mm thick PCB with 0.1" through-hole pins also with edge castellations
  • 3-pin ARM Serial Wire Debug (SWD) port
• Networking
  • 10 / 100 Ethernet PHY embedded
  • Supports Auto-Negotiation
    • Full / Half Duplex
    • 10 / 100 Based
  • Built-in RJ45(RB1-125BAG1A)
• Power Supply
  • Built-in Switch-mode DC-DC converter (replacing LDO for enhanced power efficiency)

Resources

• Product Documentation
• Firmware Examples (C/C++)

  • Ethernet Examples
  • AWS Examples
  • Azure Examples
  • LwIP Examples
• RP2350 datasheet
• W5500 Datasheet
• Schematic
• Part list & Gerber File
• CE Certificate
• CE Test Report
• FCC Certificate
• FCC Test Report

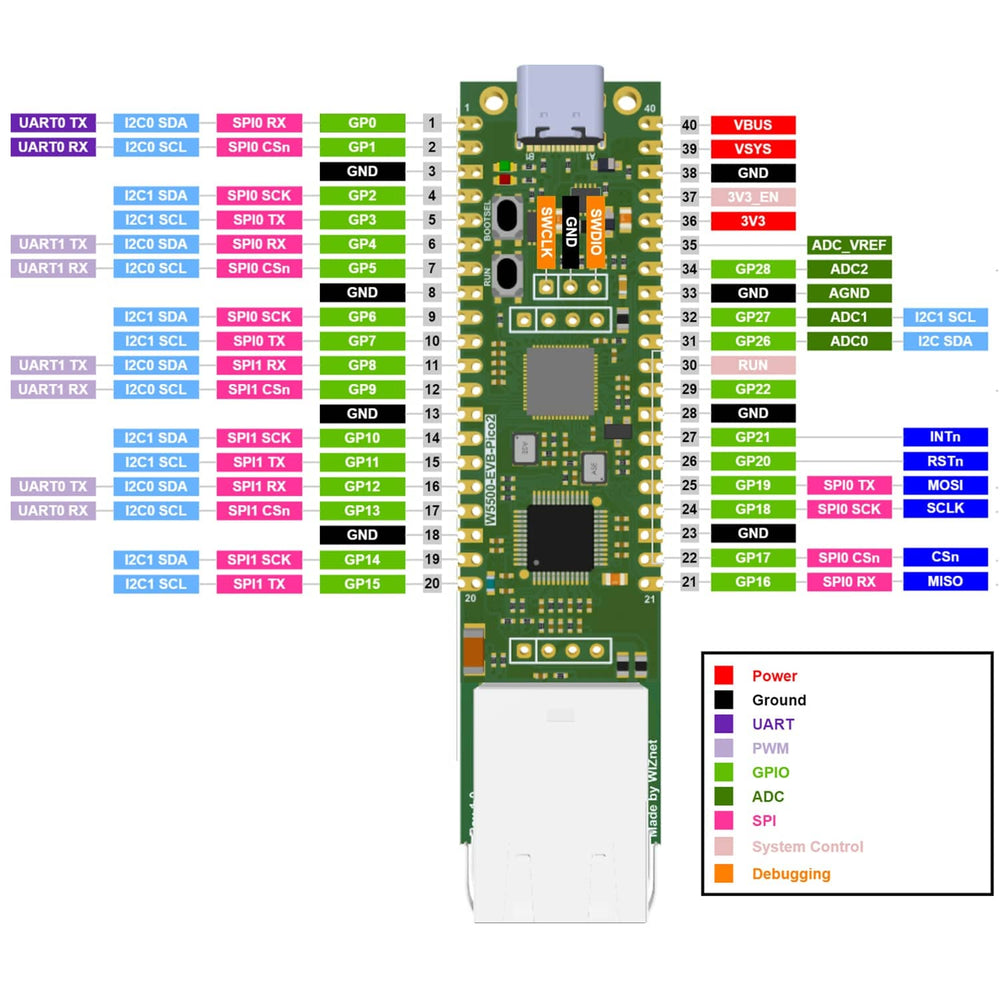

Pinout

Operating Conditions

• Operation Temperature MAX: 85C (including self-heating)
• Operation Temperature MIN: -20C
• VBUS: DC 5V (+/- 10%)
• VSYS Min: DC 4.3V
• VSYS Max: DC 5.5V
• Recommended maximum ambient temperature of operation is 70C.

Package Contents

• 1x WIZnet W5500-EVB-Pico2
