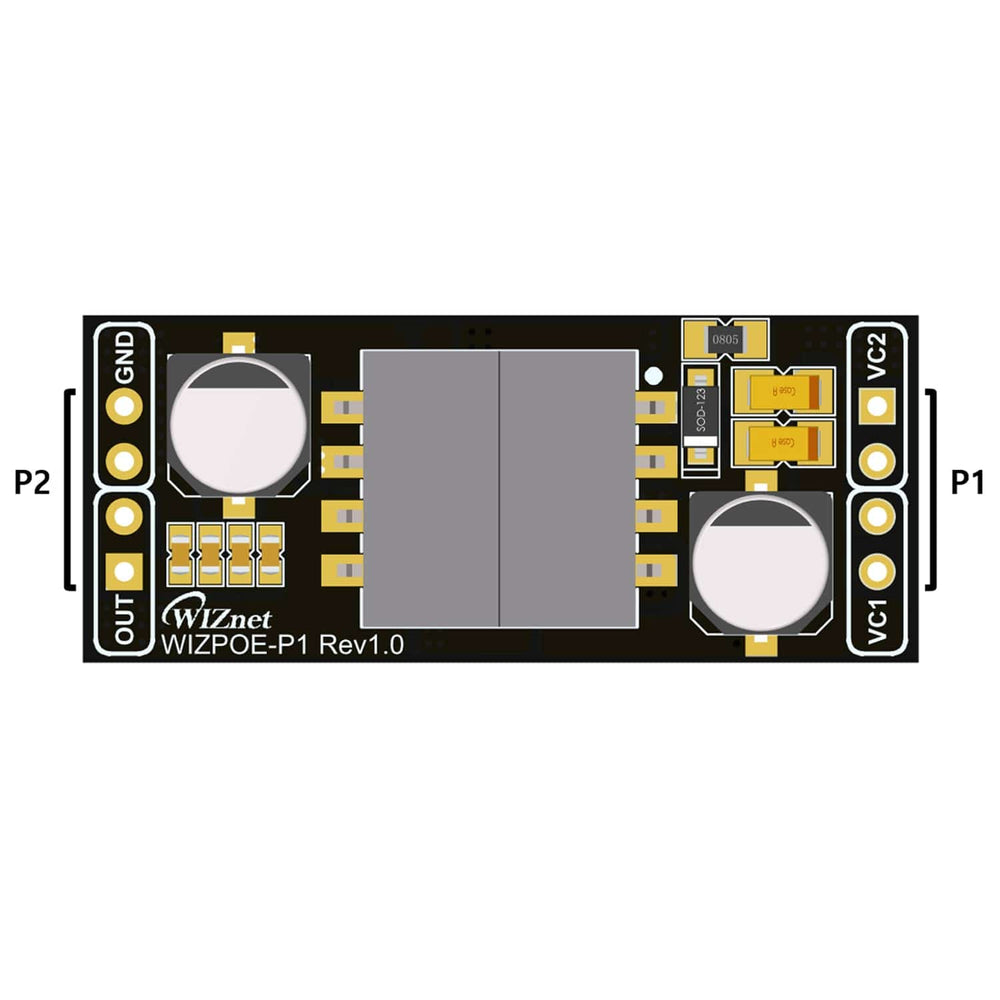

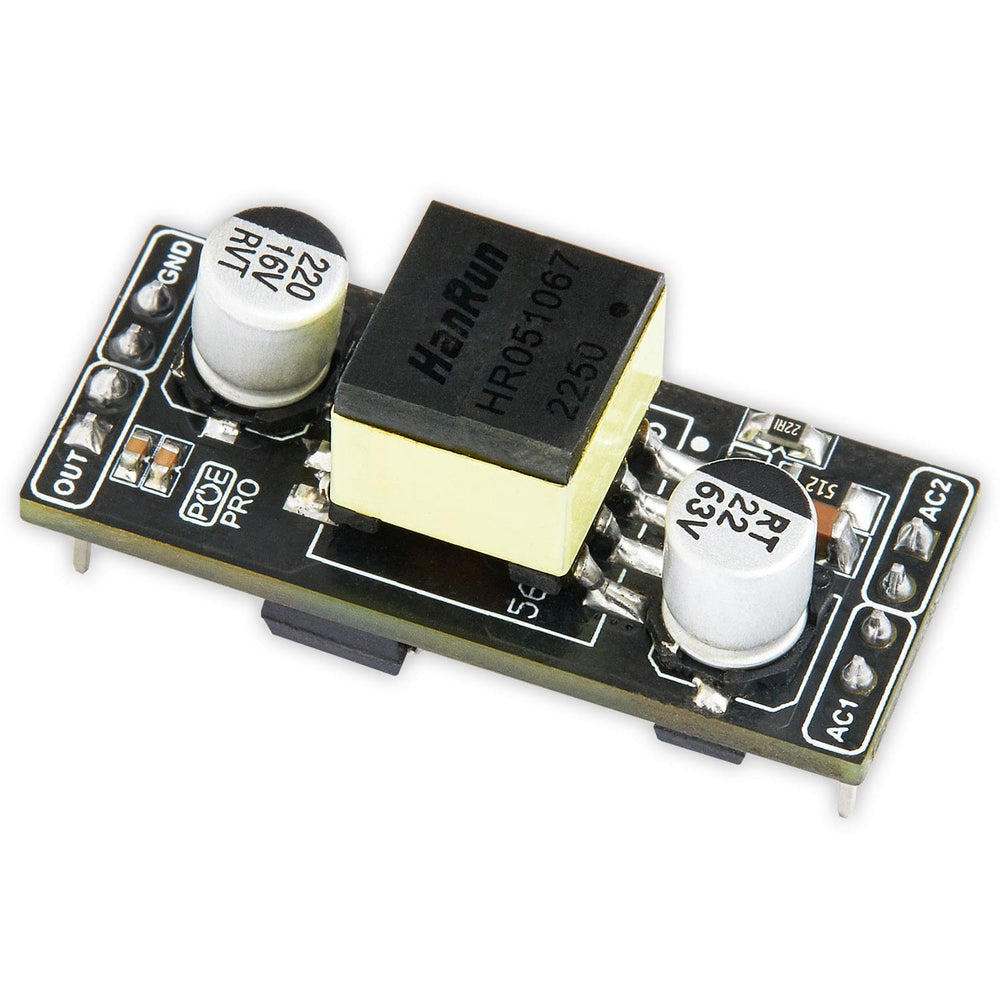

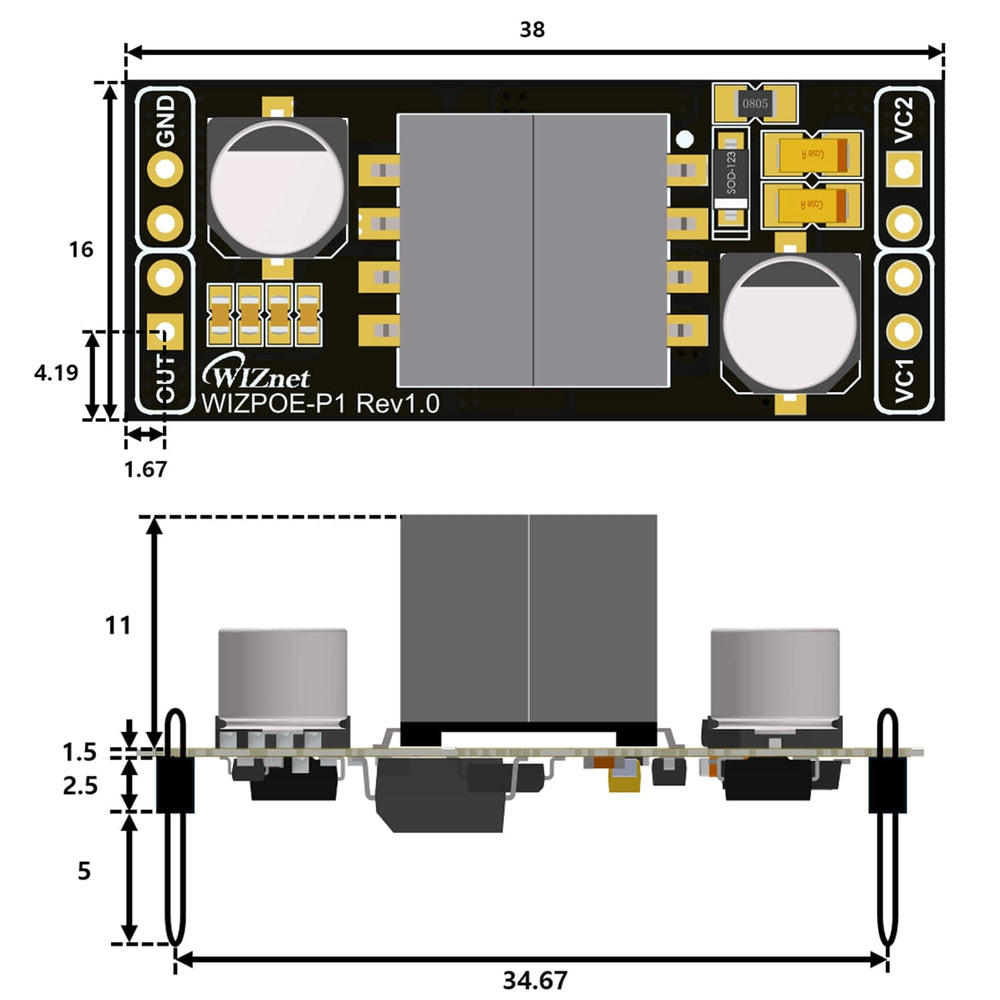

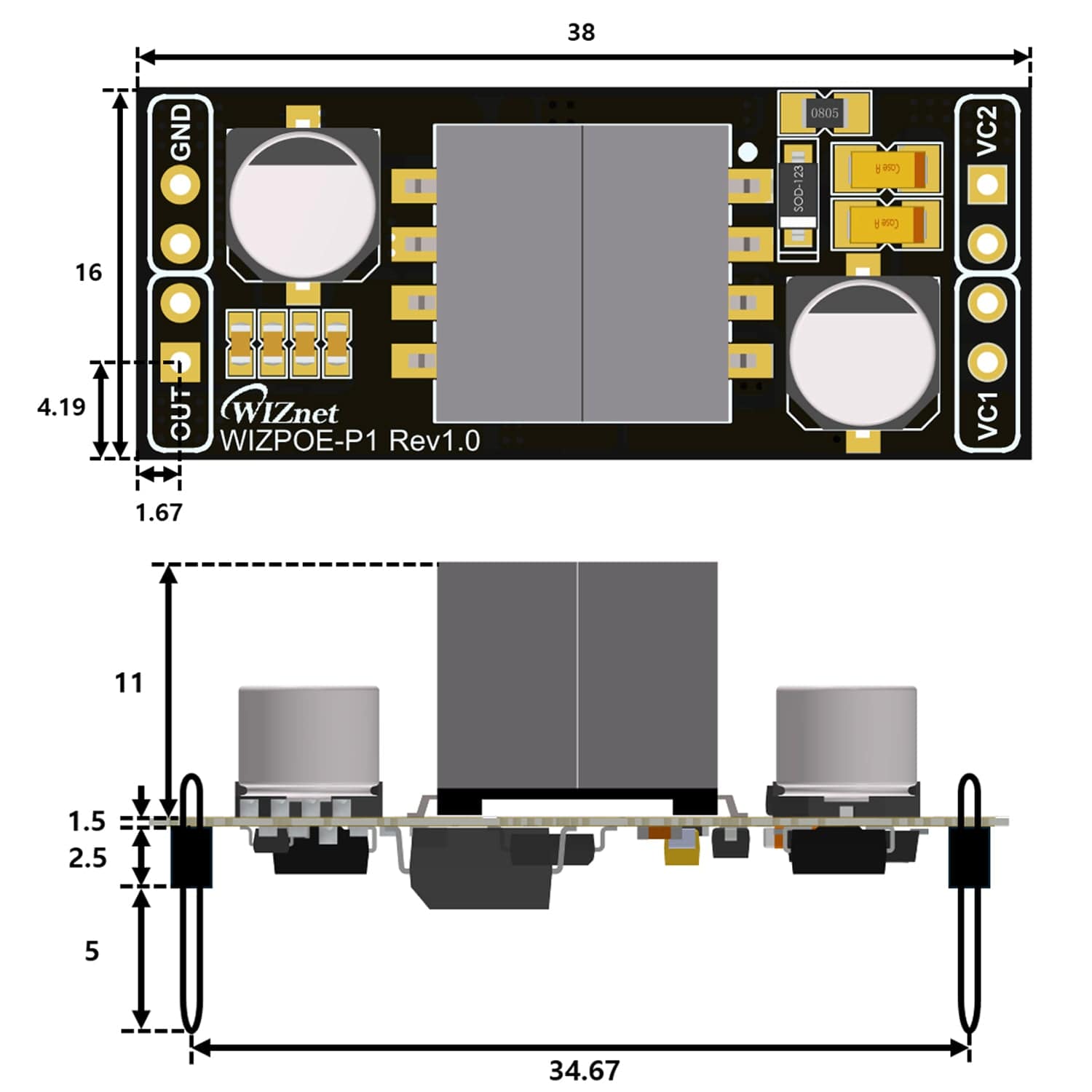

The WIZnet WIZPoE-P1 is a versatile and compact Power over Ethernet (PoE) module designed to deliver power to external applications through Ethernet cabling, supporting both Mode A (Endspan) and Mode B (Midspan) configurations.

It has been designed to complement a range of compatible WIZnet EVB-Pico boards (see compatibility list below).

This open-source hardware module is compliant with the IEEE802.3af standard, enabling the delivery of power (up to 7W) alongside data to devices, thereby eliminating the need for separate power cables and reducing installation complexity.

The module's design focuses on efficiency and safety, featuring high DC/DC conversion efficiency and electrical isolation to ensure reliable operation and device protection.

WIZnet EVB-Pico board not included.

Features

  • IEEE802.3af Compliance: Guarantees compatibility with a broad range of PoE-capable devices, ensuring a reliable power solution over Ethernet infrastructure.
  • Dual Mode Operation: Supports both Mode A (Endspan) and Mode B (Midspan) for flexible deployment options in various network environments.
  • Wide Input Voltage Range: Accommodates a wide range of input voltages (40Vdc to 60Vdc), providing versatility in power supply choices.
  • High DC/DC Conversion Efficiency: Optimized for high efficiency in power conversion, minimizing energy loss and ensuring maximum power delivery to connected devices.
  • Electrical Isolation: Features isolation between the power input and Ethernet output, enhancing safety and protecting connected devices from potential electrical hazards.
  • Built-in Bridge Rectifiers: Includes internal 2-channel bridge rectifiers, simplifying the circuit design by eliminating the need for additional rectification components.

Compatible WIZnet Modules

  • W55RP20-EVB-Pico
  • W5500-EVB-Pico-PoE
  • W5100S-EVB-Pico2
  • W5500-EVB-Pico2
  • W6100-EVB-Pico2
  • Surf 5

Electrical Characteristics

Value Symbol Min Typical Max Units
Line Regulation VLINE 2.5 7.5 %
Load Regulation VLOAD 2.5 7.5 V
Output Ripple and Noise VRN 20 100 200 mVp-p
Load Regulation RLOAD 150 200 250 mA
Efficiency @80% Load EFF 70 80 90 %

Electrical Parameter technical standards

Value Symbol Min Typical Max Units
Input Voltage VCC 41 61 V
Output Voltage VCC 4.75 5 5.25 V
Output Power PWR 8 W
Switching Frequency Freq 280 300 320 kHz

Resources

Package Contents

  • 1x WIXnet WIZPoE-P1 module

EVB-Pico board not included
