Wio Tracker L1 Lite by Seeed - The Pi Hut

Wio Tracker L1 Lite

SeeedSKU: 106539

£26.80

incl. VAT

excl. VAT

Only 10 units left

Awesome Extras

M5Stack Unbuckled Grove Cable 1m/2m/50cm/20cm/10cm by M5Stack - The Pi Hut

M5Stack M5Stack Unbuckled Grove Cable 1m/2m/50cm/20cm/10cm

From £1.90 incl. VAT excl. VAT

USB-A to USB-C Cable - Black by The Pi Hut - The Pi Hut

The Pi Hut USB-A to USB-C Cable - Black

From £2.25 incl. VAT excl. VAT

USB-C to USB-C Cable - Black by The Pi Hut - The Pi Hut

The Pi Hut USB-C to USB-C Cable - Black

From £2.25 incl. VAT excl. VAT

The Seeed Wio Tracker L1 Lite is a compact, low-power Meshtastic node featuring LoRa (862–930 MHz), an nRF52840 processor, and an L76K GPS module for accurate positioning. Its minimalist design makes it ideal for embedded applications and custom development.

The Seeed Wio Tracker L1 Series is a low-power, scalable Meshtastic node featuring LoRa (862–930 MHz), an nRF52840 for efficient processing, and an L76K GPS for precise location tracking.

The L1 Lite version is a compact and minimalist development board — perfect for embedded integration and advanced customisation.

Features

Pre-flashed with Meshtastic firmware
Ready to use out of the box with pre-installed Meshtastic firmware.
Triple power supply options
Supports USB-C fast charging, solar input, and Li-ion battery power for flexible deployment in various environments.
Flexible display support
Optional 1.3" OLED and 2.13" E-Ink screens.
High expandability
Compatible with the Grove ecosystem, with PTH headers and an SWD debugging interface for custom hardware expansion.

Specifications

Processor	Nordic nRF52840 ARM® Cortex®-M4 with FPU, up to 64 MHz
On-chip memory	1 MB flash and 256 kB RAM
Wireless	LoRa: Based on Wio-SX1262, supports 862–930 MHz Bluetooth 5.0
GPS	L76K (GPS, BeiDou, GLONASS, QZSS)
Interface	Screen interfaces: • 1.3" OLED ×1 • 2.13" E-Ink ×1 Grove ×1: UART/I²C/GPIO Plated through hole (PTH): UART/I²C/GPIO/Analog Soldering pads reserved for SWD
Power	USB-C: 5 V / 1 A Solar interface: 5 V / 1 A Battery interface: 3.7 V / 1 A
Certification	FCC, CE, RoHS
Supplier code	114993653

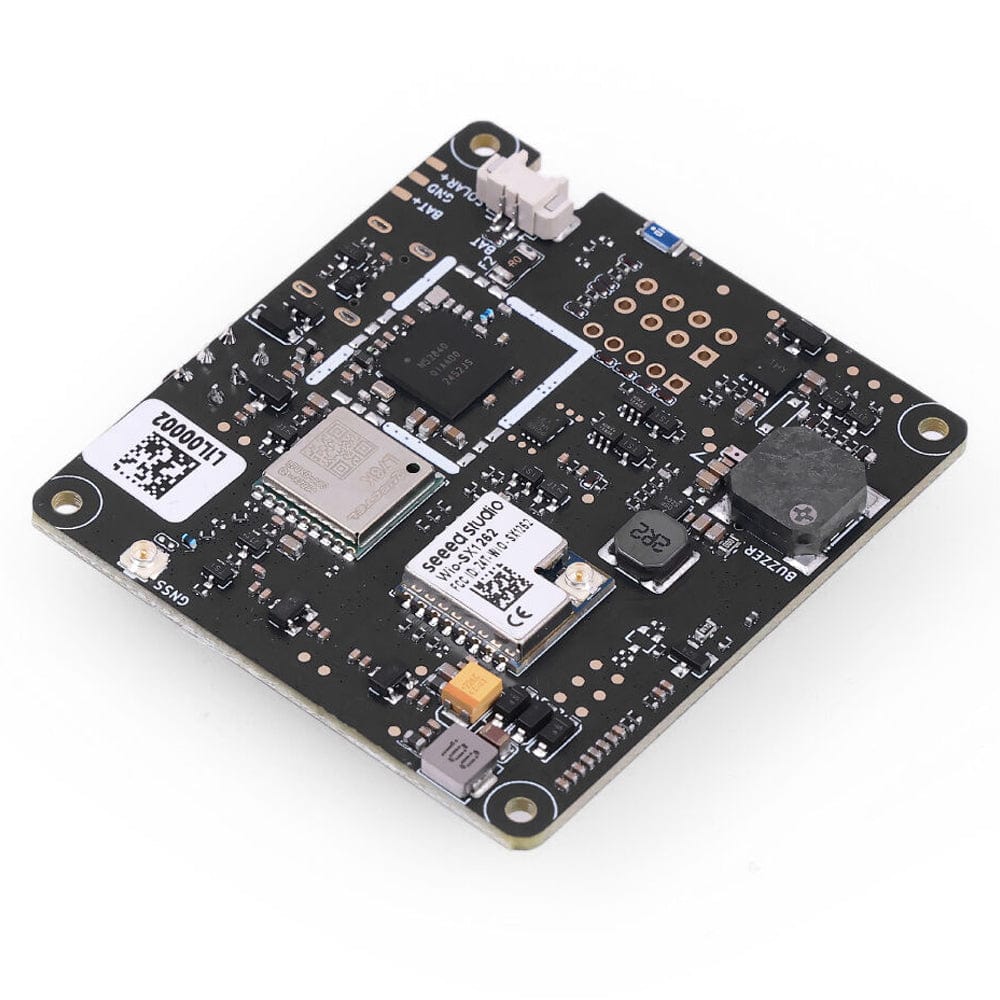

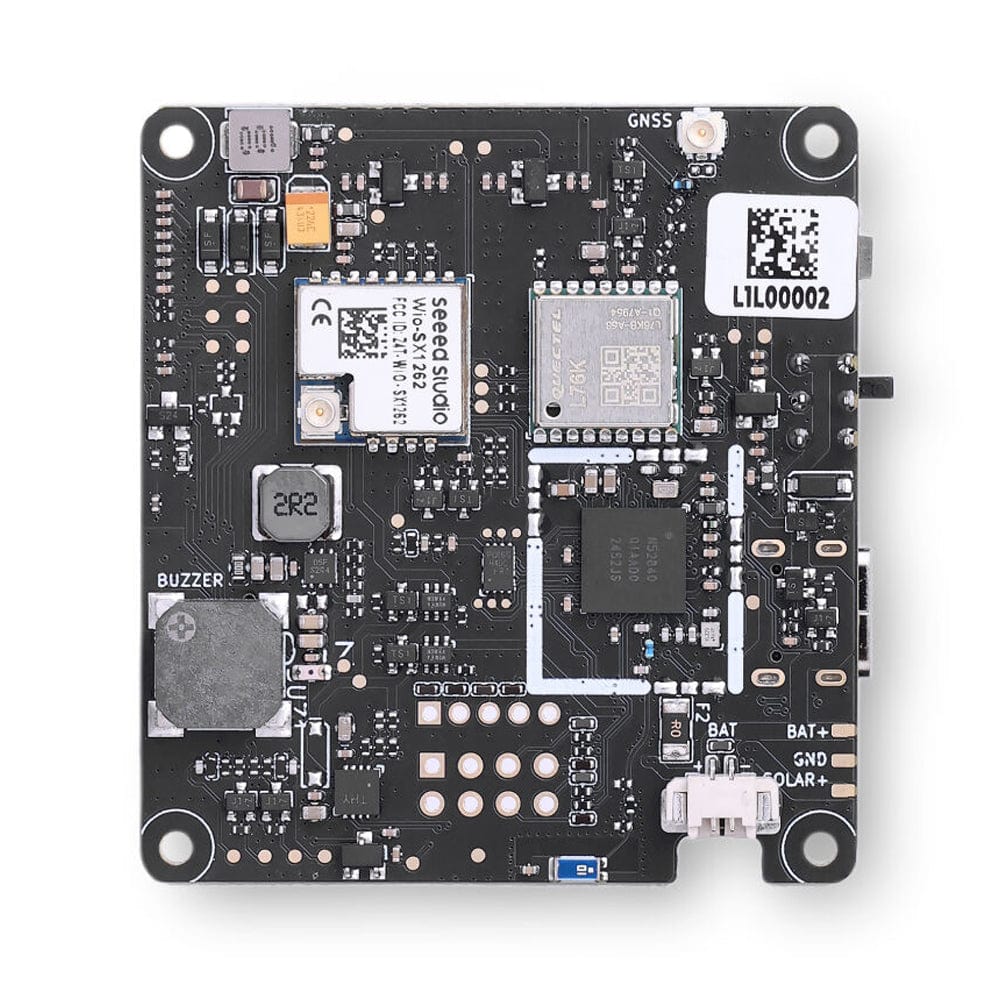

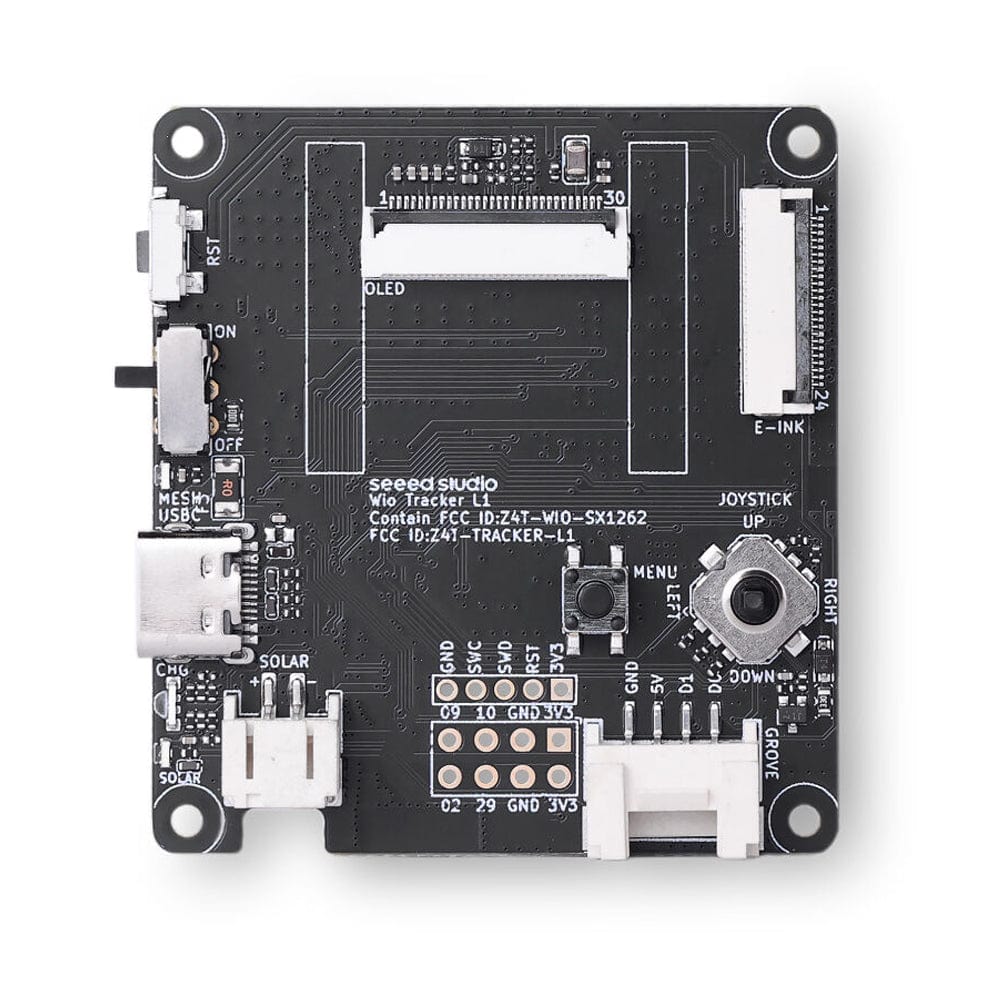

Hardware Overview

Wio Tracker L1 Lite hardware overview

Resources

Package Contents

1x Wio Tracker L1 board
1x LoRa antenna
1x GPS antenna
1x 60 mm RF cable (RP-SMA female to IPEX)
