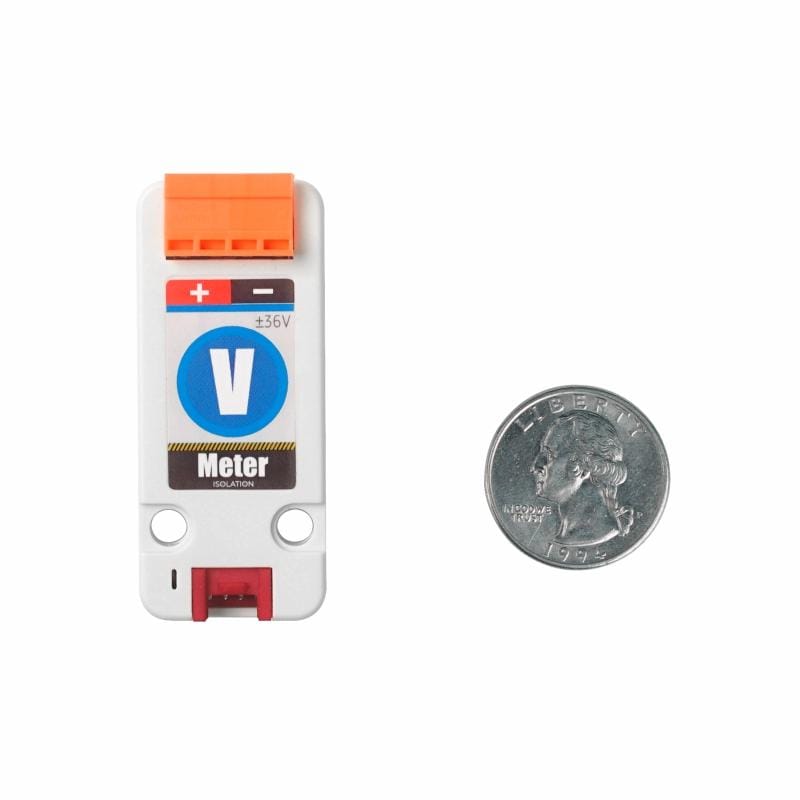

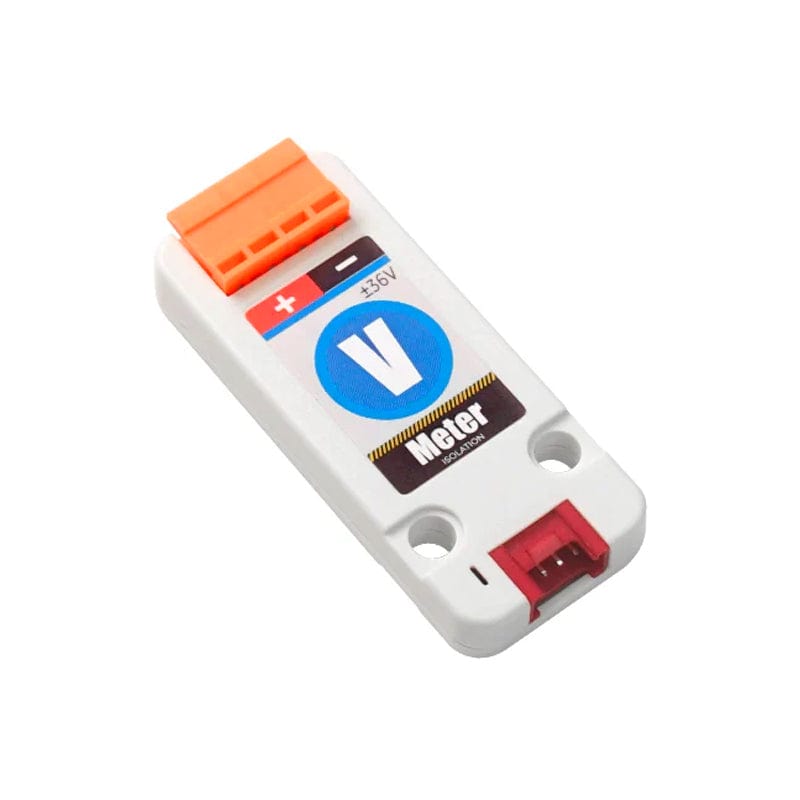

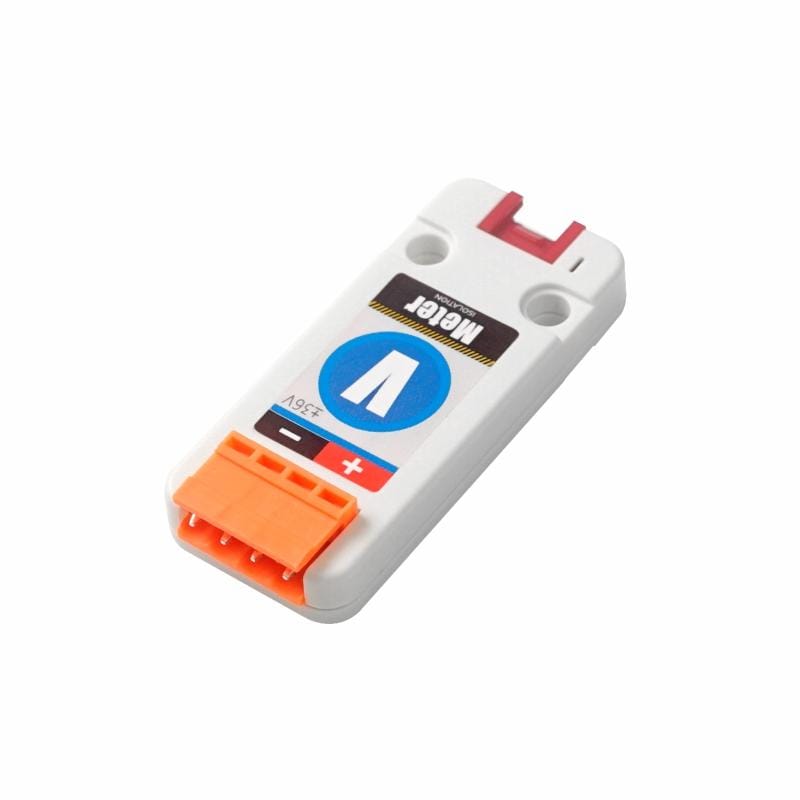

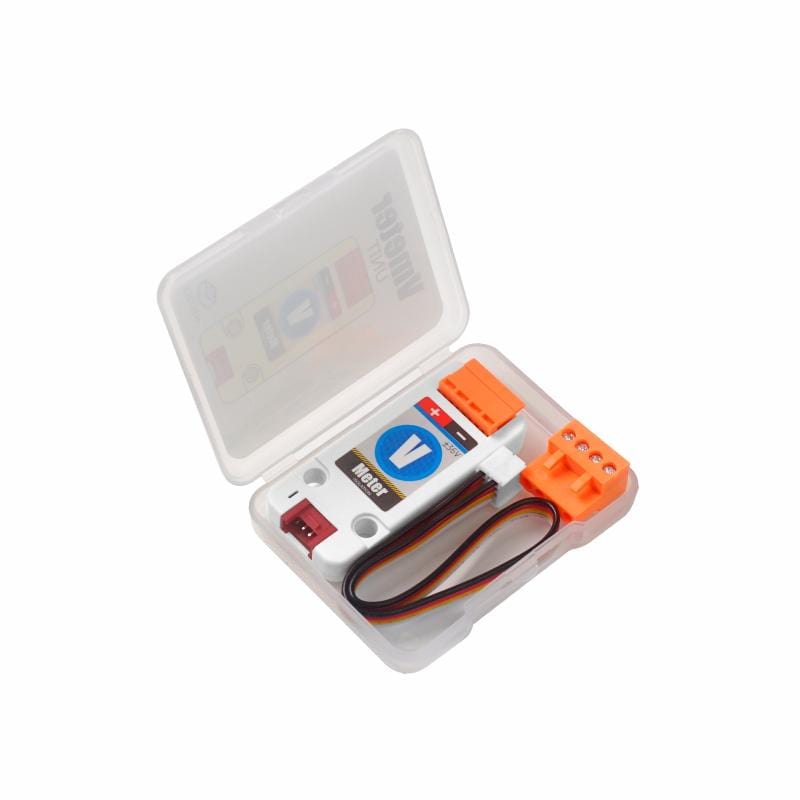

This Voltmeter Unit is a voltage meter that can monitor the voltage in real time. The 16-bit ADC (analog-to-digital) converter ADS1115 is used internally to communicate through I2C (0X49).
In order to ensure the measurement accuracy, there is a built-in DC-DC isolated power supply, and the I2C interface is also electrically isolated through the low-power isolator CA-IS3020S.
This prevents noise and surges on the data bus or other circuits from entering the local ground terminal to interfere or damage sensitive circuits. Each unit is individually calibrated when leaving the factory, with an initial accuracy of 0.1%FS, ±1 count, and a maximum measurement voltage of ±36V.
The EEPROM (0x53) has built-in calibration parameters when leaving the factory. Please DO NOT write to the EEPROM, otherwise the calibration data will be overwritten and the measurement results will be inaccurate.
