Voltaic P120 - 6V 20W Solar Panel (ETFE)

The Voltaic P120 6V 20W Solar Panel provides reliable outdoor power with a waterproof IP67 design and an ETFE construction for long-term installations.

The Voltaic P120 is a 43.6 x 27.4cm, lightweight, waterproof and easily mountable 6V 20W solar panel for long term outdoor applications. Pair with a Voltaic battery pack or charge a 1S Li-Ion or LiPO4 cell for true off-grid power!

It features a waterproof (IP67) design, UV resistant ETFE coating, and durable, lightweight construction. High efficiency monocrystalline cells rated at 20% ensure reliable energy generation, and it is compatible with the Large Solar Panel Bracket using the ETFE Panel Screw & Washer Set.

In terms of performance, the panel provides an open circuit voltage of 6.61V, peak voltage of 5.21V, peak current of 4,460mA, and peak power of 23.21W, with a power tolerance of +/-10%.

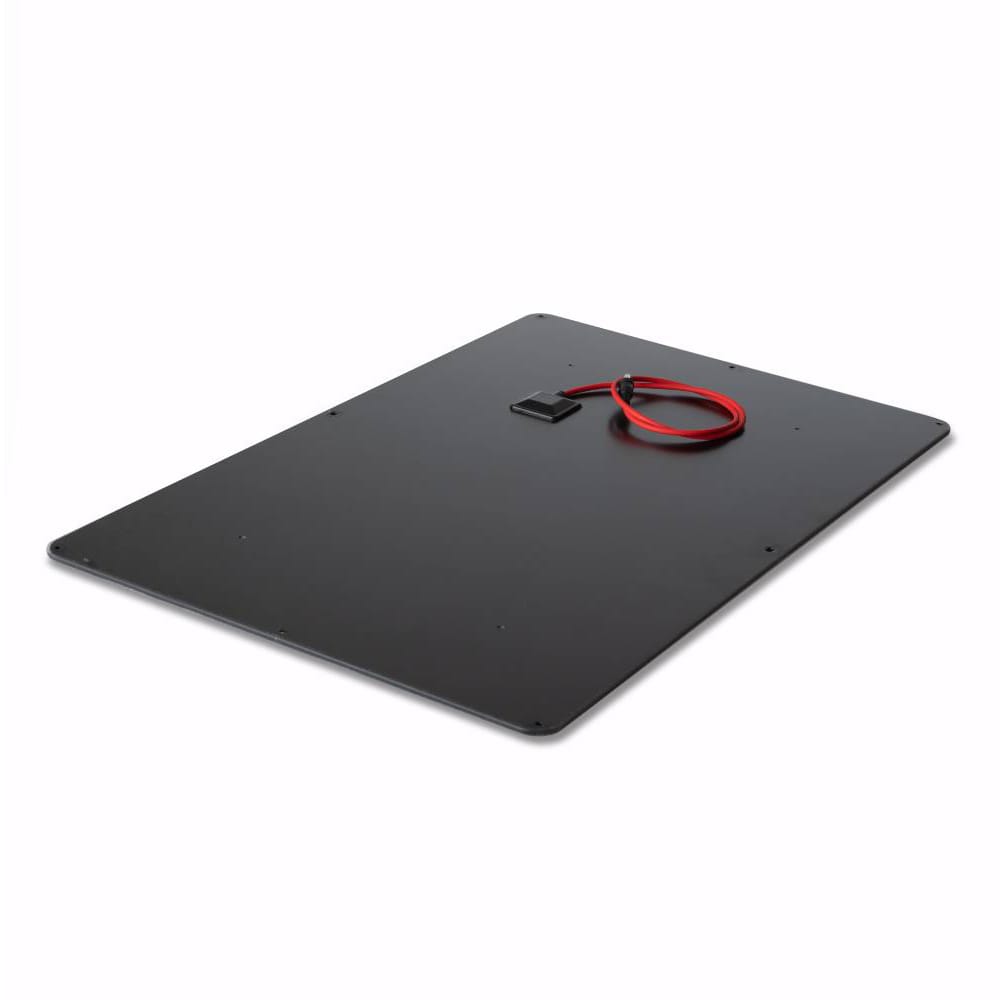

For maximum power output, the panel should be oriented towards the sun. It includes a 50cm red PU coated cable with a waterproof male 3.5x1.1mm plug, with extension options available in 1 foot, 4 foot, and 10 foot lengths, or it can be soldered directly to a PCB using an extension with exposed leads.

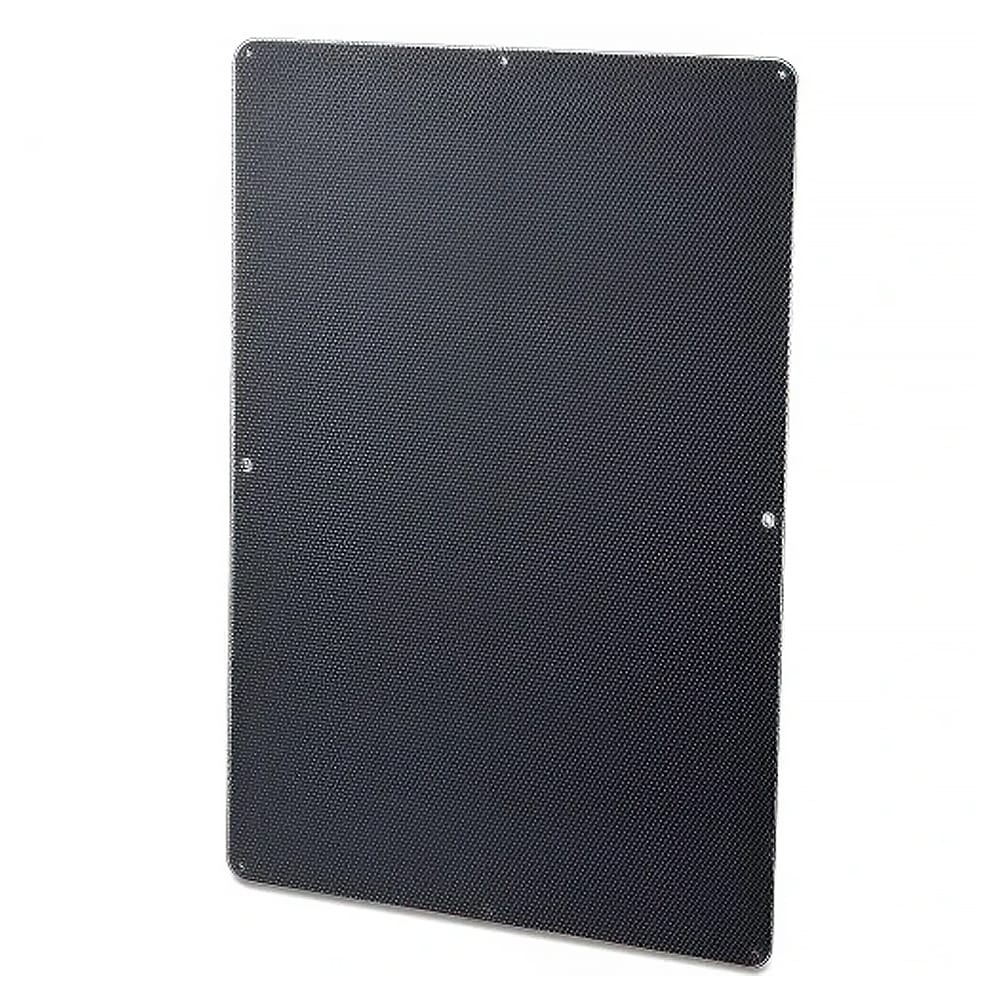

The panel is constructed with a matte ETFE coating and 2.0mm FR4 backing, providing strength and environmental resistance. Its dimensions are 43.6 x 27.4 x 0.4 cm and it weighs 709 grams, making it suitable for a range of outdoor and fixed installation applications.

Panel Accessories

• Large Panel Bracket - provides a lightweight, durable way to mount small solar panels to poles or pipes
• ETFE Panel Screw & Washer Set - provides a complete screw, washer, and post nut kit for securely attaching ETFE solar panels to compatible mounting brackets
• Corner Mounts - make it easy to securely attach solar panels to straps or surfaces
• Magnet Mounts - provides a simple, drill-free way to attach solar panels to metal surfaces

• ABS Plastic Post Nuts - lightweight mounting nuts designed to securely attach Voltaic solar panels to brackets, corner mounts, and other hardware
• Stainless Steel Post Nuts - provides a stronger, more secure mounting solution for Voltaic solar panels
• Cable Glands - creates a waterproof seal between your solar panel and enclosure, protecting internal electronics while allowing secure cable routing
• Extension and Splitter cables - visit our Voltaic section for a range of cable accessories

Features

• Waterproof (IP67)
• UV resistant ETFE coating
• Durable and lightweight
• High efficiency monocrystalline cells: 20%
• Compatible with the Large Solar Panel Bracket using our ETFE Panel Screw & Washer Set

Specifications

Output

• Open Circuit Voltage: 6.61V
• Peak Voltage: 5.21V
• Peak Current: 4,460mA
• Peak Power: 23.21W
• Power Tolerance: +/-10%
• For maximum power output, orient the panel towards the sun

Output Cable

• Cable Length: 50cm
• Cable Colour: Red PU Coated
• Plug: Waterproof Male 3.5x1.1mm
• Extend the cable length using 1 foot, 4 foot, and 10 foot extension cables

• Solder directly to a PCB using extension with exposed leads

Construction

• Matte ETFE coating
• 2.0mm FR4

Size and Weight

• 43.6 x 27.4 x 0.4 cm
• 709 grams

Resources

• Technical Drawing
• STEP Model

Package Contents

• 1x Voltaic P120 6V 20W Solar Panel - ETFE
