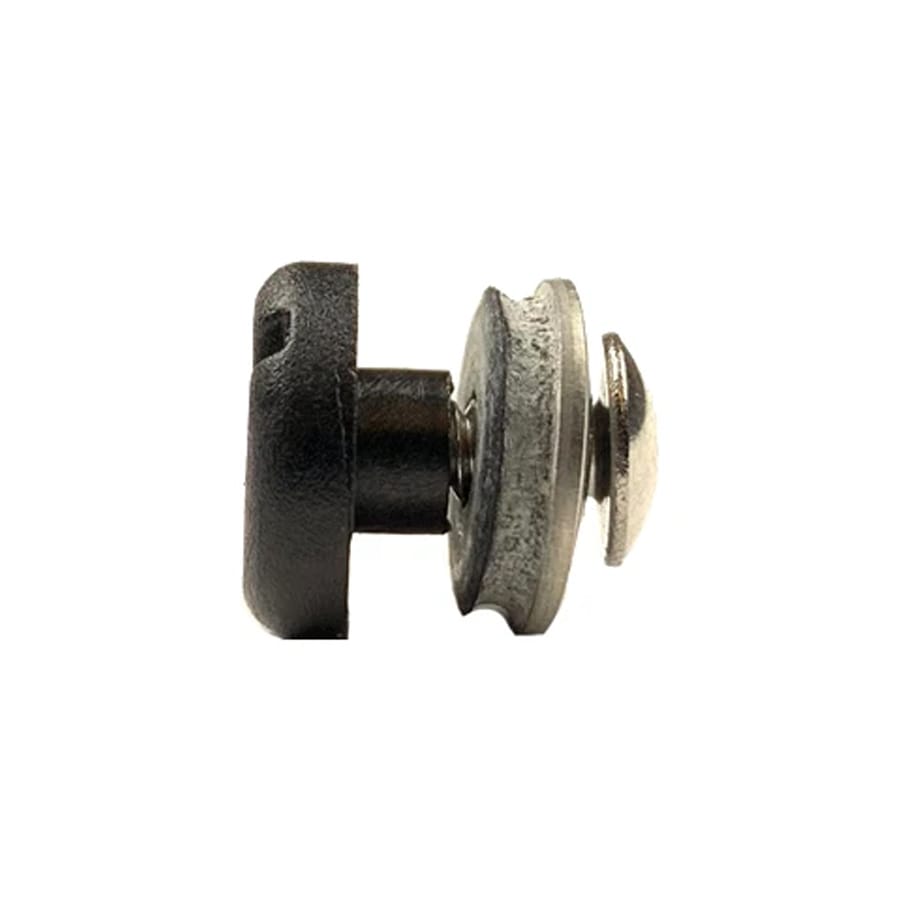

The Voltaic K-MT-BK-ETFE Panel Screw & Washer Set provides a complete screw, washer, and post nut kit for securely attaching ETFE solar panels to mounting brackets and other hardware.
The VoltaicPanel Screw & Washer Set is a hardware kit designed to securely attach Voltaic ETFE solar panels to mounting brackets. It includes four complete sets of screws, washers, and post nuts.
Each set uses stainless steel screws with neoprene-backed washers to help maintain a secure fit. The included ABS post nuts fasten from the rear of the panel, creating a firm connection between the panel and bracket.

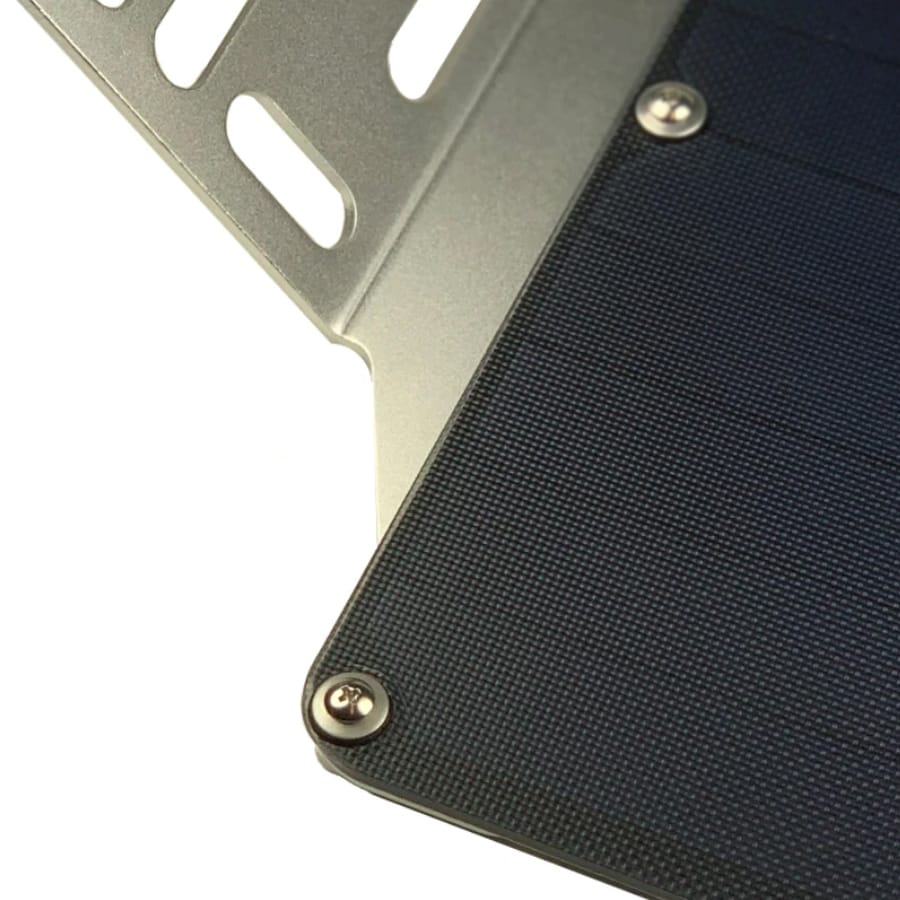

This mount set is compatible with all Voltaic ETFE brackets with corner mounting holes, and can be used with the small, medium and large Voltaic mounting brackets. Installation is straightforward, using a simple screw-through design that allows panels to be mounted quickly and securely.
Solar panel not included.
Features

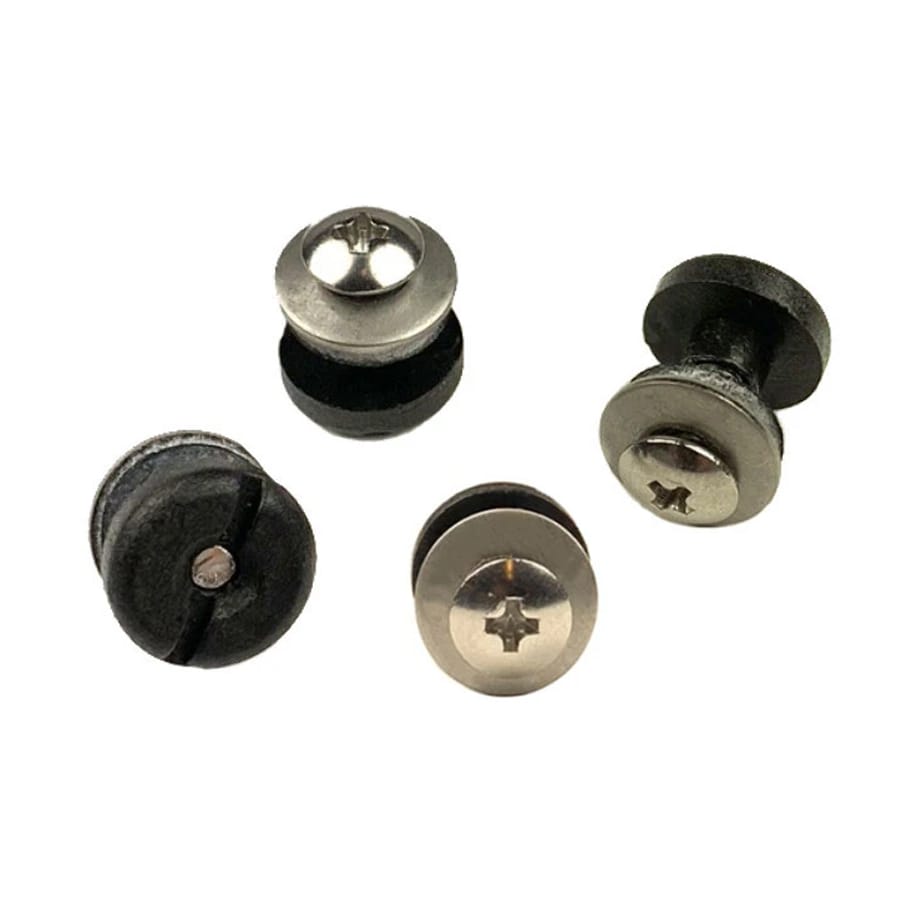

Four complete sets of screws, washers, and post nuts included
Stainless steel screws for corrosion resistance
Neoprene-backed washers for secure, weatherproof fit
ABS post nuts for rear-panel fastening
Compatible with small, medium, large, and extra-large Voltaic brackets
Simple screw-through design for quick installation
Specifications

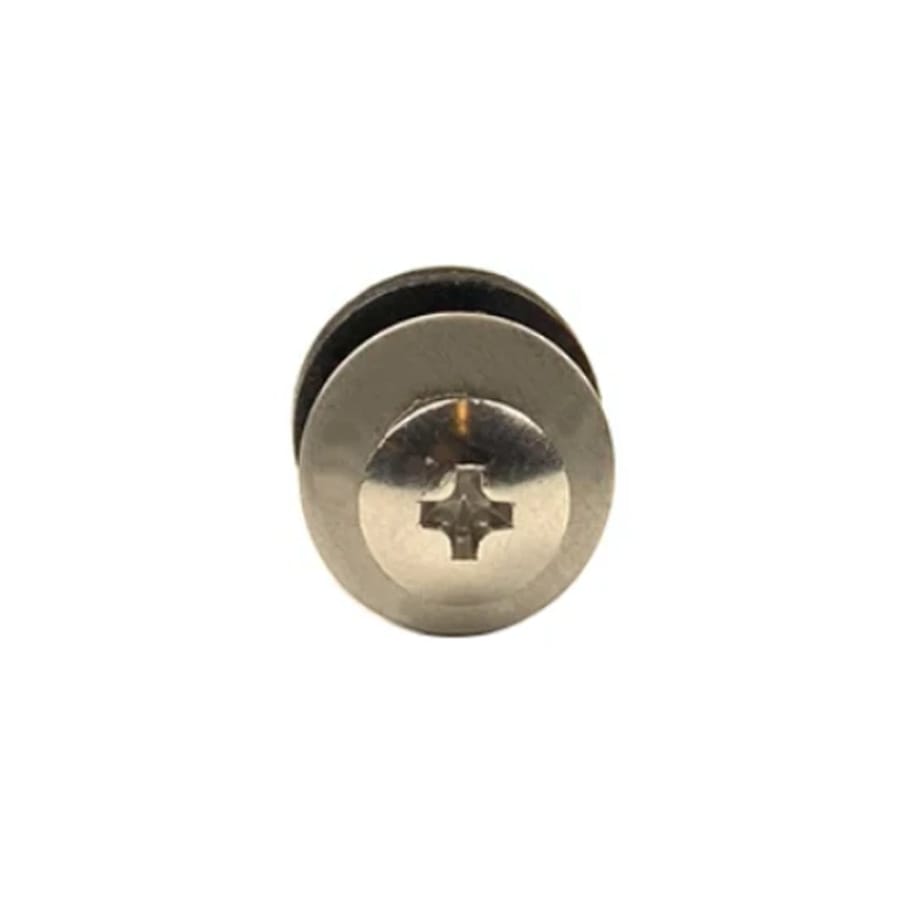

Screw
Extra-Wide Truss Head Phillips Screws
Passivated 18-8 Stainless Steel
4/40 Thread
3/8" Long
Washer
Neoprene Backed Stainless EPDM Washer
Outer Diameter: 3/8"

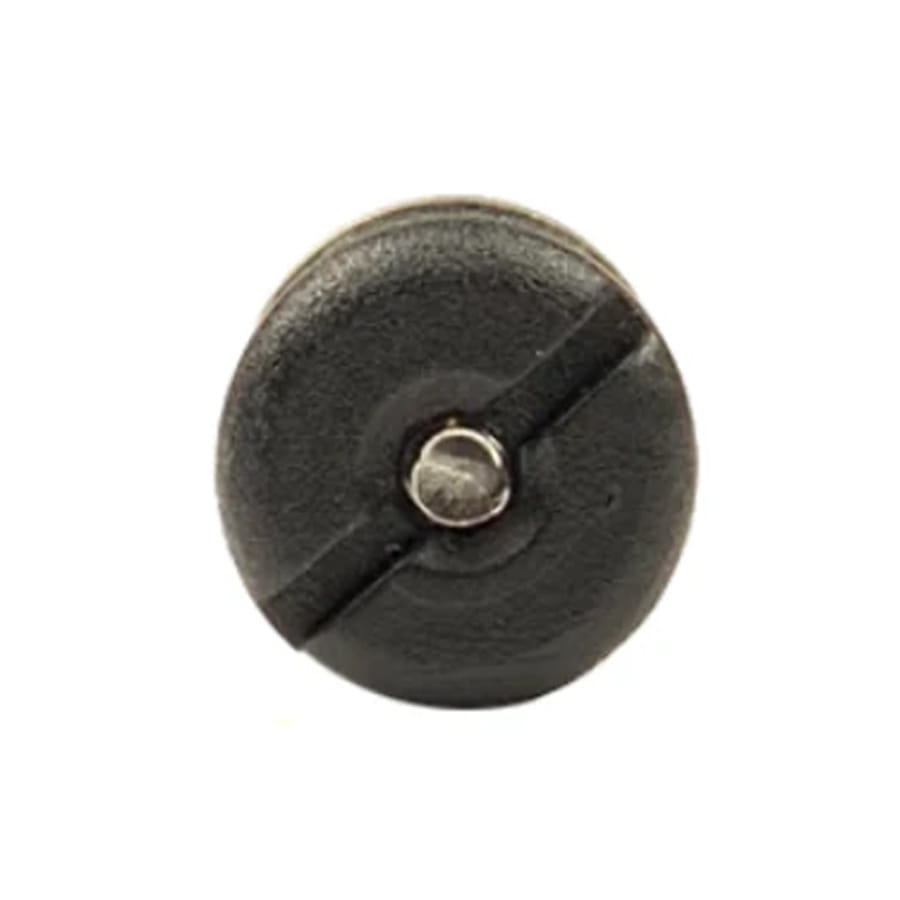

Post nut
ABS Plastic
Internal Thread: 4/40
Compatibility
All Voltaic ETFE Solar Panels with corner mounting holes
Not compatible with Voltaic urethane solar panels (which include an embedded screw and ABS post nut)
Package Contents
1x Voltaic K-MT-BK-ETFE Panel Screw & Washer Set - ETFE (Pack of 4)
Please note: Solar panel is not included.
