The Voltaic P105 6V 5W Solar Panel delivers durable, high-performance solar power in a lightweight form, ideal for IoT applications with strict size, reliability, and longevity requirements.

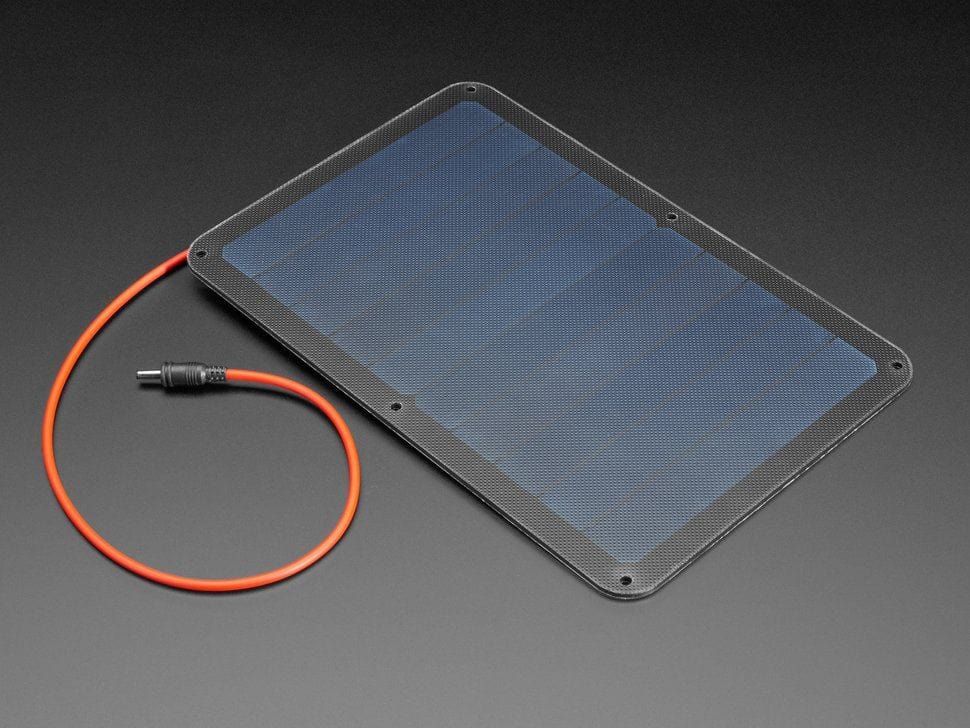

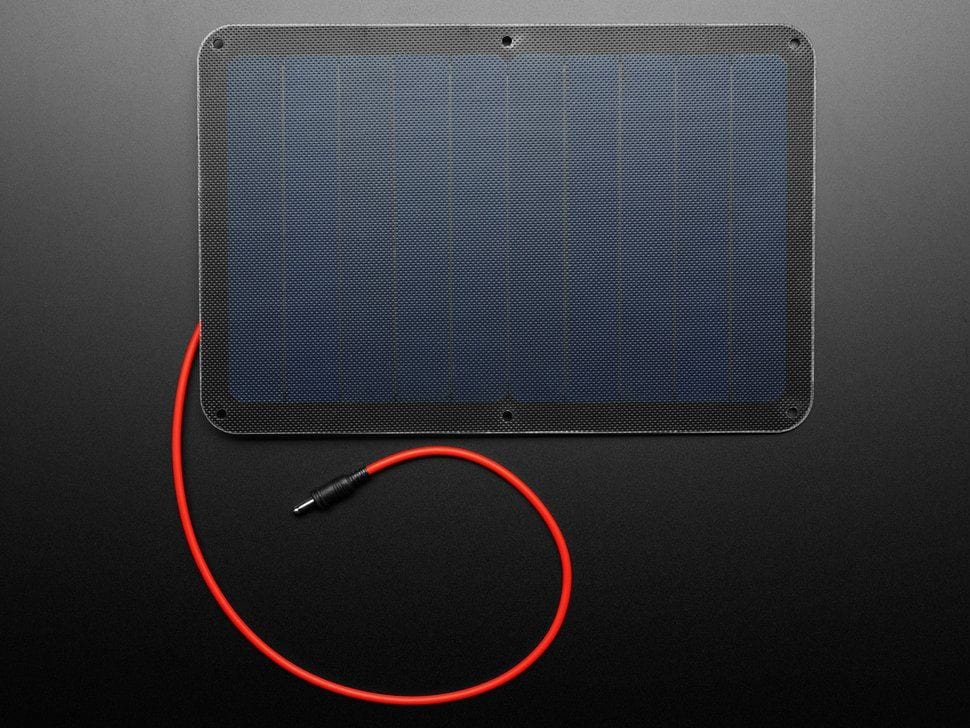

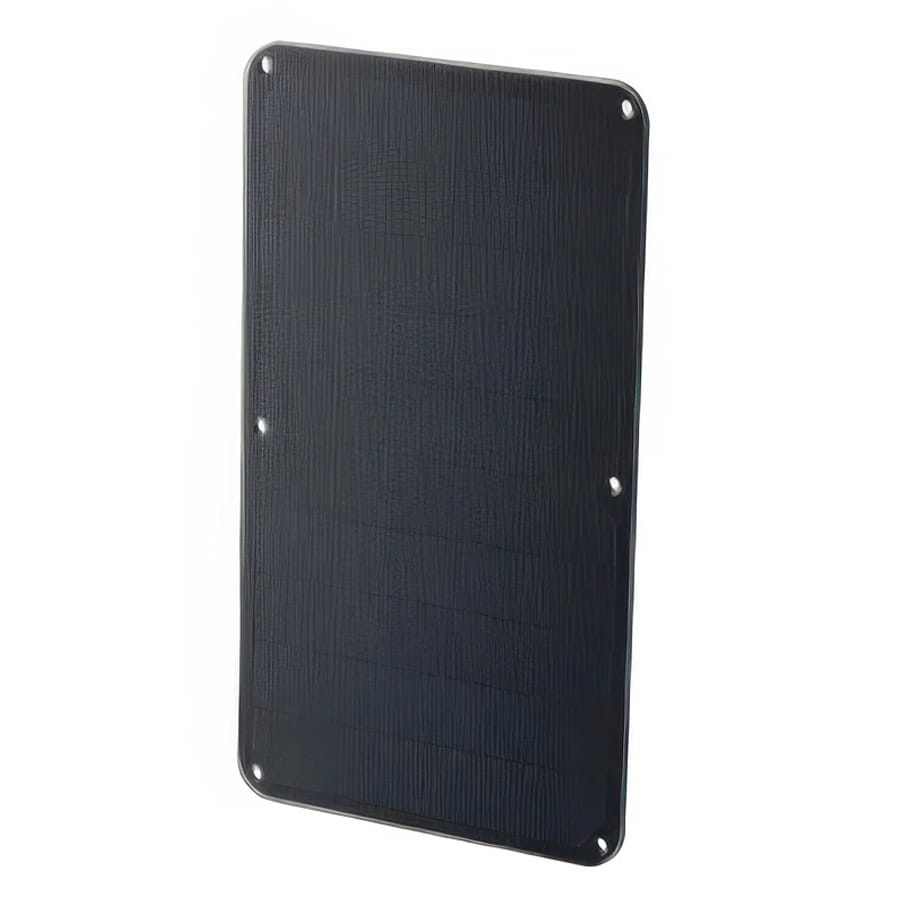

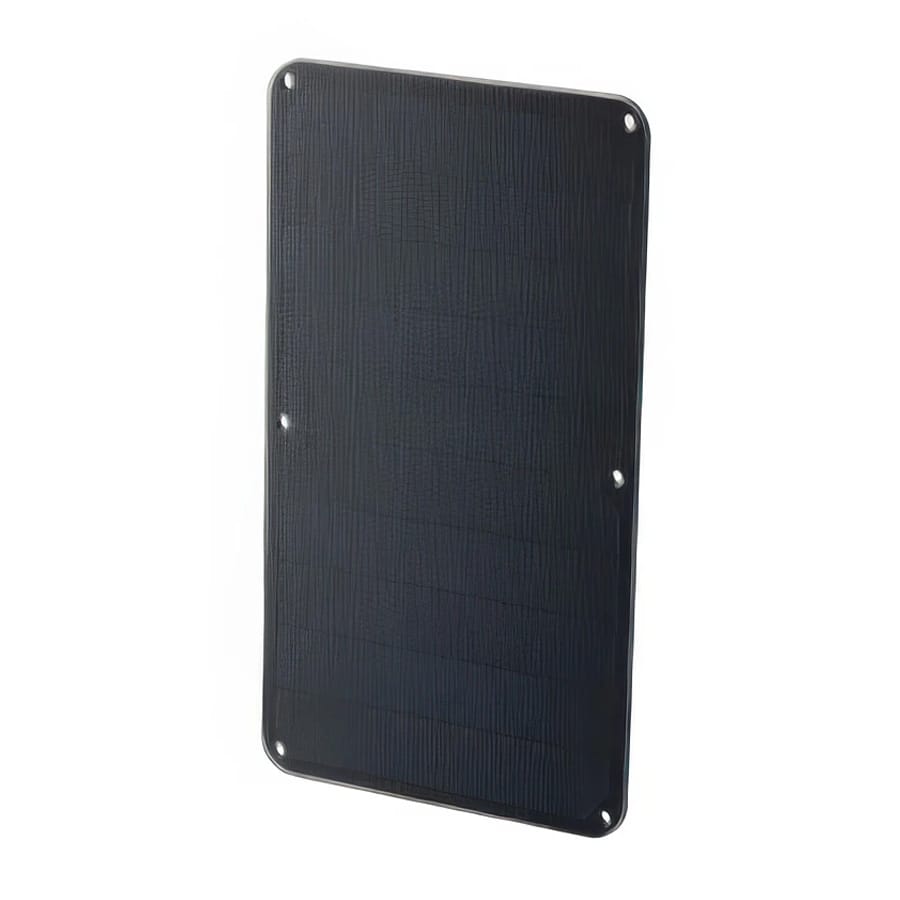

The VoltaicP105 is a 223x148mm high-performance 6V 5W ETFE solar panel designed for industrial IoT applications, offering a lightweight, efficient, and cost-effective solution for outdoor power.
SMT ETFE panels are well suited to applications where space or weight is limited, long lifetimes are required, and strict quality and dimensional tolerances must be maintained.
Voltaic ETFE panels are manufactured using a strictly sourced and qualified material stack. They are third-party tested for the equivalent of over 10 years of UV exposure, along with thermal cycling, vibration stress, and resistance to chemicals and oils.
They are also used in a range of ATEX applications, demonstrating suitability for demanding environments.
Panel Accessories
Medium Panel Bracket - provides a lightweight, durable way to mount small solar panels to poles or pipes
ETFE Panel Screw & Washer Set - provides a complete screw, washer, and post nut kit for securely attaching ETFE solar panels to compatible mounting brackets
Corner Mounts - make it easy to securely attach solar panels to straps or surfaces
Magnet Mounts - provides a simple, drill-free way to attach solar panels to metal surfaces
ABS Plastic Post Nuts - lightweight mounting nuts designed to securely attach Voltaic solar panels to brackets, corner mounts, and other hardware
Stainless Steel Post Nuts - provides a stronger, more secure mounting solution for Voltaic solar panels
Cable Glands - creates a waterproof seal between your solar panel and enclosure, protecting internal electronics while allowing secure cable routing
Solder directly to a PCB using extension with exposed leads
Mechanical Characteristics
Dimensions: 223 x 148 x 3.6 mm
Weight: 188g
Standard Tolerance: ± 0.5 mm
Compliance: RoHS and REACH
Testing: relevant sections of IEC 61215, SAE J1455, and IEC 60529

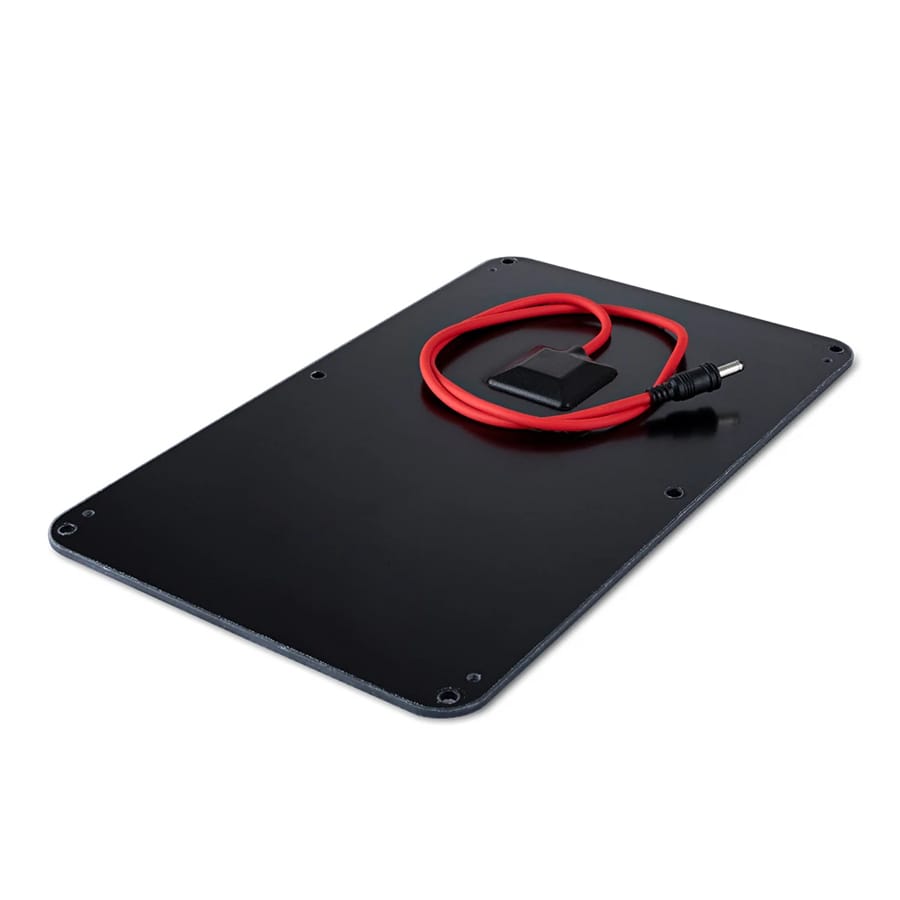

Mounting: 6 x Thru-holes
Operating Temperature: −40°C to 85°C

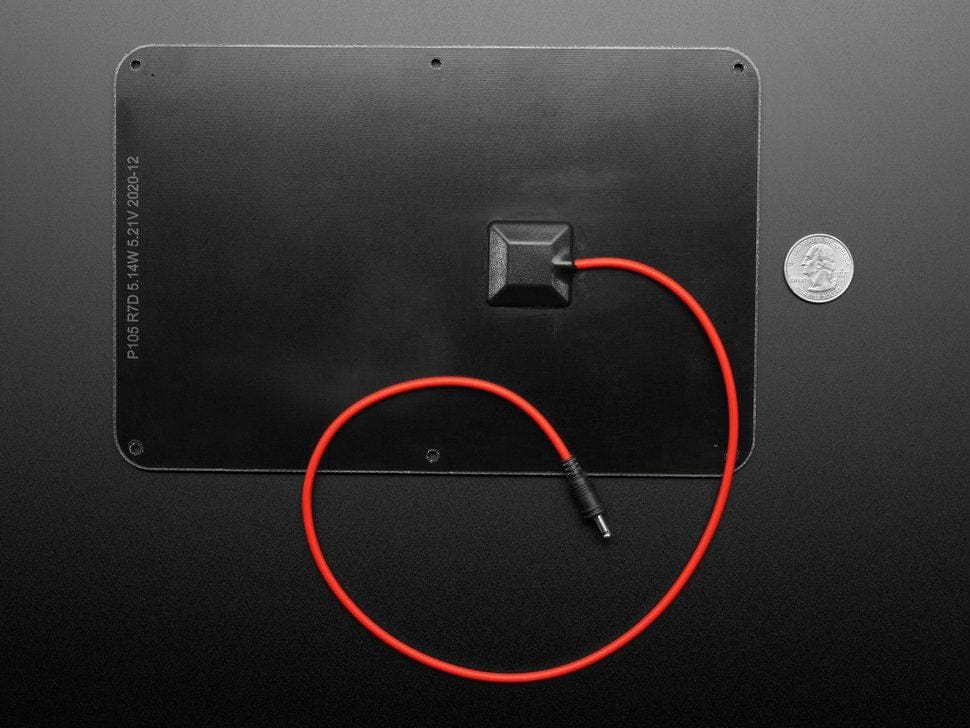

Cable: 3.5x1.1mm jack
Construction
Matte ETFE coating
2.0mm FR4
Electrical Characteristics
Symbol
Parameter
Nominal
Expected*
Unit
WP
Max power (mpp)
5.51
4.61
W
VP
Voltage @ mpp
5.21
4.69
V
IP
Current @ mpp
1.06
0.98
A
VOC
Open-circuit voltage
6.61
5.94
V
ISC
Short-circuit current
0.95
1.06
A
η
Cell efficiency
21.9
-
%
*Expected values are adjusted for real-world losses that include cutting of cells, imperfect transmissivity of the EVA and ETFE encapsulation layers, and the tolerance of the lowest performing cell piece in the series
