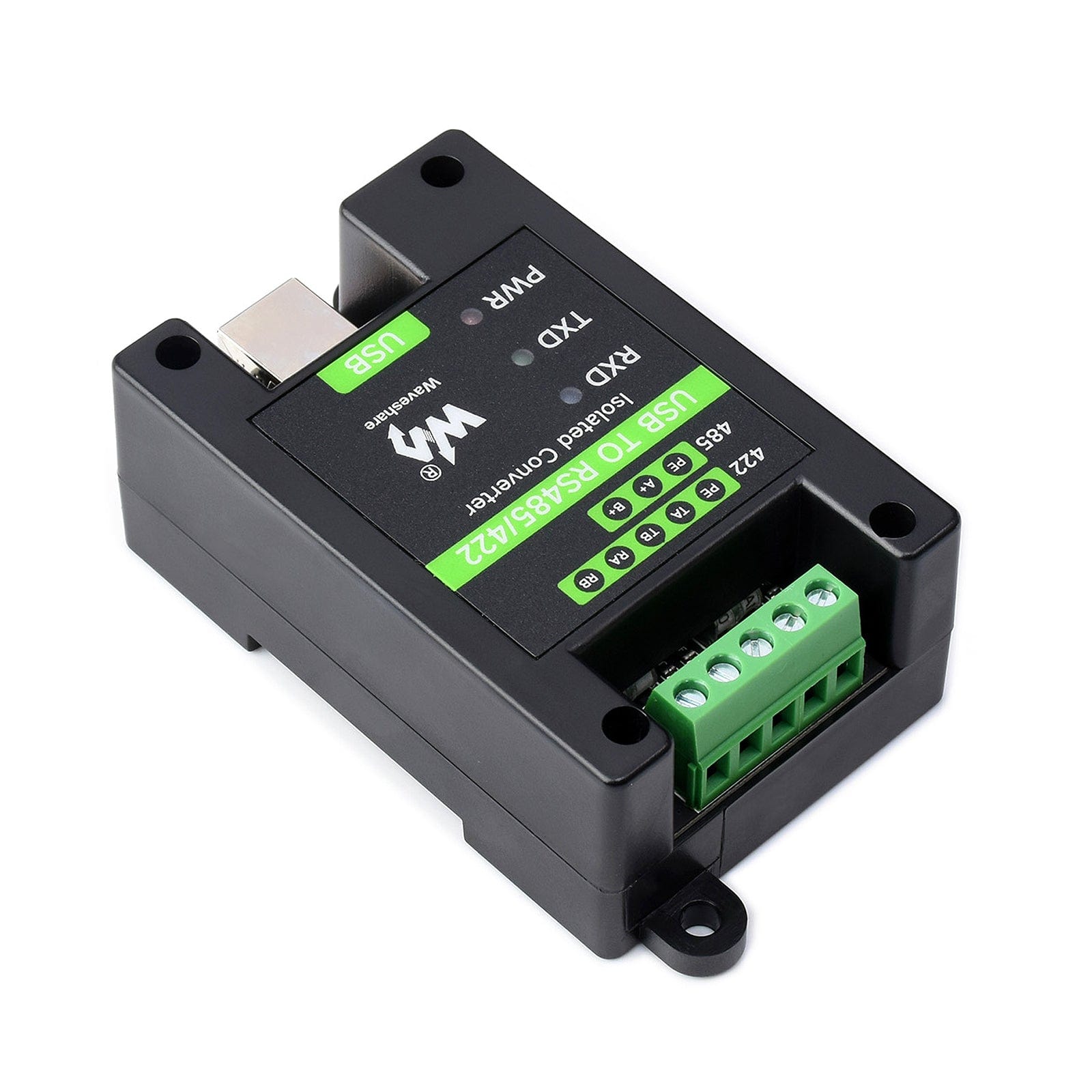

USB to RS485/422 Industrial Grade Isolated Converter

WaveshareSKU: WAV-23949
Price:
Sale price £17.40
incl. VAT
excl. VAT
Stock:
Only 19 units left
Quantity:

Awesome Extras

2-Channel RS485 Module for Raspberry Pi Pico - The Pi Hut2-Channel RS485 Module for Raspberry Pi Pico - The Pi Hut
Waveshare2-Channel RS485 Module for Raspberry Pi Pico
Sale price £7.50 incl. VAT excl. VAT
RS422 / RS485 Serial HAT - The Pi HutRS422 / RS485 Serial HAT - The Pi Hut
ZihatecRS422 / RS485 Serial HAT
Sale priceFrom £33.80 incl. VAT excl. VAT
USB-C to USB-B Cable - Black - The Pi Hut
The Pi HutUSB-C to USB-B Cable - Black
Sale priceFrom £3 incl. VAT excl. VAT

This USB To RS485/422 converter has an FT232RNL and SP485EEN chip solution that provides stable communication and compatibility with built-in galvanic isolation that makes it lightning-proof and offers anti-electrostatic protection. It offers unibody digital isolation that gives signal isolation, high reliability, strong anti-interference, and low power consumption. Offering stability and safety with its multiple protection, using TVS (Transient Voltage Suppressor) it suppresses surge voltage and transient spike voltage in the circuit, while also being lightning-proof and having ESD protection

With a transmission distance of up to 1.2km (Transmission Distance Is About 1.2km For RS485/422 and about 5 Meters For USB) its 32-device support (it is recommended to use repeaters for more than 16 devices) multi-system support (Mac, Linux, Android, WinCE, Win11/10/8.1/8/7 and XP) and a wall and rail mount support, this versatile and easy to install converter is the one you need!

Features

  • Original FT232RL and SP485EEN chip. Fast communication, stable and reliable, better compatibility
  • Unibody power supply isolation, provides stable isolated voltage, and needs no extra power supply for the isolated terminal
  • Unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
  • TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightning proof & anti-electrostatic
  • Self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock resistance
  • 15KV ESD isolation protection and 600W lightningproof & anti-surge protection
  • 120R terminal resistor on the RS485/RS422 ports, enable by default, configurable by jumper
  • 3 LEDs for indicating the power and transceiver status
  • Industrial rail-mount ABS case design, small in size, easy to install, and cost-effective

What's on Board

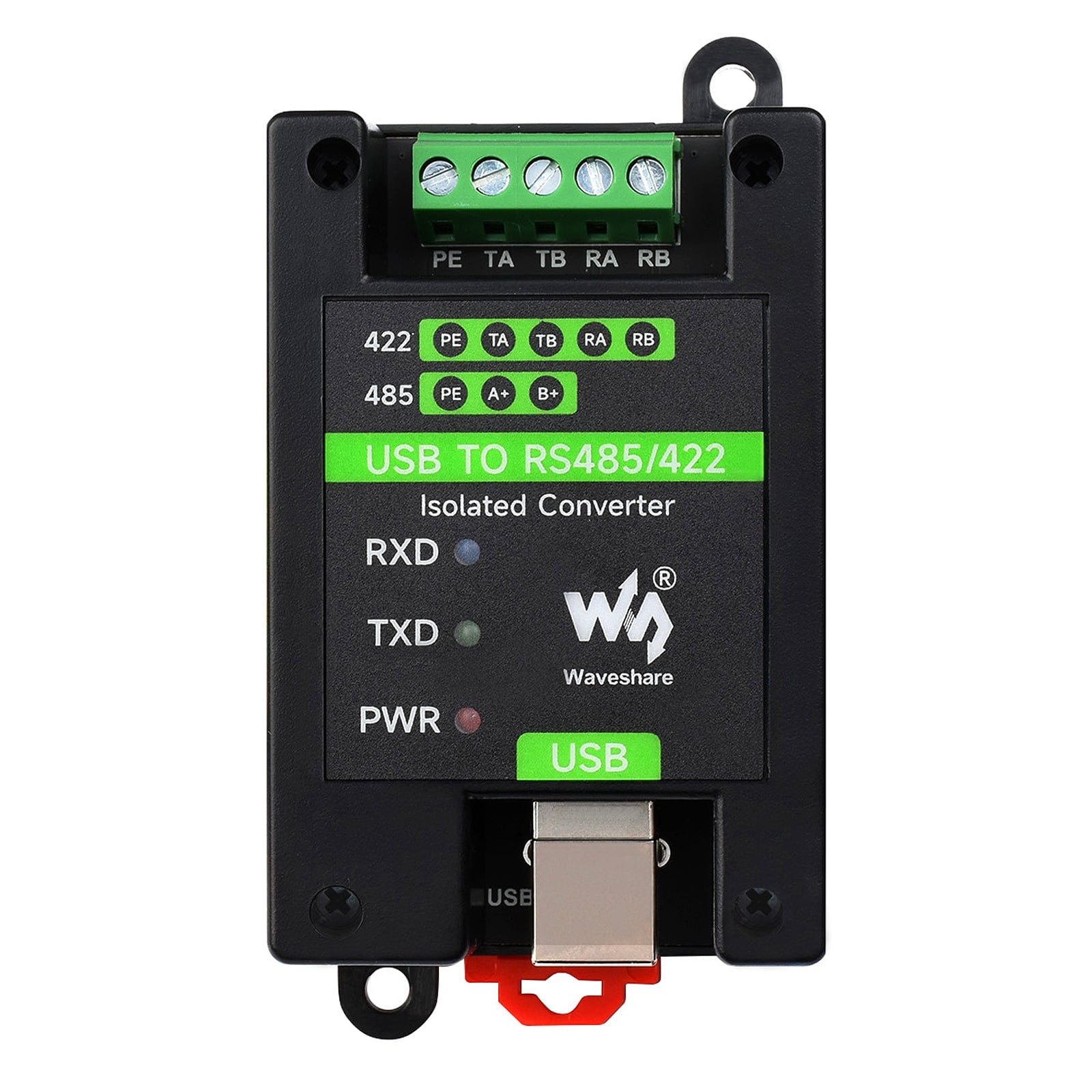

1. RXD: Blinking Blue (Data Receiving)

2. TXD: Blinking Green (Data Transmitting)

3. PWR: Light up Red (Power Connected)

4. USB & Power: Connecting to the USB port of the host

Specifications

Baud Rate FT232RNL 300bps ~ 3Mbps
Host Port USB
Device Port RS485/422
USB Operating voltage 5V
Connector USB-B
Protection 200mA self-recovery fuse, ESD protection
Transmission distance About 5m
RS485/422 Connector Screw terminal
Pins A+, B-, PE
Direction control Hardware automatic control
Protection 600W lightningproof and surge-suppress, 15KV ESD protection (onboard 120R balancing resistor)
Transmission distance About 1.2km(low rate)
Transmission mode Point-to-multipoints (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more)
LED Indicators PWR Red power indicator, light up when there is USB connection and voltage is detected
TXD Green TX indicator, light up when the USB port sends data
RXD Blue RX indicator, light up when the device ports send data back
Operating Enviroment Temperature -15℃ ~ 70℃
Humidity 5%RH ~ 95%RH
Operating System Mac, Linux, Android, WinCE, Windows 10 / 8.1 / 8 / 7 / XP

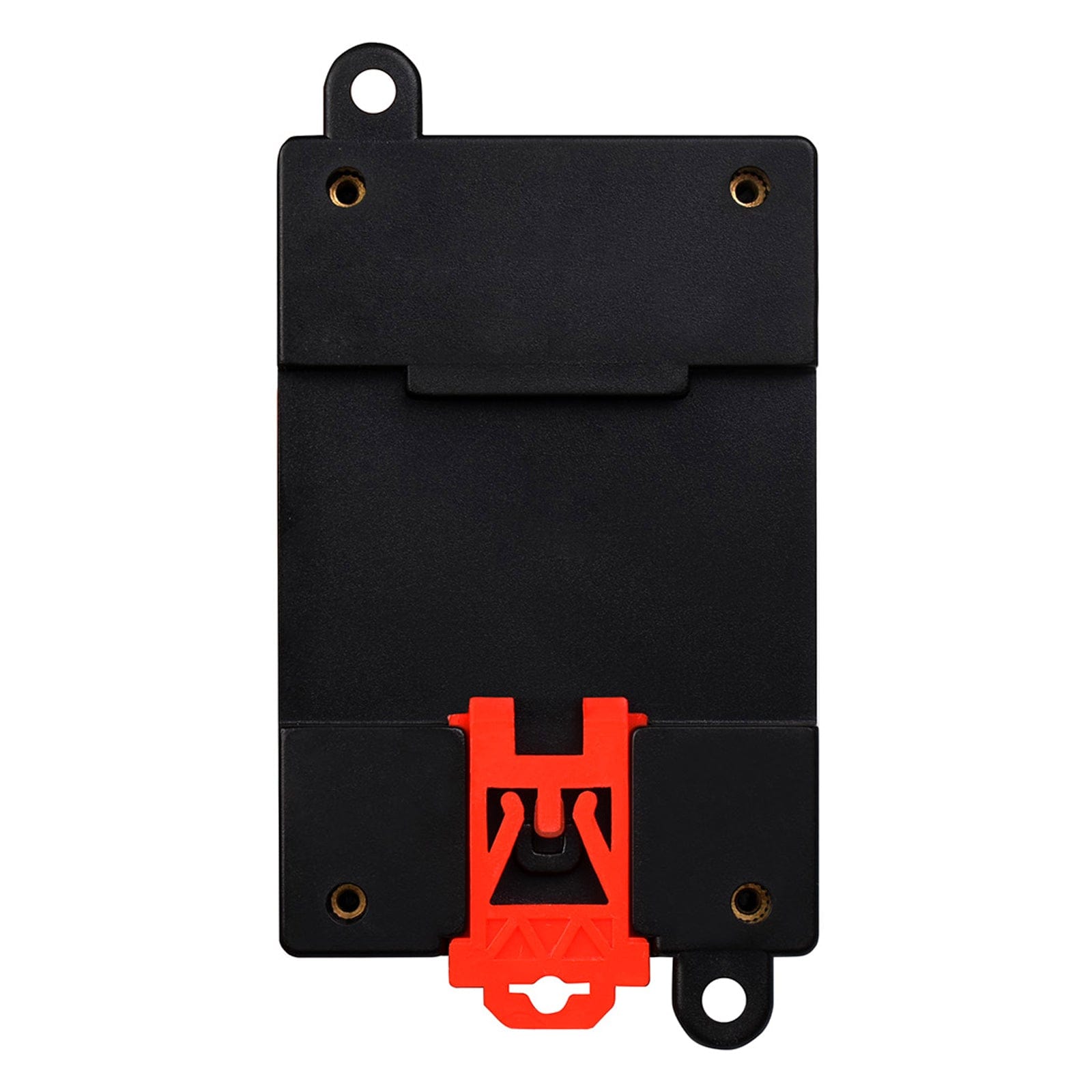

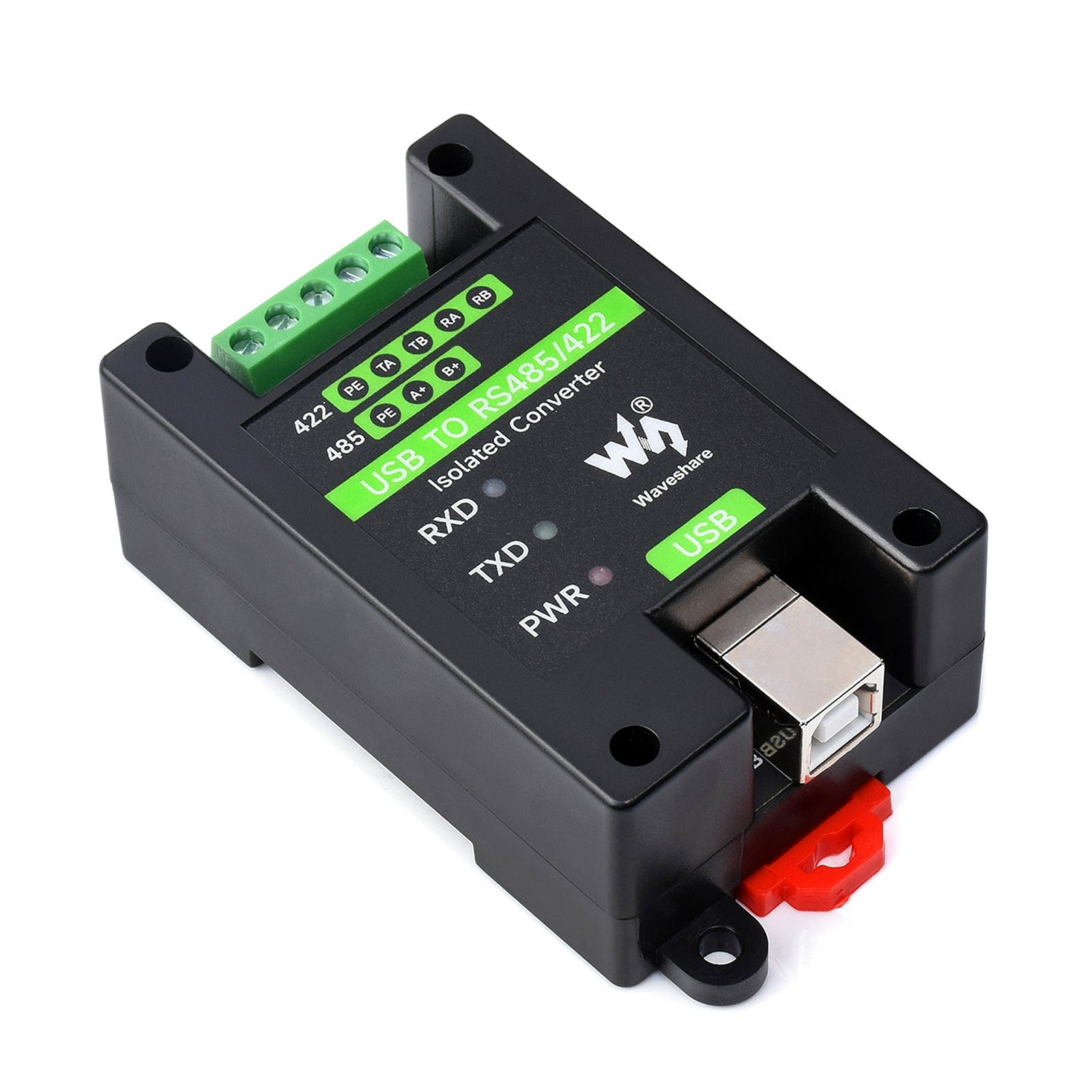

Appearance Enclosure Rail-mount ABS case, suitable for 35mm DIN rail

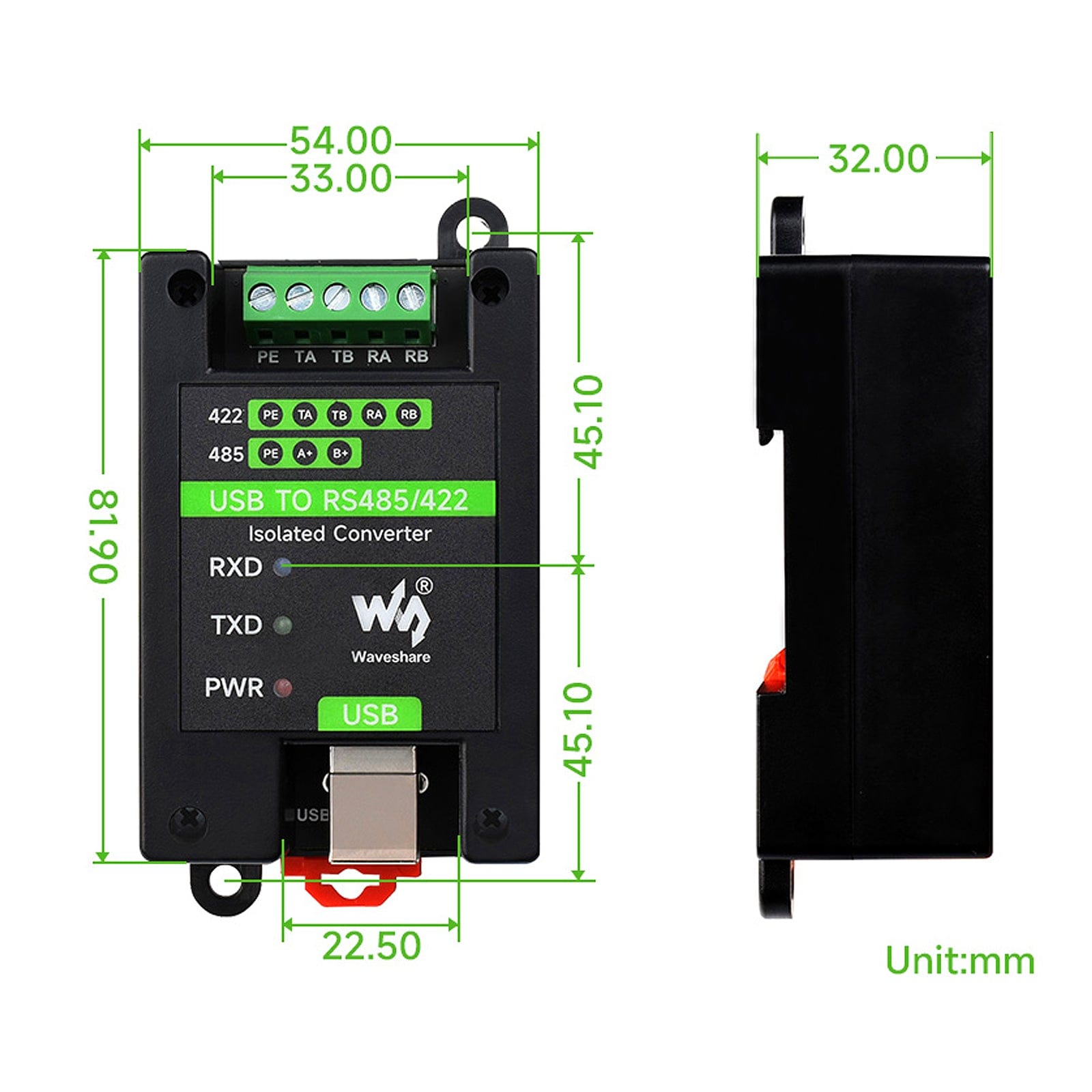

Dimensions 81.9 × 54.0 × 32.0mm

Resources

Package Contents

  • 1x USB TO RS485/422
  • 1x USB-A male to USB-B male cable 1.2m
  • 1x Screwdriver
