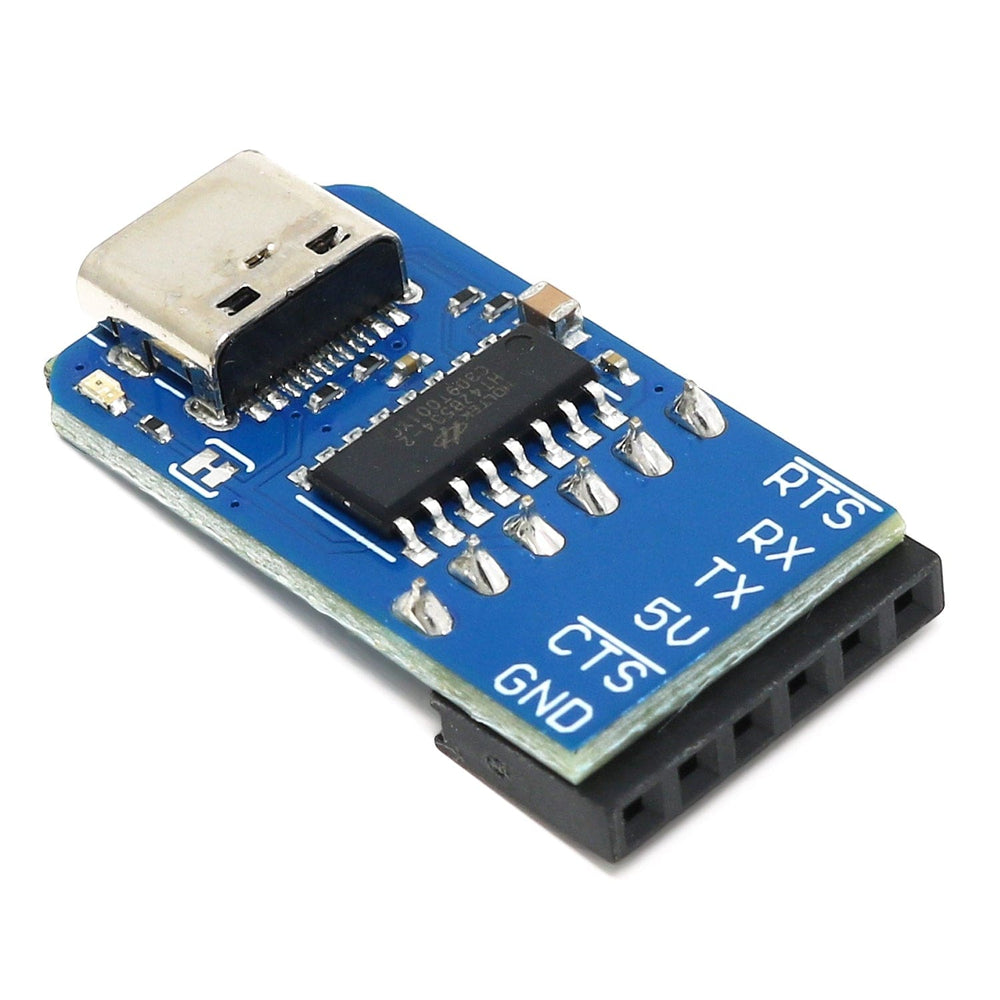

This is the new version of 8086's original 5V CDC serial adapter - upgraded to USB-C because USB-C is the FUTURE!

This is a USB Serial Adaptor. Using jumper wires it can be used for Arduino programming (using RTS for reset) or similar boards.

This module can only be used with systems using 5V, connecting to those using higher/lower voltages may result in damage. Click here for a 3.3V version.

The IC used in the module enumerates as a Communication Device Class (CDC) device which modern (Win10/Linux/Mac OS X) operating systems have built-in drivers for.

A USB-C cable will be required (not included).

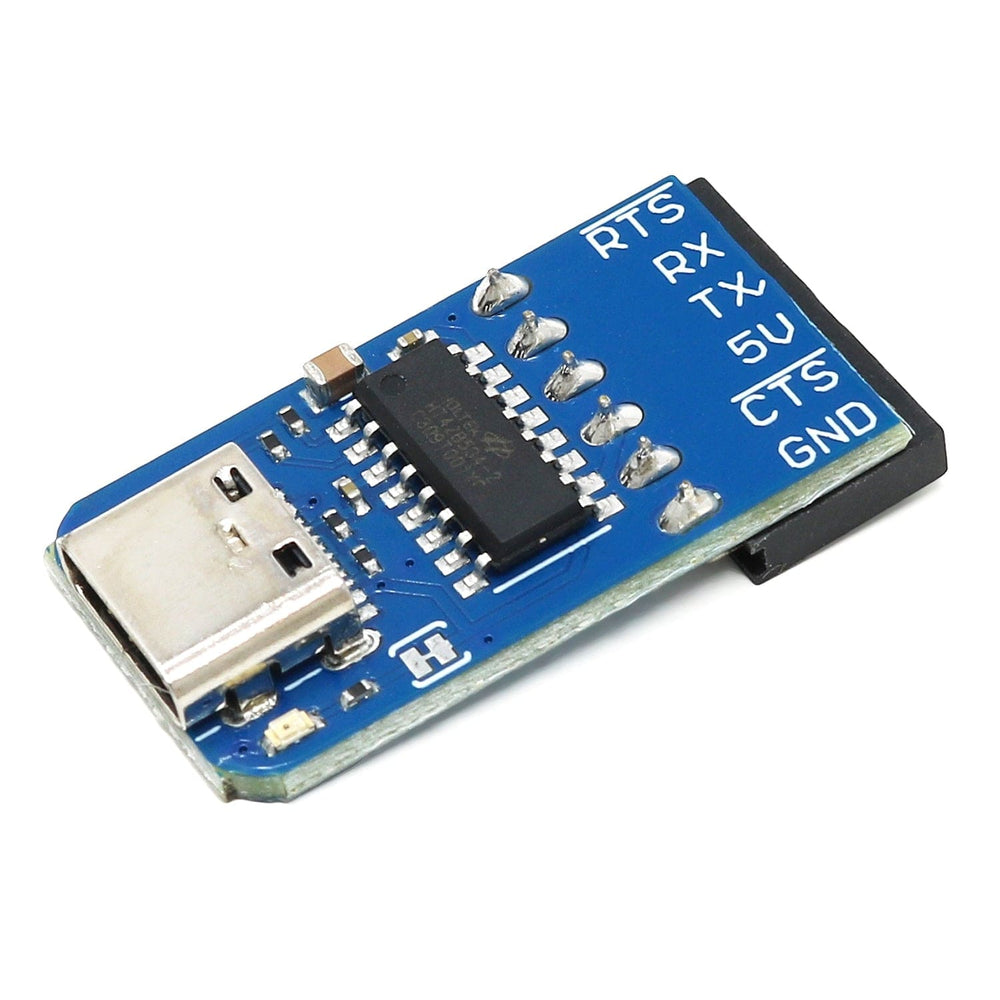

Pinout

Pinout Description
RTS Request to send
RX Receive (connect to remote TX)
TX Transmit (connect to remote RX)
5V 5V supply
CTS Clear to send
GND Ground

Baud Rates

The following baud rates are supported:

Baud rate Miss rate (%)
2400 0.16
4800 0.16
9600 0.04
19200 0.04
38400 0.16
57600 0.16
115200 0.16
230400 0.16
460800 0.79
1700000 0.84
2300000 0.62
3400000 0.84

Package Contents

  • 1x 5V USB-C CDC Serial Adapter
