USB-A Breakout - Horizontal

This ultra-compact horizontal USB-A breakout allows you to add a USB-A interface to your projects for power or data (or both!), with the flexibility to solder wires, headers and more, alongside M2.5 mounting options, underside soldering pads and cuttable configuration traces!

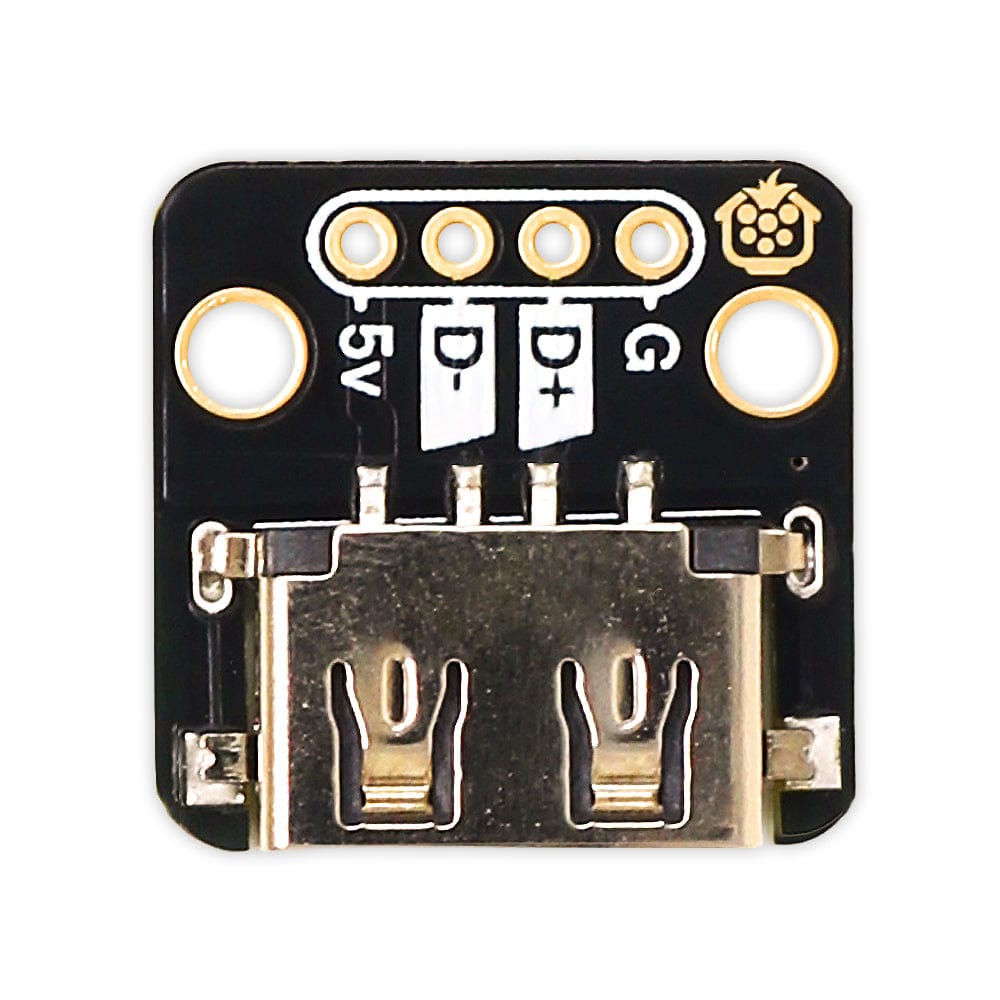

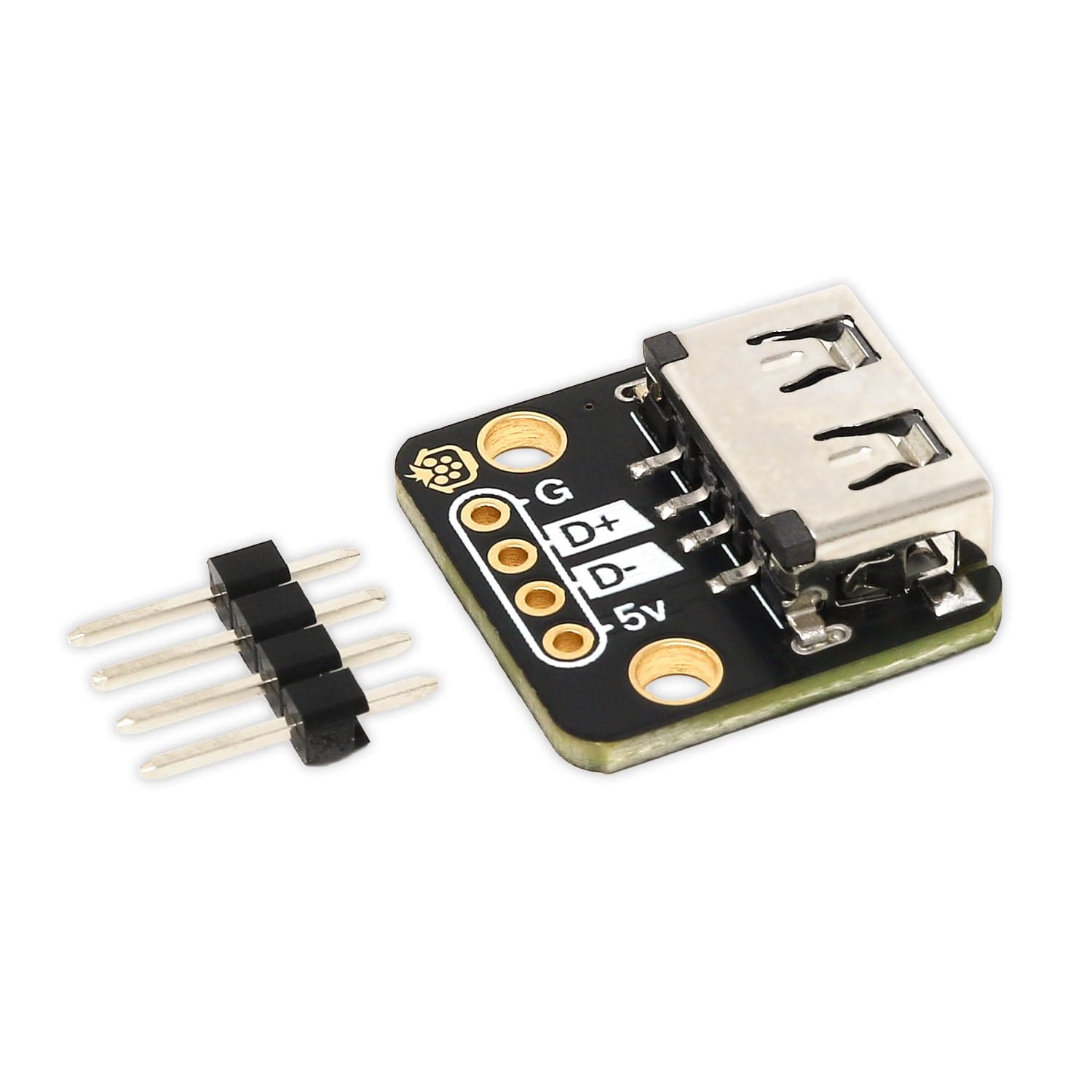

Each pin from the USB-A connector is broken out to clearly labelled 2.54mm-spaced pads. You can solder whatever you like to these, such as the included 4-pin 2.54mm header strip (great for breadboard usage), some prototyping wire, or even a 4-way 2.54mm terminal block.

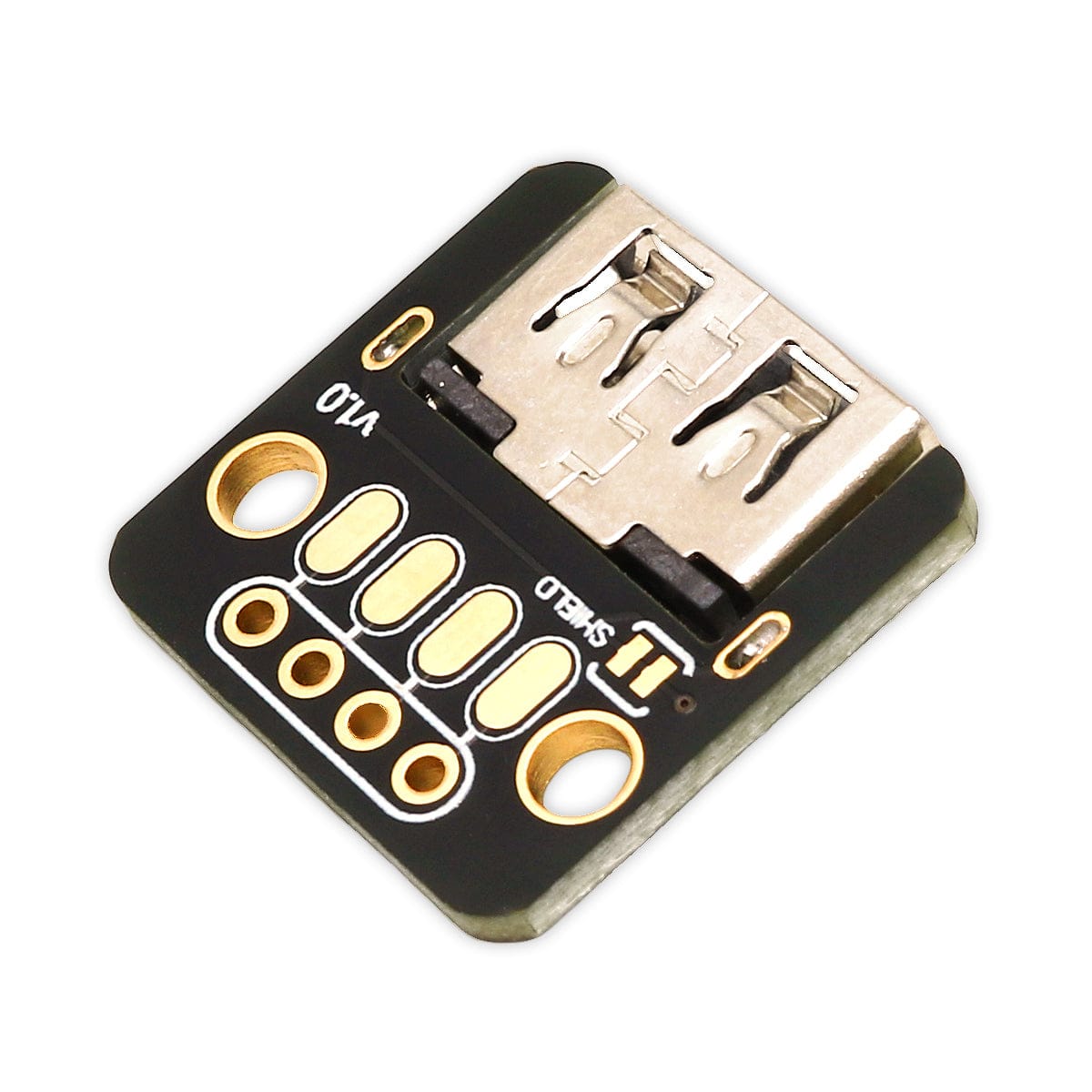

If you're soldering wires, consider using the underside solder pads. We added these because we know just how tricky it is to de-solder and re-solder a wire from a pad hole. With the underside pads, it's much, much easier to re-work and re-use.

On the underside, you'll find a cuttable trace to disconnect ground from the USB-A connector shield (connected by default), because we've had a few customers asking for this in the past.

We also used M2.5 mounting holes as they're a popular size with easy-to-source fixings...and because we despise fiddly M2 fixings.

Key Features

️🤏 Ultra-compact, horizontal USB-A breakout with surface-mount, low-profile 'mid-PCB' USB-A connector

📌 USB-A pins broken out to clearly labelled 2.54mm pads

↩️ Underside solder pads for easy wire soldering and re-work

🔪 Cuttable trace for shield ground

🔩 M2.5 mounting holes for fiddly-free mounting

🪙 ENIG (Gold) PCB plating for oxidation resistance and durability

💸 Free 4-pin 2.54mm male header strip included!

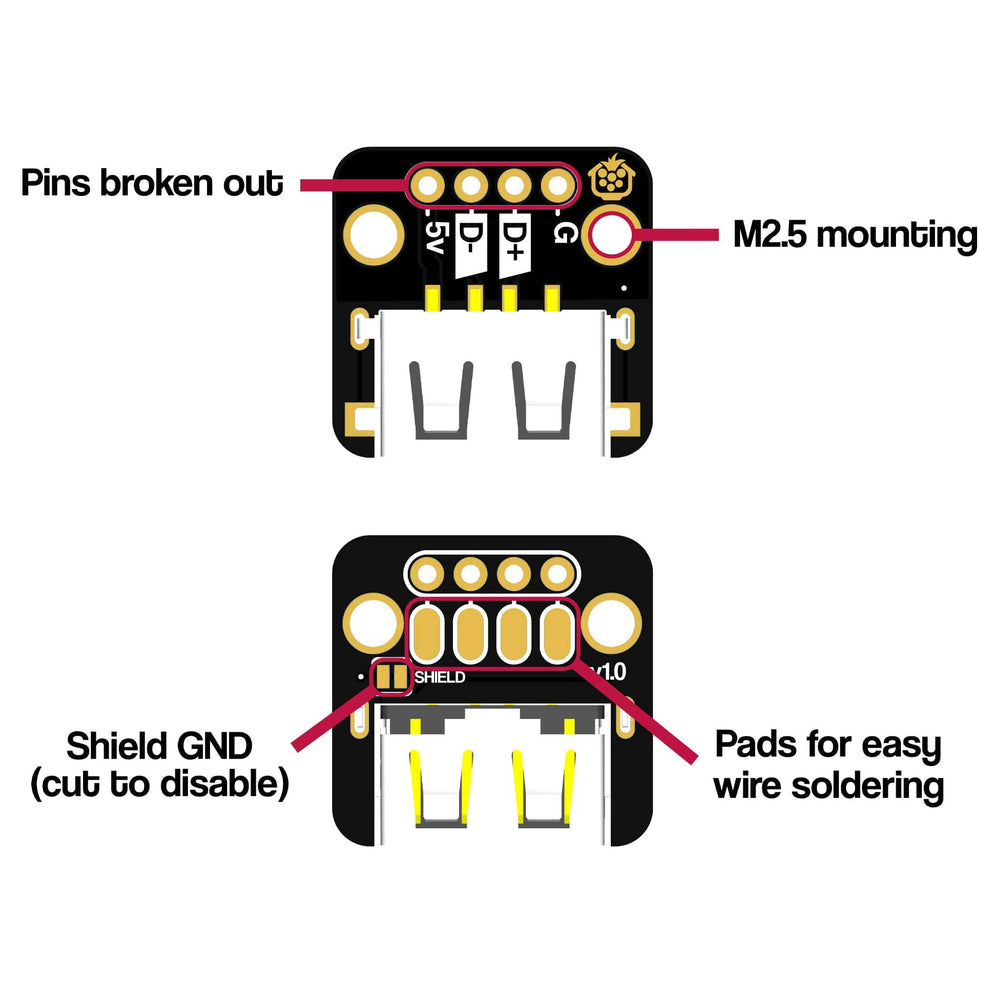

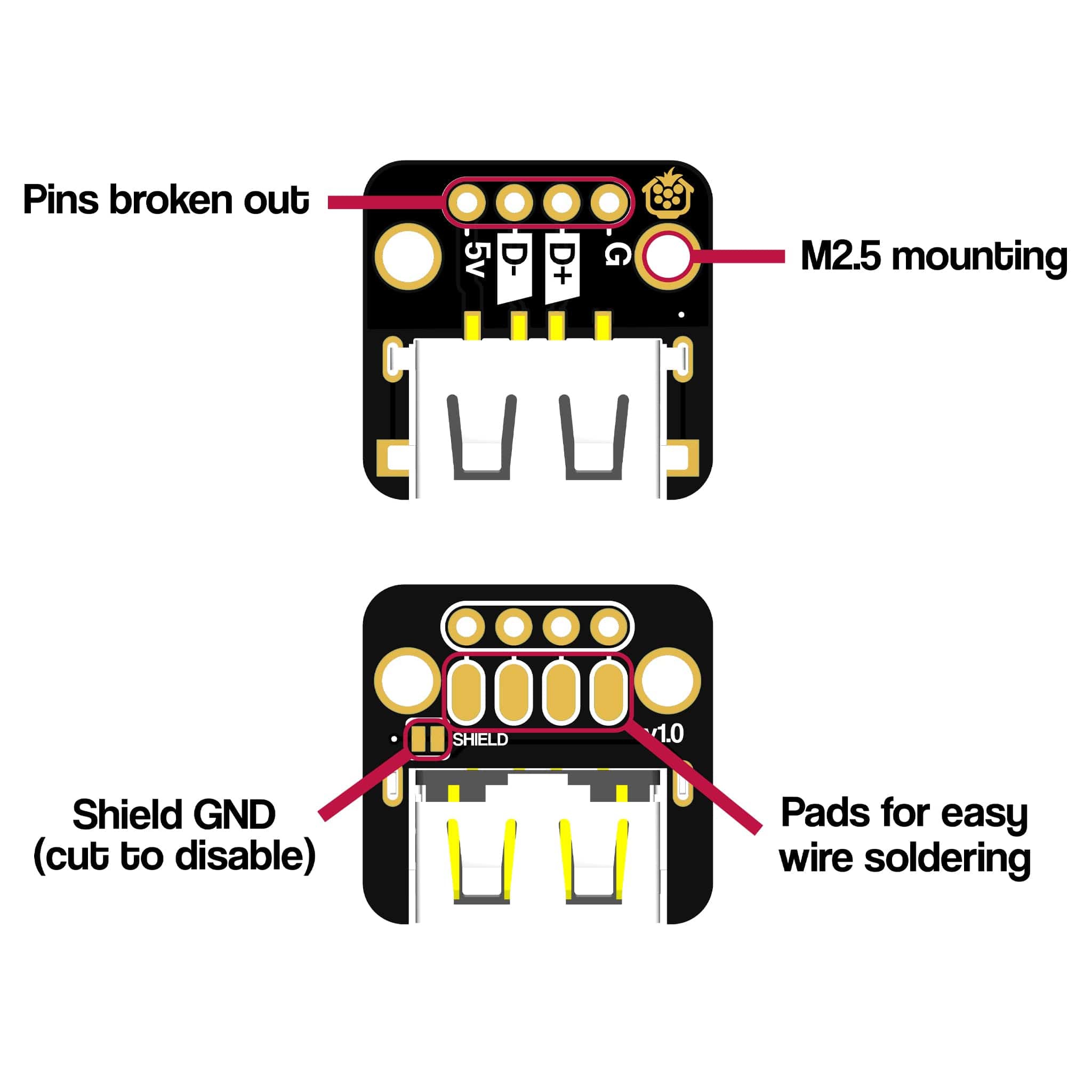

Board Layout

Resources

• Assembly guide (coming soon!)
• 3D Model (STEP)

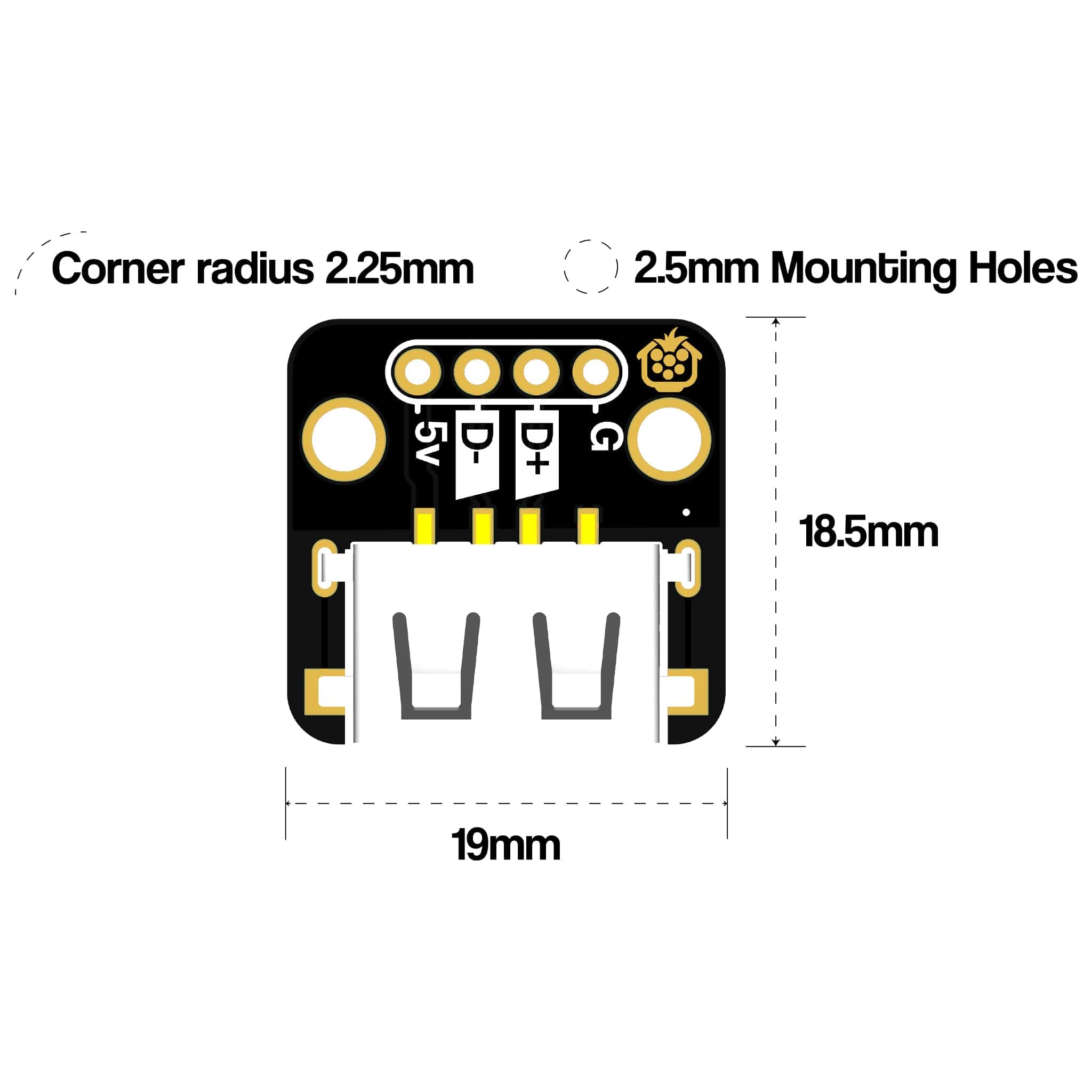

Dimensions

Please note that the corner radius may vary due to the manual PCB finishing process

Package Contents

• 1x USB-A Breakout - Horizontal
• 1x 4-pin 2.54mm male header strip
