Add high-speed NVMe storage to your Raspberry Pi 5 with this compact PCIe adapter. Supports 2230, 2242, and 2280 NVMe SSDs, fits neatly under the Pi, and works with the official Active Cooler.

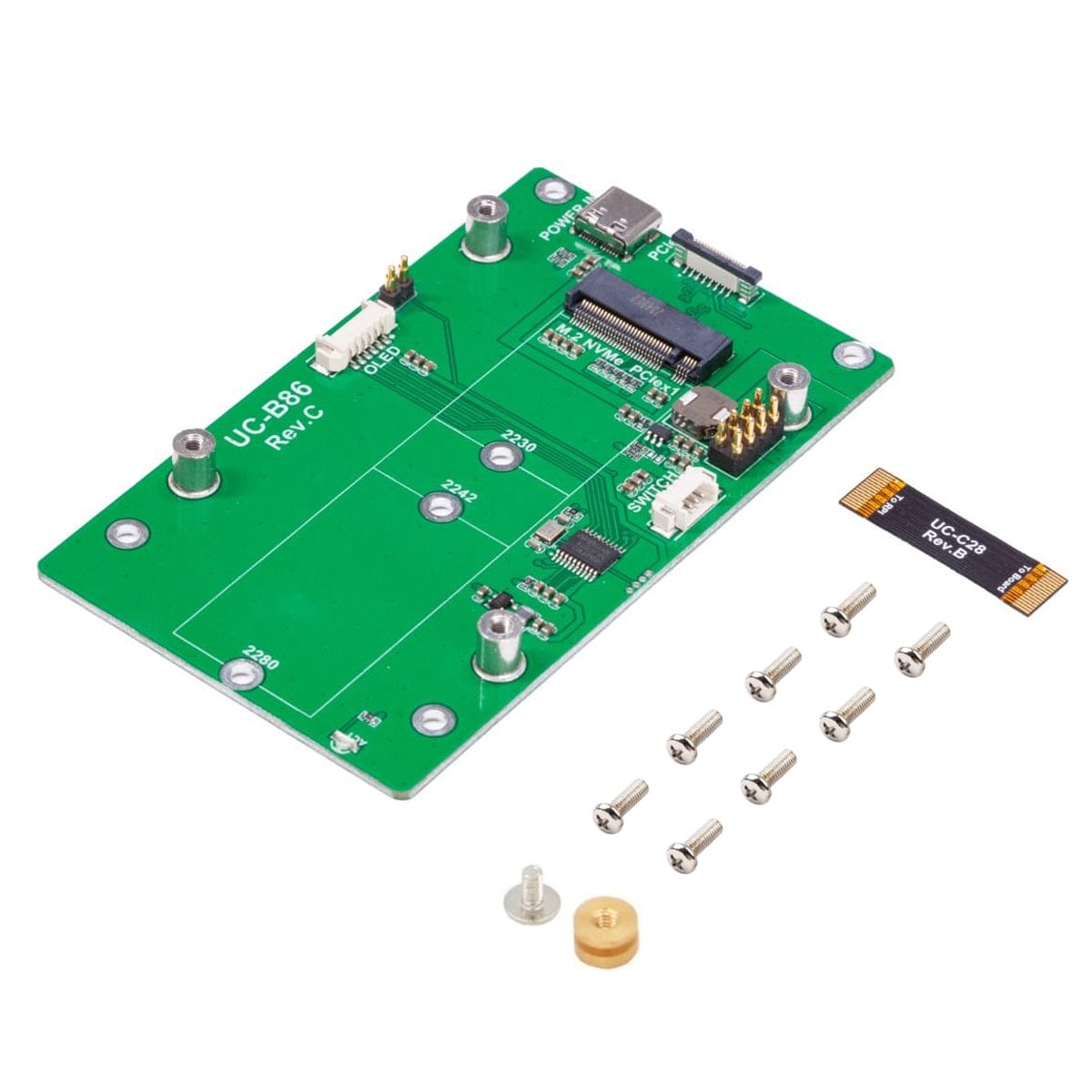

The Uctronics M.2 NVMe to PCIe Adapter for Raspberry Pi provides the ability to add high-speed NVMe storage to your Raspberry Pi 5, supporting 2230, 2242, and 2280 size NVMe SSDs with full PCIe Gen2/Gen3 compatibility. Its low-profile design fits neatly underneath the Pi, keeping GPIO headers accessible for other peripherals, using pogo pins for additional power where required.
Whilst primarily designed for use with the Uctronics Rack Pro, they can be used standalone.

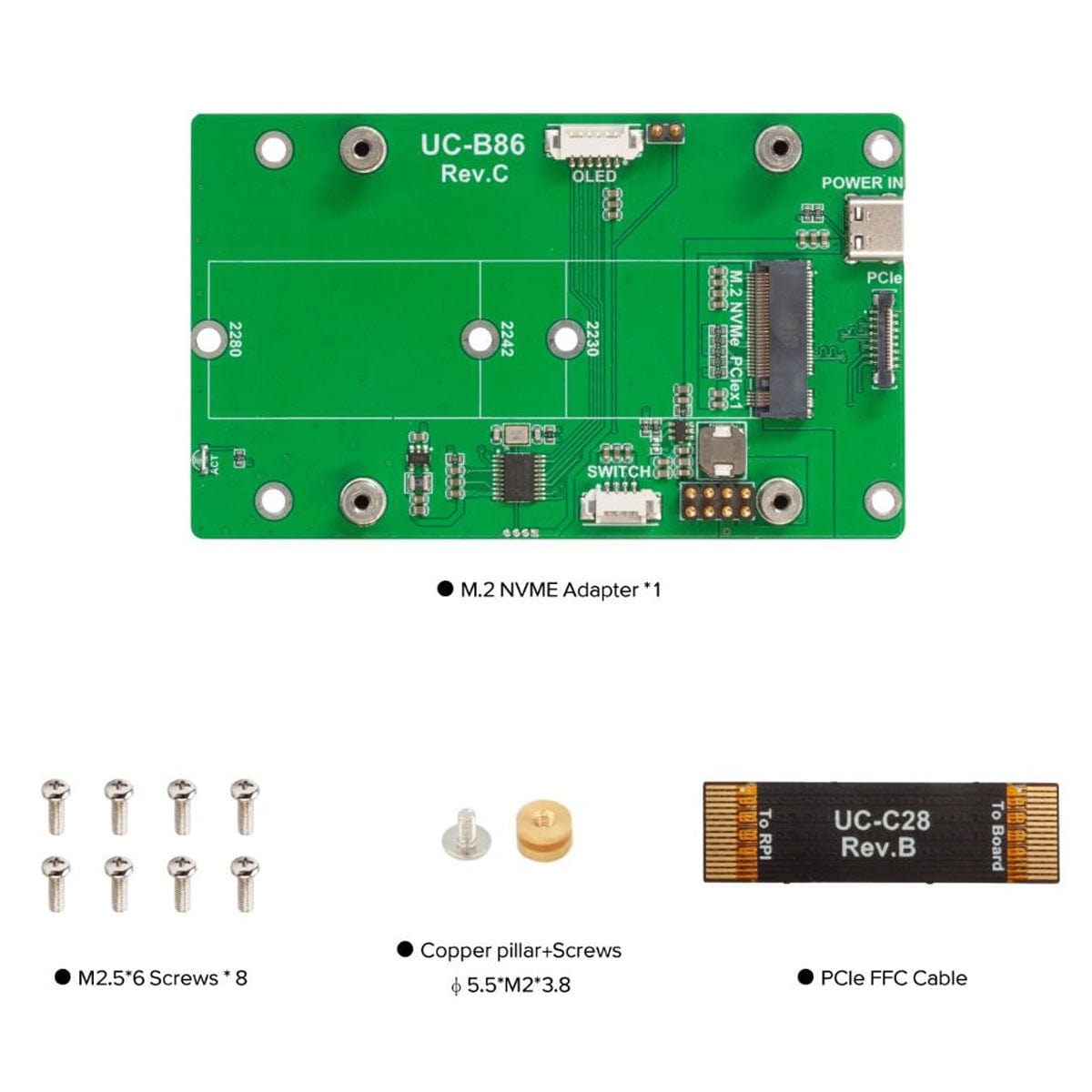

Thermal management is handled through support for both the official Raspberry Pi Active Cooler and a range of third-party cooling solutions. A high-quality FFC PCIe ribbon cable is included for connectivity, with up to 5W power delivery supported directly via the cable. An official 27W or 45W USB-C PD power supply is recommended for best results.
This adapter is compatible only with M.2 NVMe SSDs and does not support SATA, PCIe AHCI, or other non-NVMe formats. Some SSDs with Phison controllers, including certain WD models, may not support booting from NVMe on Raspberry Pi.
Raspberry Pi 5 and SSD not included.
Features

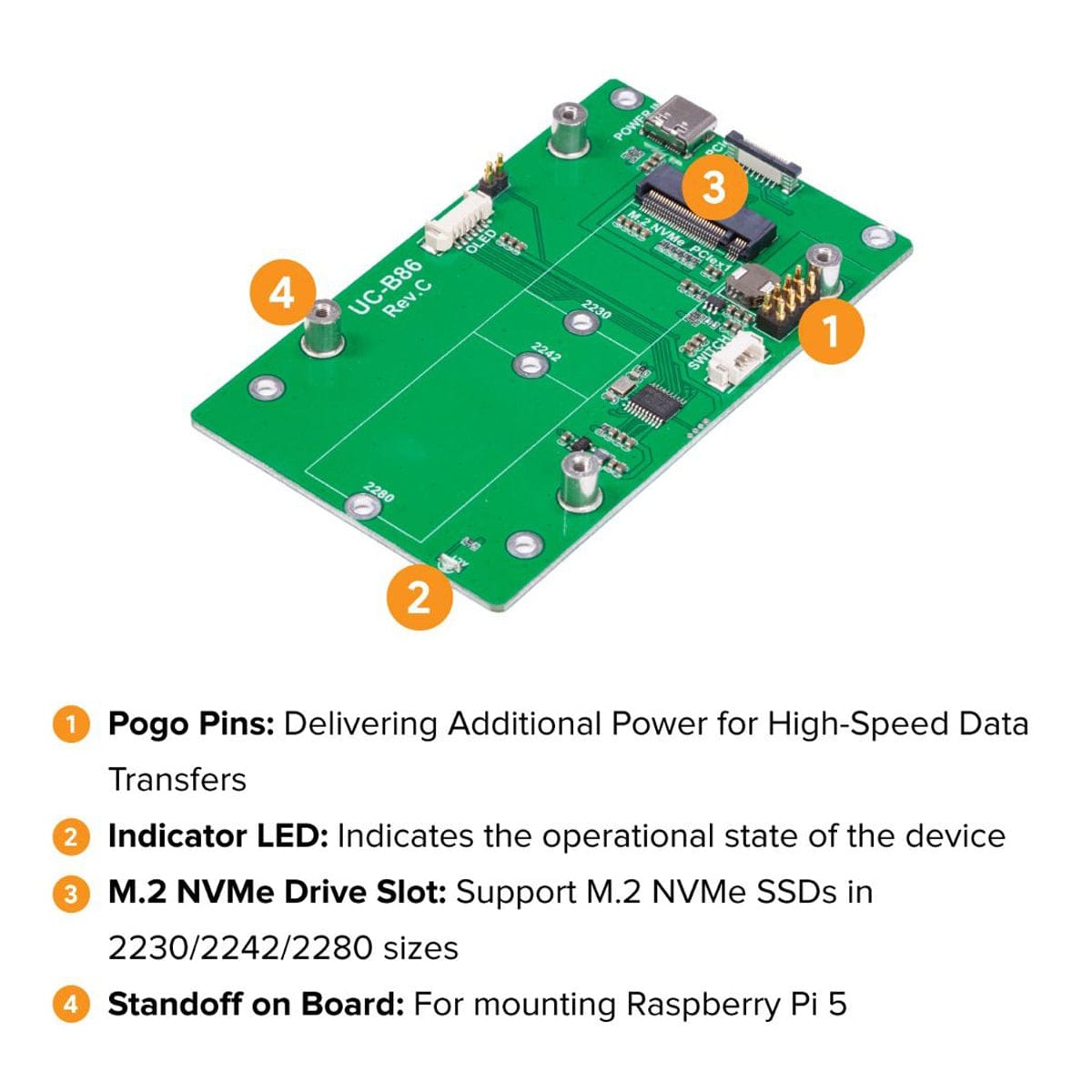

Adds high-speed M.2 interface to Raspberry Pi 5 via PCIe
Supports M.2 NVMe SSDs in 2230, 2242, and 2280 sizes
Compatible with PCIe Gen2 and Gen3 NVMe drives
Low-profile design fits underneath Raspberry Pi 5 while maintaining GPIO access
Provides additional power via pogo pins when required
Supports the official Raspberry Pi Active Cooler
OLED and Switch interface headers are designed for the Uctronics Rack Pro only
Use either the USB-C port on the board, or your Pi 5's port - do not use both at the same time!
