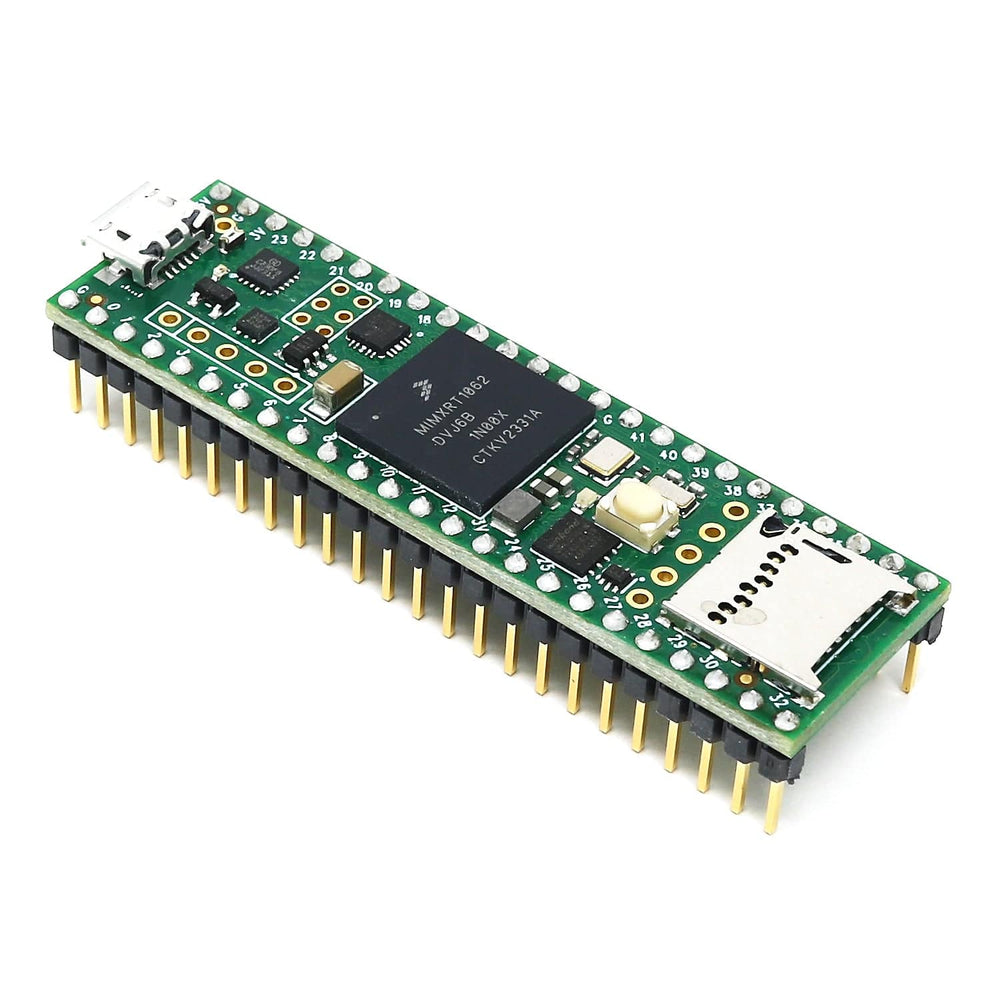

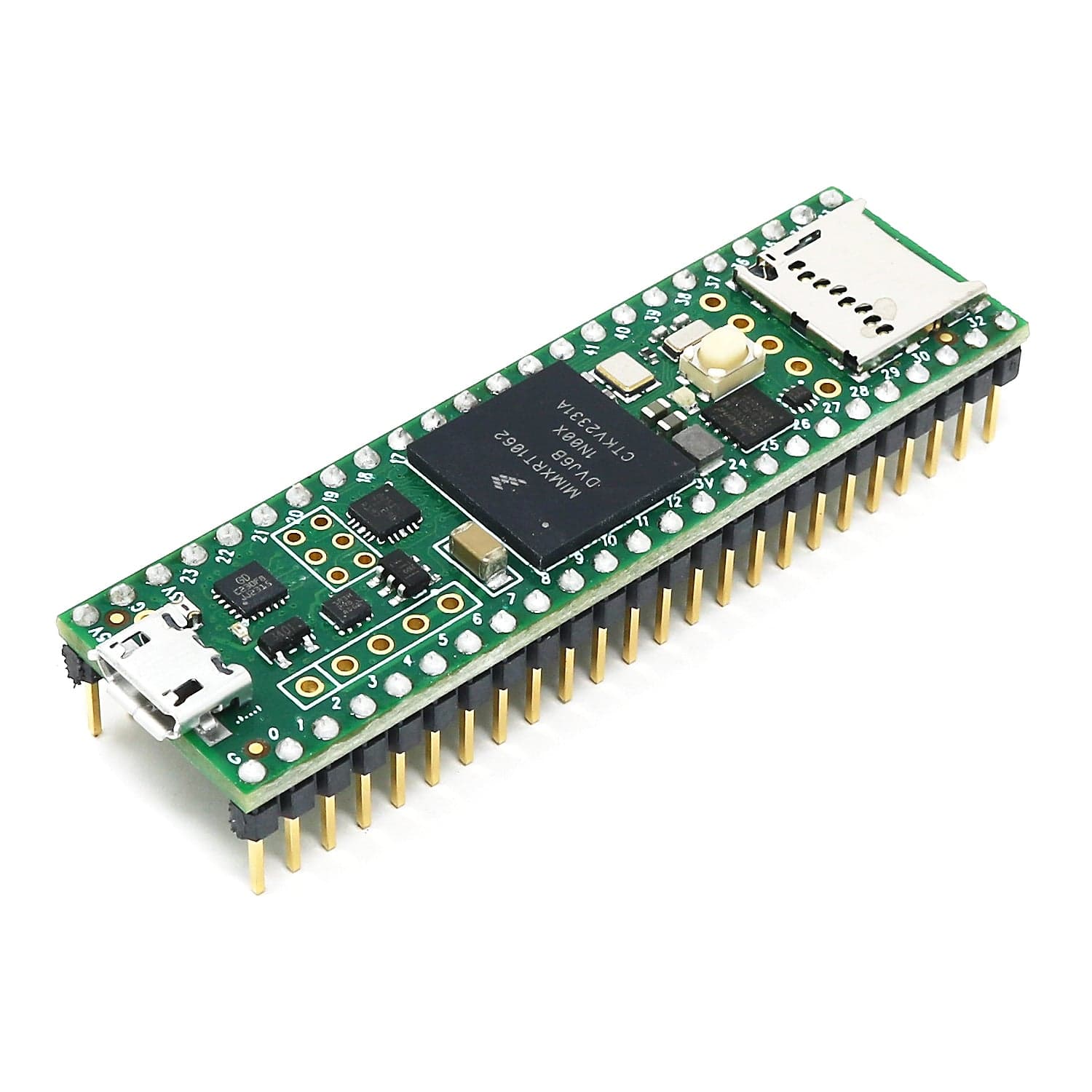

Teensy 4.1 with Ethernet - Assembled Pins
Price:
Sale price
£33.70
Stock:
Quantity:
Awesome Extras
Teensy 4.1 with Ethernet features the fastest microcontroller and an expanded set of powerful peripherals in a 2.4"x0.7" form factor and can be programmed using the Arduino IDE with Teensyduino add-on.
This version has the pin headers pre-assembled - great for those who don't enjoy soldering. We also stock the standard unassembled with Ethernet version which comes with free separate pin header strips.
Comparison to Teensy 4.0
Teensy 4.1 & 4.0 use the same IMXRT1062, so most technical specifications are the same. Please refer to the Teensy 4.0 page for common specifications and features.
| Feature | Teensy 4.1 | Teensy 4.0 |
|---|---|---|
| Ethernet | 10 / 100 Mbit DP83825 PHY (6 pins) |
-none- |
| USB Host | 5 Pins with power management |
2 SMT Pads |
| SDIO (4-bit data) | Micro SD Socket | 8 SMT Pads |
| PWM Pins | 35 | 31 |
| Analog Inputs | 18 | 14 |
| Serial Ports | 8 | 7 |
| Flash Memory | 8 Mbyte | 2 Mbyte |
| QSPI Memory | 2 chips Plus Program Memory |
Program memory only |
| Breadboard Friendly I/O | 42 | 24 |
| Bottom SMT Pad Signals | 7 | 16 |
| SD Card Signals | 6 | 0 |
| Total I/O Pins | 55 | 40 |
Pinouts
Teensy 4.1 is designed to bring all general-purpose I/O pins to breadboard-friendly pads on the outside edges.
Ethernet

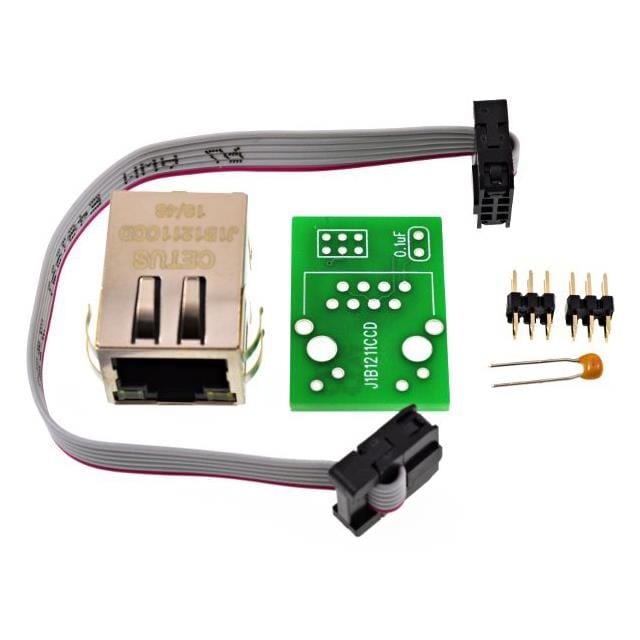

To use the Ethernet port, a magjack and capacitor need to be connected.
We have the PJRC Ethernet kit available here.
Memory Expansion
The bottom side of Teensy 4.1 has locations to solder 2 memory chips
The smaller location is meant for a PSRAM chip. The larger location is intended for flash memory.
The PSRAM chip is meant to be soldered to the smaller pads on the bottom side of Teensy 4.1, underneath the SD card socket, between pins 31-32 and 33-34. Do not use the larger pads. A single PSRAM chip must be soldered to the smaller pads to be detected.
USB Host
Teensy 4.1's USB Host port allows you to connect USB devices, like keyboards and MIDI musical instruments. A 5 pin header and a USB Host cable are needed to be able to plug in a USB device. USB hubs may be used if more than 1 device is needed.
