SX1262 LoRaWAN Node Module Expansion Board for Raspberry Pi (GNSS)

WaveshareSKU: WAV-24654
Sale price £23.30
incl. VAT
excl. VAT
Sold out
Notify me

Compatible with:

Awesome Extras

Raspberry PiRaspberry Pi 4 Model B
Sale priceFrom £33.60 incl. VAT excl. VAT
ANSMANNCR1220 3V Lithium Coin Cell Battery
Sale price £1.90 incl. VAT excl. VAT

This module is a feature-packed expansion board that empowers your Raspberry Pi with great communication capabilities, equipped with the SX1262 LoRa transceiver, providing long-range communication for IoT (Internet of Things) applications. The magnetic CB antenna provides reliable and stable LoRaWAN communication. Onboard is a Sub-GHz frequency band support that allows seamless integration with various LoRaWAN networks, expanding your reach and ensuring robust data transmission in diverse environments.

Also included is the GNSS (Global Navigation Satellite System) functionality, incorporating the L76K module with GPS/BD (BeiDou) support. This allows precise geolocation and tracking capabilities. To give convenience, it includes a button cell holder, providing backup power to the module in case of power outages or during low-power operation.

This module is an invaluable tool for your Raspberry Pi-based IoT projects, offering a comprehensive solution for long-range communication, accurate positioning, and robust connectivity. Whatever project you're working on next, this expansion board provides the crucial connectivity and features needed to transform your Raspberry Pi into a powerful LoRaWAN node.

Note: The Raspberry Pi is NOT included


Standard features:

  • Standard Raspberry Pi 40PIN GPIO header, supports Raspberry Pi series boards
  • The new generation SX1262 has higher power efficiency and longer transmission distance than the SX1278
  • Suitable for the Sub-GHz band, combined with the gateway, can be quickly connected to a cloud server such as TTN to build a LoRaWAN network

GNSS version features:

  • Onboard L76K module with GPS/BD support, provides accurate clock and location info for node module

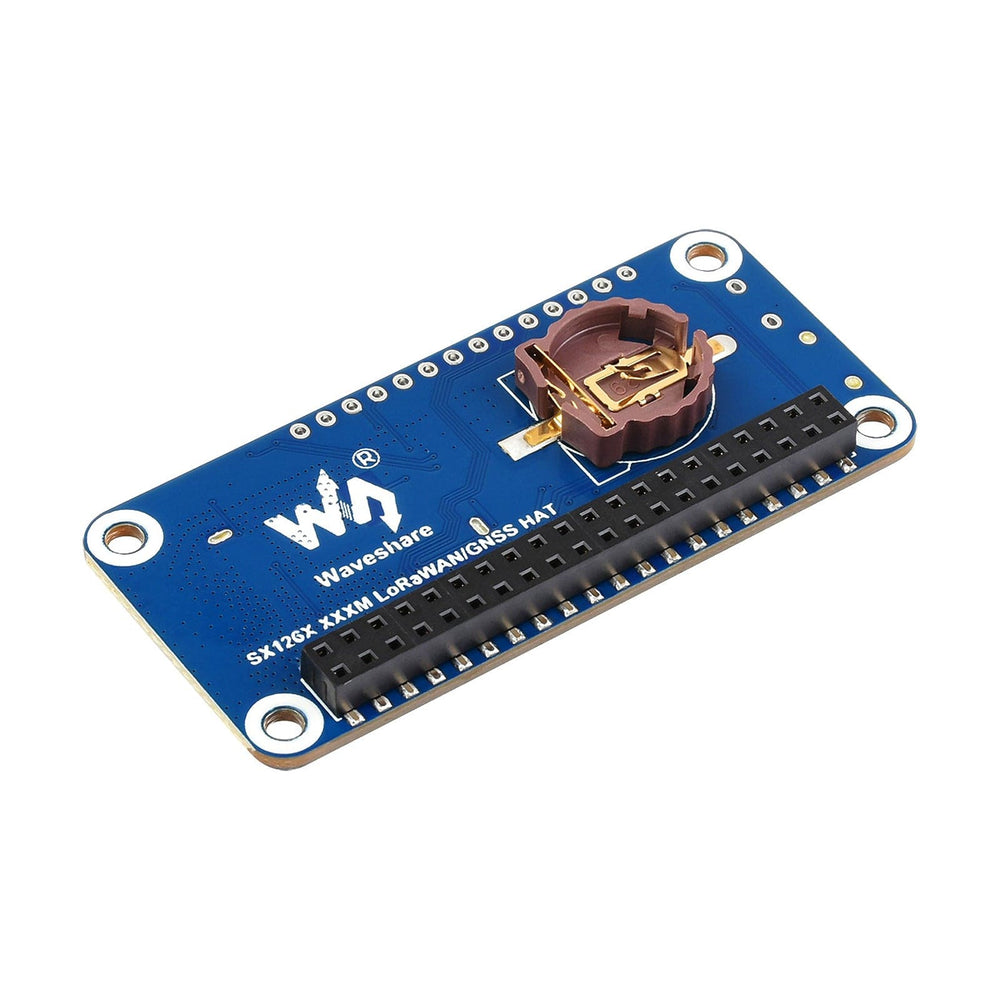

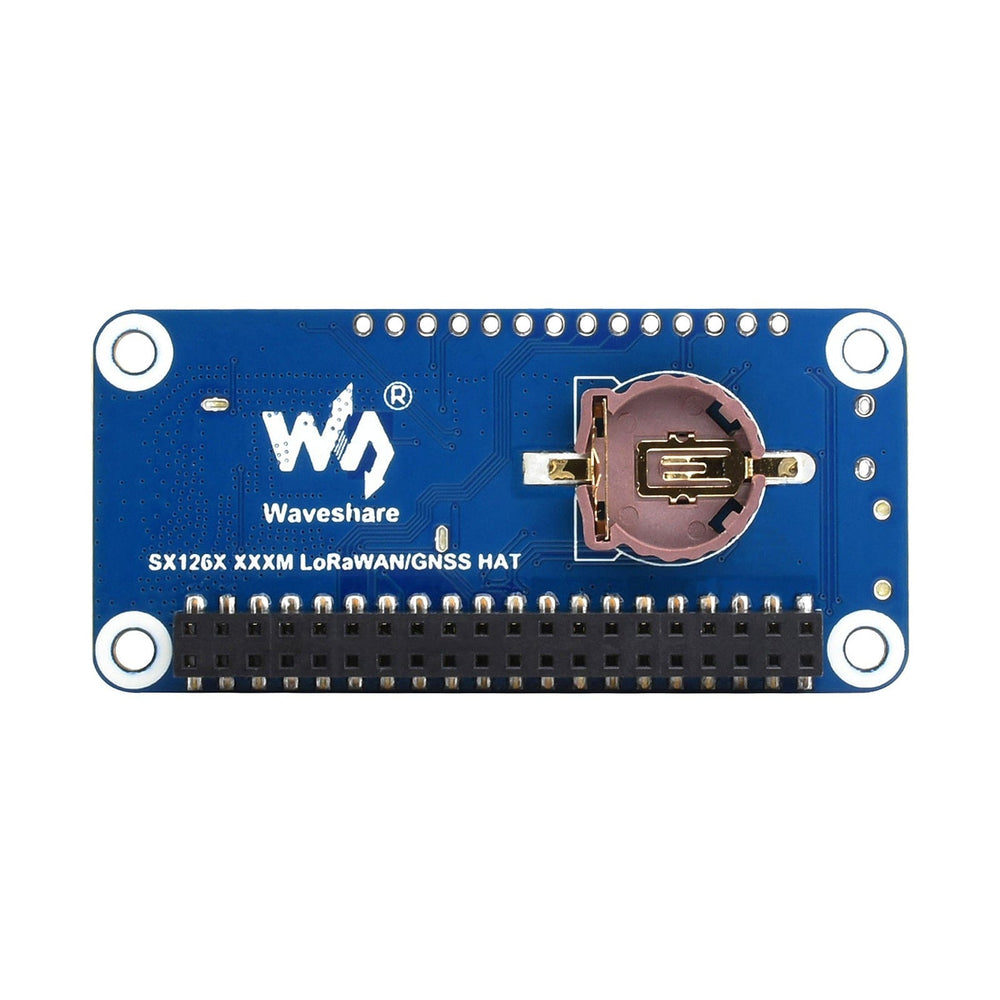

  • Onboard button cell holder, supports ML1220 rechargeable cell, for preserving ephemeris information and hot starts
  • Onboard 4 LED indicators for module operating status
  • Comes with online development resources and manual

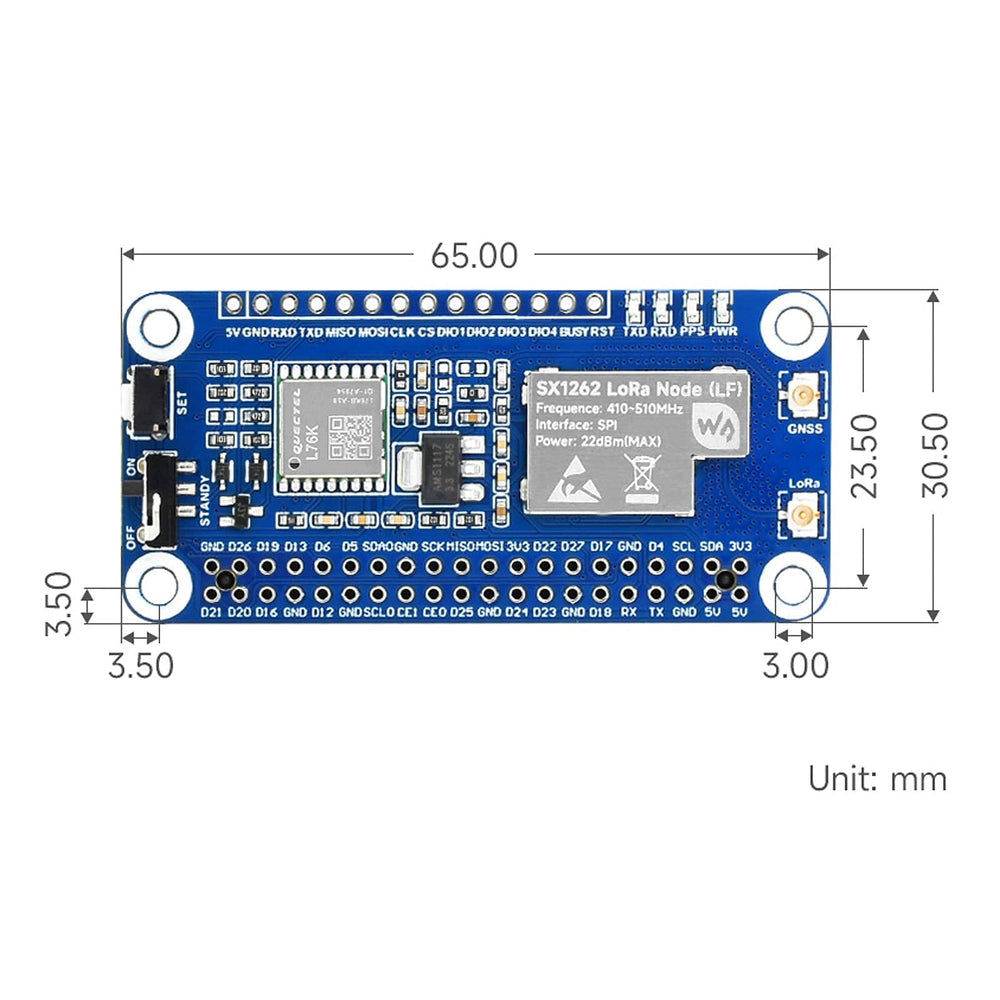

What's on Board

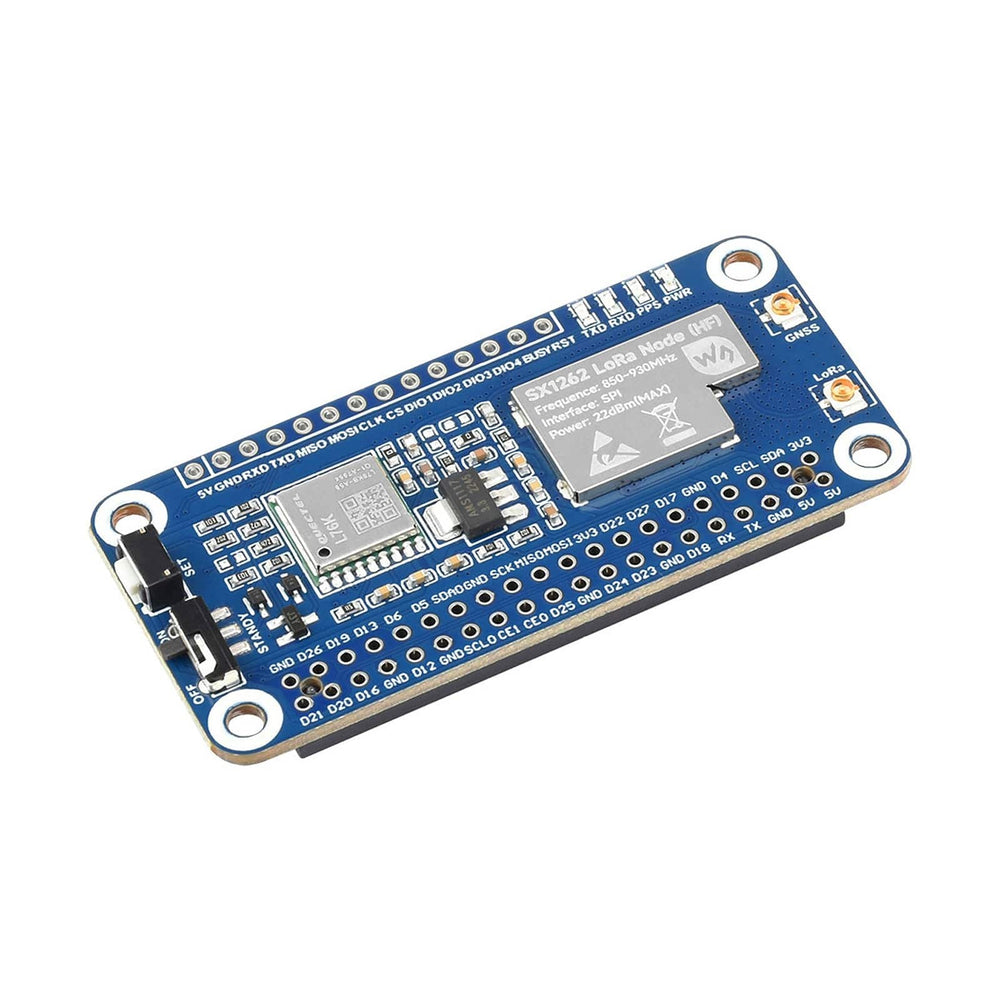

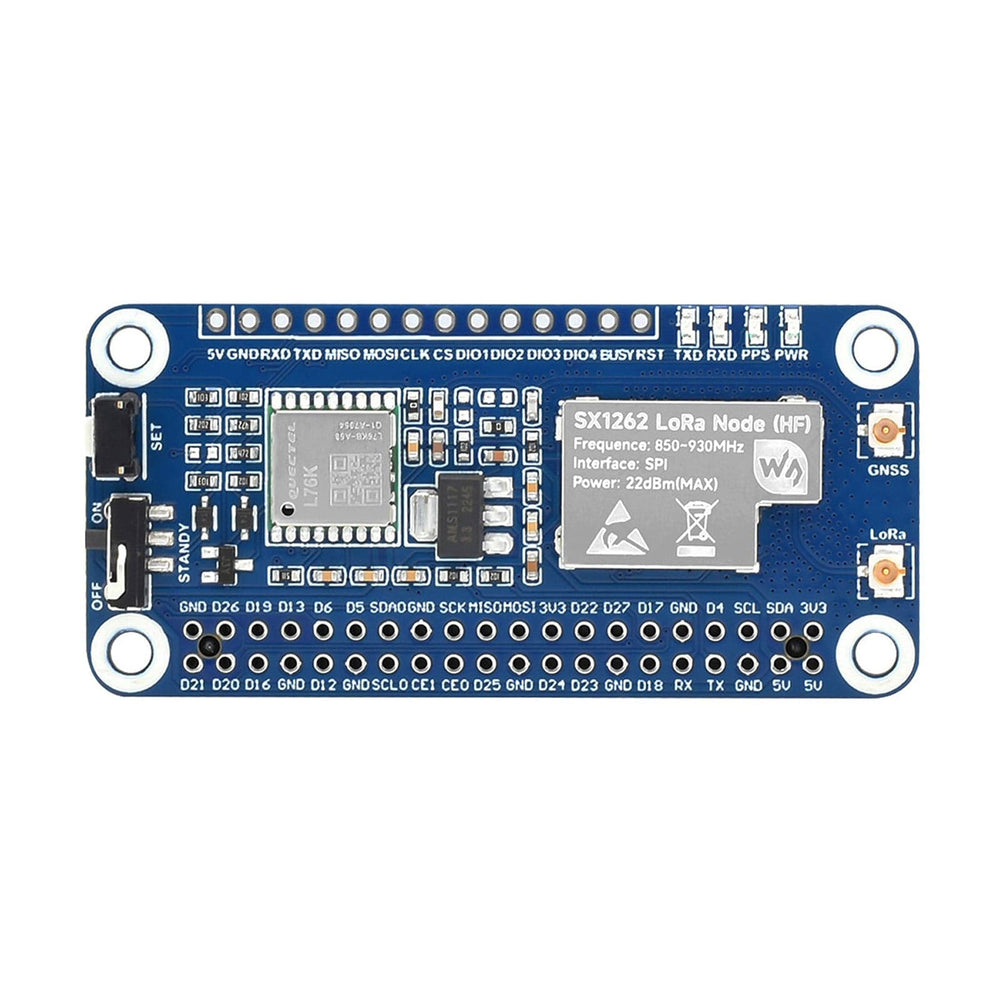

  1. SX1262
    LoRa module
  2. L76K
    GNSS module
  3. Power Chip
    5V to 3.3V LDO
    OFF: turn off STANDY and GPS works normally
    ON: turn on STANDY, GPS stops outputting NMEA
  5. SET Button
    Press to wake up the GNSS module in sleep mode
  6. GNSS module IPEX 1 connector
    L76K antenna connector
  7. LoRa module IPEX 1 connector
    LoRa antenna connector
  8. Status Indicator
    PWR: power indicator
    RXD/TXD: UART RX/TX indicator
    PPS: GPS status indicator
  9. Raspberry Pi 40PIN GPIO header
    for connecting with Raspberry Pi series boards
  10. LoRa module and GNSS module pin header


LORA Parameters
RF Chip SX1262
Frequency Band LF: 410 ~ 510MHz
HF: 850 ~ 930MHz
Modulation LoRa / (G)FSK
Data Rate LoRa: 0.018 ~ 62.5Kbps
(G)FSK: 0.6 ~ 300Kbps
Emit Power 22dBm@3.3V
Spreading Factor SF7 ~ SF12
Operating Voltage 3.3V
Module Current Consumption Emitting current: 107mA@22dBm
Receiving current: 5.3mA@125KHz
Communication Bus SPI
Operating Temperature 0 ~ 50℃
Interface 40PIN GPIO header
GNSS Parameters
GNSS Module L76K
L1 Band Reciever (Channels) 32 Tracking ch/72 Acquisition ch
A-GNSS support
Recieiving Sensitivity -148dBm, -160dBm, -162dBm
(Acquisition, Re-Acquisition, Tracking)
TTFF (Time To First Fix) 30s, Autonomous
Cold Starts 5.5s, With AGNSS
Position Accuracy 2.0m CEP
Speed Accuracy 0.1m/s
Acceleration Accuracy (Max) 0.1m/s²
UART Rate Range: 4800~115200bps
Default: 9600bps
GNSS Data Update Rate Max: 5Hz
Default: 1Hz



Package Contents

  1. 1x SX1262 868/915M LoRaWAN/GNSS HAT

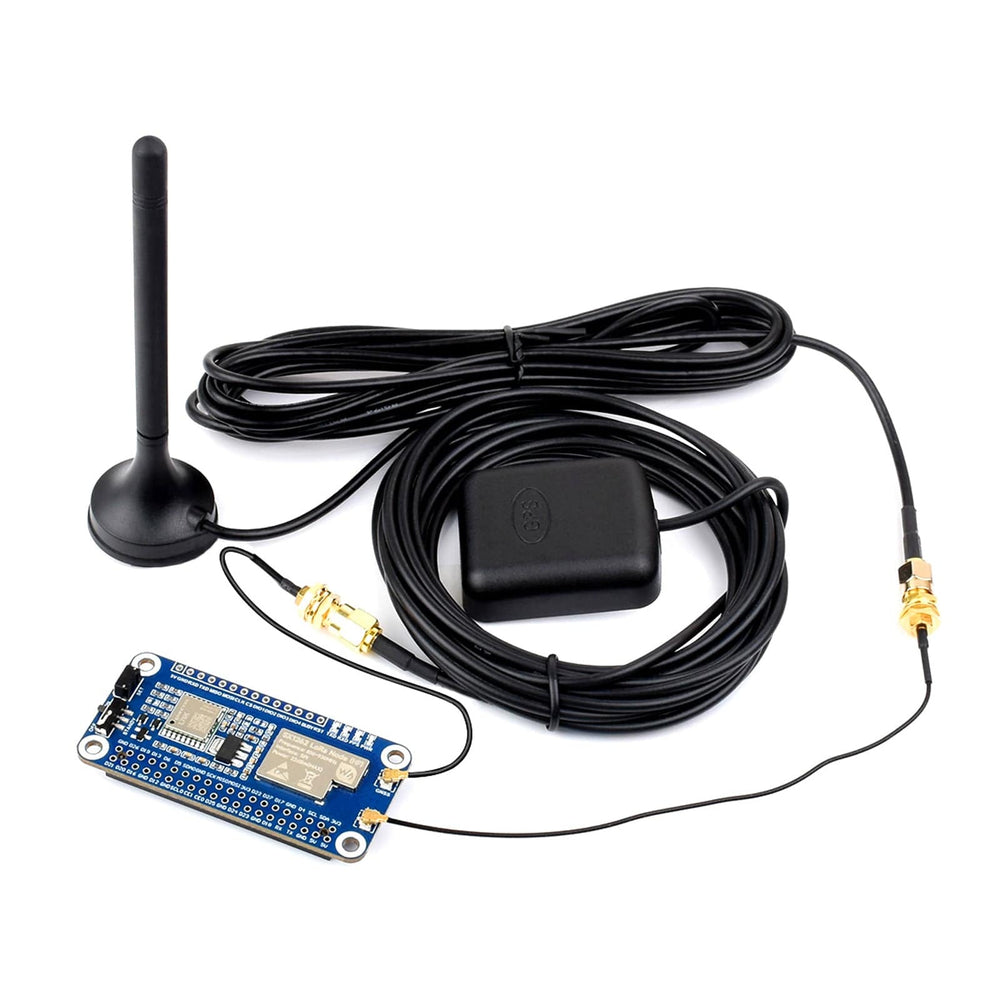

  2. 1x 868/915M Magnetic CB antenna
  3. 1x GPS antenna
  4. 2x IPEX to SMA adapter cable - 17cm
  5. 1x Screws pack
  6. 1x 2 x 20PIN female pin header
