Switched Battery Box 4xAA (6V)

ModMyPiSKU: MMP-0158
Price:
Sale price £1.80
incl. VAT
excl. VAT
Stock:
In stock
Quantity:

Awesome Extras

ANSMANNX-Power 1.5V AA Alkaline Batteries (4-Pack)
Sale price £4.95 incl. VAT excl. VAT
ANSMANN2500mAh NiMH Rechargeable AA Batteries (4-Pack)
Sale price £17.90 incl. VAT excl. VAT
ANSMANNComfort Smart AA/AAA NiMH Battery Charger
Sale price £17.40 incl. VAT excl. VAT

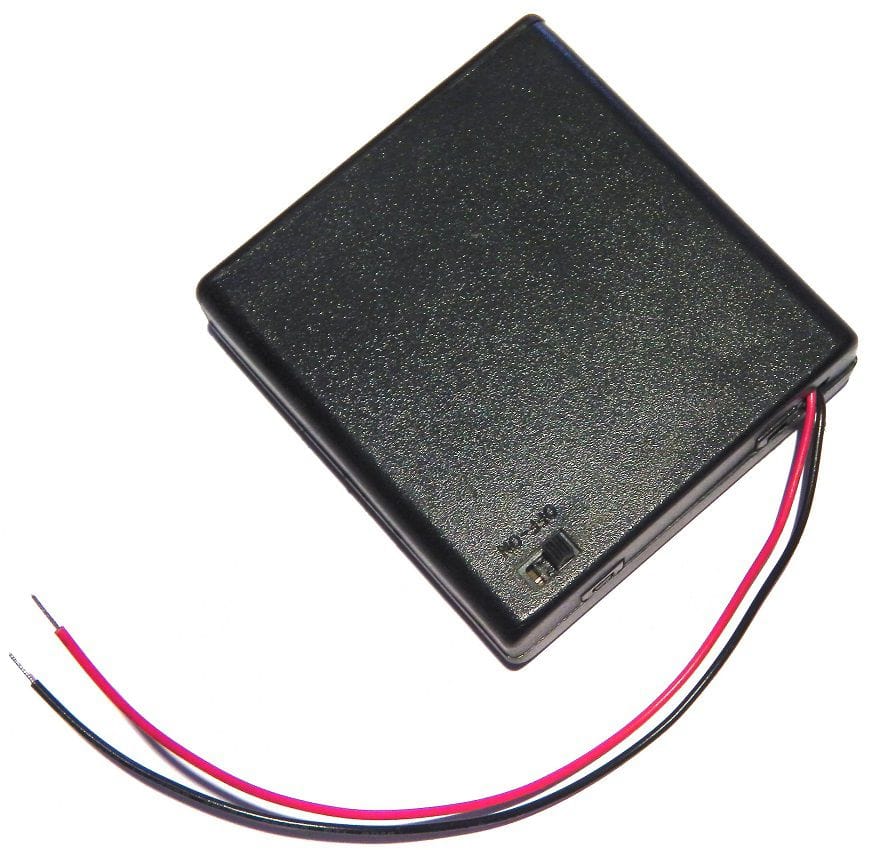

This battery box is designed for use as a switchable, portable power pack, and fits any four alkaline or rechargeable AA batteries in series.

The body is moulded in black ABS Resin and has a slide on detachable lid which can be locked for extra security through the use of a small provided screw. It even includes a very useful miniature on-off slide switch which is very handy for wiring to projects that don't have a switch! Connection is via two flexible stranded red (positive) & black (negative) 26AWG wire leads, which are approximately 150mm in length.

The four batteries are held in series, for an output of ~6V when using 1.5V alkaline cells, or ~4.8V when using rechargeable NiMH cells.

Using rechargeables will make this work nicely with most 5V projects (just make sure any 5V board has a regulator!). With alkalines, you may want to put a 1N4001 in series to drop the voltage from 6V down to 5.3V.

Specification

  • Battery Cell Size AA
  • Number of Cells 4
  • Body Material ABS Resin
  • Height 19.0 mm, Length 69.0 mm, Width 64.5 mm
  • Terminal Type Wire Lead
  • Type Battery Box
  • Weight 0.03300 kg
