Switched Battery Box 2xAA (3V)

The Pi HutSKU: MMP-0157
£1.70
incl. VAT
excl. VAT
Only 11 units left

Awesome Extras

X-Power 1.5V AA Alkaline Batteries (2-Pack)X-Power 1.5V AA Alkaline Batteries (2-Pack)
ANSMANNX-Power 1.5V AA Alkaline Batteries (2-Pack)
£2.50 incl. VAT excl. VAT
2500mAh NiMH Rechargeable AA Batteries (2-Pack) - The Pi Hut2500mAh NiMH Rechargeable AA Batteries (2-Pack) - The Pi Hut
ANSMANN2500mAh NiMH Rechargeable AA Batteries (2-Pack)
£9.25 incl. VAT excl. VAT
Save 30%
Comfort Mini AA/AAA NiMH Battery Charger - The Pi HutComfort Mini AA/AAA NiMH Battery Charger - The Pi Hut
ANSMANNComfort Mini AA/AAA NiMH Battery Charger
£9.73 £13.90 incl. VAT excl. VAT

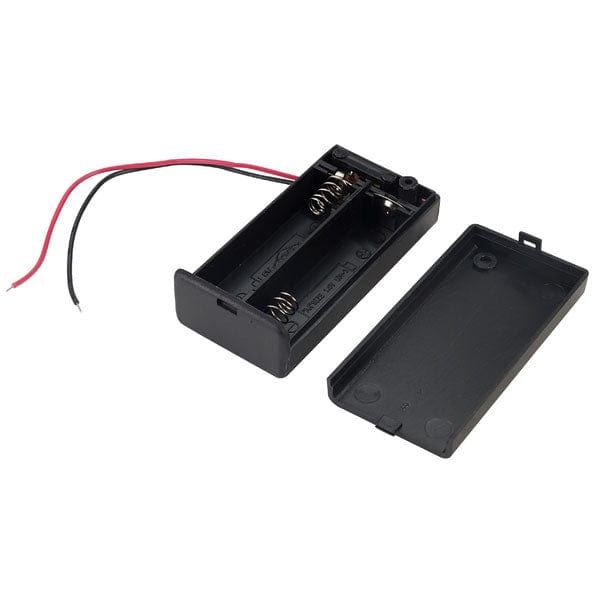

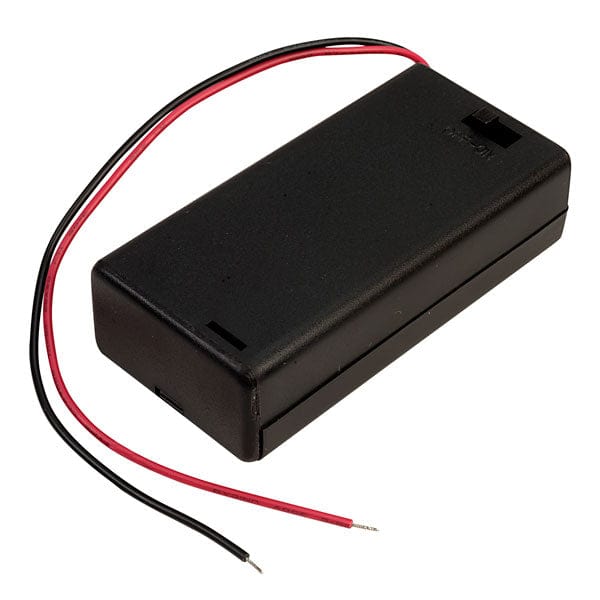

This battery box is designed for use as a switchable, portable power pack, and fits any two alkaline or rechargeable AA batteries in series.

The body is moulded in black ABS Resin and has a slide on detachable lid which can be locked for extra security through the use of a small provided screw. It even includes a very useful miniature on-off slide switch which is very handy for wiring to projects that don't have a switch.

The connection is via two flexible stranded red (positive) & black (negative) 26AWG wire leads, which are approximately 150mm in length.

The two batteries are held in series, for an output of ~3V when using 1.5V alkaline cells, or ~2.4V when using rechargeable NiMH cells.

Specification

  • Battery Cell Size AA
  • Number of Cells 2
  • Body Material ABS Resin
  • Height 19.0 mm, Length 68.0 mm, Width 33.0 mm
  • Terminal Type Wire Lead
  • Type Battery Box
  • Weight 0.01900 kg
