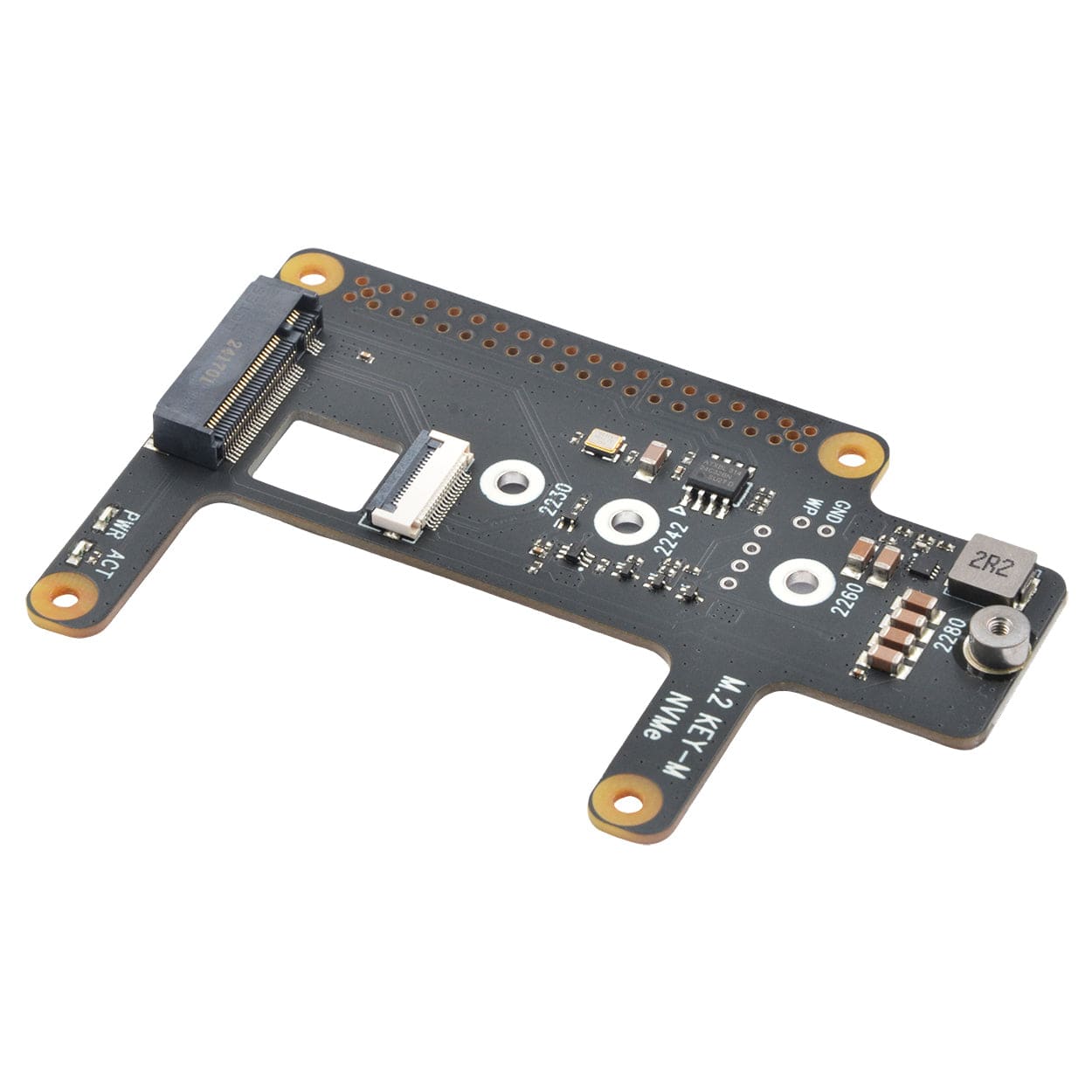

TheSuptronicsX1015is an SSD expansion board forRaspberry Pi 5, allowing you to attach full-size 2280-format M.2 NVMe drives (as well as 2260, 2242, and 2230),via the PCIe 2.0/3.0 interface. It supports data transfer rates of up to 8Gbps.

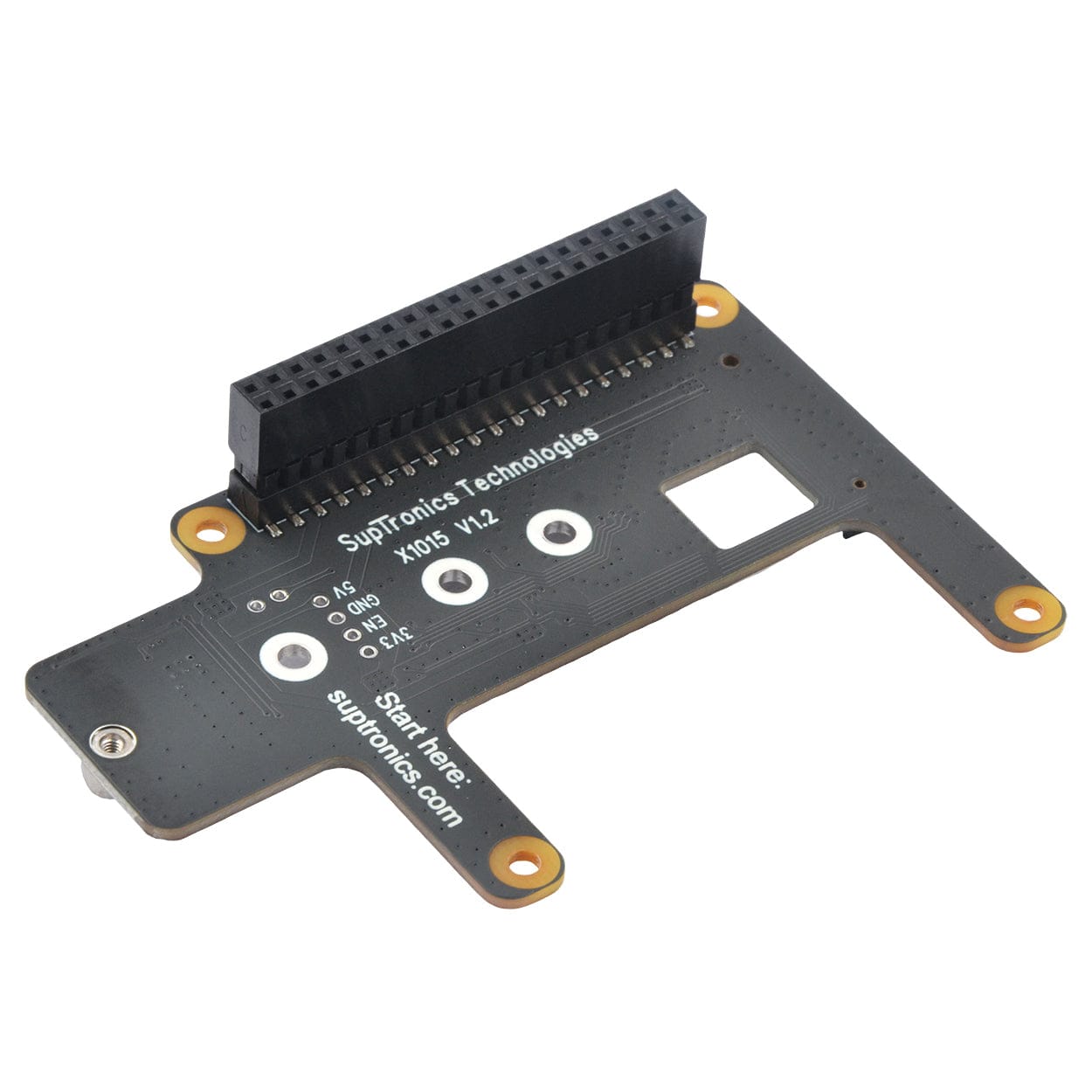

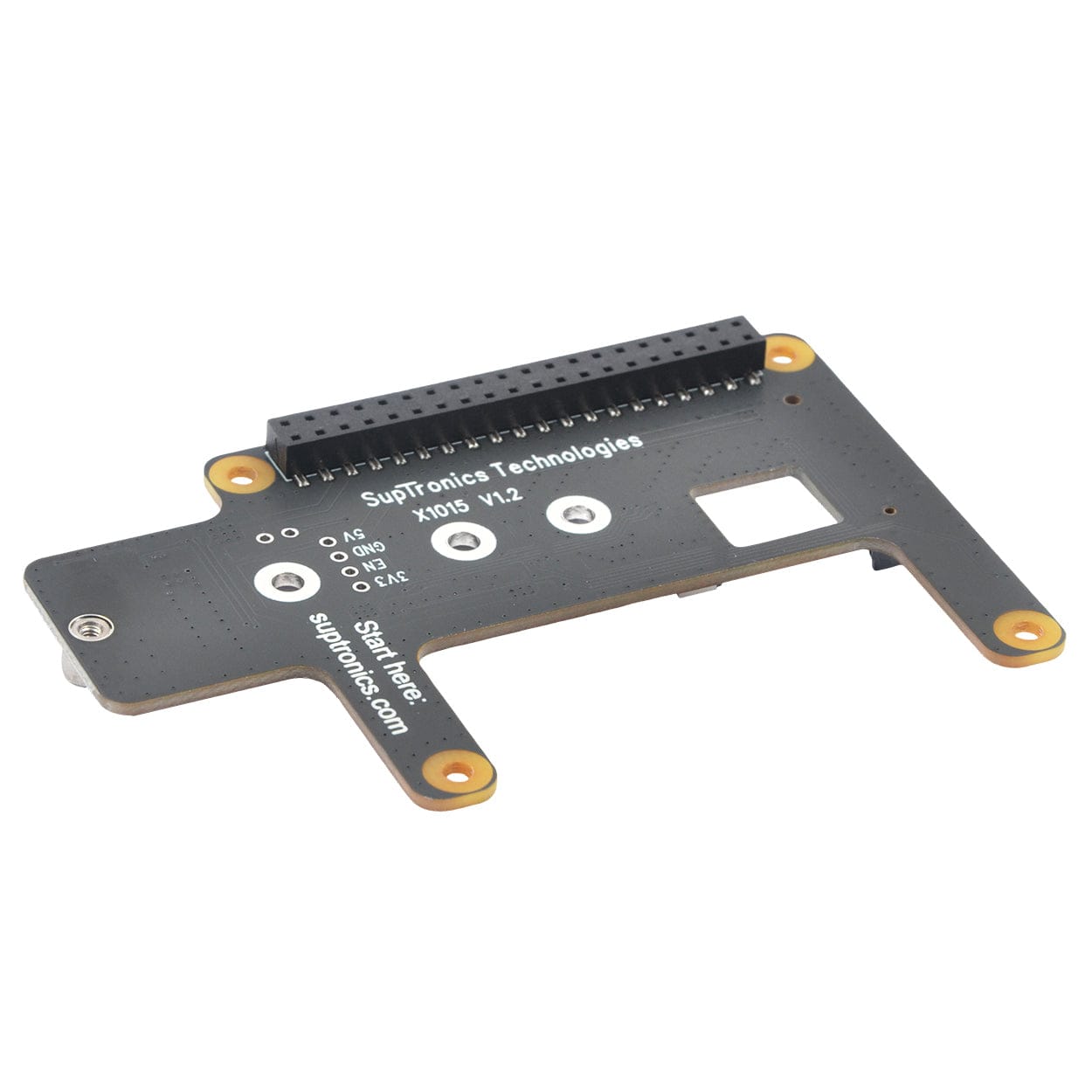

Designed to mount on top of the Raspberry Pi 5, it features apass-through 40-pin header for continued GPIO accessand supports use with other HATs. The cut-away form factor is compatible with theRaspberry Pi Active Cooler.

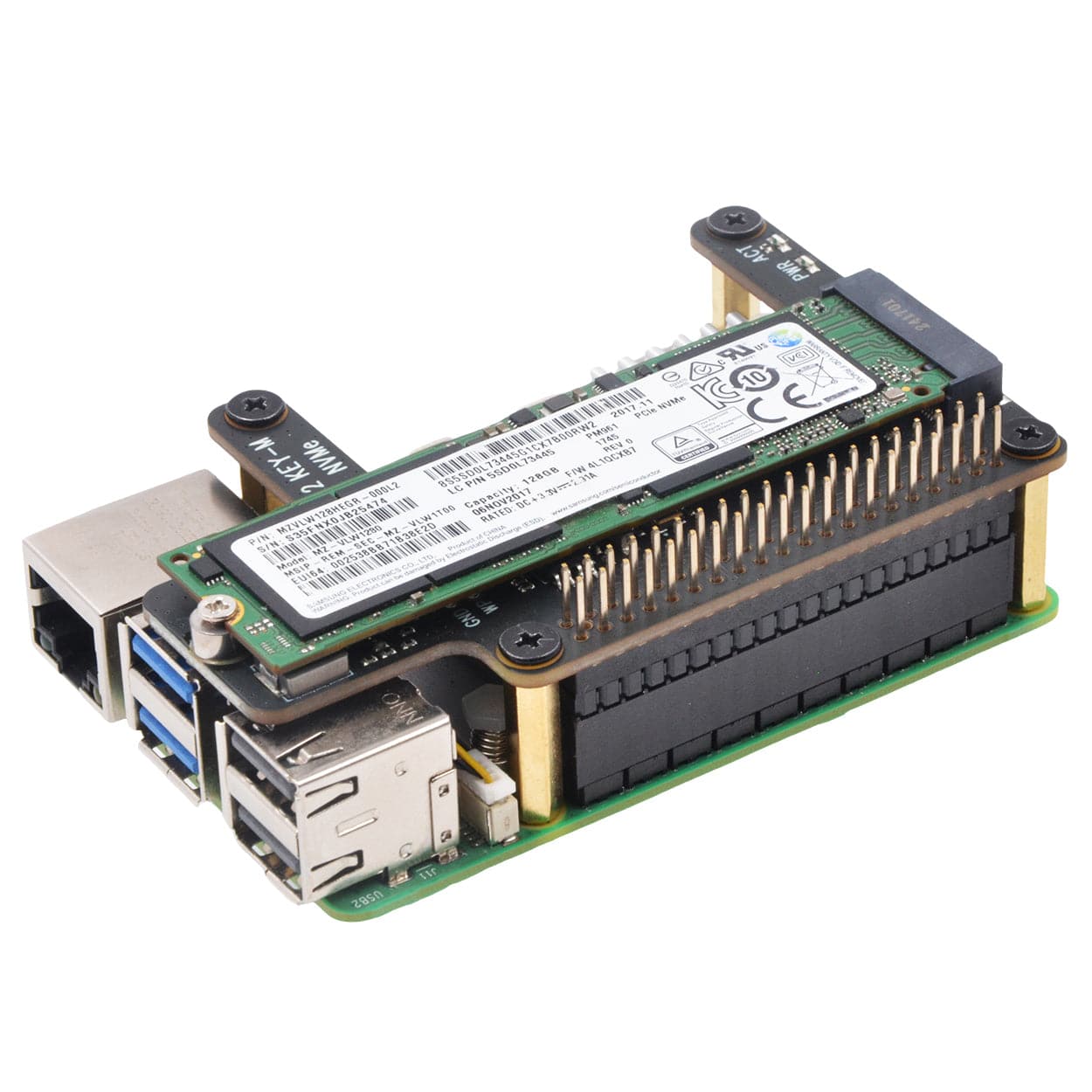

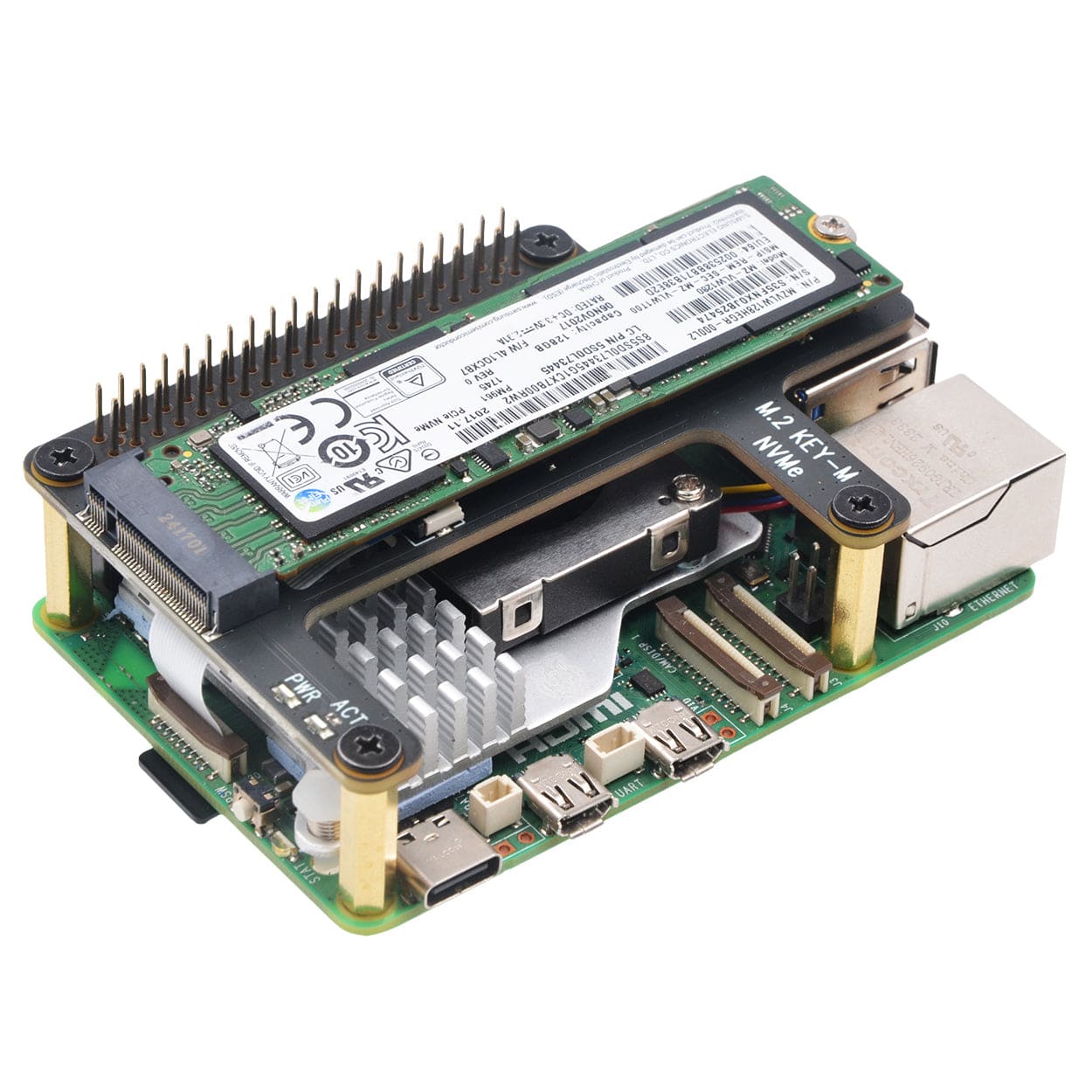

Mounting holes and theincluded standoffshelp secure the board to your Raspberry Pi 5. Built-in LEDindicators show power and read/write drive activity.
You can boot directly from an SSD, improving application load times, file transfer speeds, and performance in tasks like web serving or building a local media server or NAS.
Raspberry Pi, SSD and Active Cooler not included
Features
Compatible with Raspberry Pi 5
Supports up to 4TB M.2 NVMe solid-state drives
Supports two M.2 NVMe SSD form factors: 2280, 2260, 2242, and 2230
Supports PCIe 2.0 5Gbps / PCIe 3.0 8Gbps

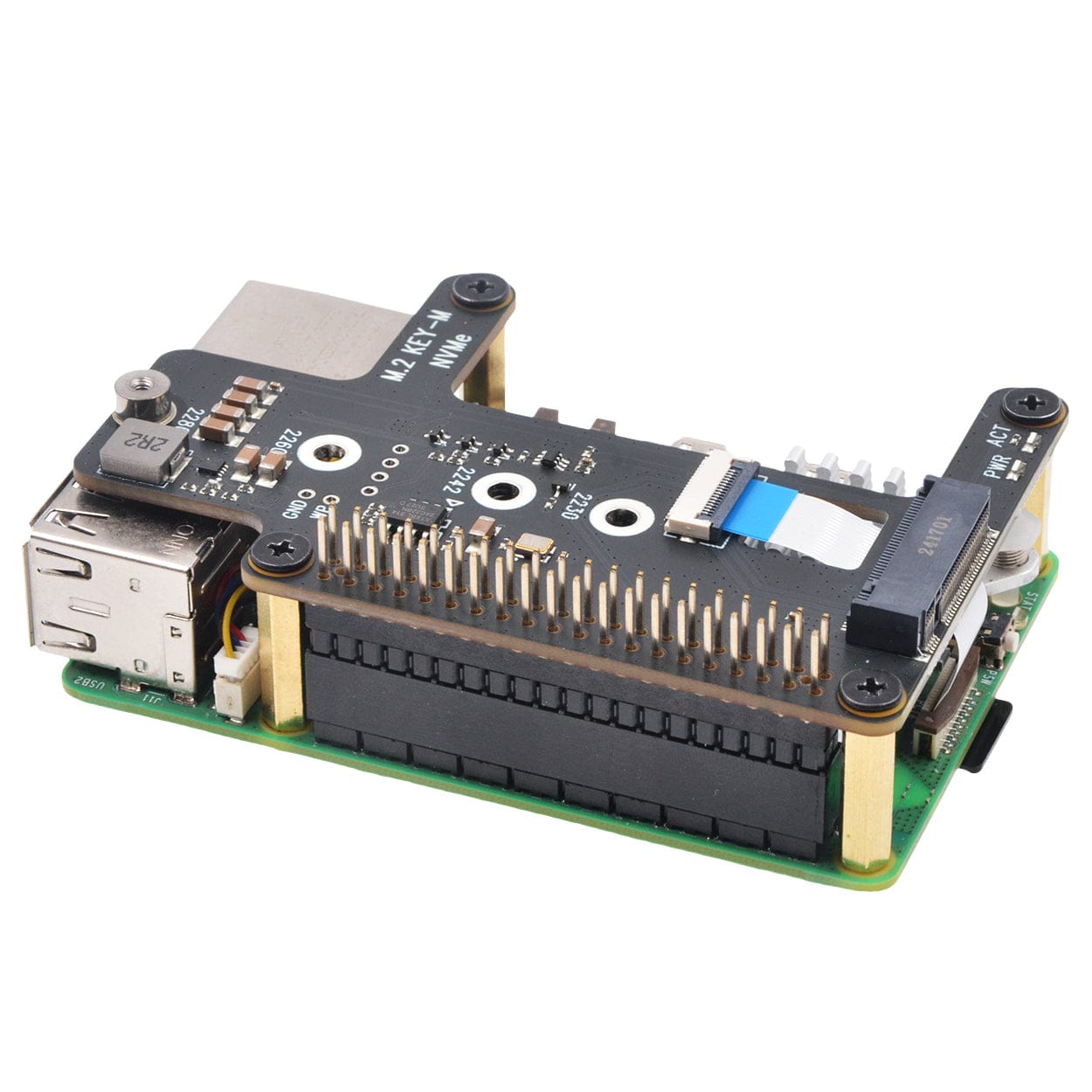

Compatible with the Raspberry Pi Active Cooler
LED indicators displays power and drive status
Powered via GPIO converted to 3.3V max 3A to power the SSD
Stackable design allows for attachment of other HATs
Powered through the 40-pin GPIO header
Not compatible with M.2SATASSDs, M.2 PCIeAHCISSDs, or other M.2 non-NVMe devices
Specifications
Power supply: 5Vdc +/-5% power via GPIO pin header, converted to 3.3V max 3A to power the SSD
As with all M.2 NVMe adapters for Raspberry Pi 5, certain models of M.2 NVMe SSD (usually with a Phison controller) are best avoided due to compatibility issues.
The following models have been highlighted by SupTronics as having poor compatibility, however other online resources will highlight further models/brands to avoid:
