SupTronics X1013 10-Port USB Hub Add-on for Raspberry Pi 5

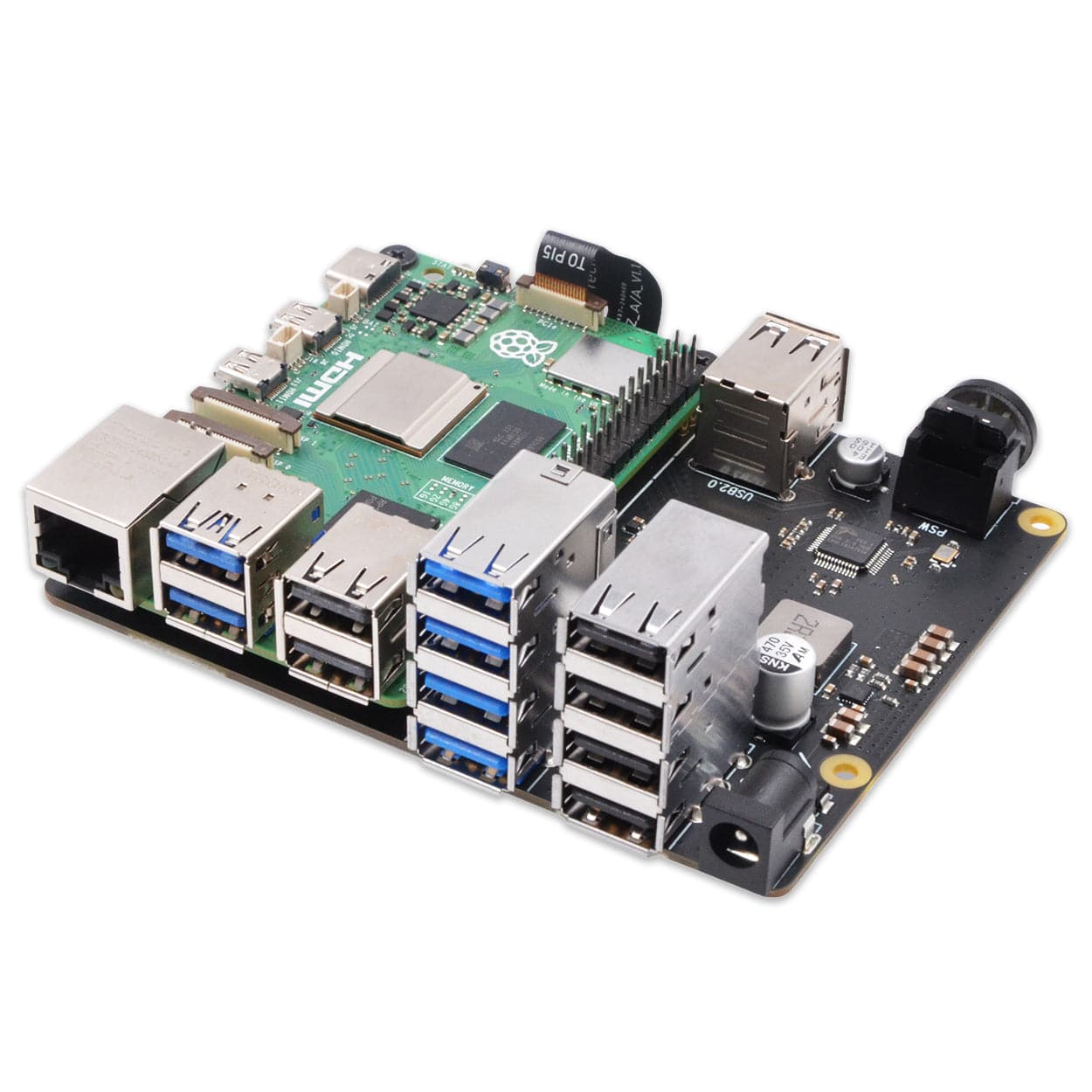

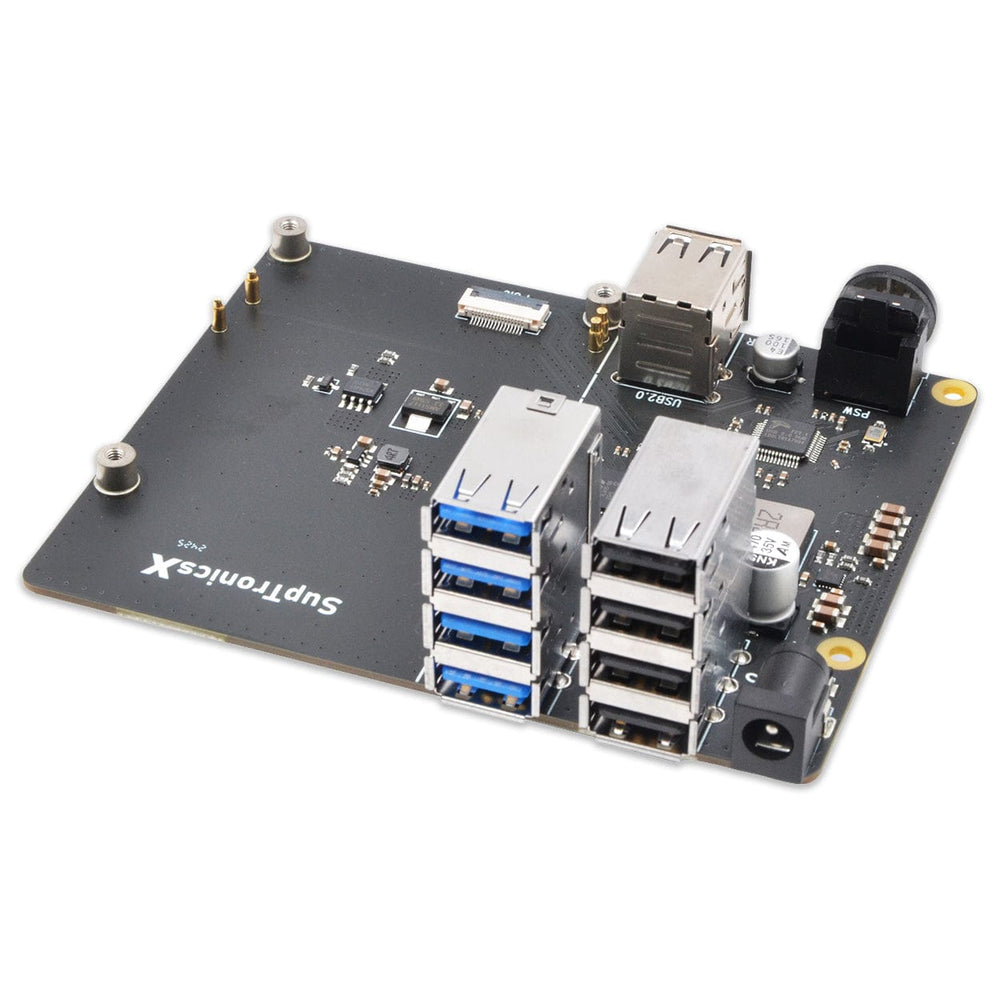

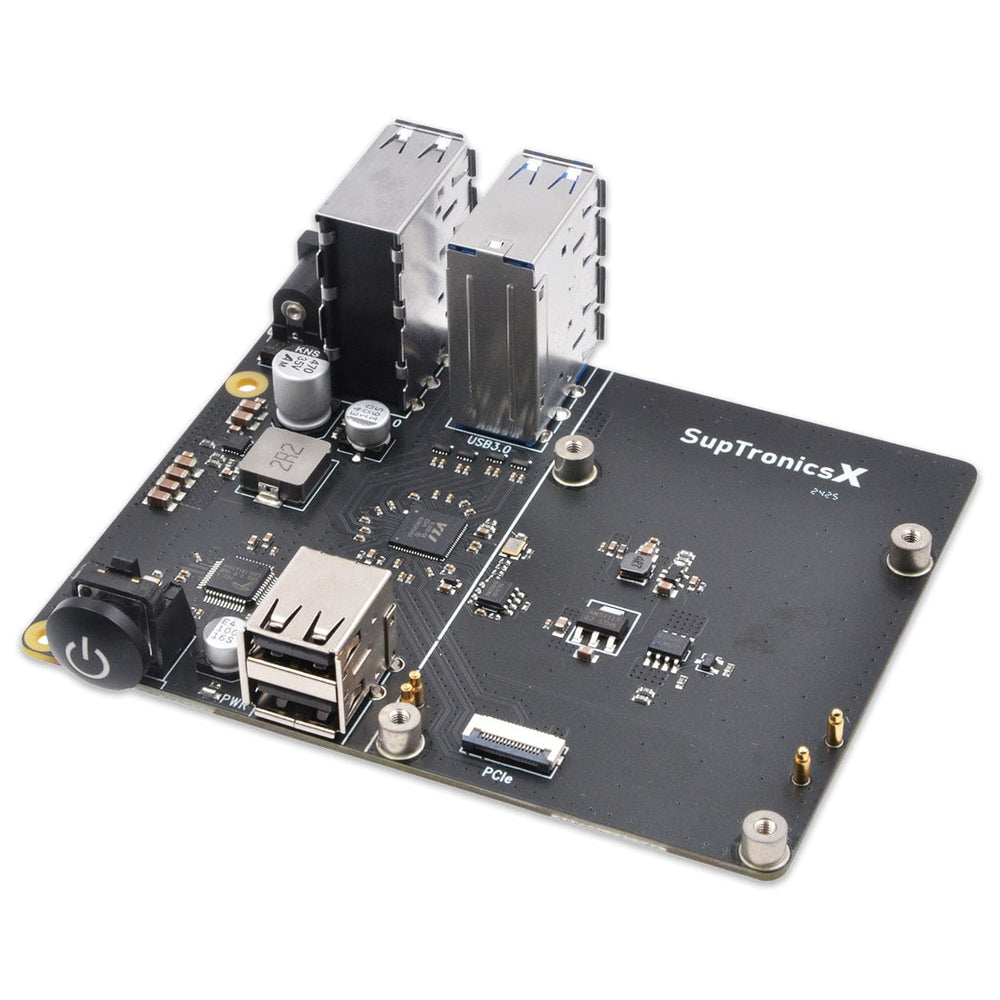

The SupTronics X1013 is a PCIe USB expansion board designed for Raspberry Pi 5, offering ten additional USB ports - four USB 3.2 Gen1 and six USB 2.0. It’s plug-and-play, requiring no drivers, and works with Raspberry Pi OS, Ubuntu, OpenWRT and other systems.

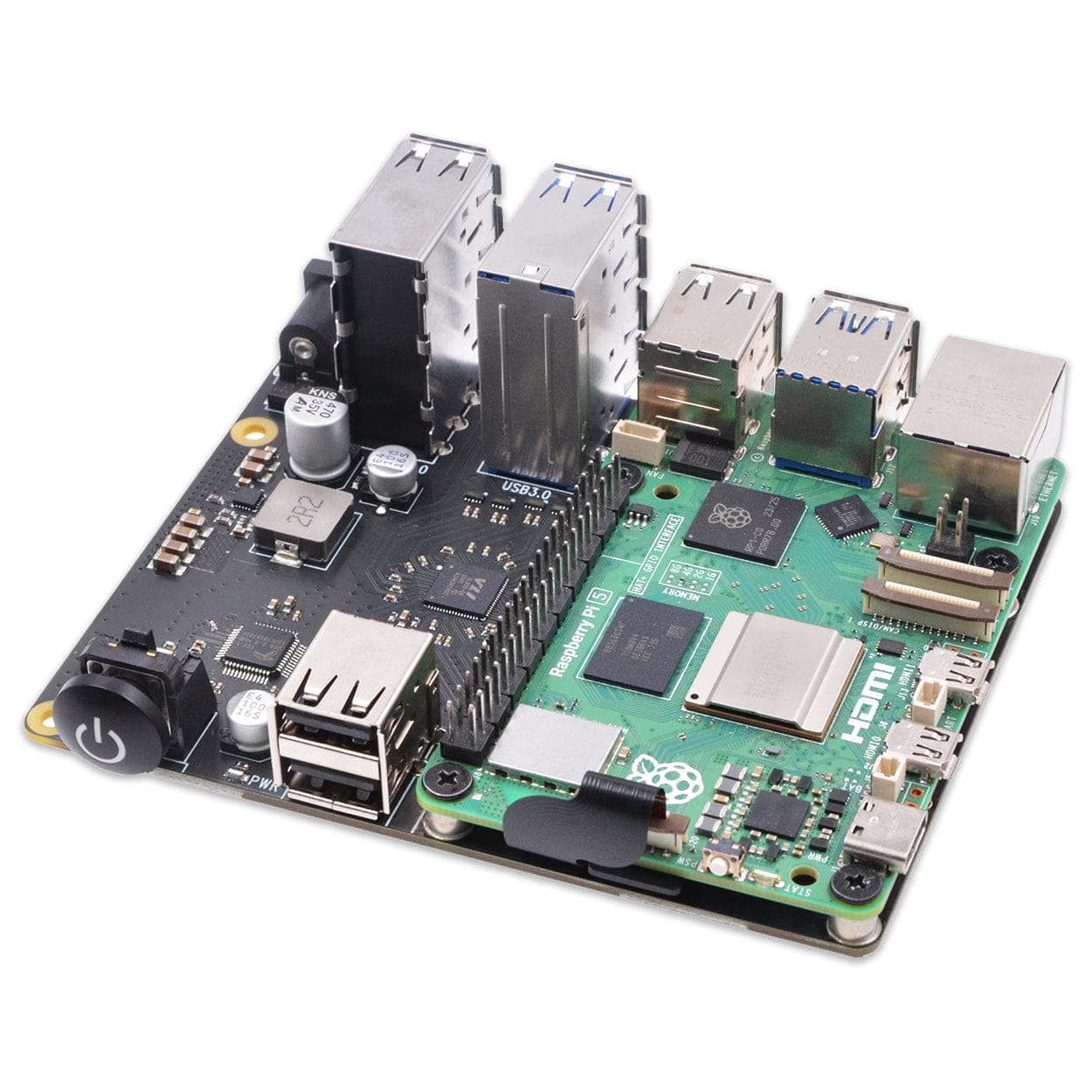

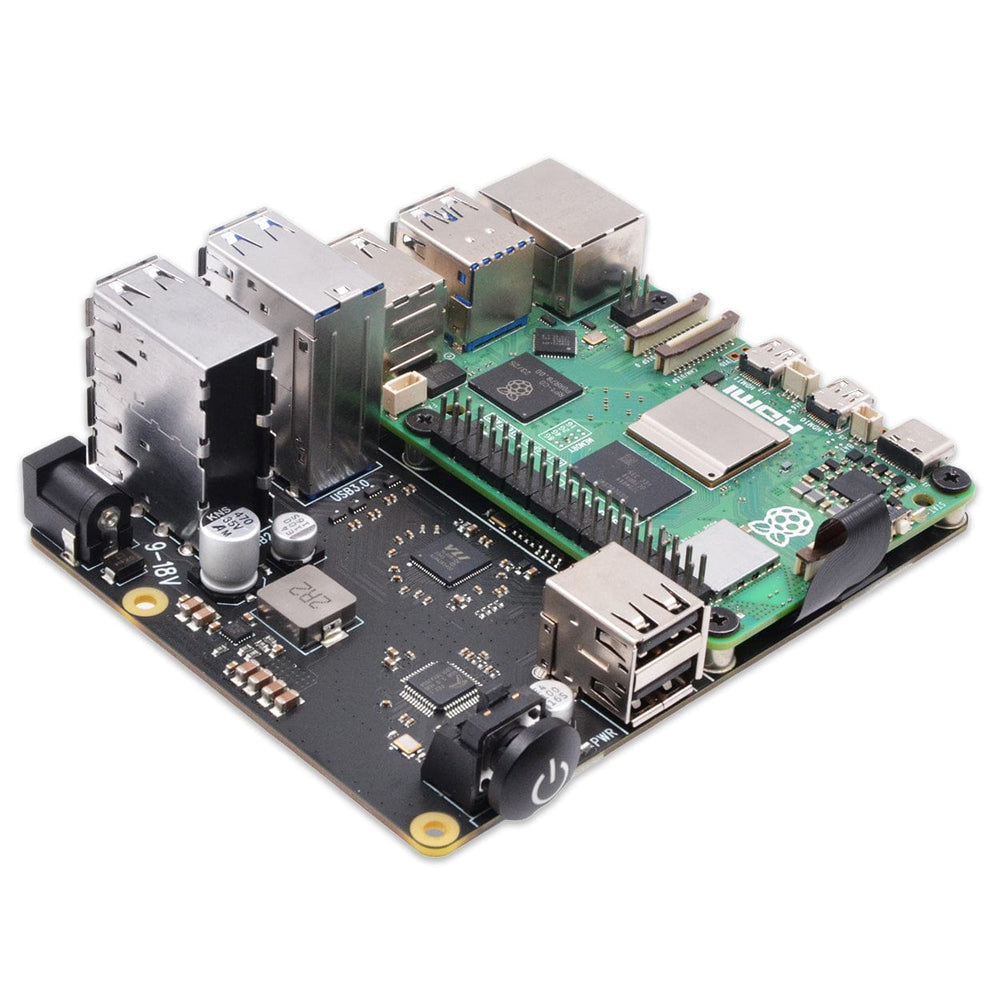

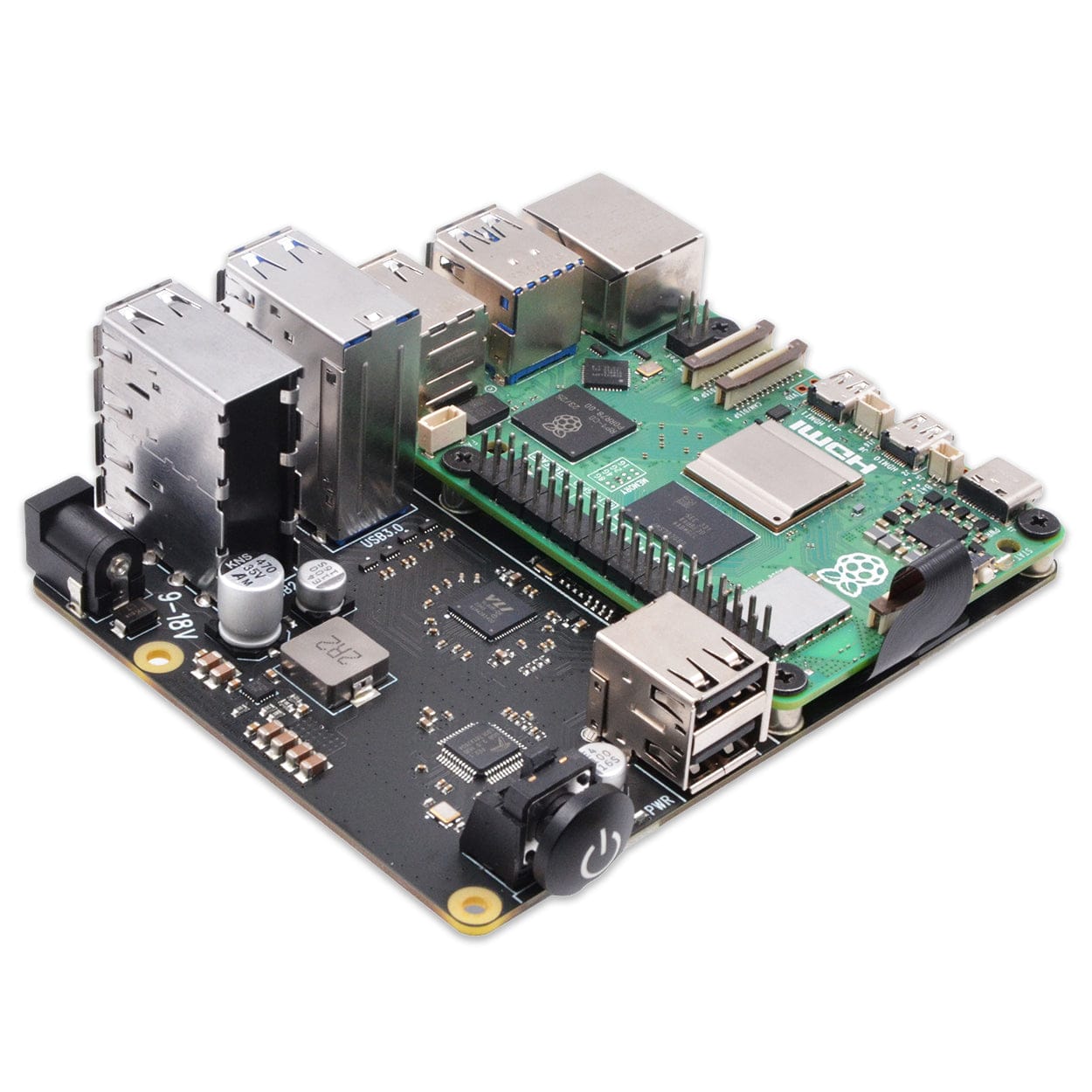

It connects to the underside of the Raspberry Pi 5, leaving the GPIO header free for HATs, coolers and other add-ons. Power is supplied via a standard 9–18V DC input jack, with onboard high-efficiency step-down converters providing reliable power to both the Raspberry Pi and any connected USB devices.

Another nice feature is the large power button, which performs the same actions as the Raspberry Pi 5's power button. An ideal option for projects or advanced setups requiring multiple USB peripherals without the mess of external hubs.

Raspberry Pi and power supply not included.

Features

• Compatible with Raspberry Pi 5
• 4x USB3.2 Gen1 ports, compatible/backwards compatible with USB3.0 / 2.0 / 1.1
• 6x USB2.0 ports, compatible/backwards compatible with USB1.1
• Equipped with VL805 original high-performance main control chip
• Driver-free, plug and play, compatible with OS including Windows, Mac OS, Linux and Android
• Supporting wide 9-18V input via a common DC jack (5.5x2.1mm)
• Efficient power delivery to the Raspberry Pi5 via pogo pin, streamlining the power supply to a single source
• Automatically powering off all USB devices when the Pi 5 is shut down
• On-board push button performs the same actions as the Pi's power button

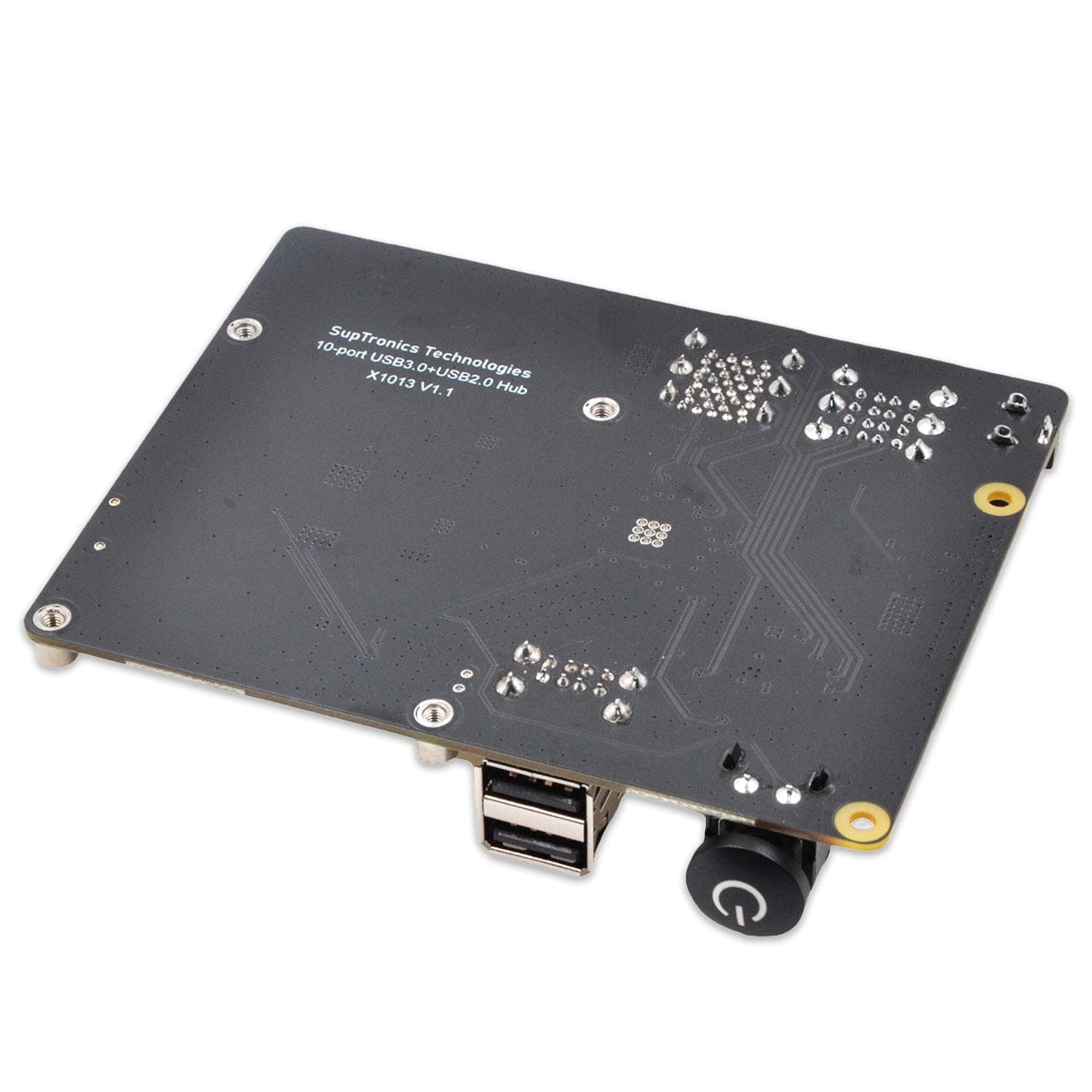

• Designed to be attached on the bottom

Specifications

Resources

• Software setup/tutorials
• Hardware information and assembly

Package Contents

• 1x SupTronics 10-Port USB Hub Add-on for Raspberry Pi 5
• 1x PCIe FFC 37mm
• 1x Screw/standoff pack

Raspberry Pi and power supply not included.
