The SupTronics X1004 Dual NVMe SSD Add-on for Raspberry Pi 5 supports two full-size 2280 SSDs over PCIe 2.0 with 5Gbps speeds. Mounts like a HAT with GPIO passthrough, works with the official Active Cooler, and includes an activity LED.
Introducing the SupTronicsX1004 Dual NVMe SSD Add-on, a high-speed storage solution for your Raspberry Pi 5. Its compact design enables easy attachment of two full-size M.2 2280 SSDs to your Raspberry Pi 5. With its PCIe 2.0 interface, you can experience data transfer rates of up to 5Gbps, allowing you to effortlessly transfer large amounts of data within seconds.

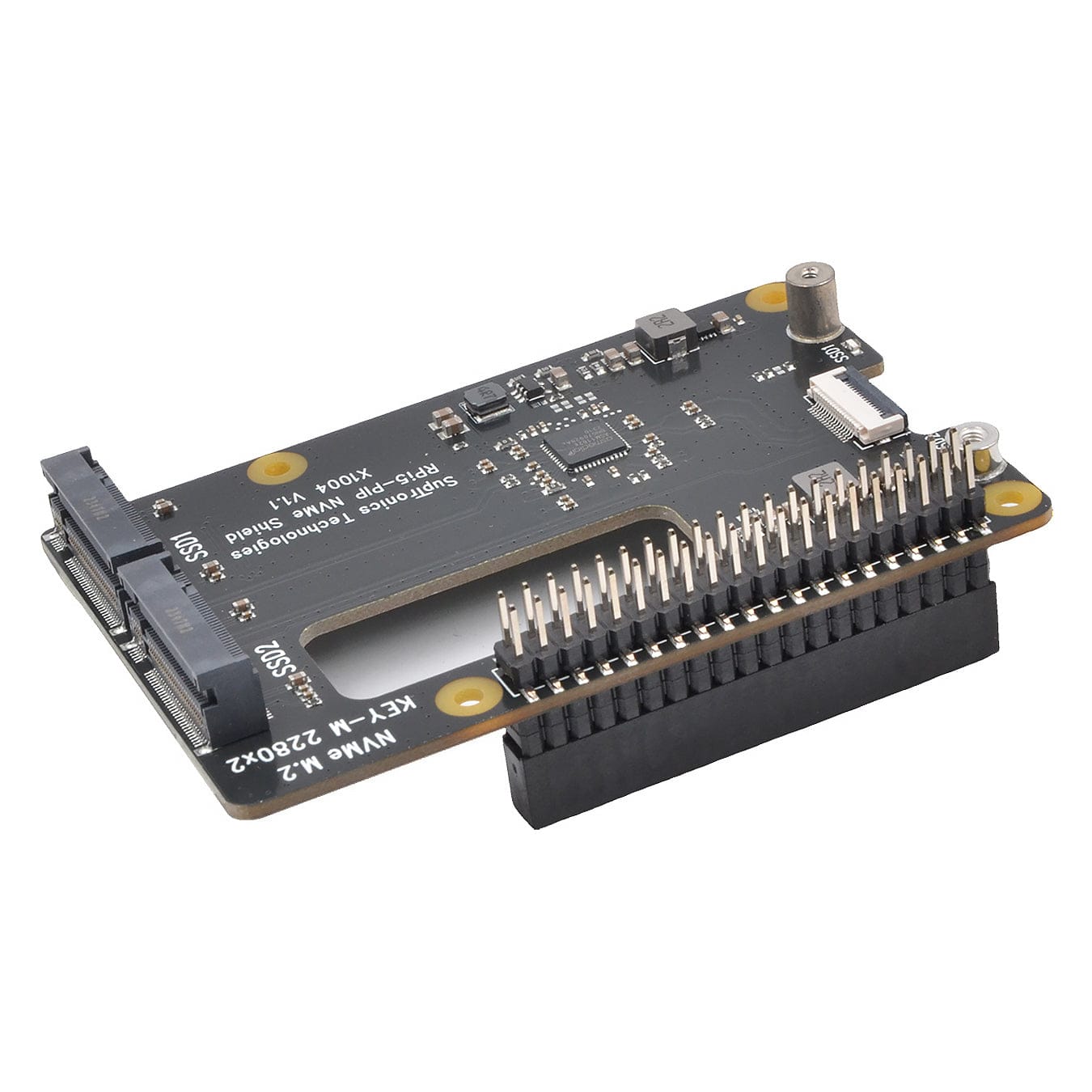

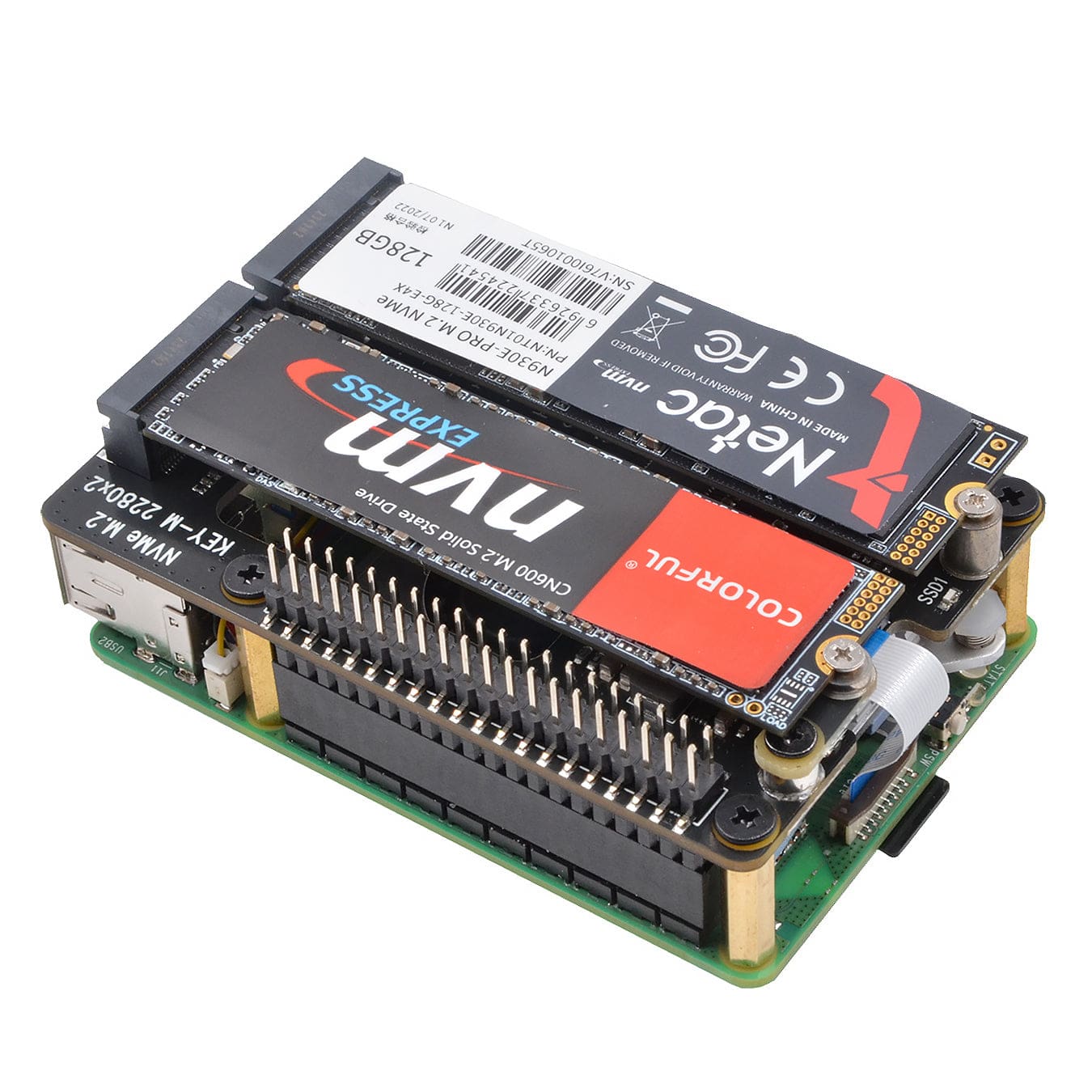

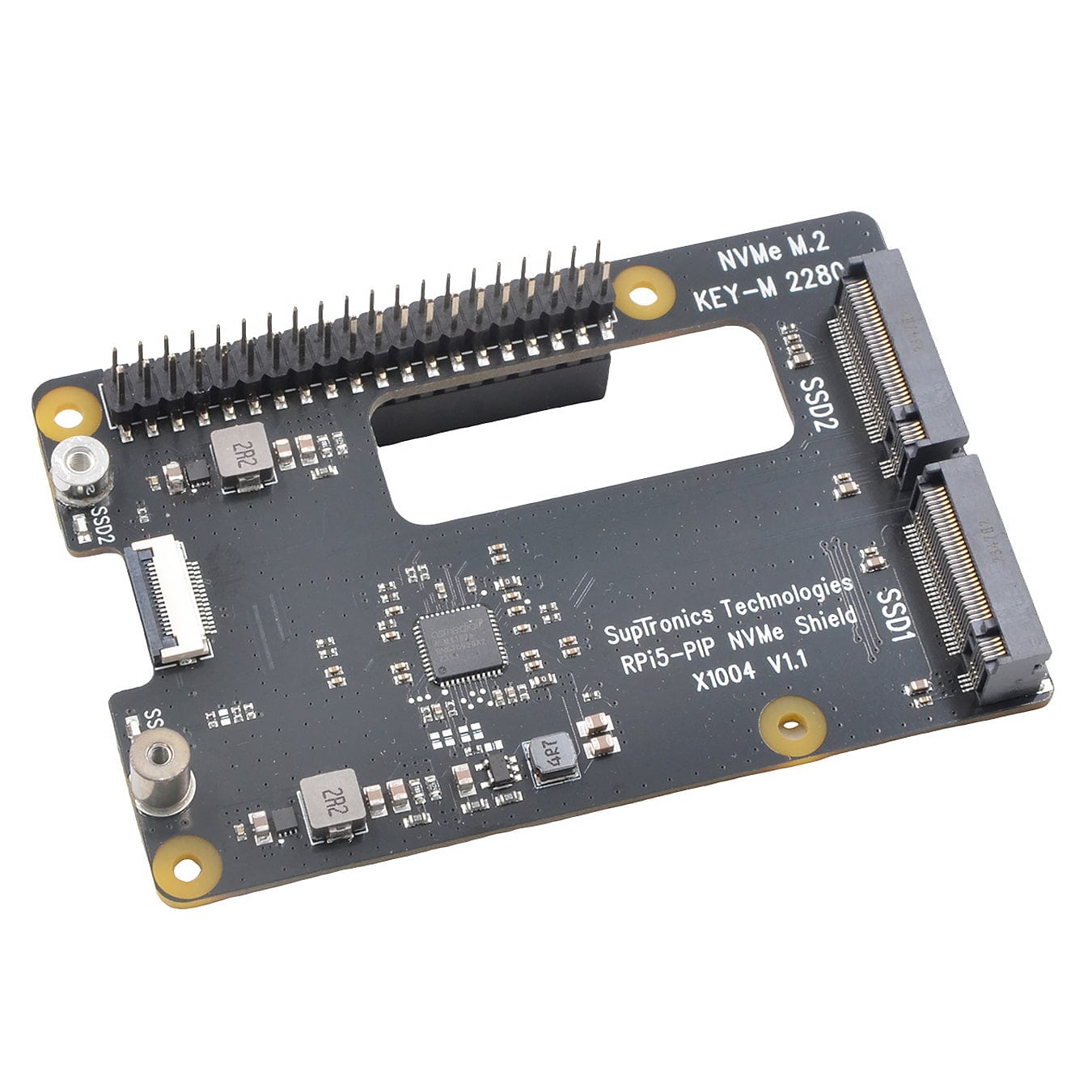

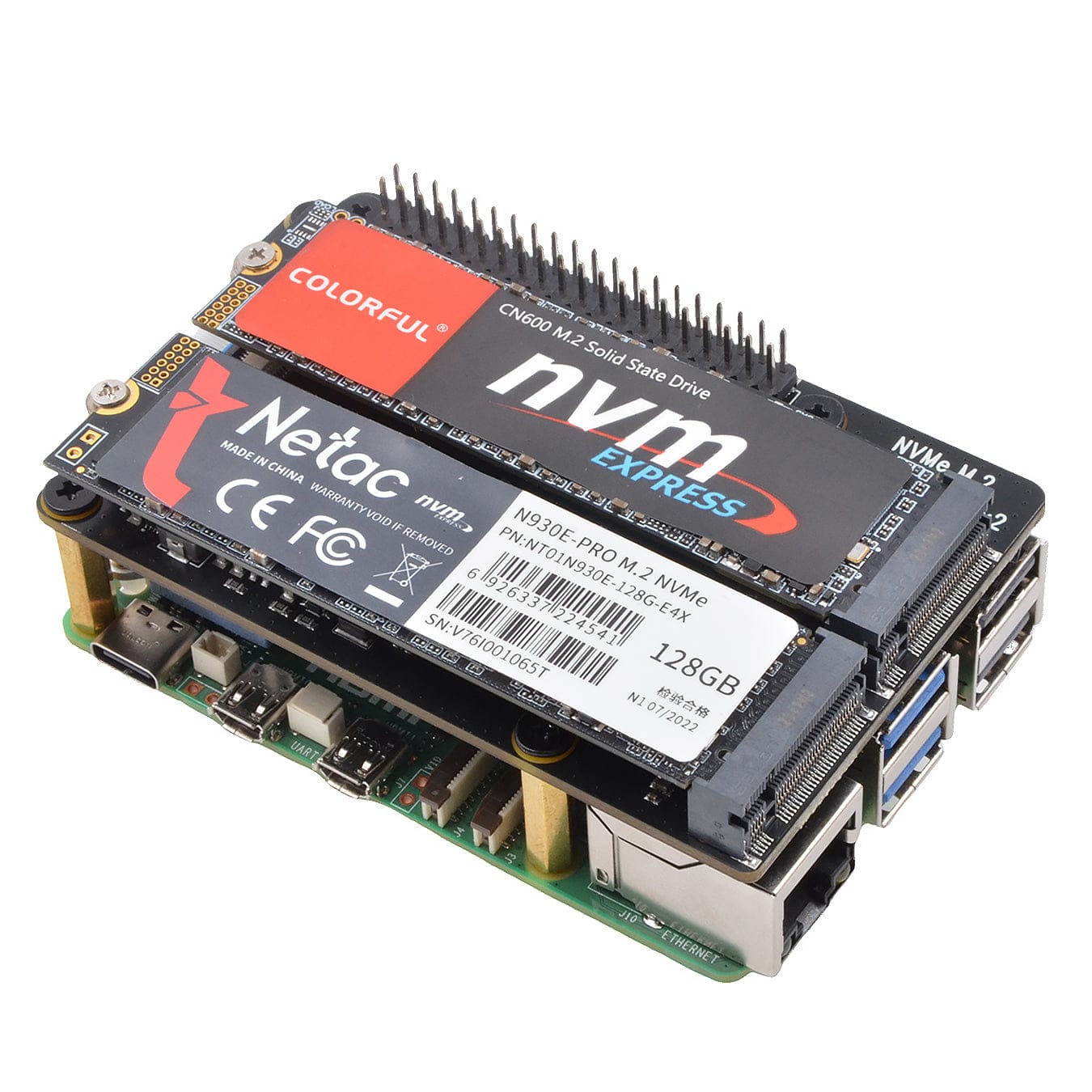

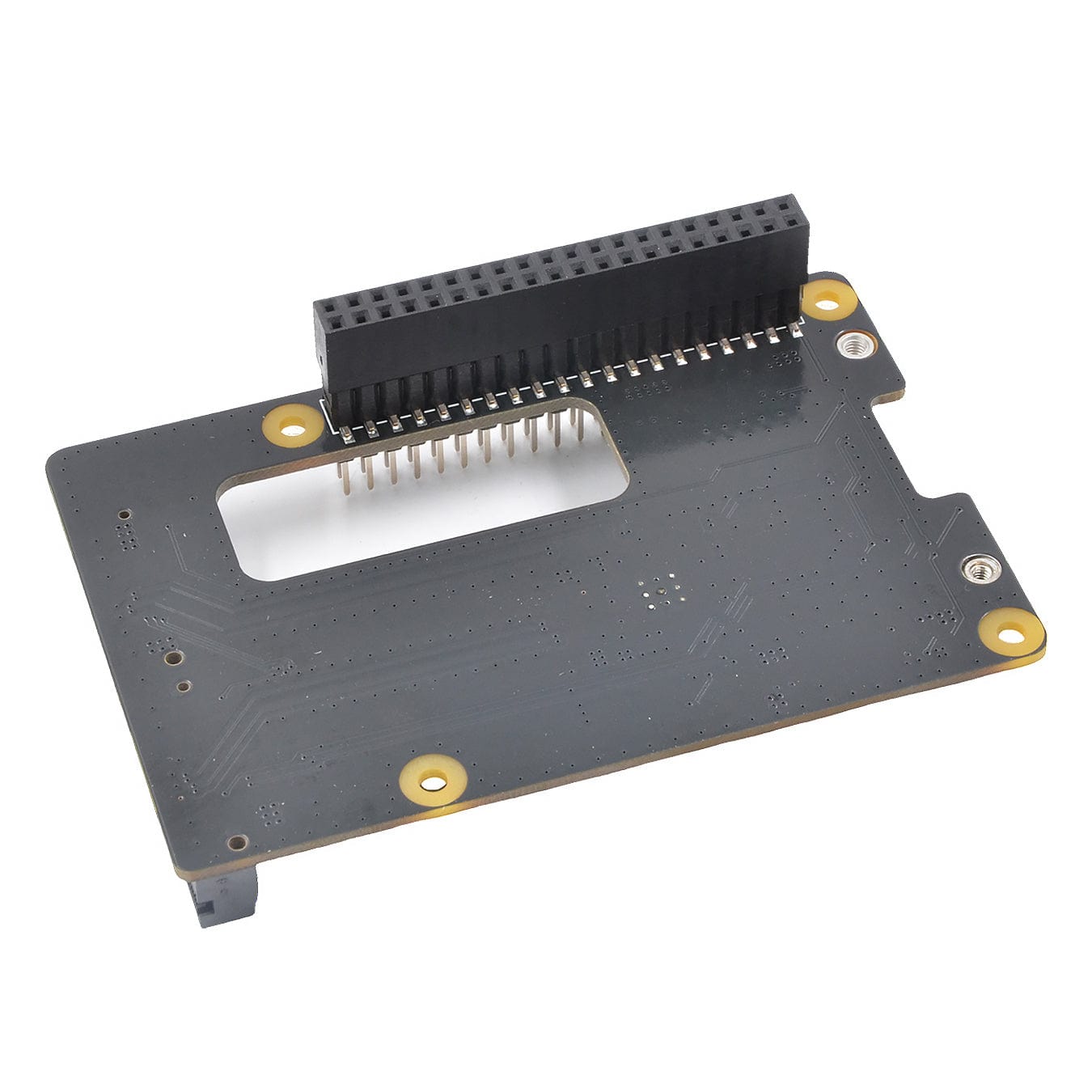

The X1004 is specifically designed to be placed on top of the Raspberry Pi 5, similar to a traditional HAT, and it provides a 40-pin header for easy access to the GPIO. With this NVMe add-on, you can still use your favourite HATs alongside it, and it is fully compatible with the Raspberry Pi Active Cooler. The inclusion of mounting holes and standoffs not only protects the drives but also effectively dissipates heat for reliable performance. The built-in LED light indicates the status of reading or writing.
SSD, Raspberry Pi and Active Cooler not included
Features
Compatible with Raspberry Pi 5
Supports a total of 8TB storage capacity (4TB+4TB) with M.2 NVMe solid-state drives
Accommodates two full-size 2280 NVMe SSDs
Supports PCIe 2.0 5Gbps

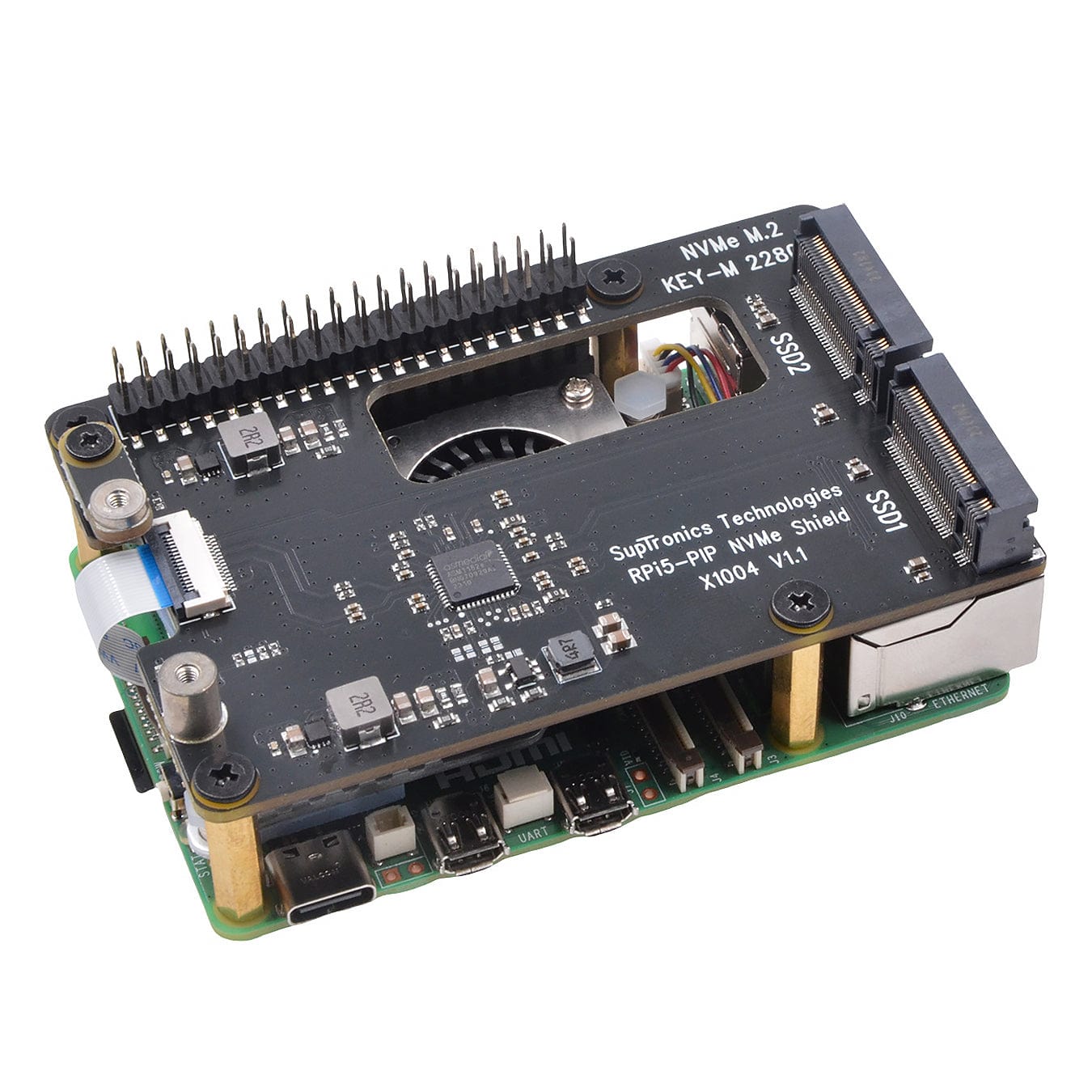

Compatible with the Raspberry Pi Active Cooler

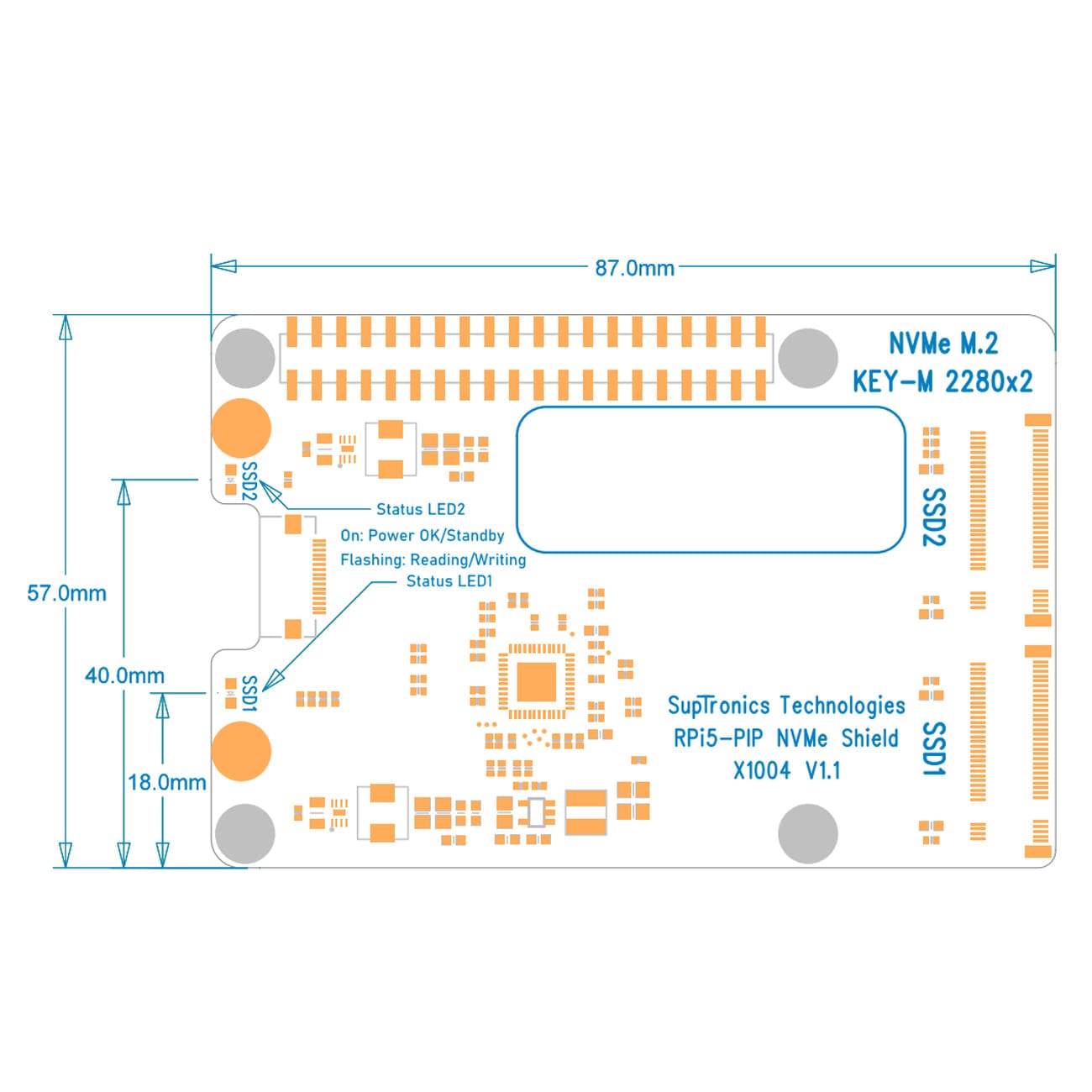

LED indicators for power and drive status
High-performance PCIe packet switch
High-efficiency DC/DC step-down converters, delivering a maximum of 3.5A+3.5A to power your SSDs
Designed to be attached on top, allowing stacking with other HATs
Powered via the 40-pin GPIO header & PCIe FFC
Compatible with the HAT+ STANDBY power state, automatically turning off when the Pi 5 shuts down
Specifications
Power supply
5Vdc ±5% power via FFC & 40-pin header, converted to 3.3V max 3.5A + 3.5A to power the SSDs
We recommend refraining from using the following NVMe SSD drives, which are equipped with a Phison controller due to their proven incompatibility:
WD Blue SN550/SN580 series
WD Green SN350 series
WD Black SN850 series
Other NVMe SSD drivers equipped with the same Phison controller
These specific models have demonstrated compatibility issues, and it is advisable to avoid them when considering NVMe SSD options for X10xx series NVMe add-ons. By steering clear of these drives, users can ensure a smoother and more reliable experience with their storage solutions.
A few other notes re SSD compatibility:
Compatible with M.2 NVMe SSDs
Not compatible with M.2 SATA SSDs, M.2 PCIe AHCI SSDs, or other M.2 non-NVMe devices
Older NVMe drives with less efficient flash media may not perform as well as newer drives
New NVMe SSDs are not partitioned and will need to be both partitioned and formatted when first connected to the Raspberry Pi before they can be accessed in the Explorer
Package Contents
1x X1004 V1.1 NVMe shield
1x 30mm PCIe cable
1x Screw pack
