STEMMA QT / Qwiic JST SH 4-Pin Cable - 400mm long

Price:
Sale price £1.50
incl. VAT
excl. VAT
Stock:
Only 4 units left
Quantity:

Awesome Extras

SparkfunSparkFun Qwiic SHIM for Raspberry Pi
Sale price £1.20 incl. VAT excl. VAT

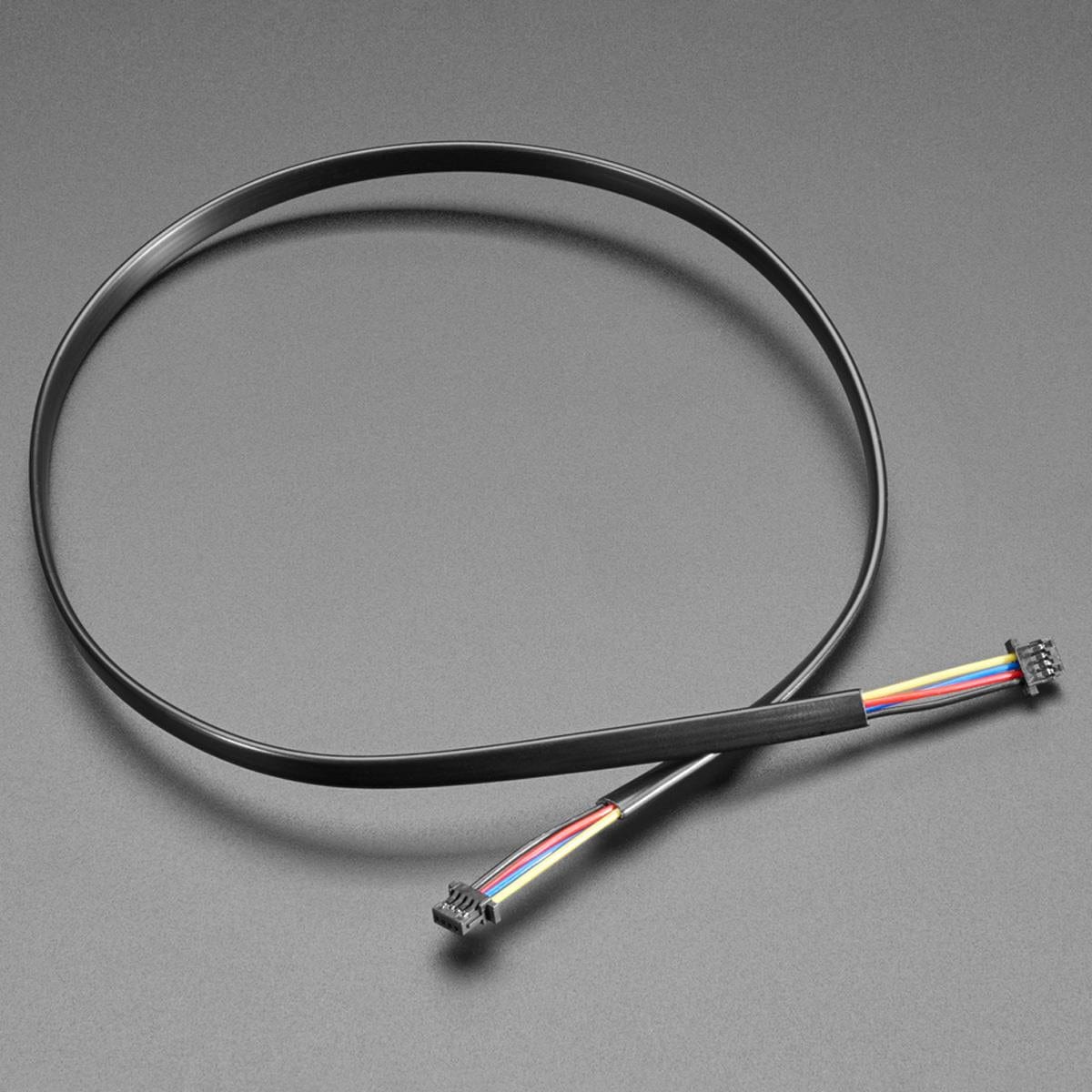

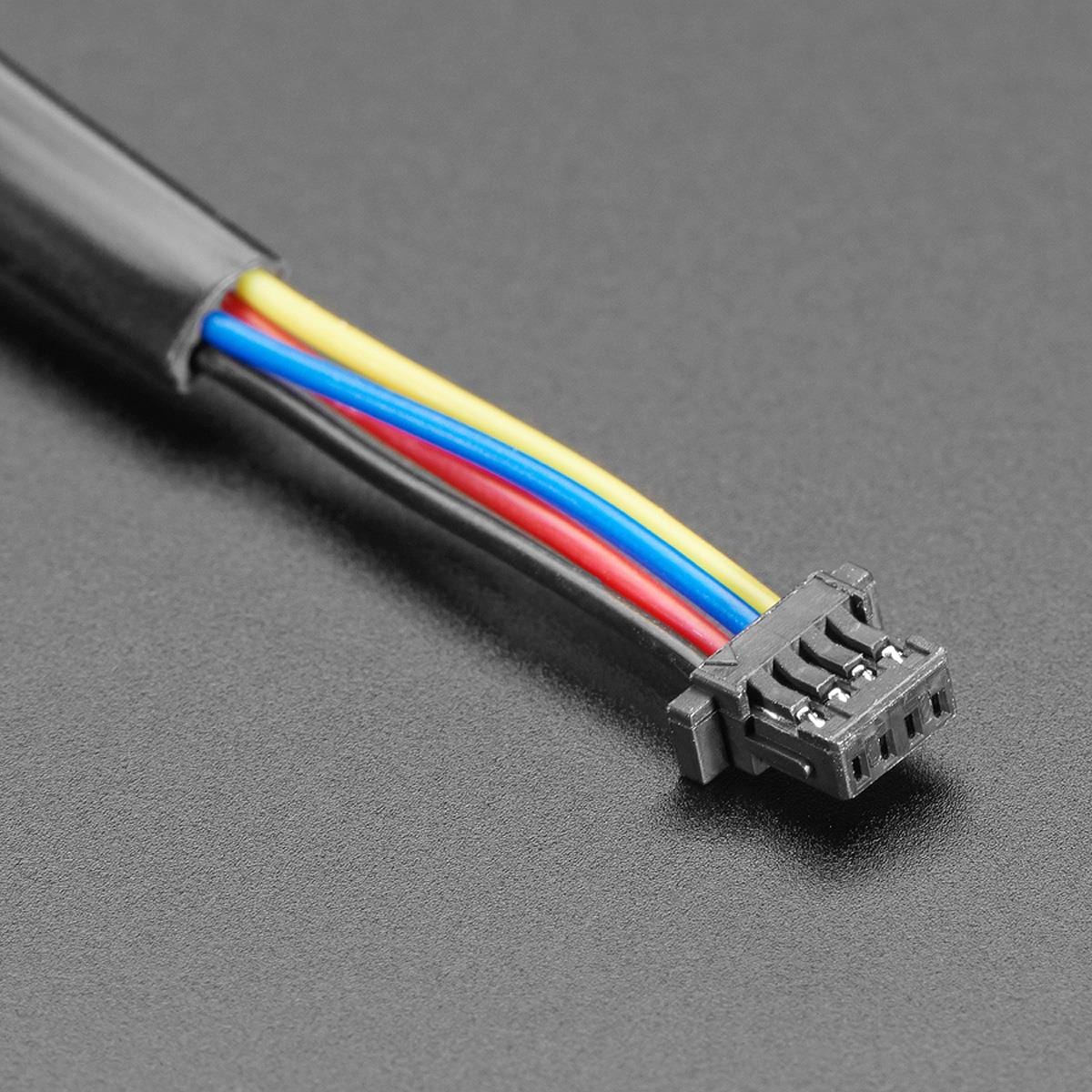

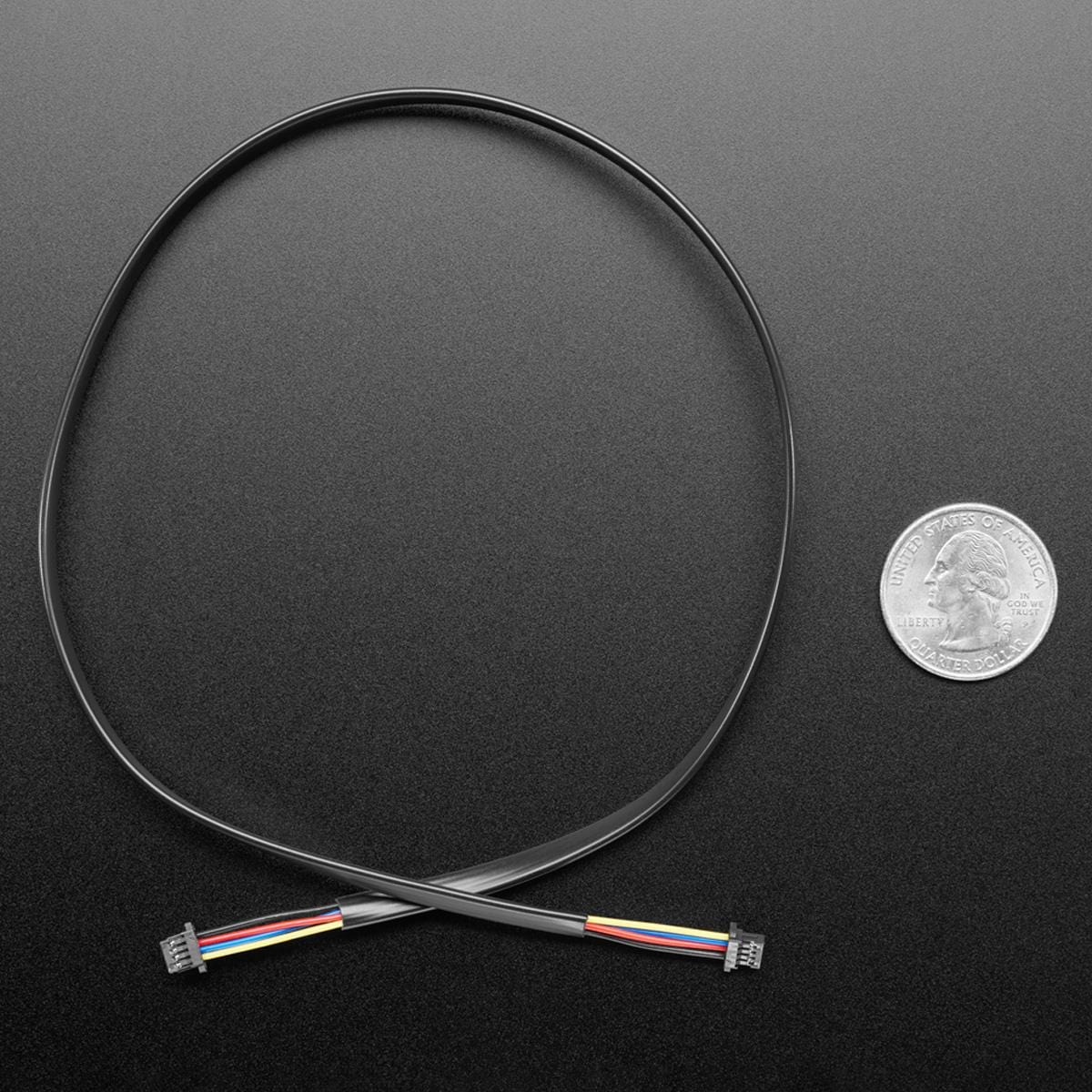

This 4-wire cable is a little over 400mm long and fitted with JST-SH female 4-pin connectors on both ends. Compared with the chunkier JST-PH these are 1mm pitch instead of 2mm, but still have a nice latching feel, while being easy to insert and remove.

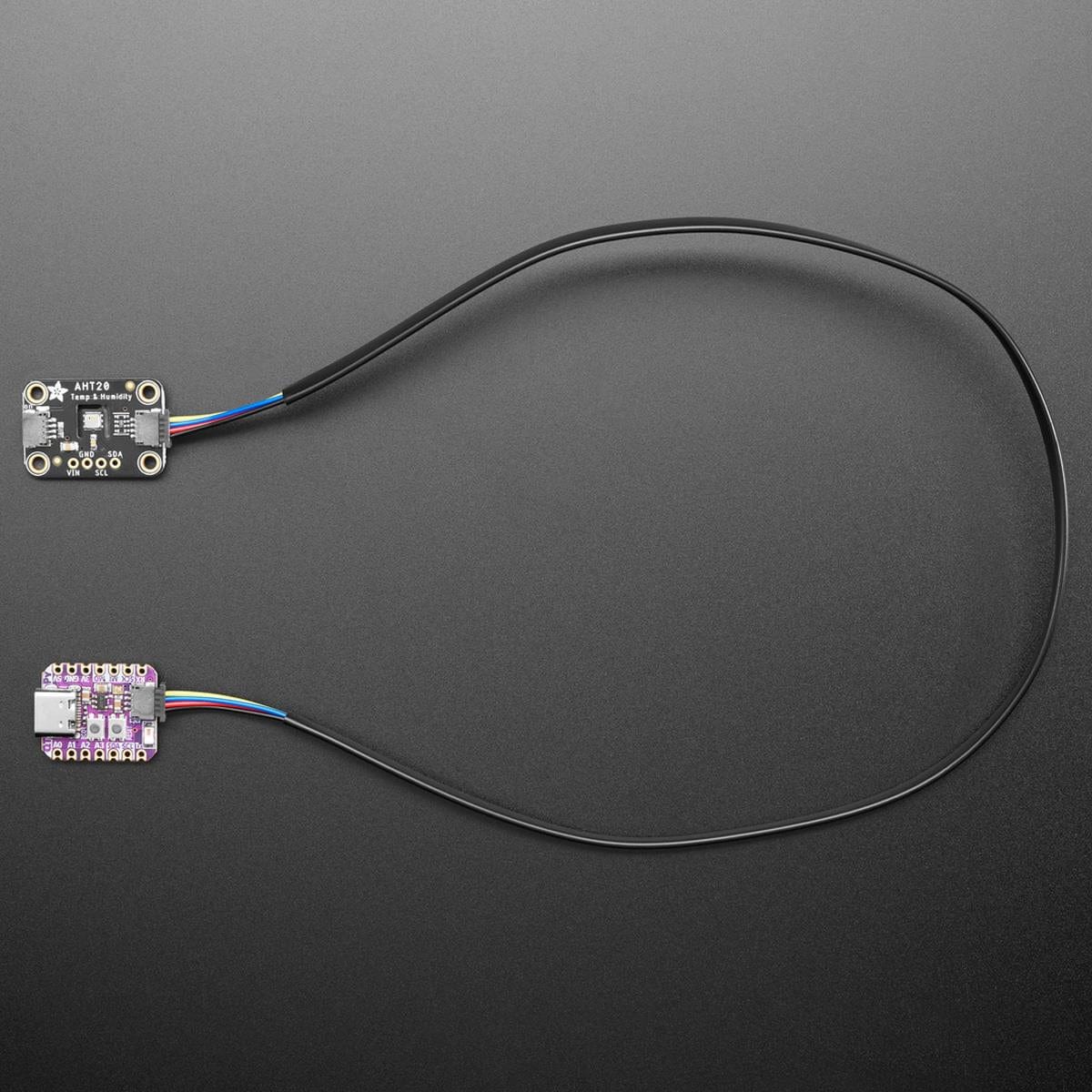

This cable can be used with SparkFun Qwiic boards, to easily connect sensors and drivers to boards with 0.1" socket headers or to solder-less breadboards. When used with Qwiic the colours are:

  • Red - 3.3VDC Power
  • Black - Ground
  • Blue - I2C SDA Data
  • Yellow - I2C SCL Clock

We've interleaved the data wire with ground and power to reduce cross-talk, but note that this cable is long for an I2C connection, so you may have difficulty using it with 1MHz/800KHz or even 400KHz signals. Try lowering your I2C clock if you're getting connection or data issues.

For more information about JST SH connectors, visit the JST website
