SparkFun SOT23 to DIP Adapter

SparkfunSKU: BOB-00717
£1
incl. VAT
excl. VAT
Only 9 units left

Awesome Extras

Chip Quik No-Clean Liquid Flux Pen – 10ml Pen w/ Tip - The Pi HutChip Quik No-Clean Liquid Flux Pen – 10ml Pen w/ Tip - The Pi Hut
Chip QuikChip Quik No-Clean Liquid Flux Pen – 10ml Pen w/ Tip (CQ4LF)
£9.10 incl. VAT excl. VAT
Engineer ESD (PPS tipped) Tweezers - The Pi HutEngineer PTZ-41 ESD Tweezers (PPS tipped) - The Pi Hut
EngineerEngineer PTZ-41 ESD Tweezers (PPS tipped)
£9.70 incl. VAT excl. VAT
Notify me
Break-away 0.1" 36-pin male headers (Black 10-pack) - The Pi HutBreak-away 0.1" 36-pin male headers (Black 10-pack) - The Pi Hut
The Pi HutBreak-away 0.1" 36-pin male headers (Black 10-pack)
£3.50 incl. VAT excl. VAT

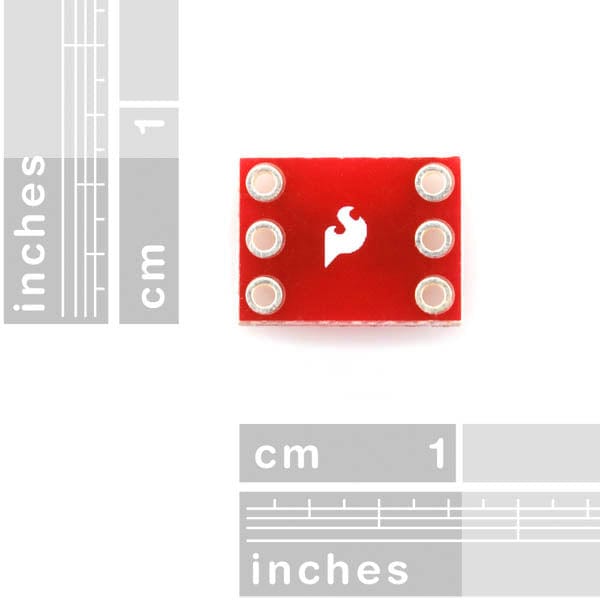

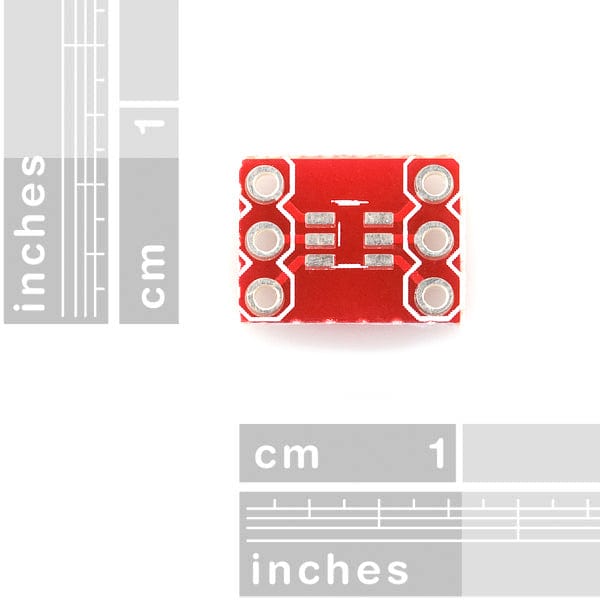

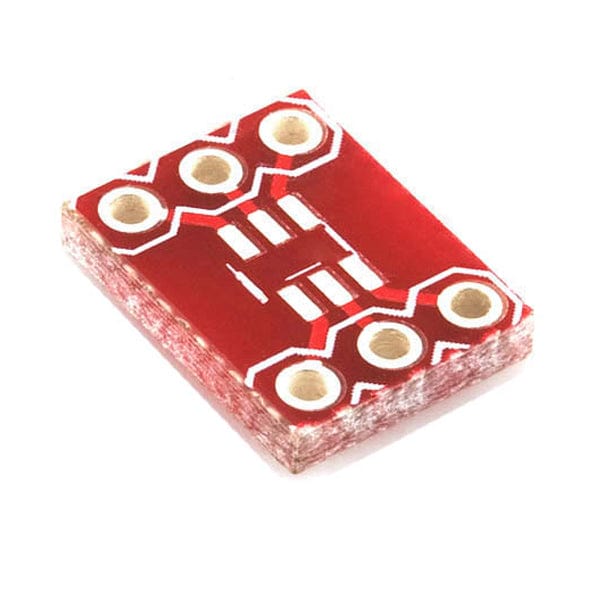

6 pin SOT-23 to DIP adaptor. Created to take SOT23 of various pin sizes breakout to DIP. This will work with 3-pin MOSFETs, BJTs, Voltage Regulators (SOT-23-5), and various other Micro6, Micro5, etc packages.

DIP width is 0.300" (300mil) and will fit nicely into any breadboard or DIP socket. 40-pin break-away headers are perfect for use with these custom PCBs. Machine pin headers may be a better option for IC sockets. Pad layout fits all standard SOT23 packages including:

  • SOT-23
  • SOT-23-3
  • SOT-23-6
  • Micro3
  • 5-MicroSMD
  • All other similar SOT23 packages

Specifications

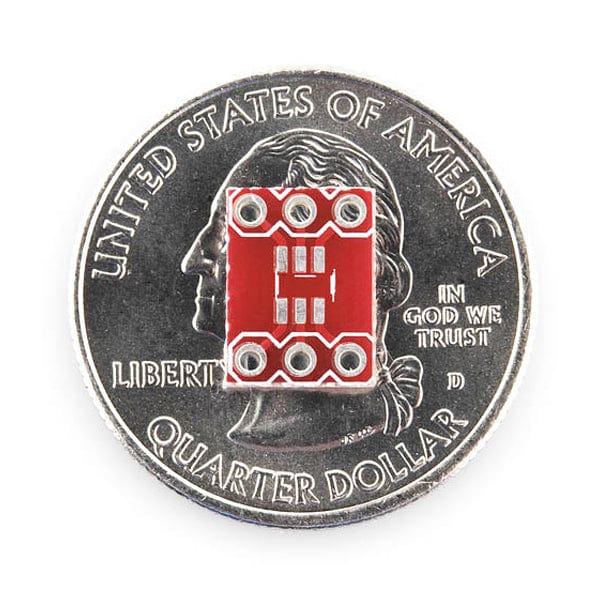

  • Dimensions: 0.34 x 0.46"
