The SparkFun Red Vision Touch Display for Pico has a 2.0" 320x240 capacitive touch LCD that connects to the XRP Control Board or a Raspberry Pi Pico. It includes a 2x9 camera connector, microSD slot, and Qwiic port, and works with the Red Vision MicroPython OpenCV package for image and display projects.

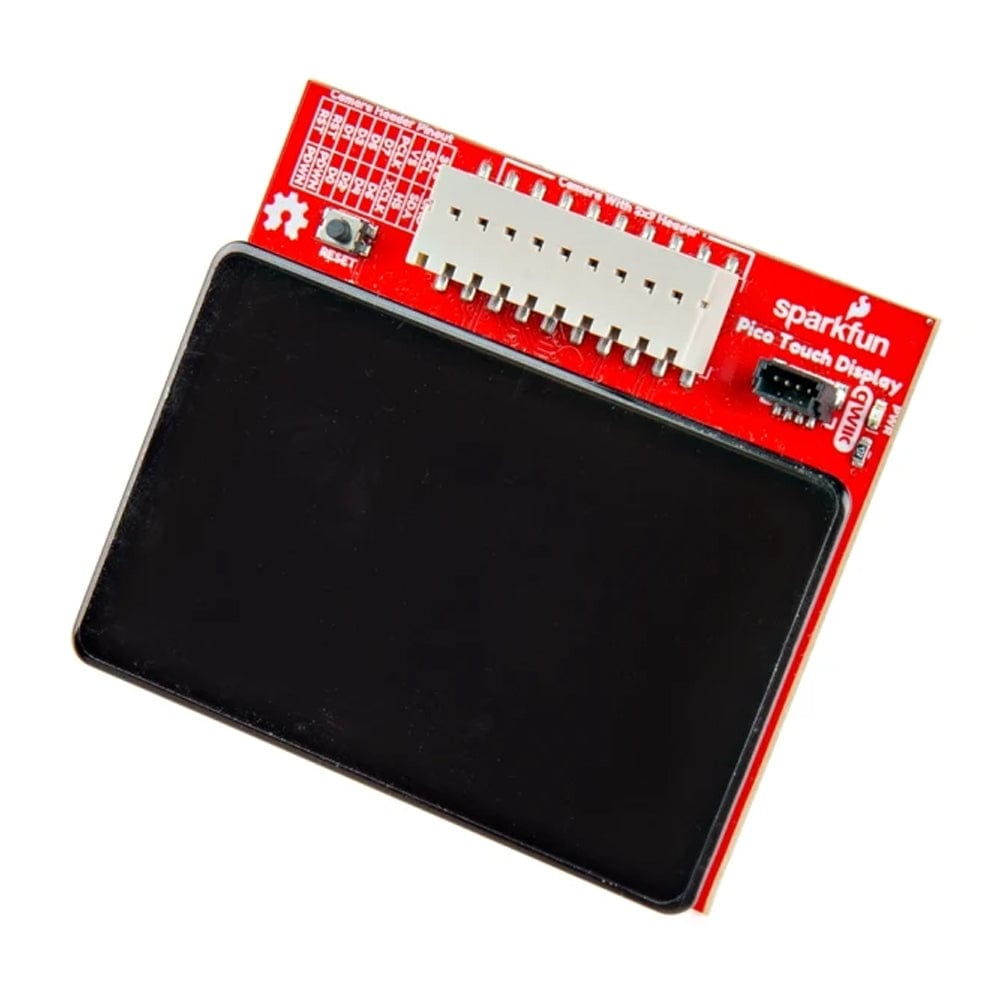

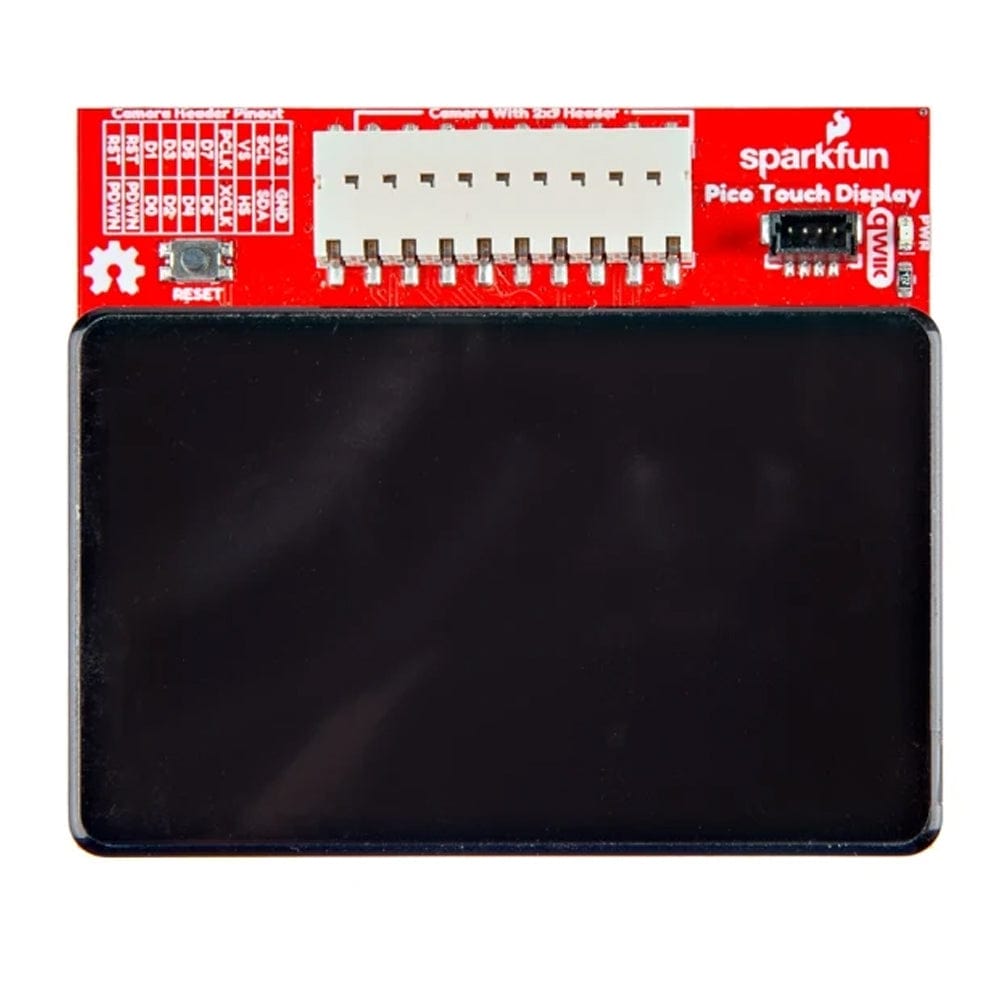

The SparkFun Red Vision Touch Display for Pico features a 2.0", 320x240px capacitive touch LCD mounted on a breakout board designed to plug directly into the Control Board on the Experiential Robotics Platform (XRP) Kit, as well as Raspberry Pi Picos. This display board includes a connector specifically designed to allow you to plug the SparkFun Red Vision Camera Board - HM01B0 (Colour) (or other camera breakout boards that use the 2x9 connector format). Both of these boards work with the SparkFun Red Vision code package, a MicroPython port of the OpenCV library, so you can add image processing, object detection, contour detection, and other advanced machine vision and display features to your XRP robot. The SparkFun Red Vision Kit for XRP contains both the display board as well as a camera board with headers for users who want to use both boards on their XRP robot with no soldering required.

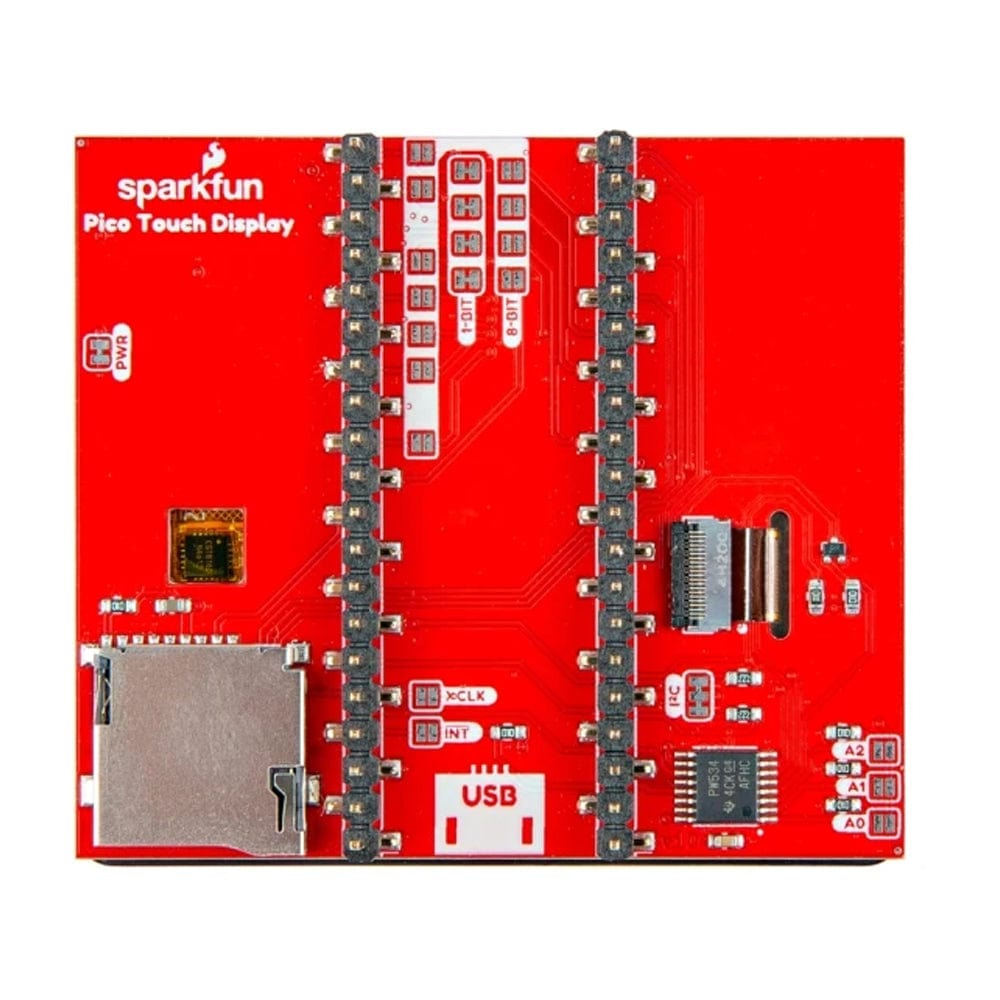

The Touch Display board comes with a pair of 1x20 headers to plug into the XRP Control Board, an SD card connector for memory expansion, and a Qwiic connector to connect other Qwiic devices directly to the display board. The board uses an I/O expander to control I/O pins on the display, camera, and SD card over I2C.
The board also includes two sets of configuration solder jumpers for running a connected camera in either 1-bit mode (Default) or 8-bit mode.
