SparkFun Qwiic Haptic Driver - DA7280

SparkfunSKU: ROB-17590
Price:
Sale price £15.60
incl. VAT
excl. VAT
Stock:
Only 4 units left
Quantity:

Awesome Extras

SparkFun Qwiic Cable Kit - The Pi HutSparkFun Qwiic Cable Kit - The Pi Hut
SparkfunSparkFun Qwiic Cable Kit
Sale price £8.80 incl. VAT excl. VAT
SparkFun Qwiic pHAT Extension for Raspberry Pi 400 - The Pi HutSparkFun Qwiic pHAT Extension for Raspberry Pi 400 - The Pi Hut
SparkfunSparkFun Qwiic pHAT Extension for Raspberry Pi 400
Sale price £6.60 incl. VAT excl. VAT
STEMMA QT / Qwiic Compatible JST-SH 4-Pin Cable (50mm) - The Pi HutSTEMMA QT / Qwiic Compatible JST-SH 4-Pin Cable (50mm) - The Pi Hut

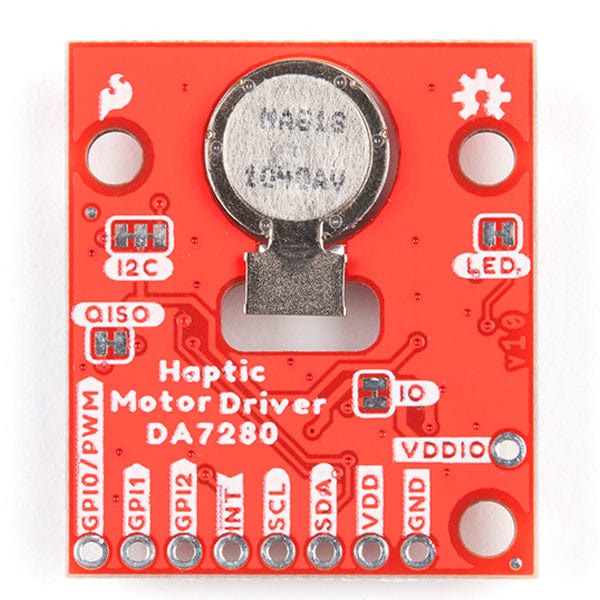

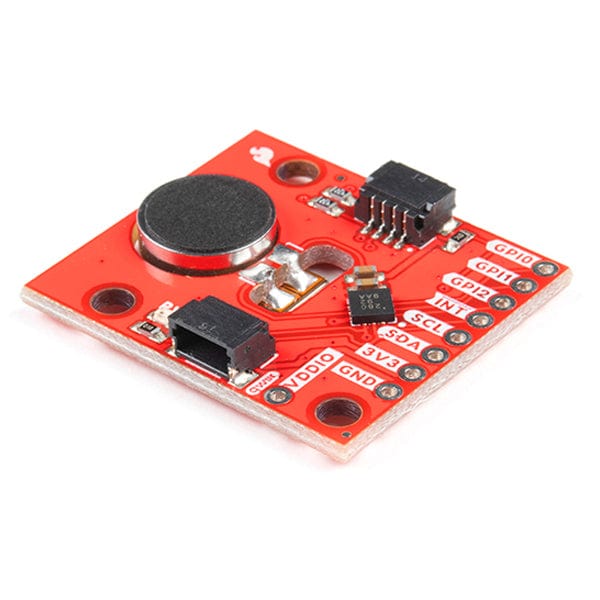

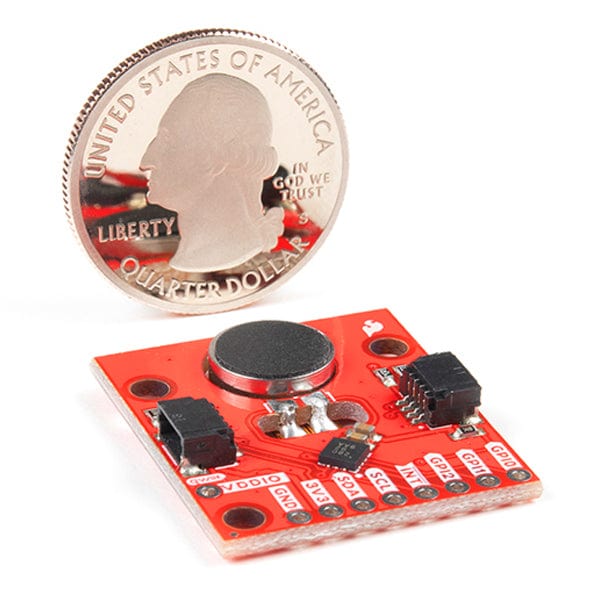

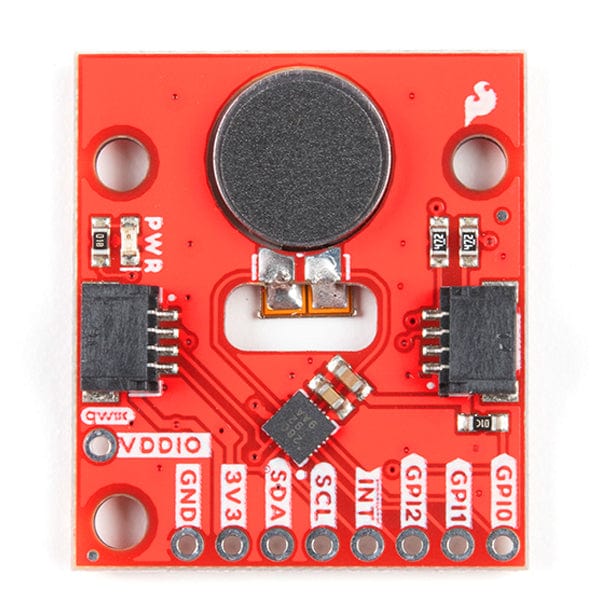

The SparkFun Qwiic Haptic Driver includes an itty-bitty, Linear Resonant Actuator (LRA) vibration motor and Dialog Semiconductor's DA7280 motor driver IC for applications that require haptic feedback.

Control the vibration motor with the DA7280 via I2C, PWM, or a combination of three general-purpose input pins. Utilizing our handy Qwiic system, no soldering is required to connect it to the rest of your system. However, we still include 0.1"-spaced PTH pads in case you prefer to use a breadboard to access the driver's I2C, power, interrupt, and general-purpose input pins on the edge of the board.

This board is great for projects that require a physical indicator whenever an event is triggered. Add it to your remote control to notify you when your robot has hit a wall. Combine it with an accelerometer to remind you to correct your posture. Or use it with a distance sensor to alert you when a ninja is walking up to you at your desk.

Get Started with the Sparkfun Qwiic Haptic Driver Guide

Features

  • 2x Qwiic Connection Ports
  • 1x Built-in LRA Vibration Motor
