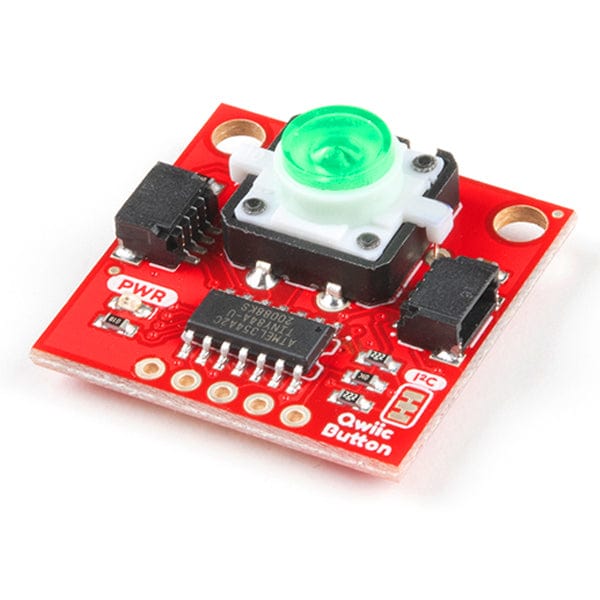

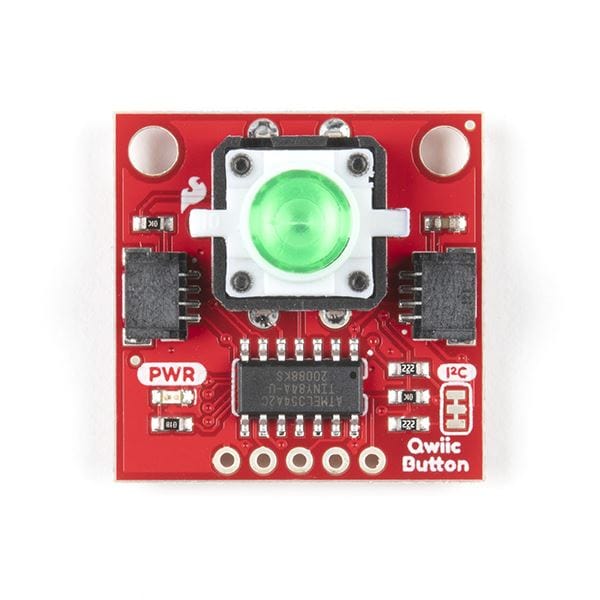

SparkFun Qwiic Button - Green LED

Buttons are an easy and tactile way to interface with your project, but why would you want to deal with debouncing, polling, and wiring up pull-up resistors? The Qwiic Button with built-in green LED simplifies all of those nasty worries away into an easy to use I²C device! Utilizing our Qwiic Connect System, using the button is as simple as connecting a cable and loading up some pre-written code!

If you need multiple buttons for your project, fear not! Each button has a configurable I²C address, so you can daisy-chain multiple buttons over Qwiic and still address each one individually. We've got an example in our Arduino library that provides a super-easy way to configure your Qwiic Button to whatever I²C address you desire. You can download the library through the Arduino library manager by searching 'SparkFun Qwiic Button' or you can get the GitHub repo as a .zip file and install the library from there.

In addition to handling blinking and debouncing, the Qwiic Button has configurable interrupts that can be configured to activate upon a button press or click. We've also taken the liberty of implementing a FIFO queue onboard the Qwiic Button where it keeps an internal record of when the button was pressed. This means that code on your microcontroller need not waste valuable processing time checking the status of the button but instead can run a small function whenever the button is pressed or clicked! For more information on interrupts check out our guide here!

Get Started with the Sparkfun Qwiic Button Guide

Features

• 12mm Green LED Button rated for 50mA
• Built-in LED can be configured for your desired level of blinkiness!
• Each button has a configurable I²C address
• Configurable interrupts - check out our guide here!
• FIFO queue

Resources

• Schematic
• Eagle Files
• Board Dimensions
• Hookup Guide
• Arduino Library
• Python Package
• Register Map
• GitHub Hardware Repo
