Dualband GNSS, built for real-world conditions. The SparkFun DAN-F10N breakout uses the u-blox F10 engine to track L1 and L5 bands simultaneously, cutting through signal noise for solid, meter-level accuracy—even in tough urban environments.
The SparkFun DAN-F10N Dualband GNSS Breakout is built around the powerful u-blox F10 engine, offering simultaneous reception of L1 and L5 frequency bands. This board leverages u-blox's advanced multipath mitigation technology to isolate the strongest signals, delivering reliable, meter-level position accuracy even in dense urban canyons. To ensure signal integrity, the module incorporates a robust SAW-LNA-SAW RF front-end with an additional notch filter (LTE B13), providing excellent rejection of interference from nearby cellular modems.

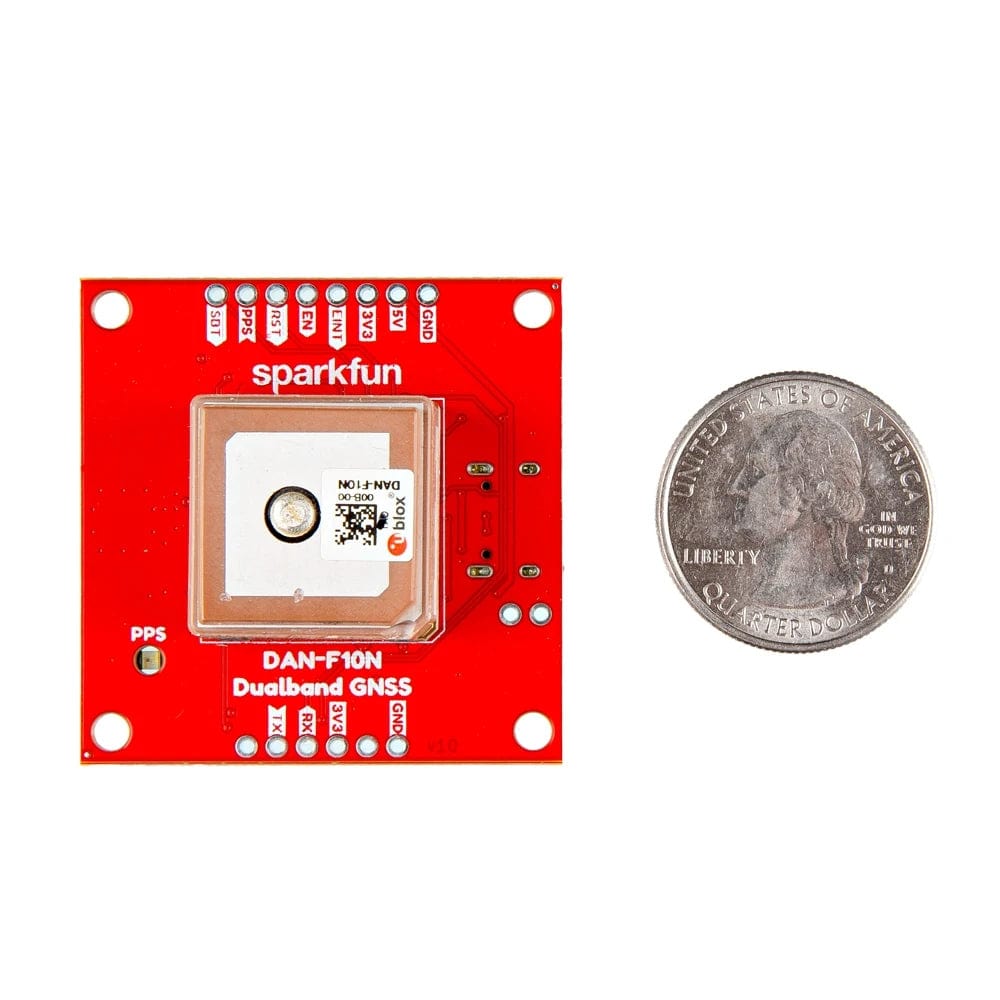

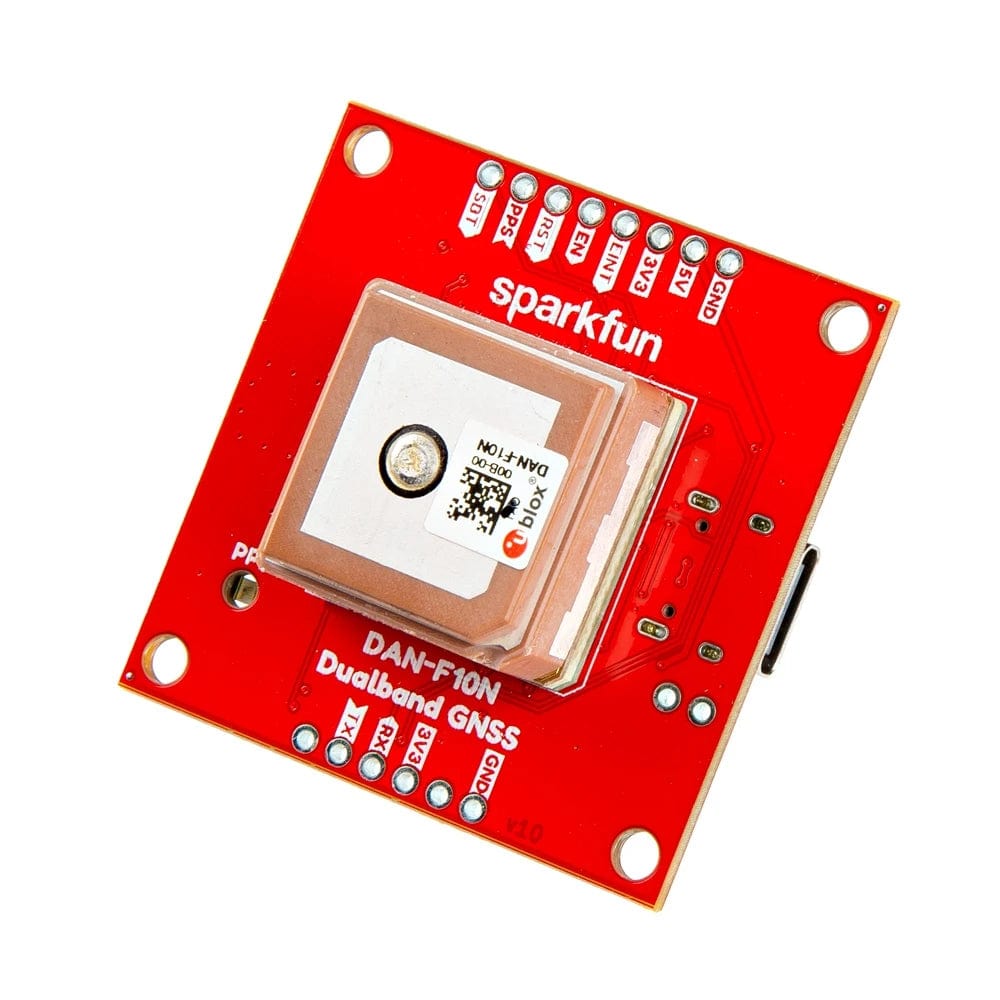

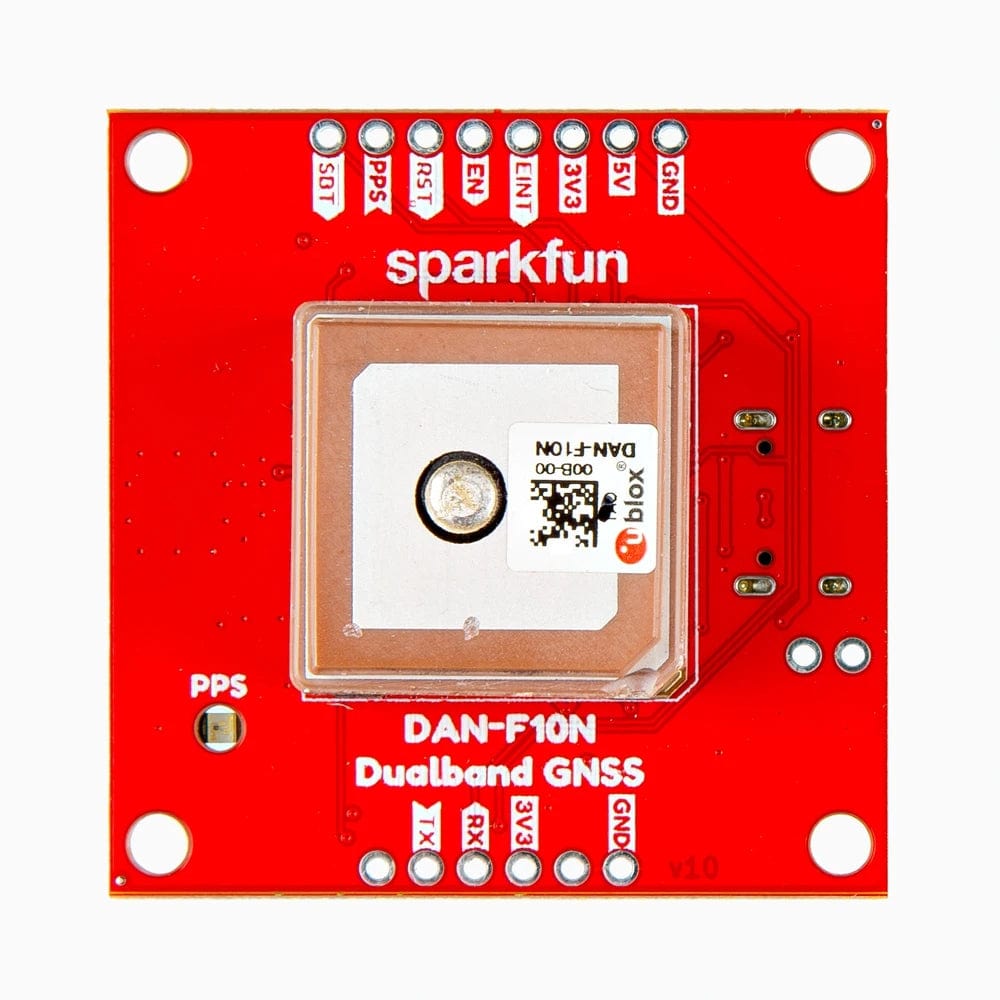

This breakout features a compact, integrated 20mm x 20mm x 8mm Right-Hand Circular Polarised (RHCP) dual-band patch antenna, offering a great balance of size and performance. Its wide beamwidth allows for flexible device orientation. For even greater utility, an onboard switch will enable you to easily connect an external dual-band antenna.
The DAN-F10N is fully supported by the u-blox u-center-2 software for configuration, data logging, and real-time performance analysis. It is also compatible with AssistNow (Online, Offline, and Autonomous) A-GNSS services for significantly faster satellite acquisition. You can interface with the module using the standard NMEA 4.11 and UBX binary protocols.
Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within the United Kingdom. With this item in your cart your shipping options will be limited and may cost more than our usual rates. Why?
Features
SparkFun Dualband L1/L5 GNSS Breakout - DAN-F10N Features
u-blox DAN-F10N GNSS module
Concurrent signal reception: 5 + QZSS
L1andL5frequency bands
GNSS Constellations:
GPS (USA)
Galileo (EU)
BDS (China)
QZSS (Japan)
NavIC (India)
SBAS Systems:
WASS (USA)
EGNOS (EU)
BDSBAS (China)
MSAS (Japan)
GAGAN (India)
KASS (Korea)
SouthPAN (Australian + New Zealand)
Built-in NIC anti-jamming unit

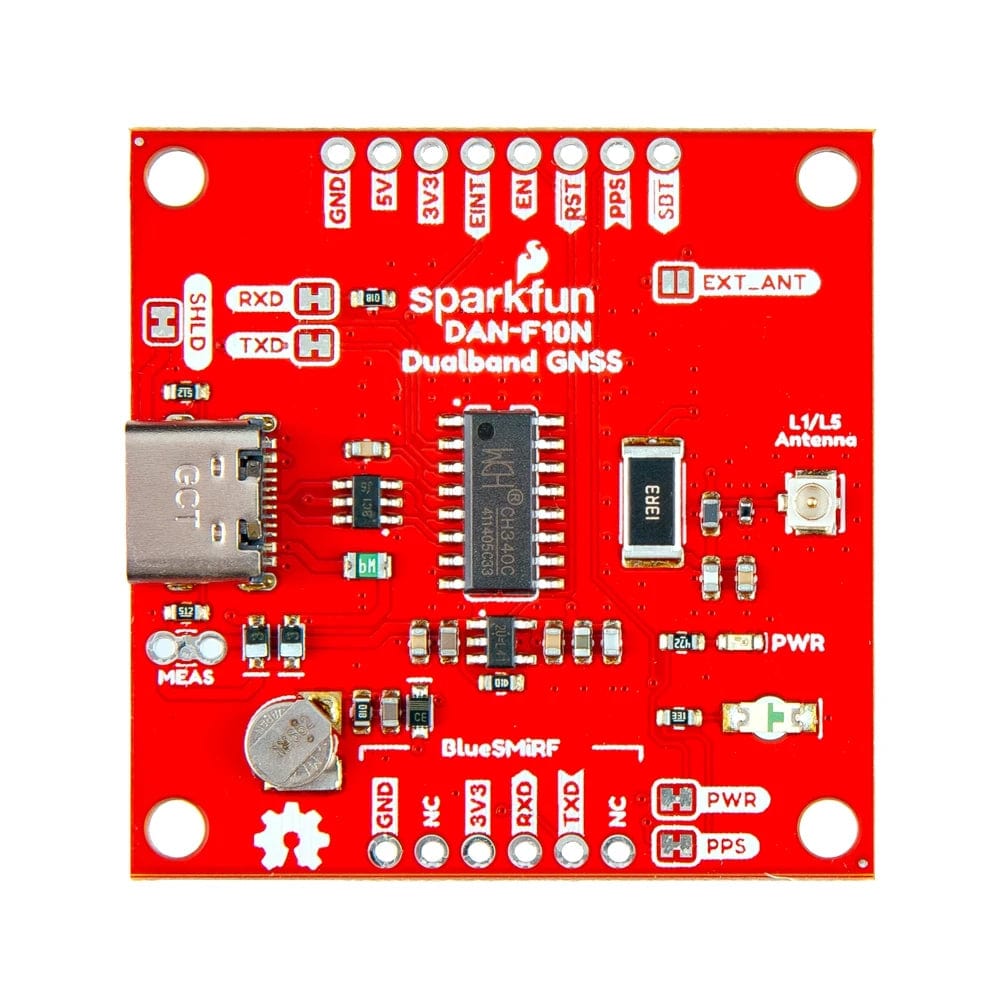

Breakout board:
Dimensions: 1.60" x 1.60" (40.6mm x 40.6mm)
Weight: 0.84oz (23.75g)
Four mounting holes:
4-40 screw compatible
Connections:
14 PTH Pins
UART interfaces (x1)
USB-C connector
6 PTH pins (BlueSMiRF/Serial-to-UART)
LEDs:
PWR- Red 3.3V power indicator
PPS- Green PPS signal indicator
Backup battery (lithium)
DAN-F10N General Features
GNSS receiver
u-blox F10 engine
GPS: L1 C/A, L5
QZSS: L1C/A, L5
Galileo: E1B/C, E5a
BeiDou: B1C, B2a
NavIC: L5
SBAS: L1 C/A, L1S, L1Sb, B1C
Sensitivity
Tracking & Navigation: -164dBm
Reacquisition: -156dBm
Cold start: -145dBm
Hot start: -156dBm
Update rate: Up to 10Hz
Horizontal position accuracy
1.0m CEP (with SBAS)
1.5m CEP (without SBAS)
Acquisition
Cold start: 28s
Aided start: 2s
Reacquisition: 2s
Interfaces
1x UART
Digital I/O
Configurable timepulse (0.25Hz to 10MHz)
EXTINT input for wakeup
JTAG debug interface (disabled by default)
Communication protocol
NMEA: 2.1, 2.3, 4.0, 4.10, 4.11 (default)
UBX binary
RTCM v3.4
SPARTN v2.0.2
Security
RF interference and jamming detection/reporting
Spoofing detection/reporting
Secure boot for firmware integrity
Signed UBX messages (SHA-256
Misc
Antenna switch function
Supports external active antenna (optional)
Integrated RTC crystal and TCXO
Power
Power supply: 2.7V to 3.6V
Backup supply: 1.65V to 3.6V
Power consumption: 63 mW (continuous tracking, 3V)
