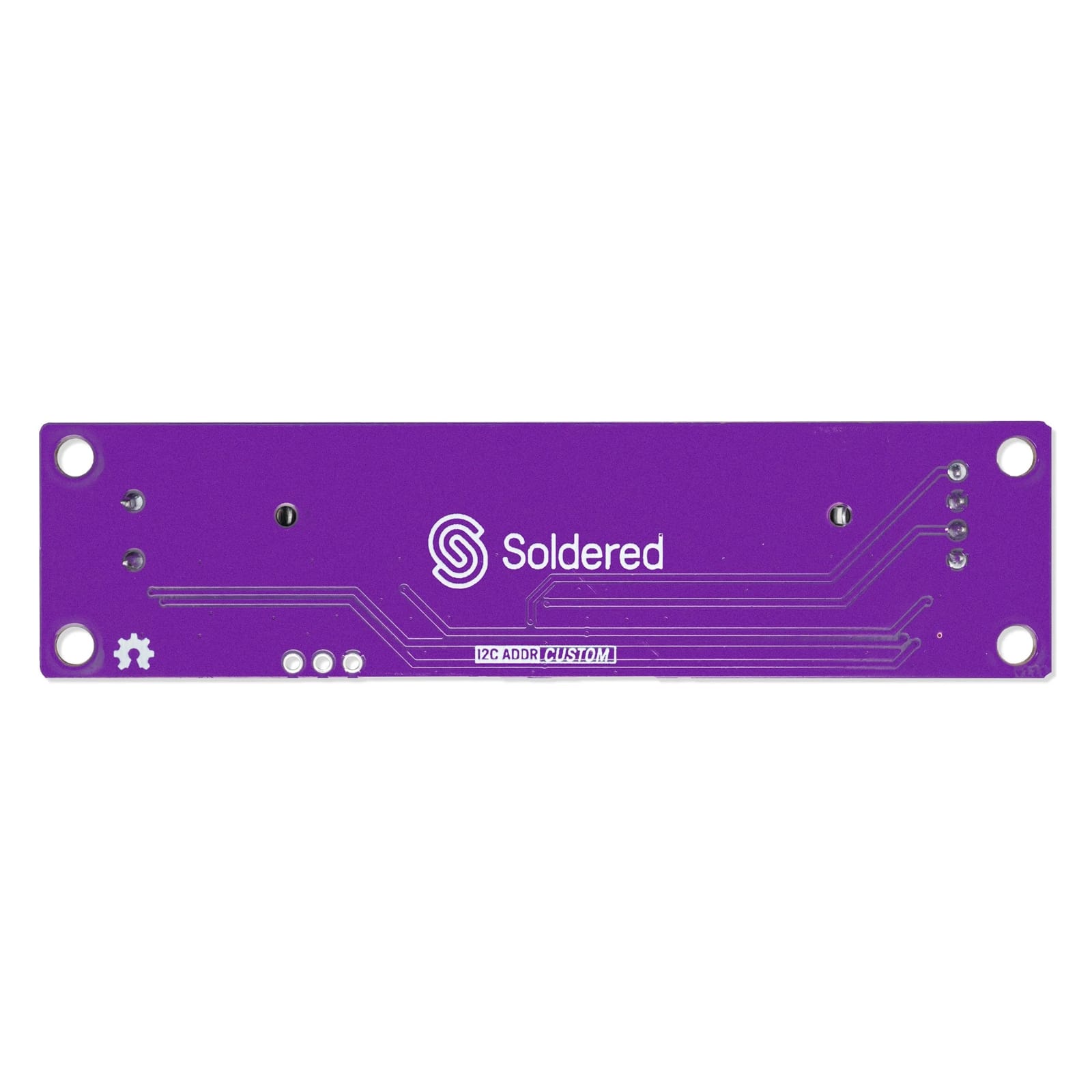

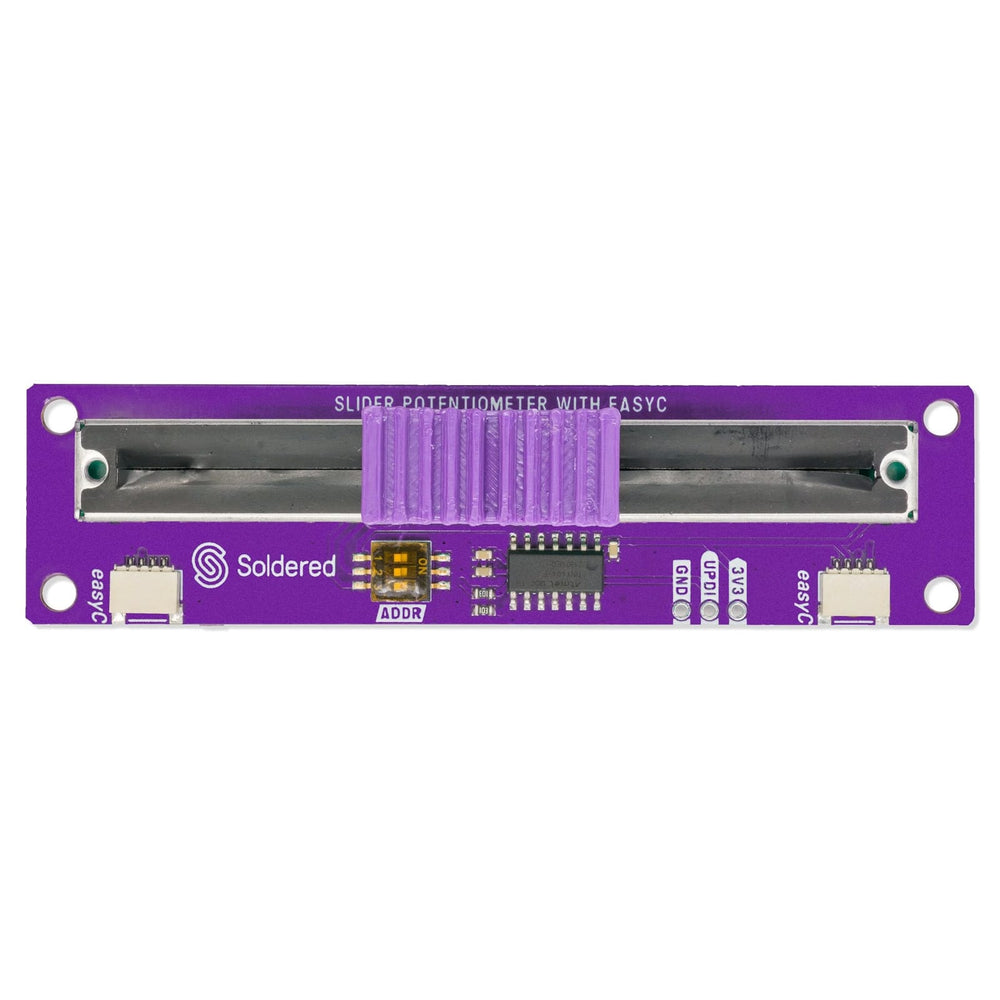

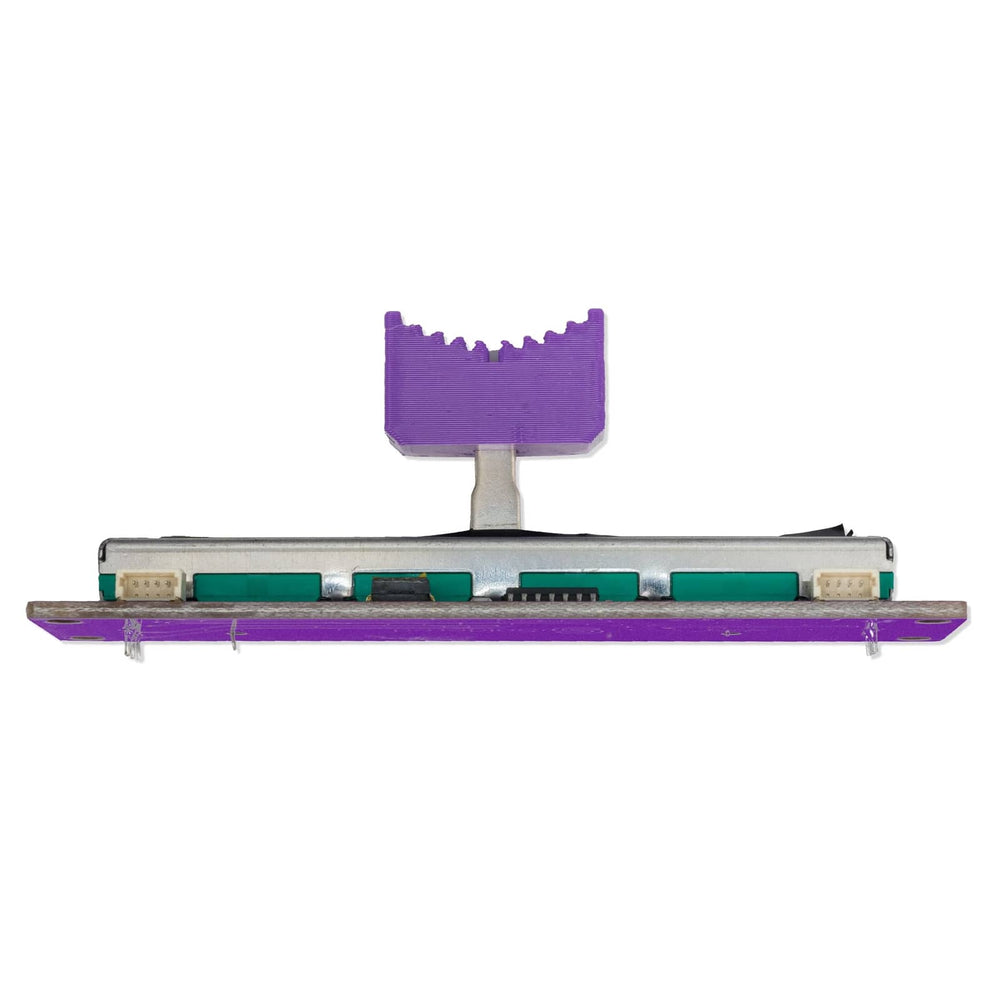

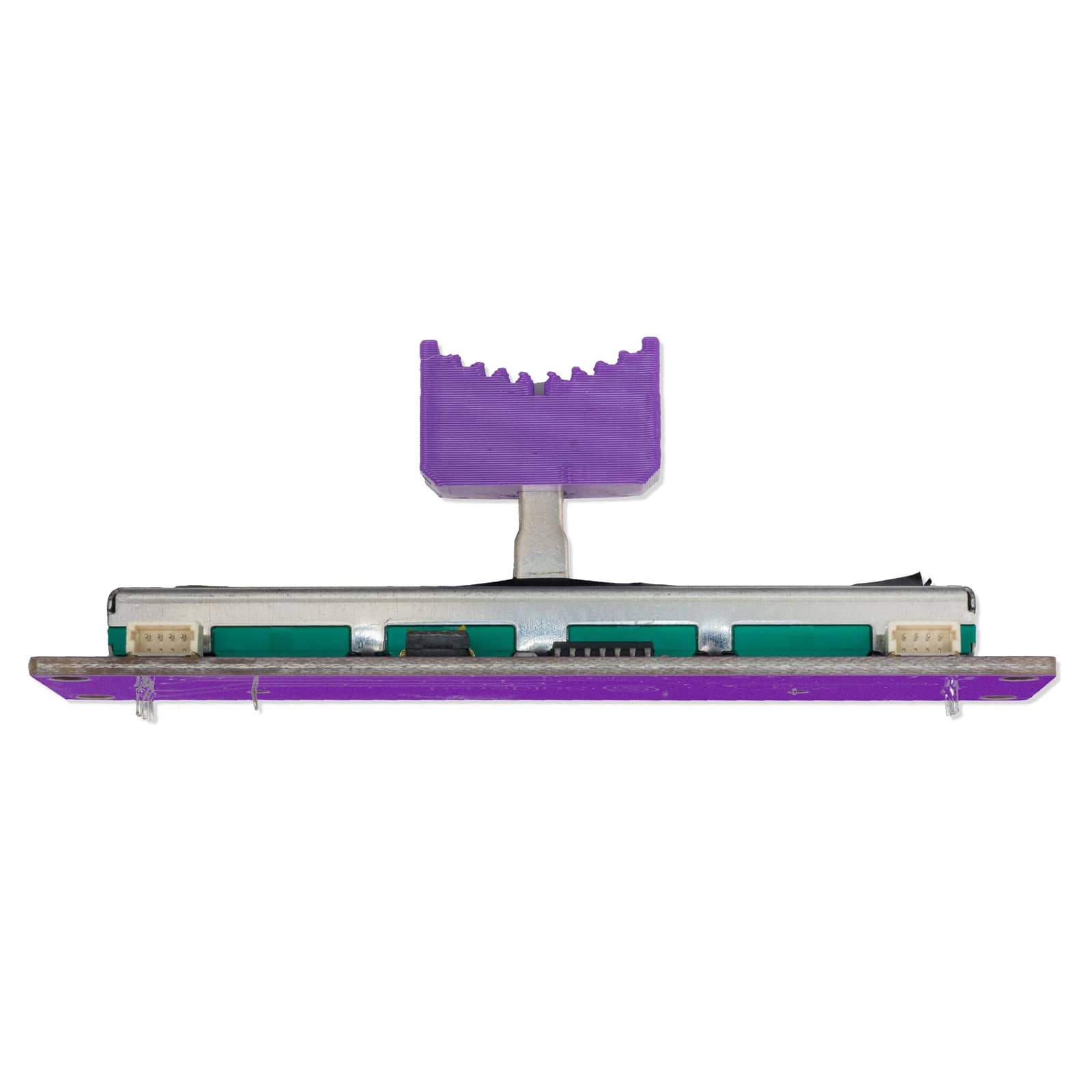

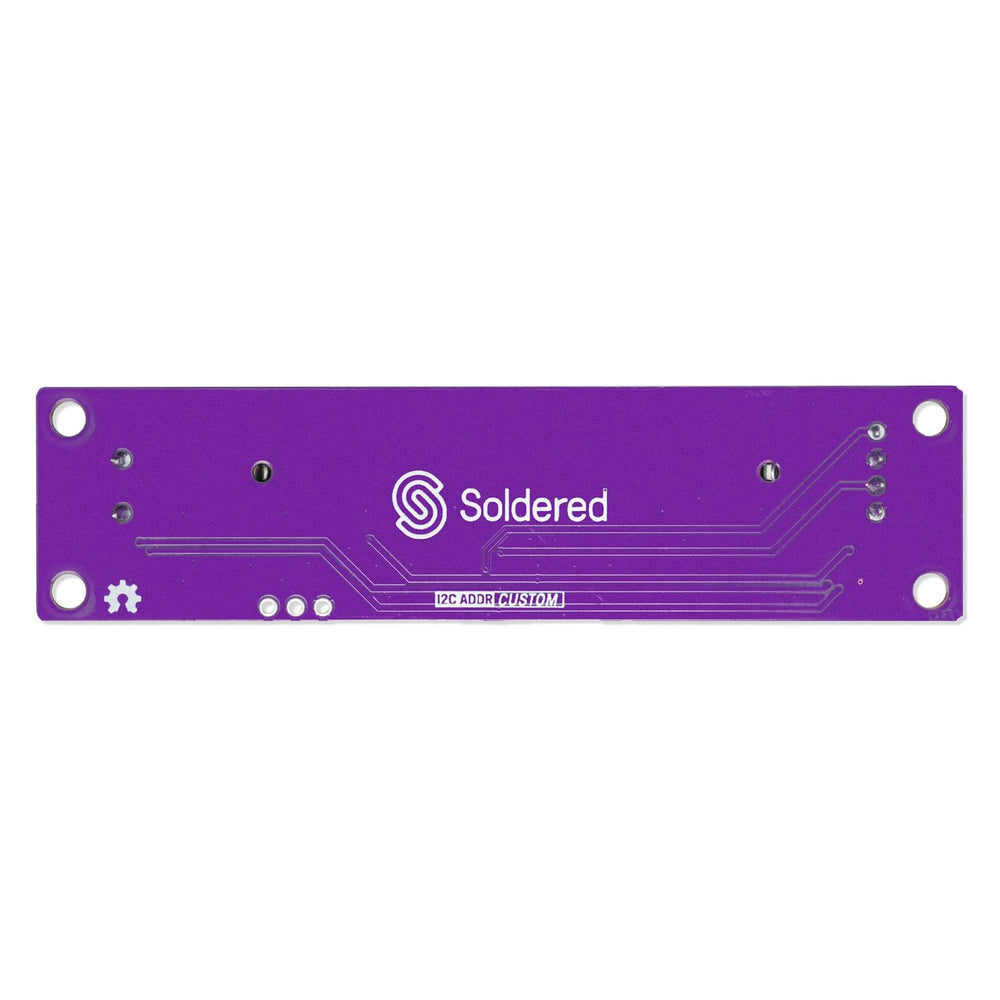

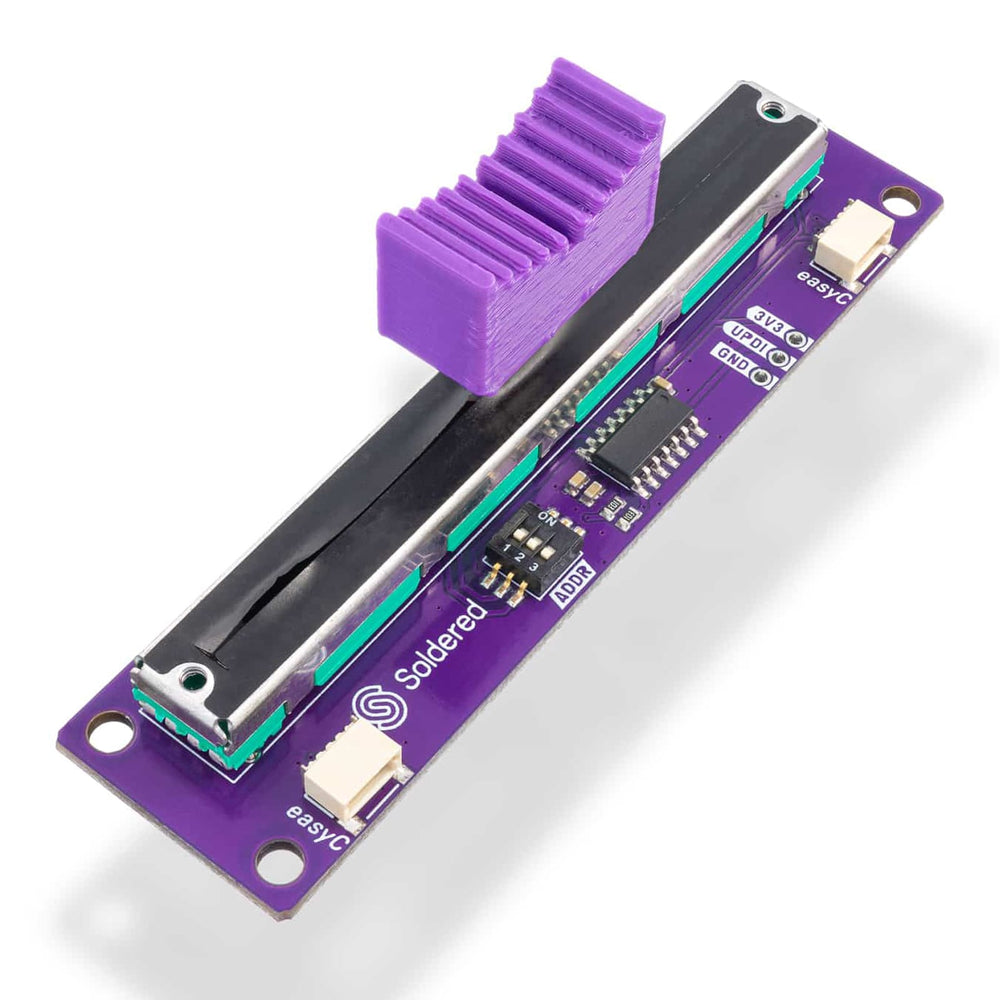

Slider Potentiometer Breakout with Qwiic

The Qwiic Sliding Potentiometer Breakout provides smooth, linear analogue input over Qwiic, making it ideal for controlling volume, brightness, motor speed, and other adjustable settings without soldering.

Potentiometers are well known all around, and the sliding potentiometer is just one of its versions. You've probably seen it in some music equipment, and now you have the chance to add it to your project!

This board has Qwiic connectors. Thanks to Qwiic ecosystem, this board can be connected using off-the-shelf cables, without soldering. Controlling this is as simple as it gets!

View our full range of Soldered Electronics products here.

Features

• Sliding potentiometer module with Qwiic connector
• No soldering required - uses standard Qwiic cables
• Compatible with Qwiic ecosystem
• Simple control and integration
• Suitable for music equipment and electronic projects
• Easy-to-use analogue input control

Specifications

• Type: linear
• Resistance: 10k
• Dimensions: 86 x 22 mm
• Comes with 2 Qwiic connectors

Resources

• Full product documentation
• Pinout drawing
• Hardware details
• Arduino library documentation
• Getting started with Arduino
• Arduino library

Package Contents

• 1x Slider Potentiometer Breakout with Qwiic
