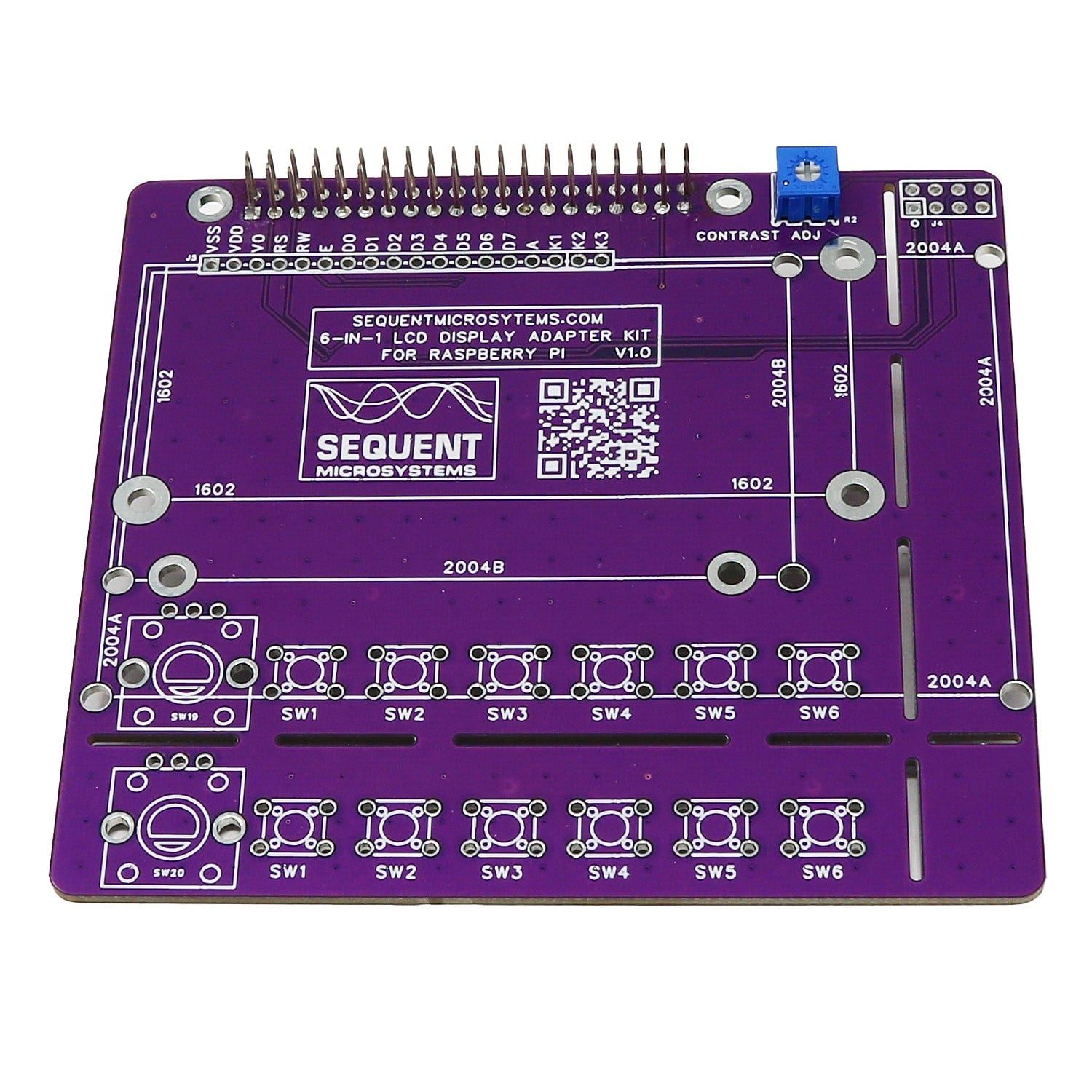

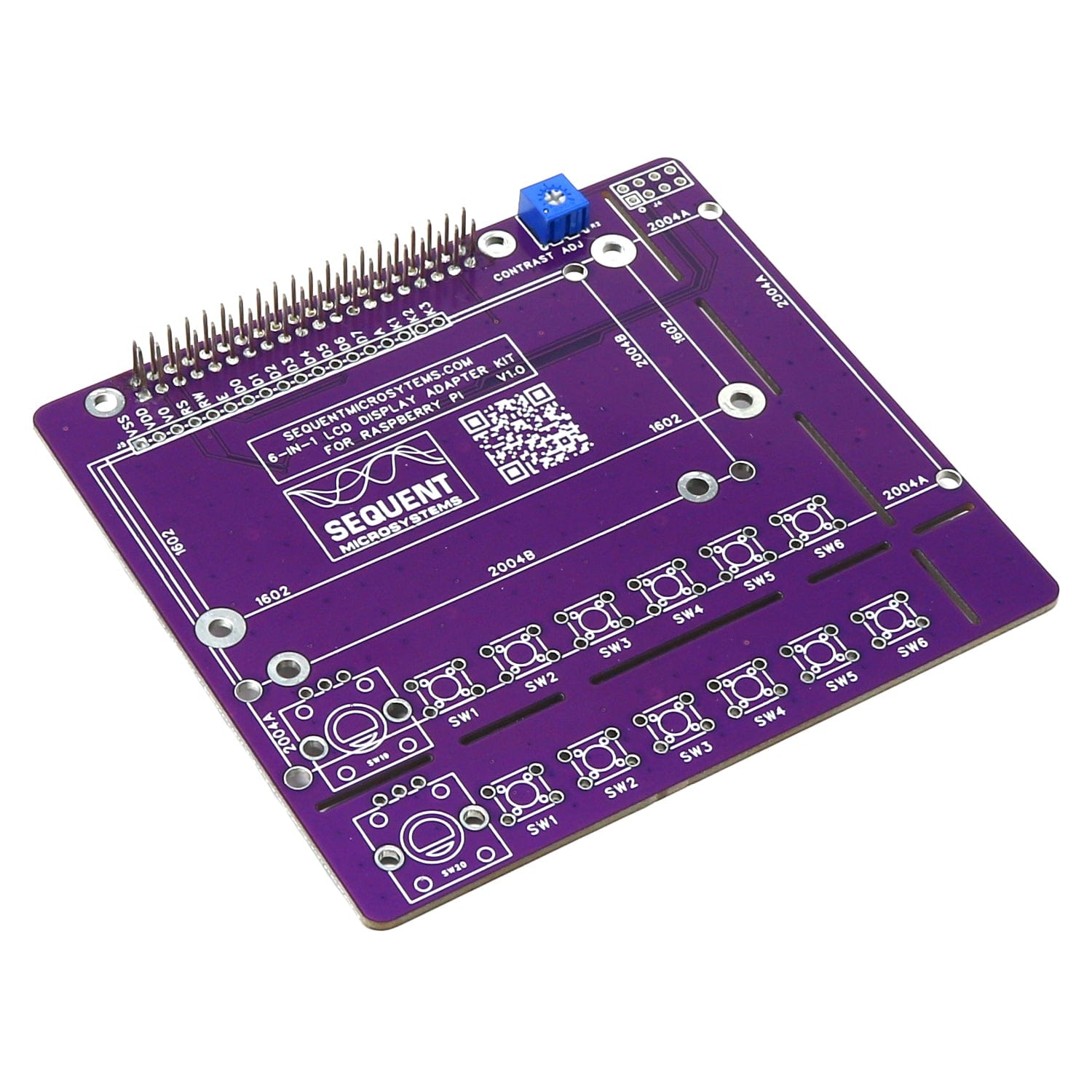

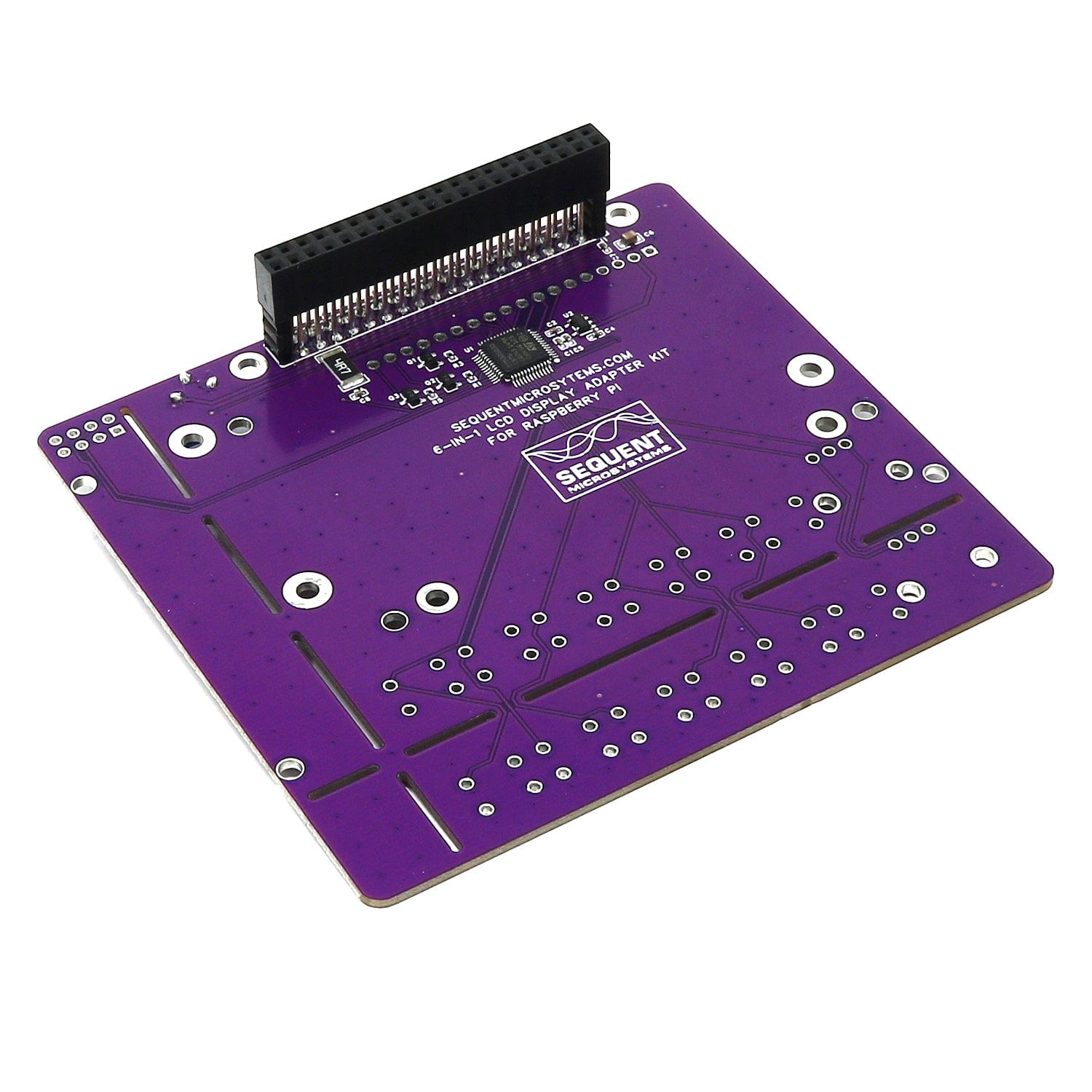

Six-in-one LCD Adapter Kit for Raspberry Pi

SequentSKU: 105528
Price:
Sale price £25.20
incl. VAT
excl. VAT
Stock:
Only 16 units left
Quantity:

Compatible with:

Awesome Extras

Raspberry PiRaspberry Pi 5
Sale priceFrom £57.60 incl. VAT excl. VAT

This LCD Adapter Kit for Raspberry Pi is a simple yet effective solution for displaying information on different projects. It's compatible with Raspberry Pi models that have an HDMI port and is useful for a project that requires a clear data display. This kit includes the use of two types of LCDs. The LCD1602, small at 80mm by 36mm, shows 2 lines of 16 characters. The larger LCD2004 comes in two sizes and displays 4 lines of 20 characters. Both types are available with monochrome or RGB backlit options, offering clear visibility or colourful displays.

All display variants use a 16-pin or 18-pin connector and can be easily controlled through a single interface. This makes the kit user-friendly and versatile for various projects, such as DIY projects, home automation, or educational uses.

Note: Raspberry Pi and LCD displays are NOT included

Features

  • Six-in-one LCD Adapter Kit using 2004 or 1602 LCDs for Raspberry Pi
  • Supports two lines x16 (1602) and four lines x 20 (2004) LCD's
  • Supports 77 x 47mm and 98x60mm four lines LCD's
  • Supports LCDs with monochrome or RGB backlighting
  • LCD display is NOT included
  • On-board 32-bit processor, uses only I2C pins to communicate
  • Rotary Encoder and six pushbuttons for inputs
  • Installs on top of Raspberry Pi or away with a ribbon cable
  • LCD Adapter Raspberry Pi

Resources

Package Contents

  • 1x LCD Display Adapter Kit
  • 2x20 Male-Female Raspberry Pi Tall GPIO Header (Pre-installed)
  • 6x Brass Standoffs
  • 6x Nuts
  • 6x Bolts
  • 1x Rotary Encoder
  • 6x Pushbutton Switches
  • 1x18 Male and Female Pin Headers
