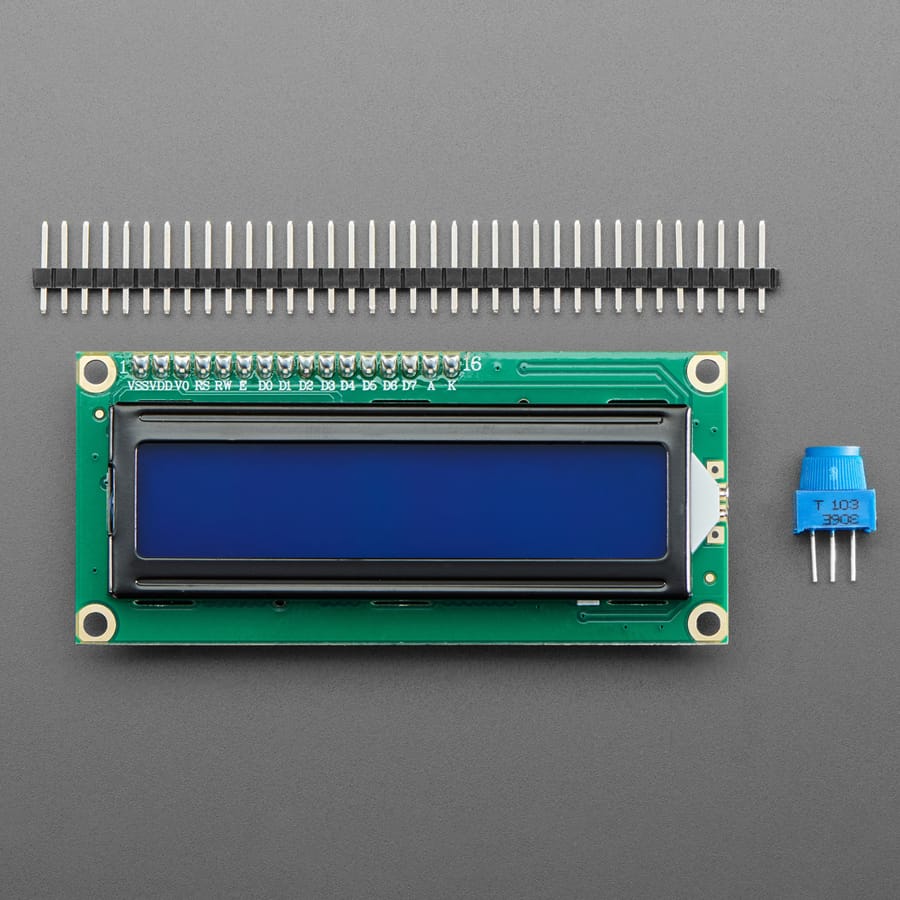

The 16x2 LCD Display with Pre-Soldered Header provides a simple way to add a clear character display to your project, featuring a blue backlit screen, HD44780 compatibility, and breadboard-friendly connections for quick integration.

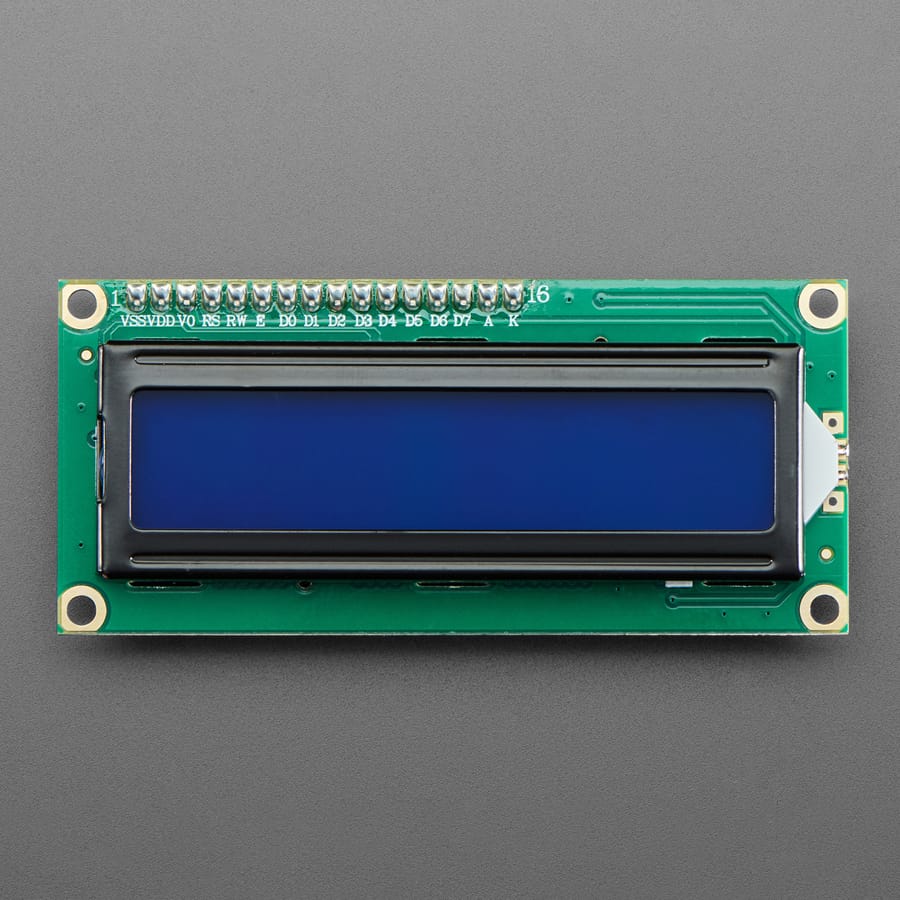

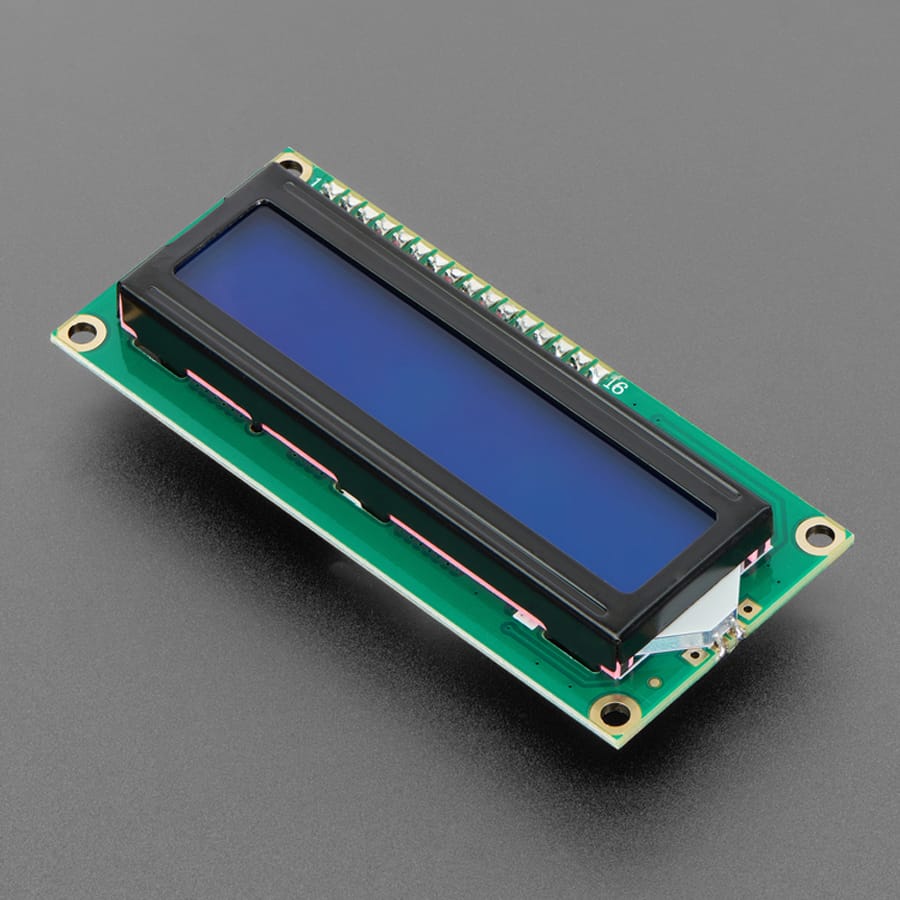

The 16x2 LCD Display with pre-soldered header is an easy-to-use HD44780 compatible character display, ideal for standalone electronics projects.
Featuring 16 characters across 2 rows, a blue background with white text, and a convenient pre-soldered header, it's ready for breadboarding straight out of the box. The display includes a low-power LED backlight, supports custom characters, and can be controlled using as few as six digital I/O pins. A contrast adjustment potentiometer is also included for quick setup.
Features
16 characters wide, 2 rows
White text on blue background
Connection port is 0.1" pitch, single row for easy breadboarding and wiring
Pins are documented on the back of the LCD to assist in wiring it up
Single LED backlight included can be dimmed easily with a resistor or PWM and uses much less power than LCD with EL (electroluminescent) backlights
Can be fully controlled with only 6 digital lines! (Any analogue/digital pins can be used)
Built in character set supports English/Japanese text, see the HD44780 datasheet for the full character set
Up to 8 extra characters can be created for custom glyphs or 'foreign' language support
Comes with necessary contrast potentiometer
Specifications
Screen Dimensions: 24mm x 69mm
Revision History

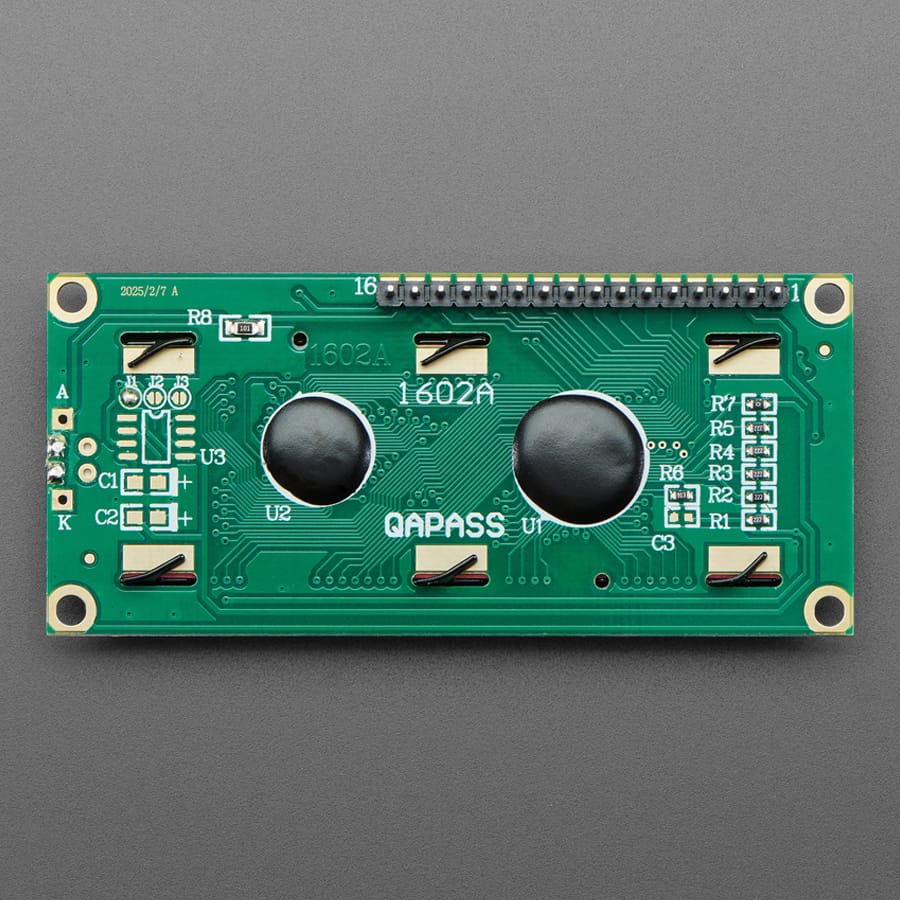

As of Mar 11th, 2025, The PCB has been updated now coming in green.
