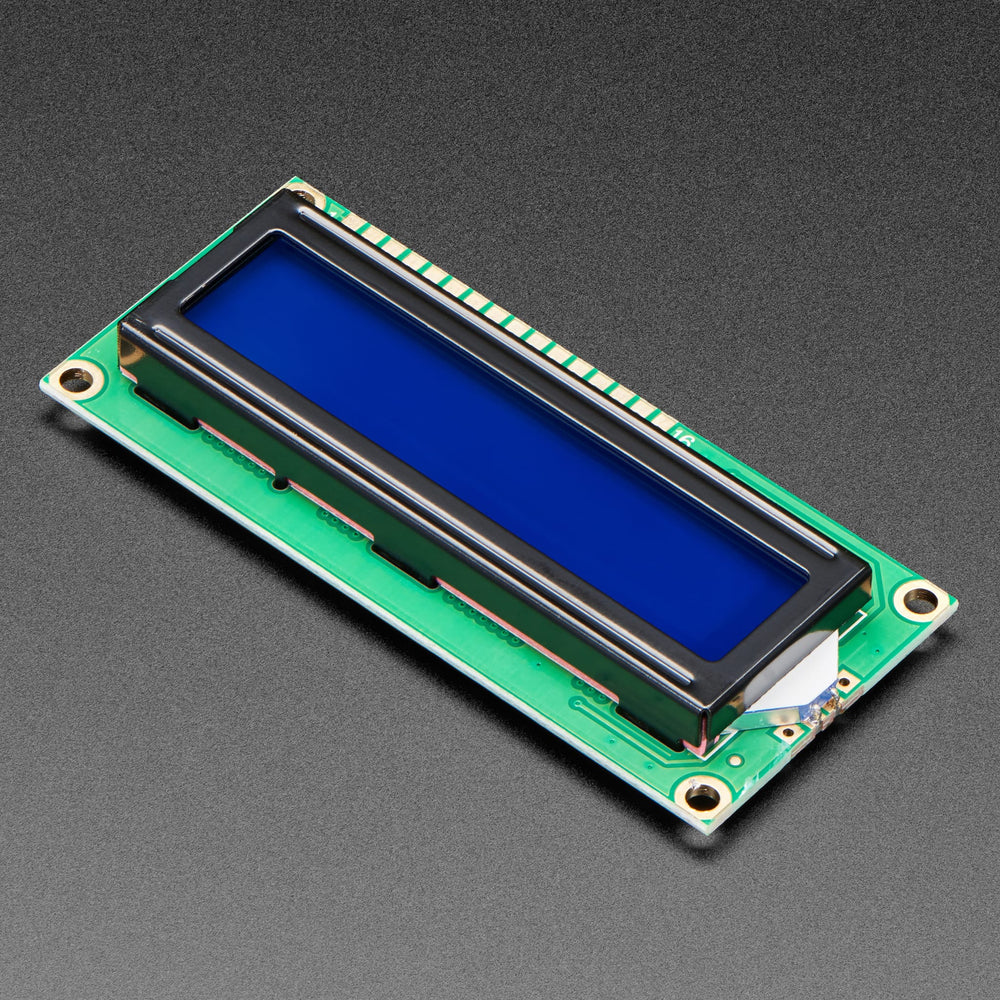

Standard HD44780 LCDs are useful for creating standalone projects.

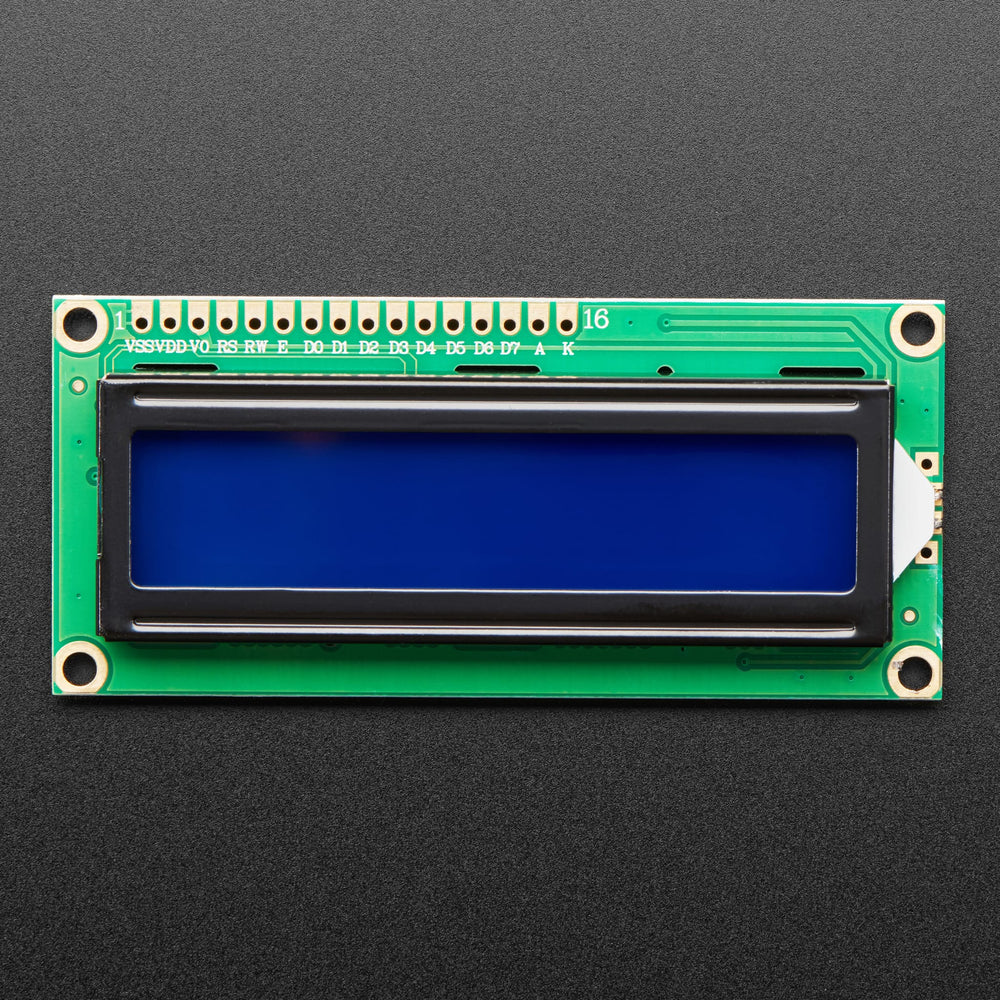

- 16 characters wide, 2 rows
- White text on blue background

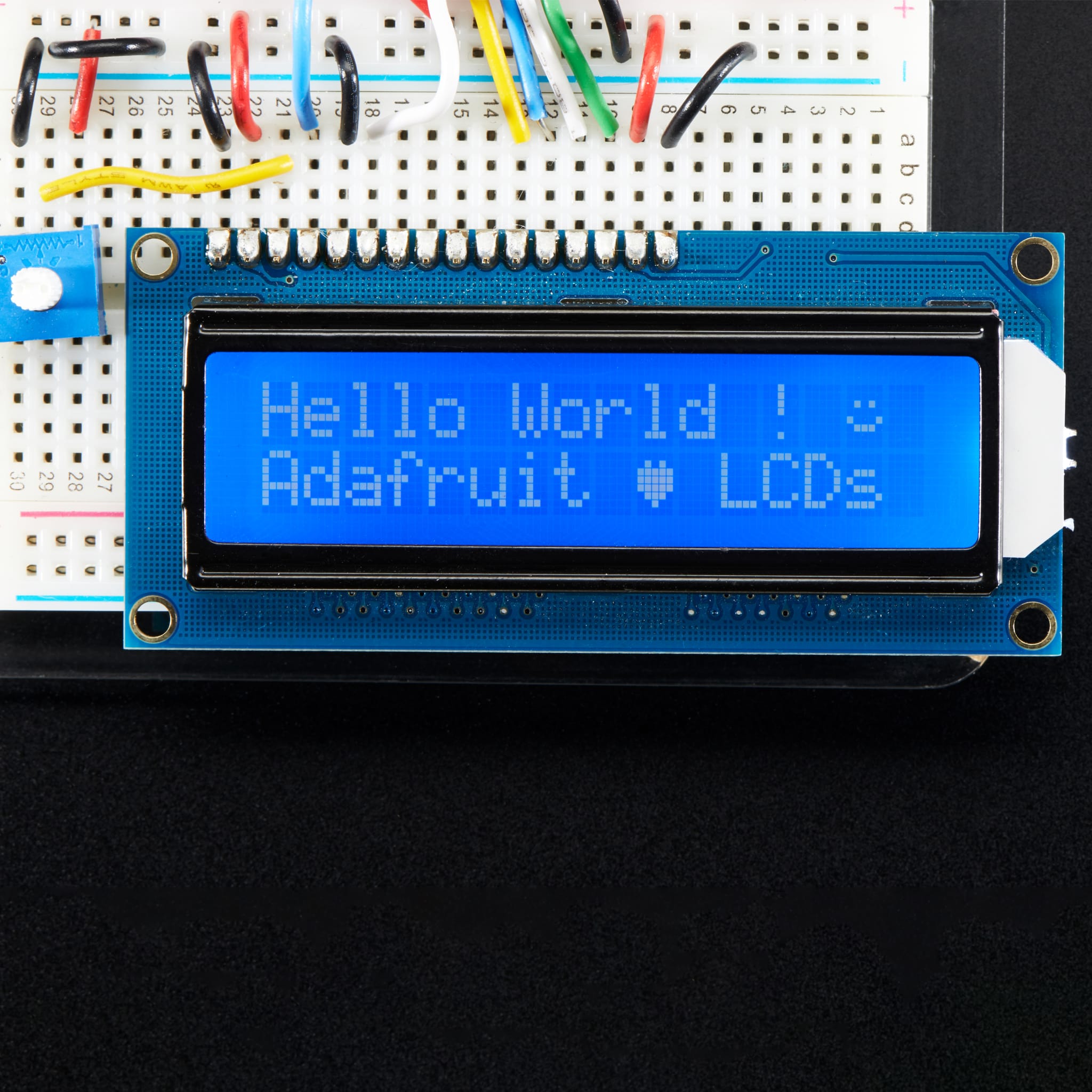

- Connection port is 0.1" pitch, single row for easy breadboarding and wiring

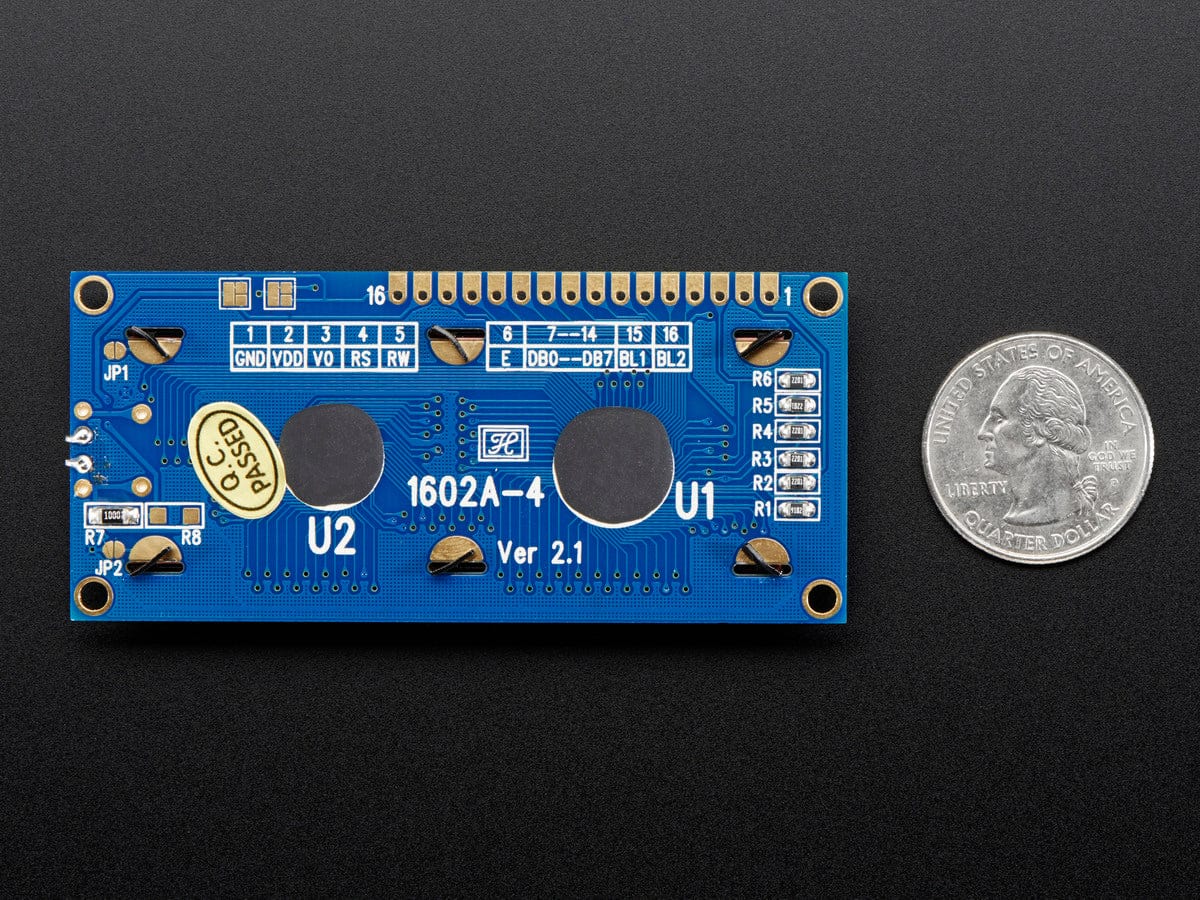

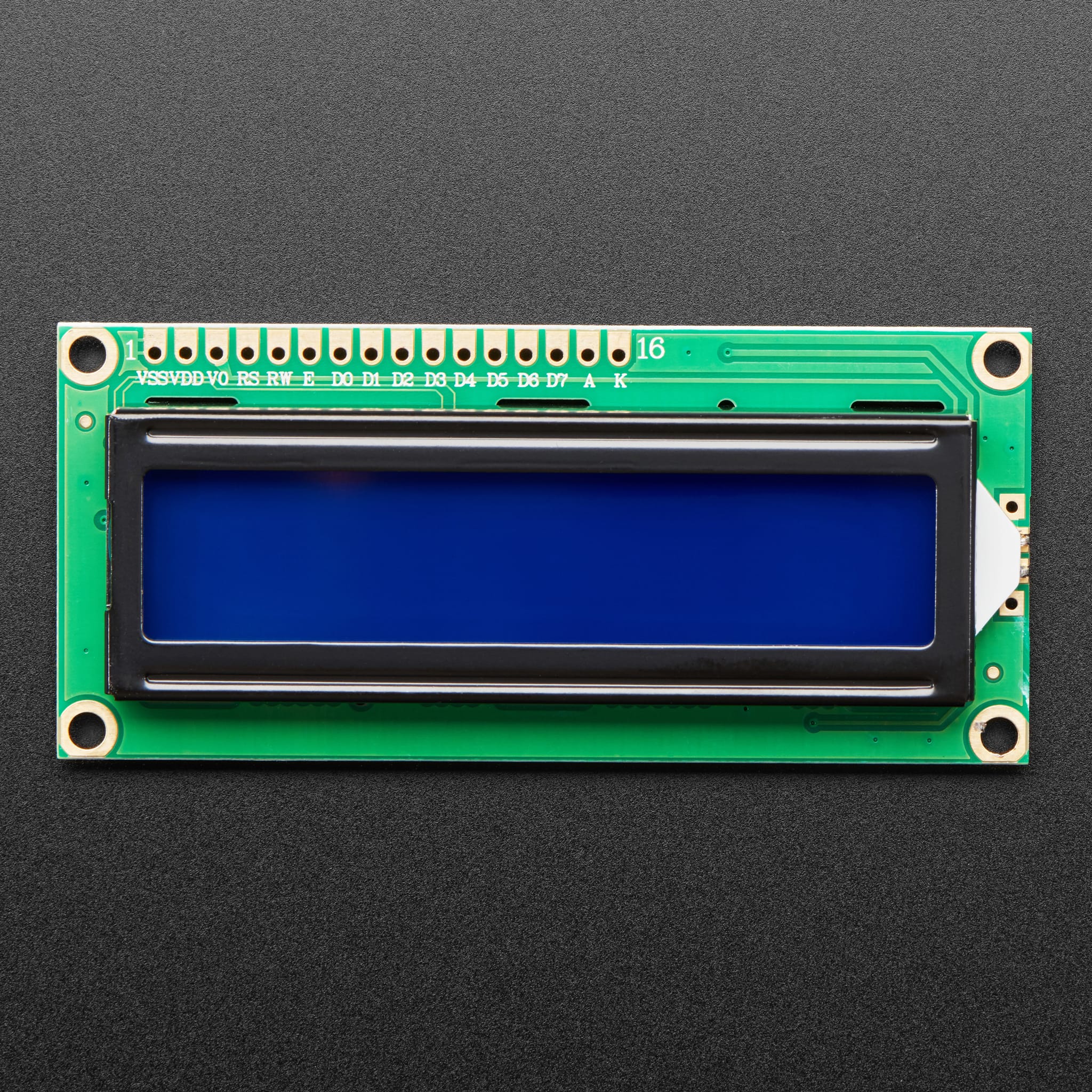

- Pins are documented on the back of the LCD to assist in wiring it up
- Single LED backlight included can be dimmed easily with a resistor or PWM and uses much less power than LCD with EL (electroluminescent) backlights
- Can be fully controlled with only 6 digital lines! (Any analog/digital pins can be used)
- Built in character set supports English/Japanese text, see the HD44780 datasheet for the full character set
- Up to 8 extra characters can be created for custom glyphs or 'foreign' language support

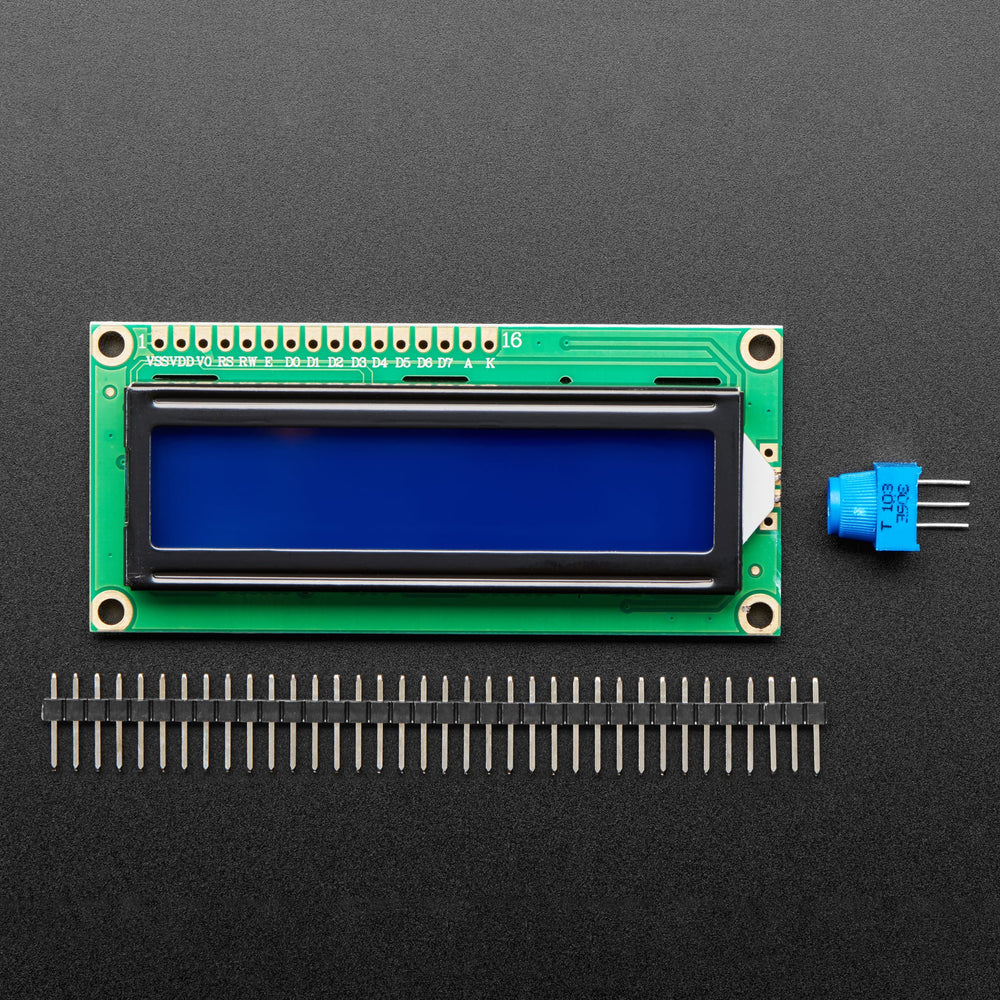

- Comes with necessary contrast potentiometer and strip of header
For more information, check out our detailed step-by-step tutorial for both Arduino & CircuitPython
We have a datasheet that has pin-locations and more plus a HD44780 datasheet with the detailed commands for control
Technical Details

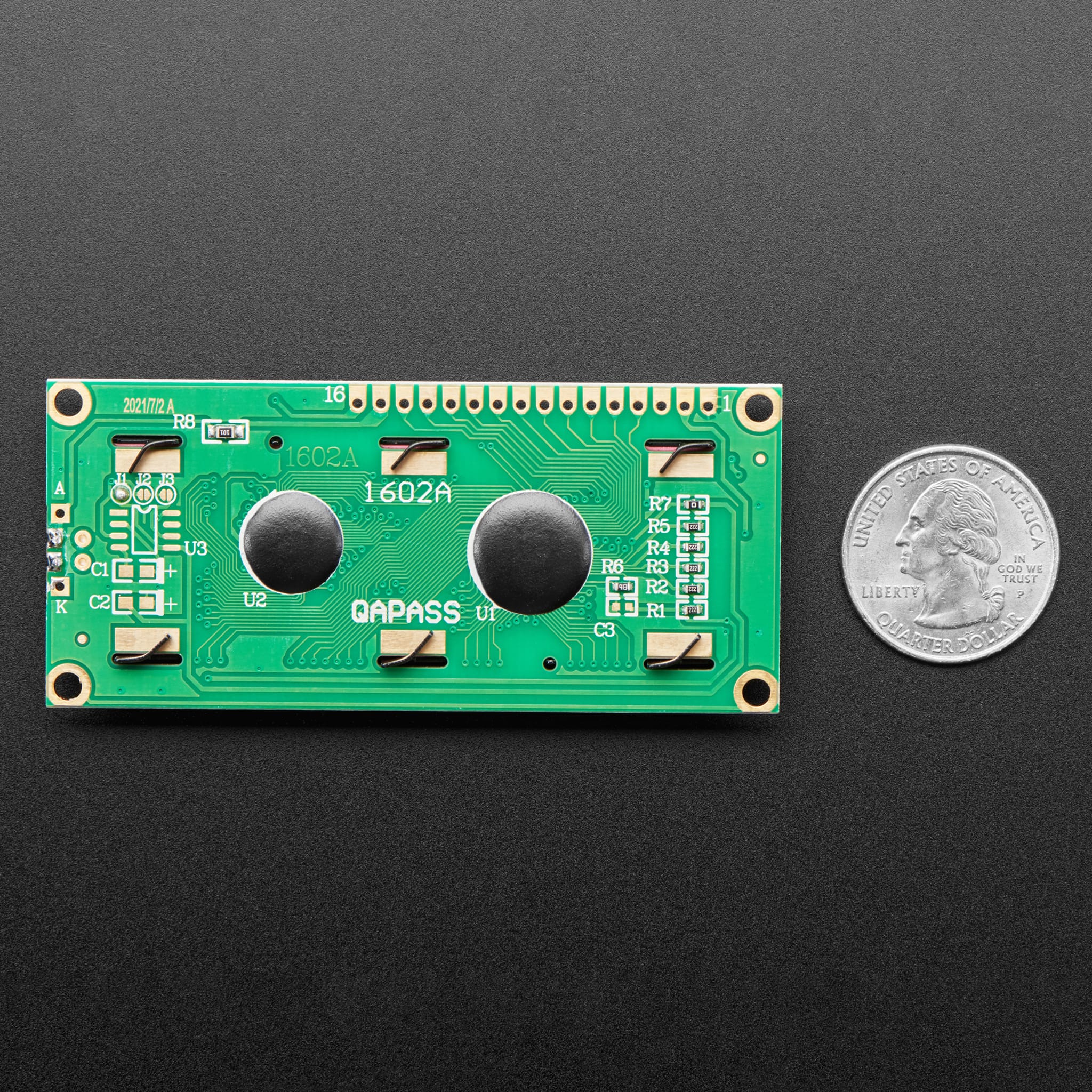

- PCB Dimensions: 36mm x 80.6mm x 1mm / 1.4" x 3.2" x 0.04"
- Screen Dimensions: 24mm x 69mm / 0.9" x 2.7"
- Height (pcb+screen): 8.4mm / 0.33"
