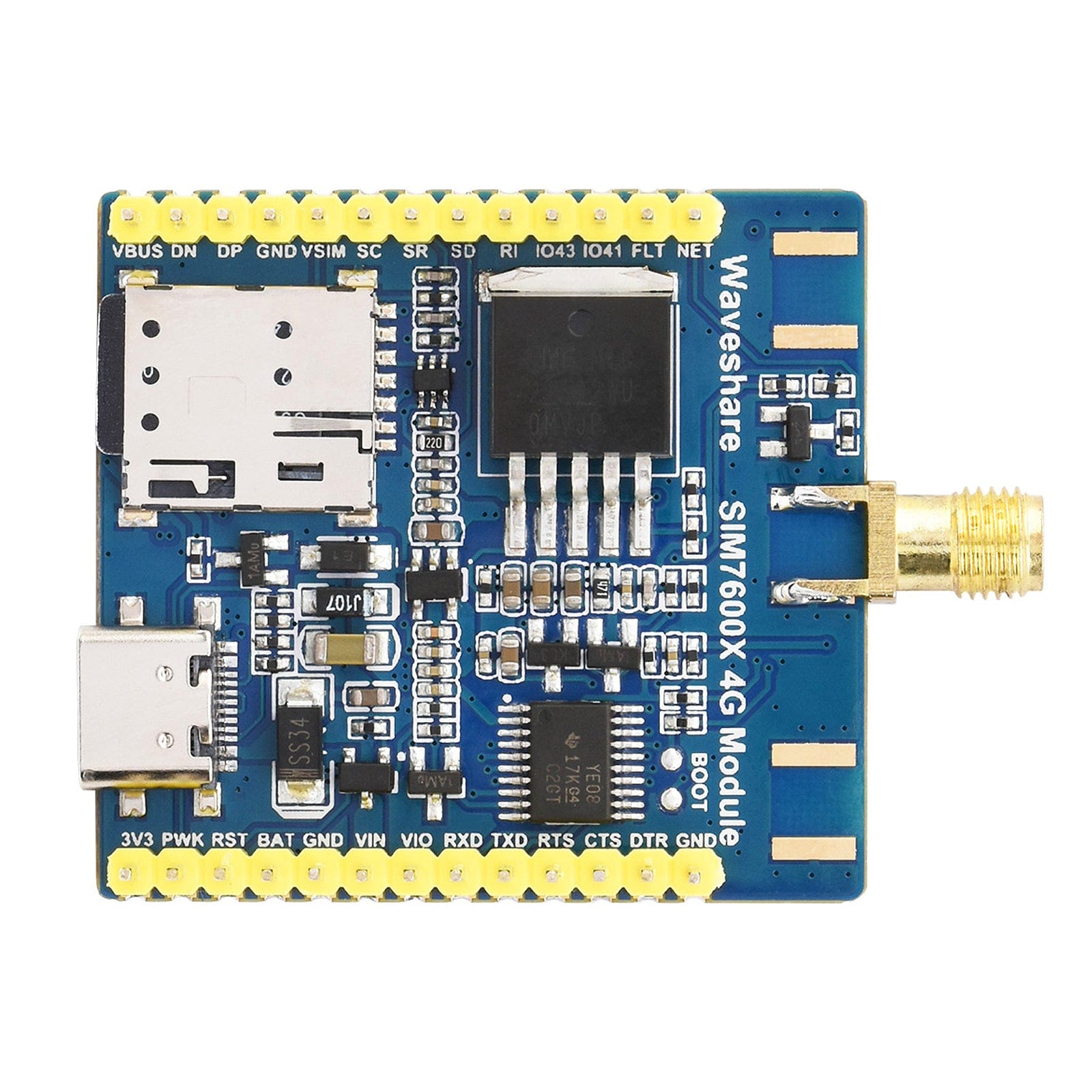

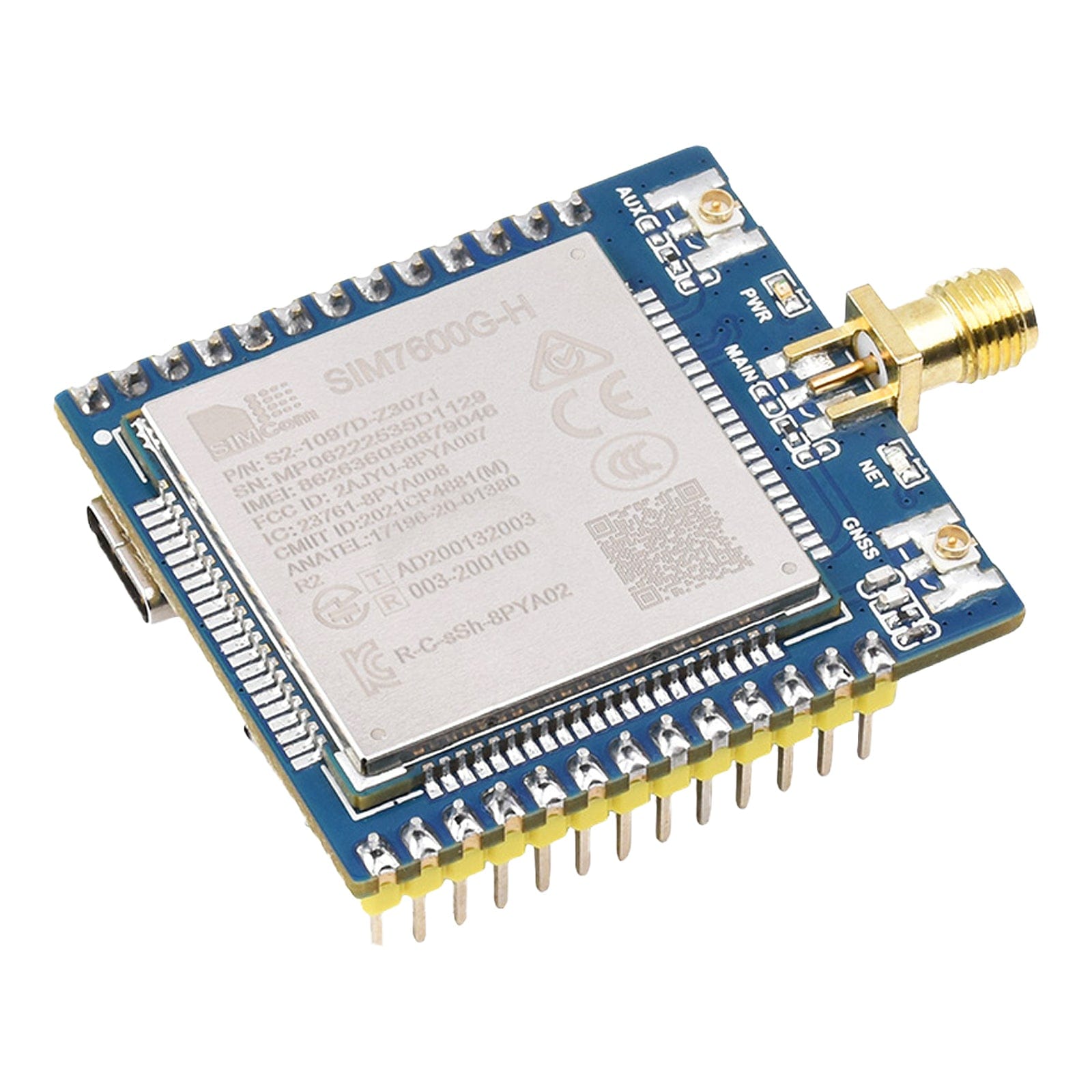

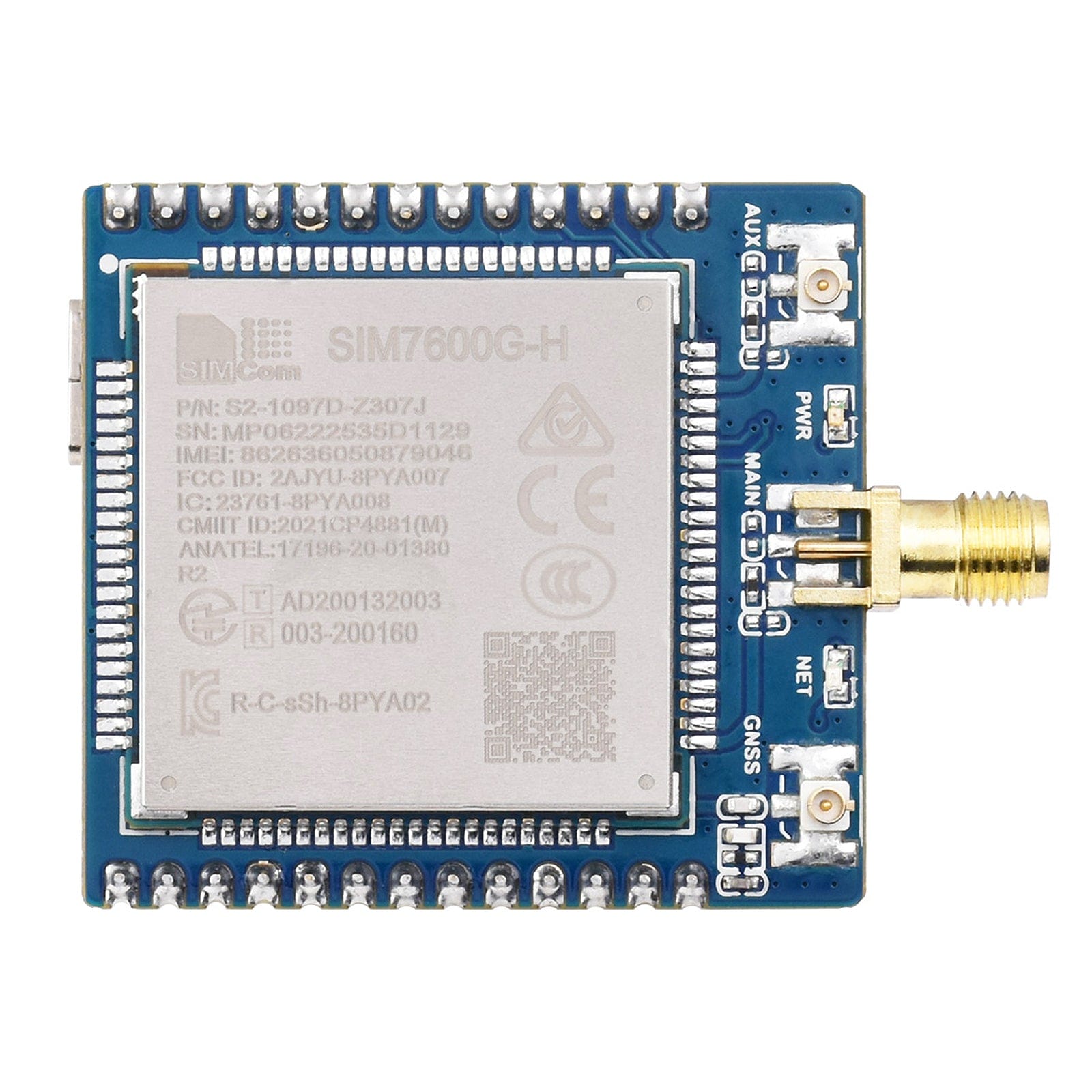

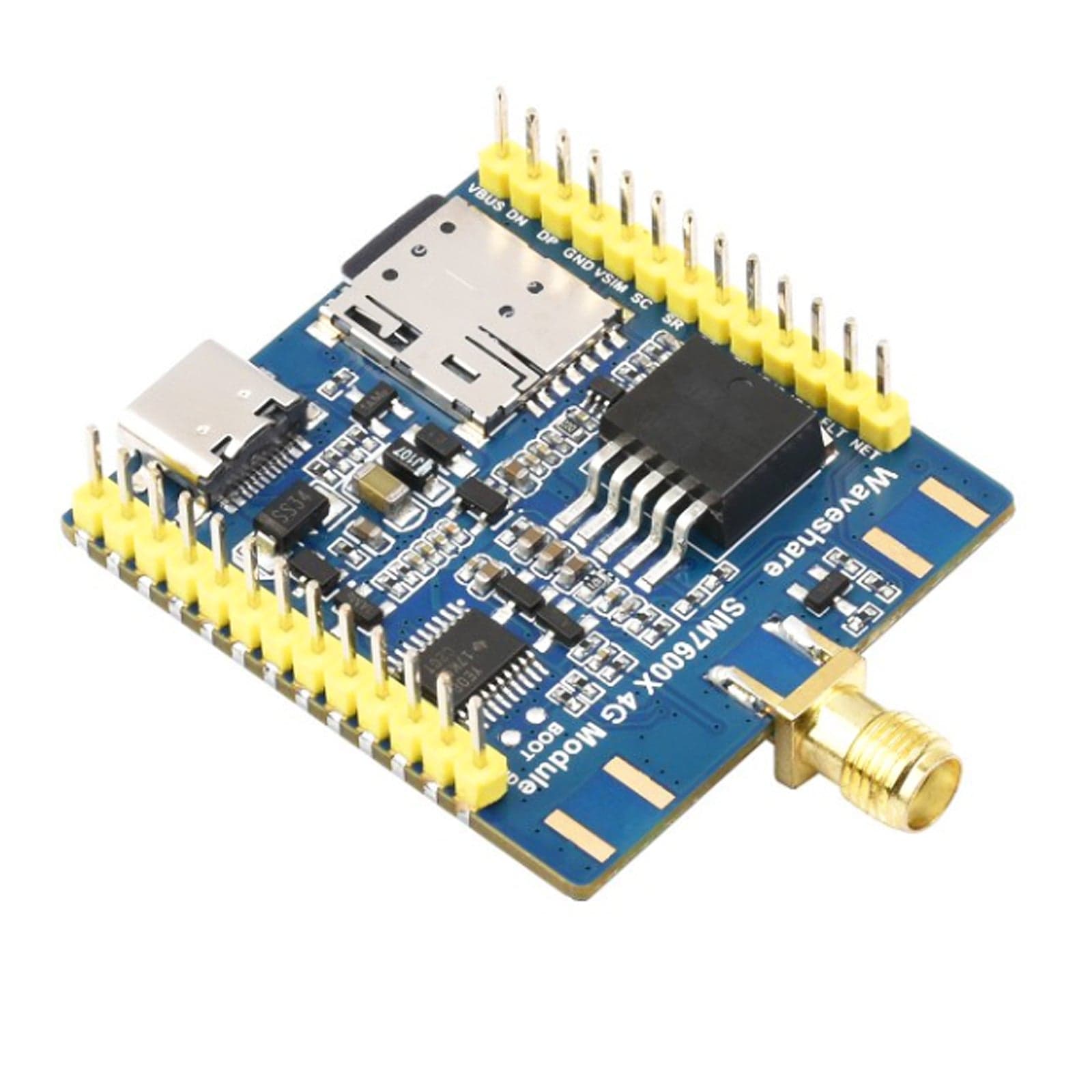

SIM7600X 4G Communication Module

This SIM7600X (SIM7600G-H) 4G Module is a multi-band support communication module that is compatible with 4G, 3G and 2G networks. With its GNSS positioning supporting GPS, BeiDou, Glonass, GALILEO, QZSS, and LBS base station positioning, you'll get highly accurate geolocation information relayed to the module. For ease of use, this module comes with the SMA main antenna, and the pin header already soldered on for you.

This is compatible with a range of development boards, including Raspberry Pi, Raspberry Pi Pico, Arduino, and many more! It supports many communication protocols including SMS, TCP, UDP, MQTT, DTMF, HTTP, and FTP.

A USB-C port for power, a Nano SIM port, and with its small size for easy integration, this module can be used for a wide variety of projects and is easy to use.

Features

• Compatible with 2G/3G/4G network
• Supports dial-up, telephone calls, SMS, TCP, UDP, MQTT, DTMF, HTTP, and FTP
• Supports GPS, BeiDou, Glonass, GALILEO, QZSS, and LBS base station positioning
• Onboard USB and UART interface, for dial-up internet access, cloud platform communication, and GNSS positioning.
• Castellated holes with immersion gold design, small size, easy to integrate into the device by soldering directly or inserting via the pin header
• Adapting USB/UART/SIM card/GPIO control pins, easy to develop and debug, better expansibility
• Built in voltage translator, compatible with 3.3V/5V MCU motherboards such as STM32/ESP32/Arduino
• Supports multiple power supply methods: USB port, VIN pin, and VBAT pin (for 3.7V lithium battery)
• Onboard multiple protection circuits: TVS protection for SIM card, power supply isolation between the USB port and pin header, VIN pin power supply
• anti-reverse, and so on, more safe and reliable
• 2x LED indicators, easy to monitor the operating status
• Adopts SIMCOM recommended power supply solution, supports 5~26V wide voltage power supply and 3A high current output, to prevent the module
• from dropping and restarting due to the large instantaneous power consumption, more stable and reliable in industrial use.
• Onboard Nano SIM card slot, supports 1.8V and 3V SIM cards, near the edge of the board design, for easy accessing SIM card
• Comes with online development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
• Adapting 3-channel antenna connector, IPEX antenna connector version and SMA connector version optional, supports mass customization

What's on Board

Specifications

Resources

• Product Wiki

Pinout

Package Contents

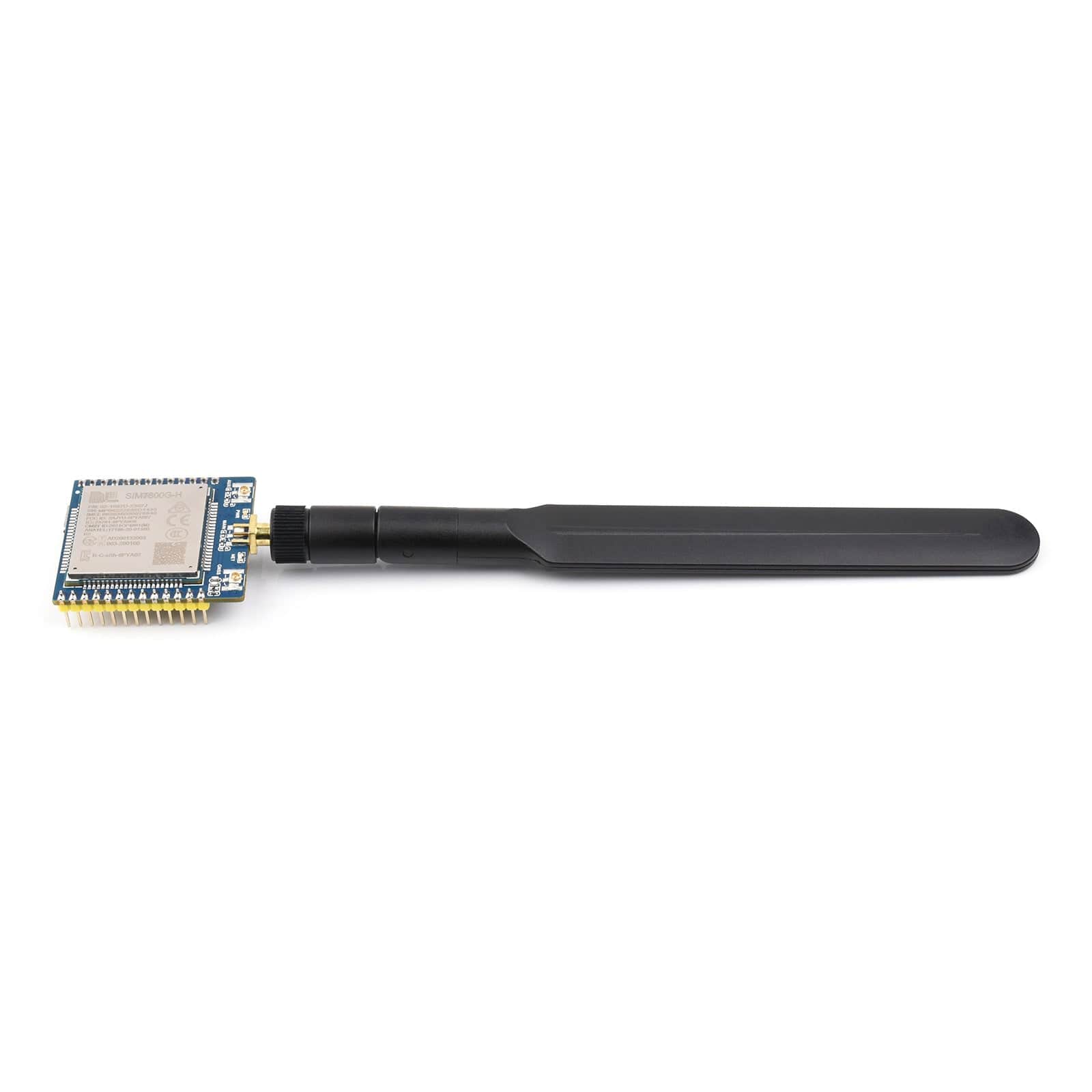

• 1x SIM7600X 4G Module pre-soldered version

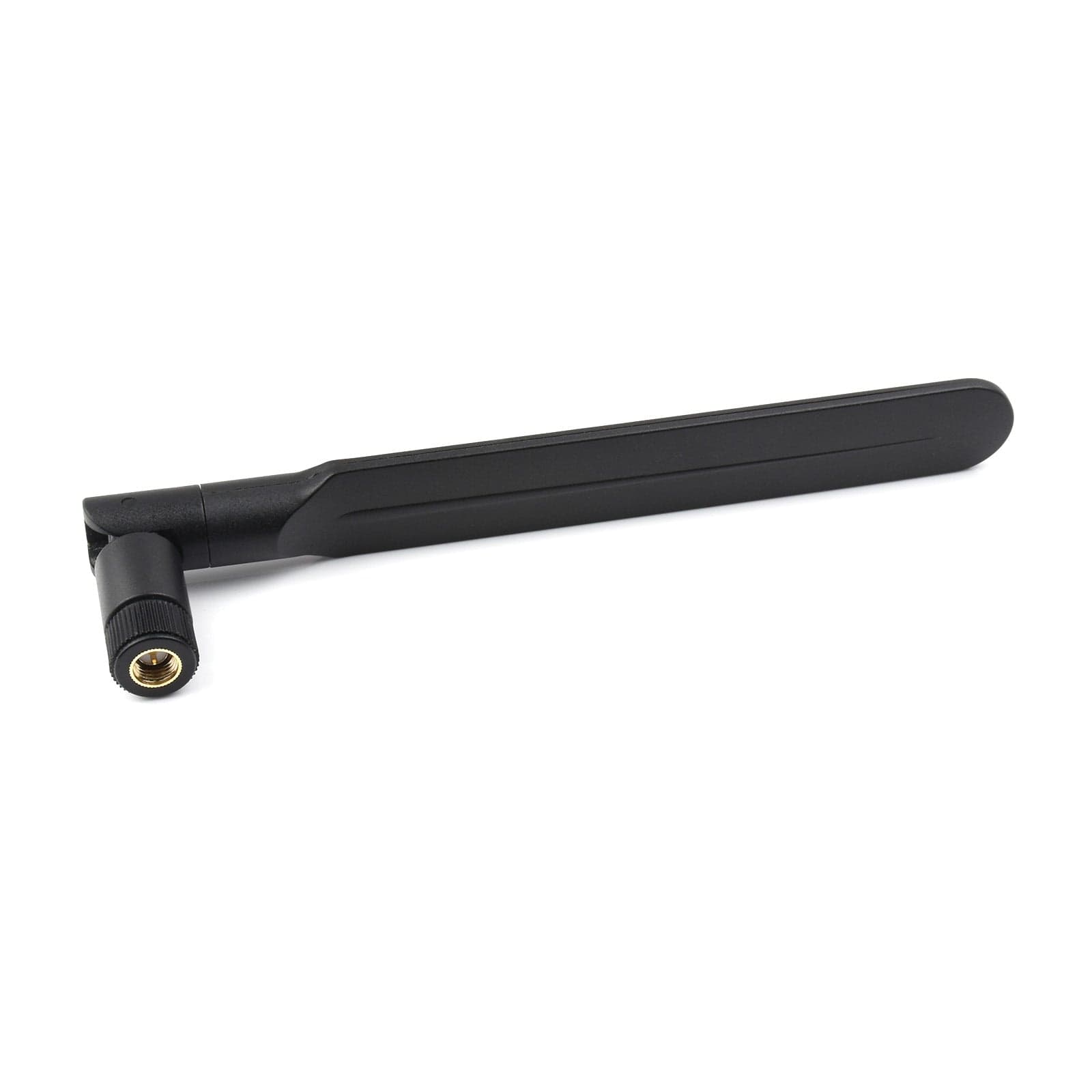

• 1x 4G antenna
